Berner Architectural Icon 10 Series Unheated Air Curtain for 72-83 Inch Openings

SKU: AI10-F-2072A
$4,202.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

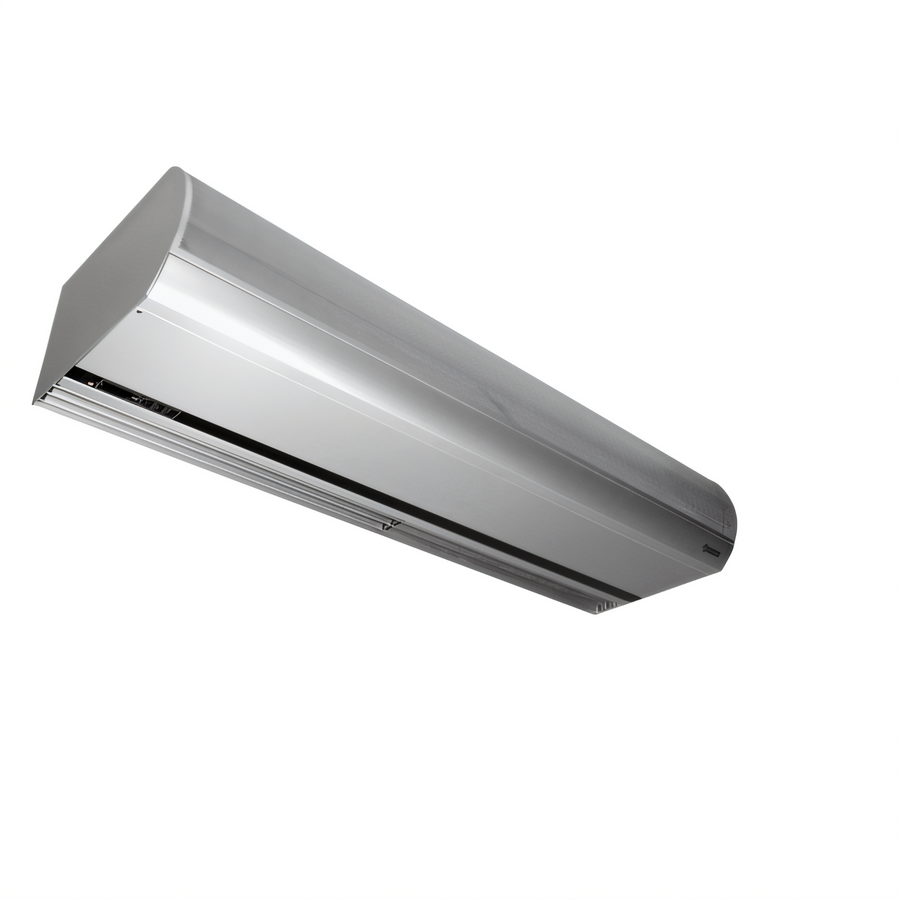

Berner Architectural Icon 10 Series Unheated Air Curtain for 72-83 Inch Openings

10 Ft Mounting Height, 2-Motor, 1/2 HP, Wall or Top Mount

A sleek, unheated air curtain that helps control climate and keep insects out at large entrances up to 10 feet high.

  • Designed for climate control at openings with mounting heights up to 10 feet.
  • Provides insect protection for openings up to 8 feet high.
  • Factory-installed Intelliswitch digital controller includes touchscreen operation and 10-speed control.
  • Two 1/2 HP motors and a low-noise articulating Pro-V nozzle support efficient airflow.
  • Clear satin anodized aluminum cabinet delivers an architectural appearance.
  • Washable filter and easy-access service features help simplify maintenance.

Overall Dimensions:

74.13"W x 22.0"D x 12.63"H

Product Weight:

218.0 lb

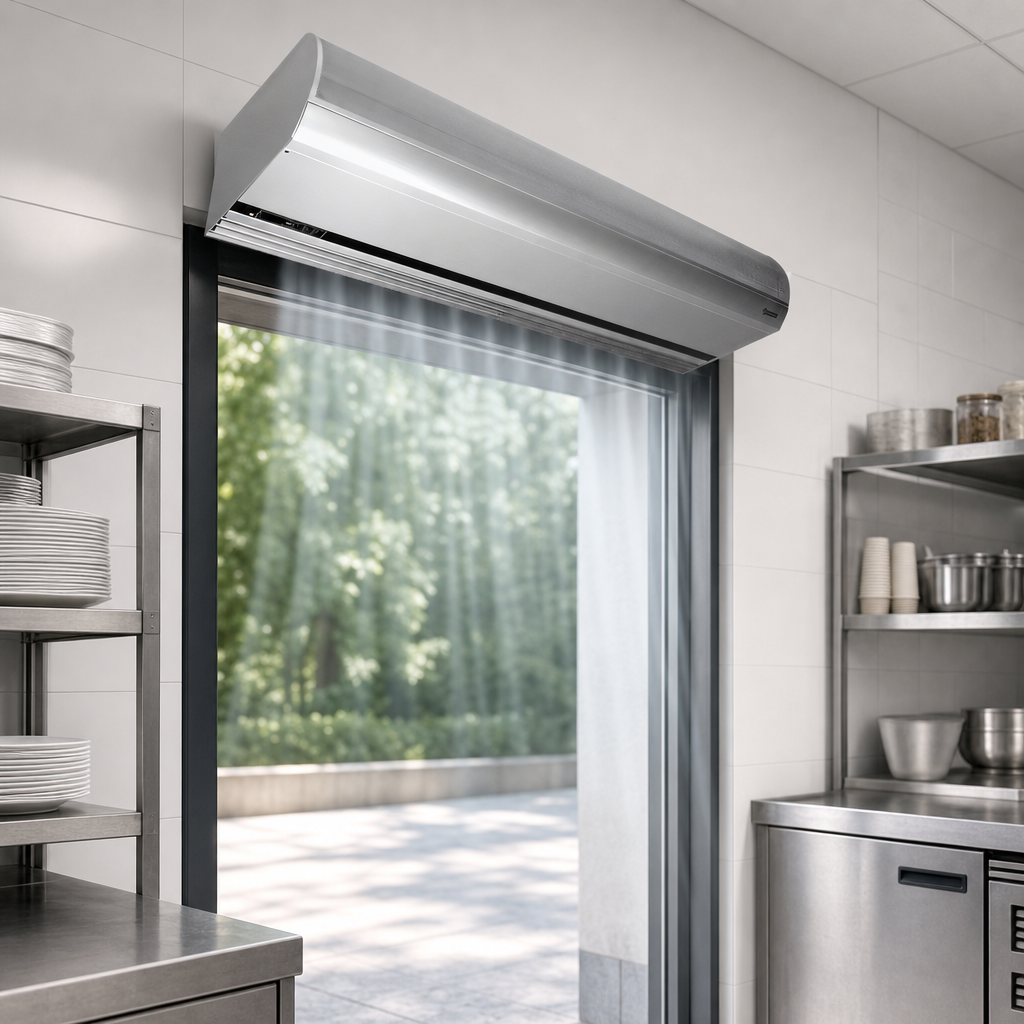

Unheated Air Curtain

Provides air barrier performance without added heat, making it suited for climate control applications.

Unheated Air Curtain

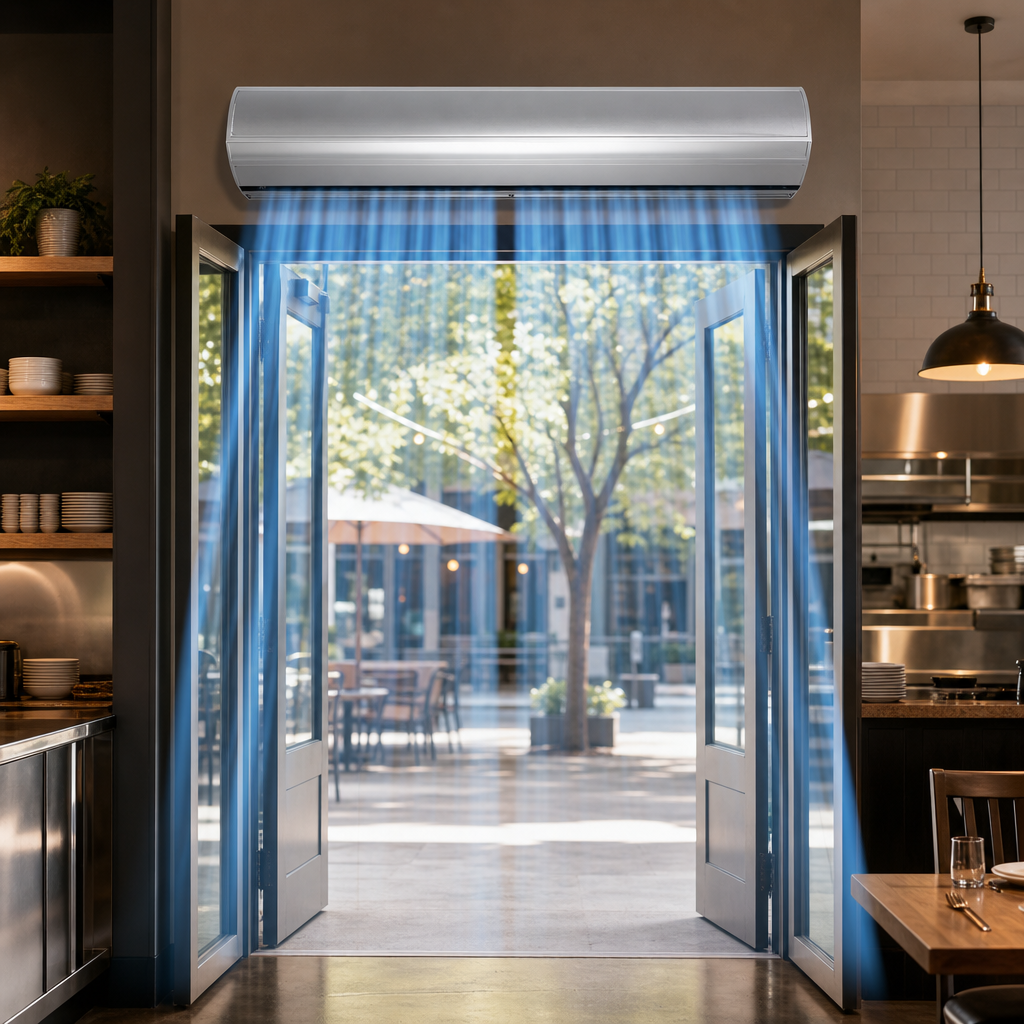

Large Opening Coverage

Configured for mounting heights up to 10 feet and insect protection up to 8 feet.

Large Opening Coverage

Intelliswitch Digital Controller

Factory-installed controller with touch screen, LED clock display, 10 speeds, low-voltage activation provision, external thermostat provision, and Comfort Plus provision.

Dual 1/2 HP Motors

Two AC motors deliver the power needed for larger entrance applications.

Clear Satin Anodized Aluminum Cabinet

An architectural exterior cabinet finish that blends cleanly with front-of-house installations.

Washable Filter

Reusable filter helps simplify routine cleaning and maintenance.

Flexible Mounting

Wall mounting system is included, with threaded inserts for top mounting and a bottom access panel for service.

Articulating Pro-V Nozzle

High-efficiency, low-noise nozzle design helps direct airflow effectively across the opening.

Type Unheated Air Curtain
Style Architectural
Installation Type Wall Mounted
Material Aluminum
Finish Clear Satin Anodized Aluminum
Controls Digital Programmable Touchscreen
Motor Count 2
Horsepower Per Motor 1/2 HP
Maximum Mounting Height 10 Feet
Insect Protection Height 8 Feet
Opening Width Range 72 to 83 Inches
Shipping Width 75 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 218 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is designed for climate control at mounting heights up to 10 feet and insect protection up to 8 feet.
It includes a factory-installed Intelliswitch digital controller with a touch screen and 10-speed operation.
Yes. The unit supports wall mounting and also has threaded inserts for top mounting.
It includes a washable filter and a bottom access panel for easier servicing.
Ambient or unheated units carry a five-year parts warranty.
