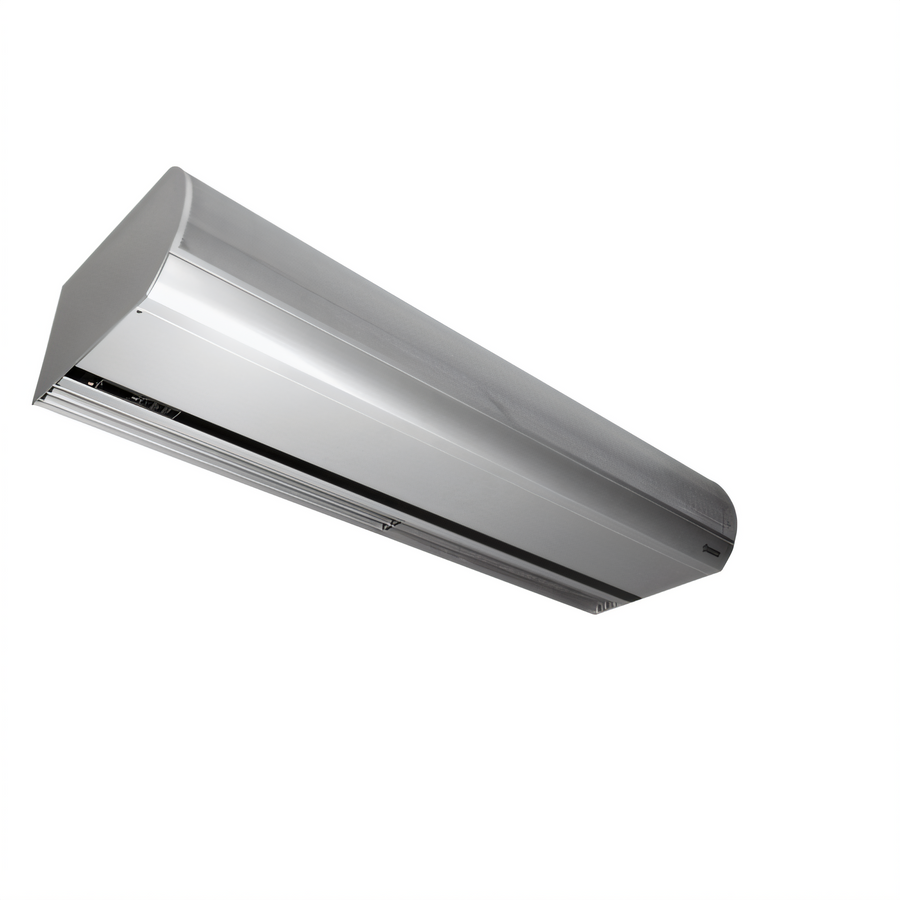

Berner Architectural Icon 10 Series 60-Inch Unheated Air Curtain with 1/2 HP Motor

For Openings Up to 10 Feet; Wall or Top Mount; Intelliswitch Touchscreen Control

This unheated architectural air curtain helps maintain comfortable, insect-resistant entryways up to 10 feet high with quiet, low-maintenance performance.

  • Unheated air curtain designed for climate control at 10-foot mounting heights.
  • Provides insect protection for openings up to 8 feet high.
  • Single 1/2 HP motor delivers dependable airflow for entrance applications.
  • Factory-installed Intelliswitch controller adds programmable touchscreen control.
  • Washable filter and bottom access panel simplify routine maintenance.
  • Wall or top mounting flexibility supports a range of entrance installations.

Overall Dimensions:

61.13"W x 22.0"D x 12.63"H

Product Weight:

152.0 lb

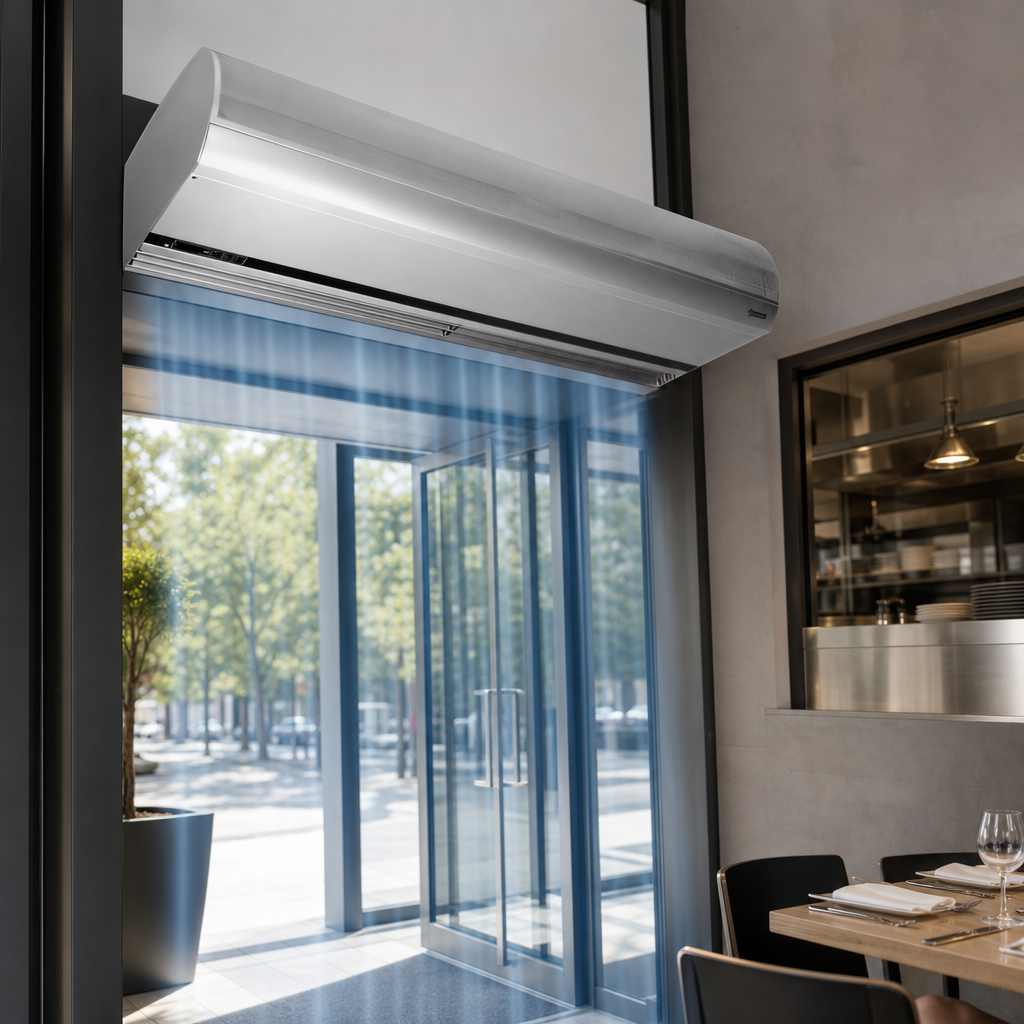

Unheated Ambient Design

Provides air curtain protection without added heat for energy-conscious entrance control.

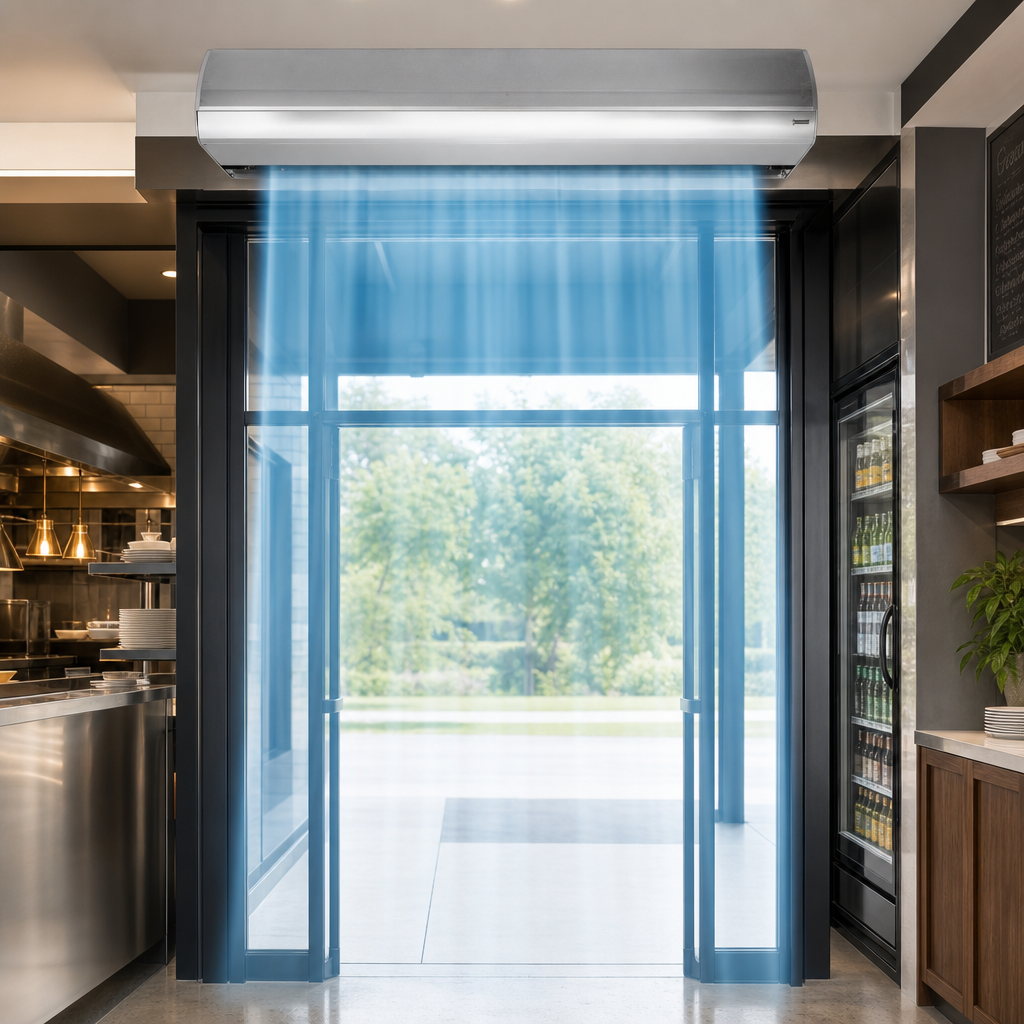

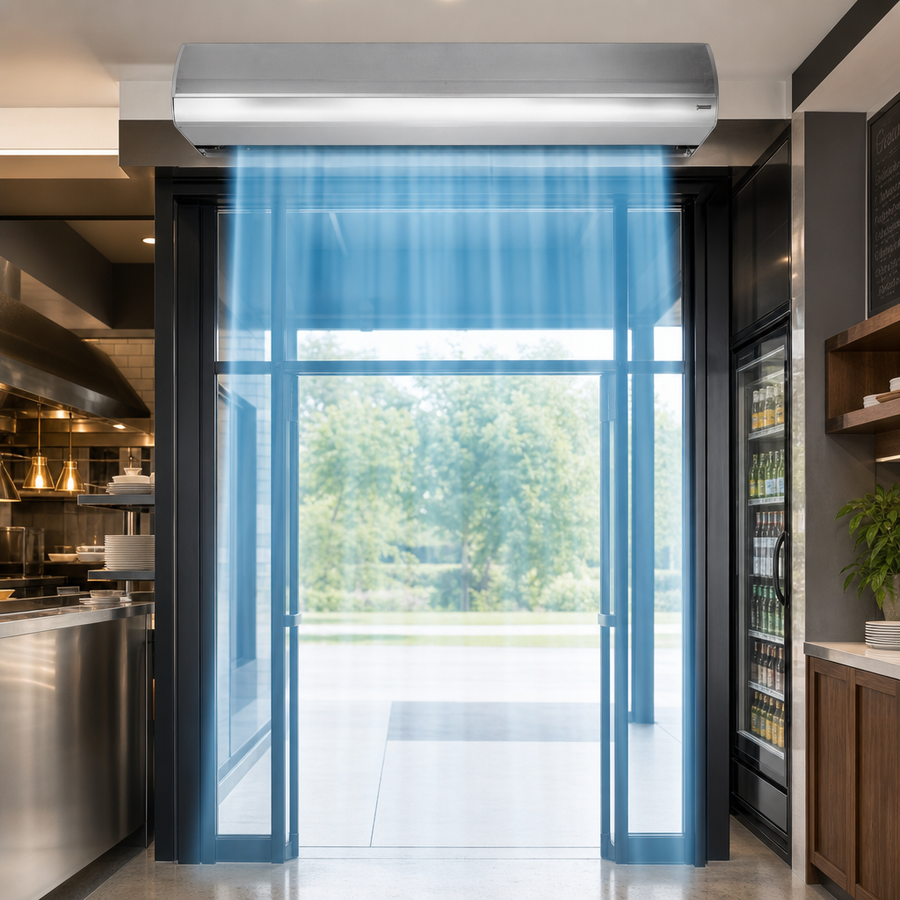

10-Foot Climate Control Coverage

Built for climate control applications at mounting heights up to 10 feet.

8-Foot Insect Protection

Helps protect open entrances from insects at mounting heights up to 8 feet.

Factory-Installed Intelliswitch Controller

Includes a digital programmable controller with touchscreen operation and ten-speed control.

Single 1/2 HP Motor

Uses one AC motor to support reliable air delivery across the opening.

Washable Filter

Reusable filter helps reduce maintenance and supports easier upkeep.

Wall or Top Mounting

Designed for wall mounting, with threaded inserts for top mounting options.

Clear Satin Anodized Aluminum Cabinet

Anodized aluminum exterior cabinet provides a clean architectural appearance.

Type Unheated Air Curtain
Style Architectural
Installation Type Wall Mounted
Material Aluminum
Finish Clear Satin Anodized Aluminum
Controls Digital Programmable
Motor Count 1
Horsepower Per Motor 1/2 HP
Maximum Mounting Height 10 Feet
Insect Protection Height 8 Feet
Shipping Width 62 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 152 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year parts warranty for ambient/unheated units

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

No. This model is unheated, or ambient.
It is designed for climate control at up to 10 feet and insect protection at up to 8 feet.
It includes a factory-installed Intelliswitch digital programmable controller with touchscreen operation.
Yes. It includes a wall mounting system and threaded inserts for top mounting.
Yes. The unit includes a washable filter.
Ambient, unheated units carry a five-year parts warranty.
