Berner Architectural Icon 10 42-Inch Electric Heated Air Curtain

1/2 HP Motor, Factory-Installed Intelliswitch, Wall or Top Mount

A sleek electric heated air curtain that helps protect open doorways up to 10 feet high with quiet, efficient airflow and easy digital control.

  • Electric heated air curtain for environmental separation at openings up to 10 feet and insect control up to 8 feet.
  • Factory-installed Intelliswitch digital controller with ten-speed operation.
  • Single 1/2 HP motor design for quiet, efficient performance.
  • Clear satin anodized aluminum cabinet with a washable filter for easier maintenance.
  • Wall or top mounting flexibility for a variety of installation needs.
  • 2-year limited warranty on heated models.

Overall Dimensions:

44.13"W x 22.0"D x 12.63"H

Product Weight:

122.0 lb

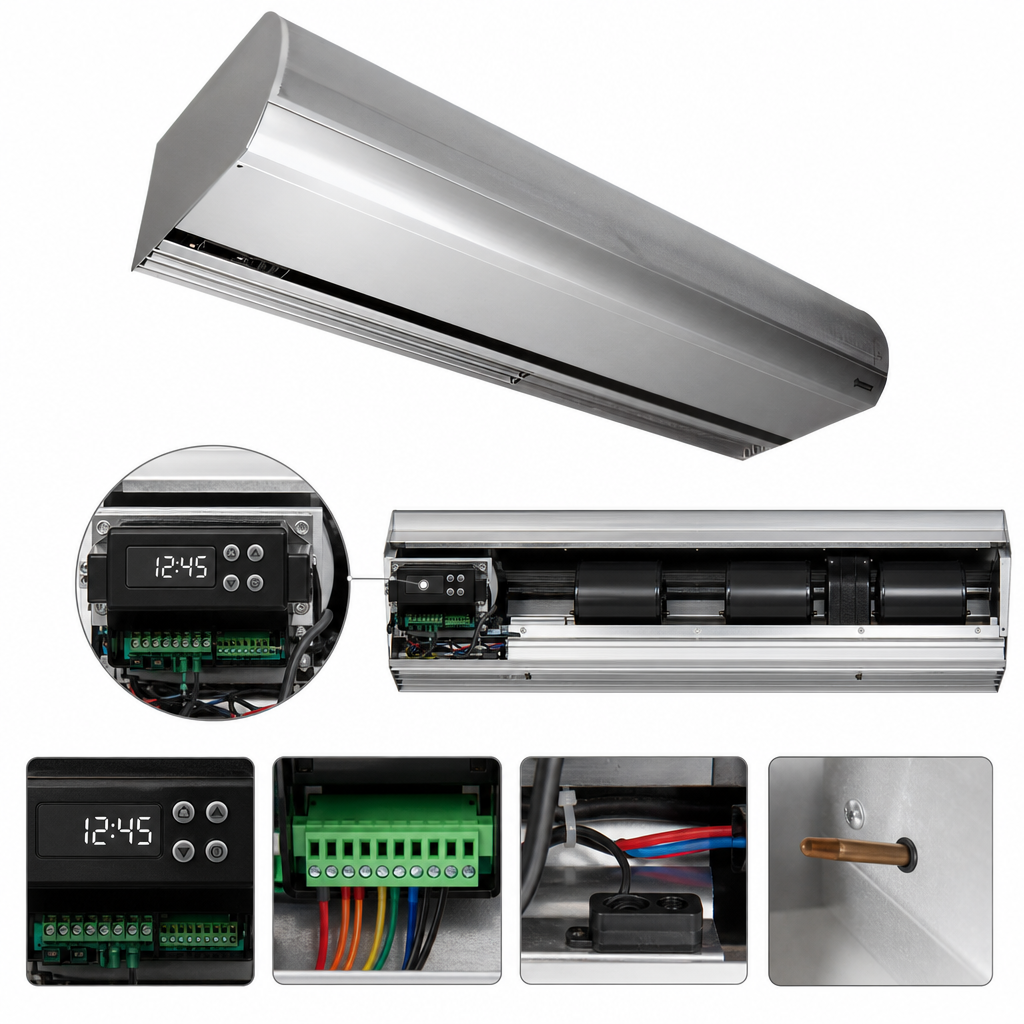

Factory-Installed Intelliswitch Controller

Digital programmable controller with ten speeds, LED clock display, low-voltage circuit for unit activation, external thermostat provision, Comfort Plus provision, and heated-unit temperature probe support.

Factory-Installed Intelliswitch Controller

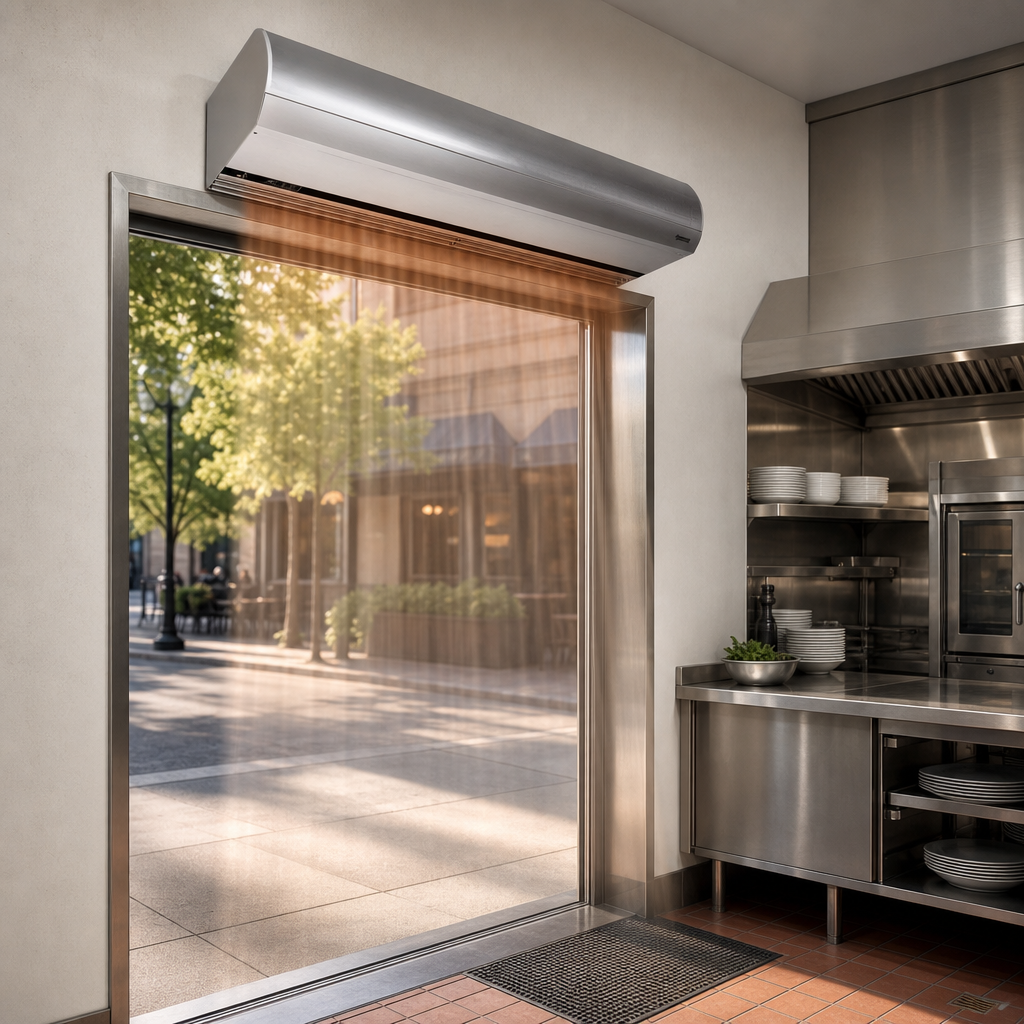

Designed For Open Door Climate Control

Recommended for mounting heights up to 10 feet for environmental separation and up to 8 feet for insect protection.

Designed For Open Door Climate Control

1/2 HP Single-Motor Design

Uses one 1/2 HP motor to deliver air movement in a compact architectural package.

Pro-V Nozzle

High-efficiency, low-noise articulating three-vane nozzle helps direct airflow across the opening.

Patented Electric Heater

Single-stage venturi electric heater with open-element design for heated applications.

Washable Filter

Reusable filter supports easier maintenance and helps protect internal components.

Clear Satin Anodized Aluminum Cabinet

Durable exterior cabinet with an architectural anodized aluminum finish.

Wall Or Top Mounting

Includes wall mounting hardware and threaded inserts for top mounting.

Type Heated Air Curtain
Style Architectural
Installation Type Wall Mounted
Material Aluminum
Finish Clear Satin Anodized Aluminum
Controls Digital Programmable
Horsepower 1/2 HP
Motors 1
Maximum Opening Height 10 Feet
Insect Control Height 8 Feet
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 45 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 122 Pounds

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for environmental separation at mounting heights up to 10 feet and for insect control up to 8 feet.
It includes a factory-installed Intelliswitch digital controller with ten-speed operation and programmable features.
Yes. It is designed for wall mounting and can also be top mounted.
Yes. The unit includes a washable filter.
Heated models include a 2-year limited warranty.
