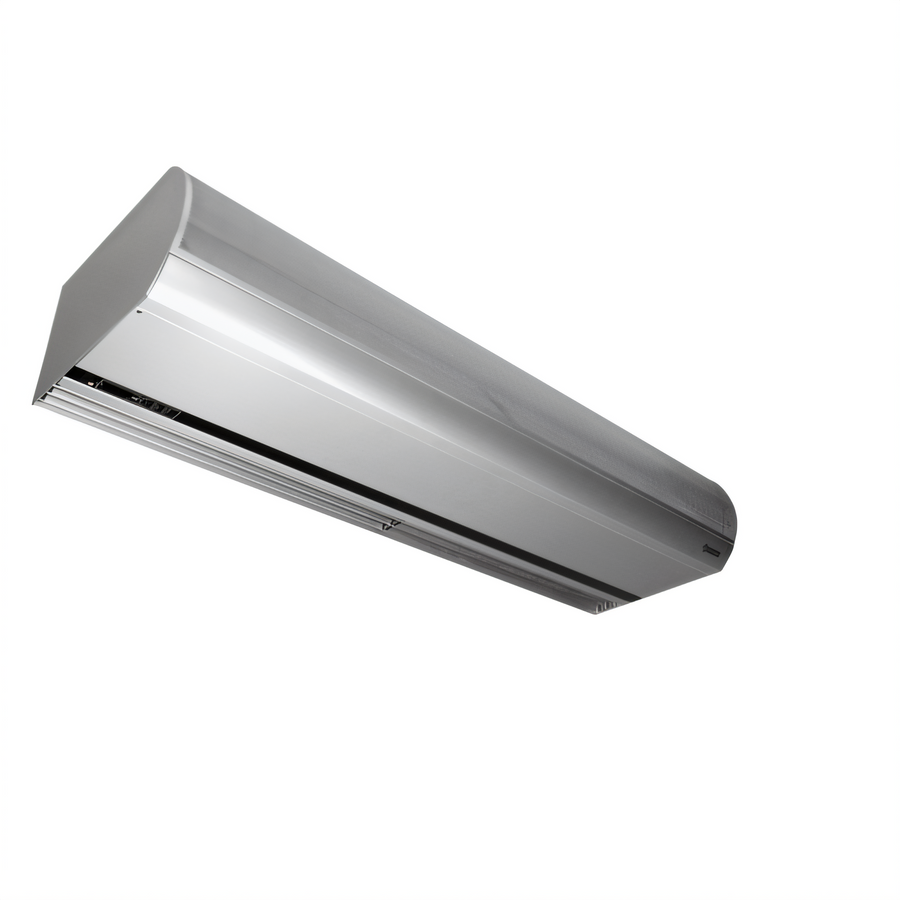

Berner Architectural Icon 10 Series Unheated Air Curtain, 36-Inch Wide, 1/2 HP, 10-Foot Mounting Height

Wall or Top Mount, Digital Intelliswitch Controller, Washable Filter

This sleek, unheated air curtain helps maintain comfortable interiors and protect open entrances with quiet, touch-screen-controlled performance.

  • Unheated air curtain designed for climate control at openings up to 10 feet high.
  • 36-inch-wide cabinet with a single 1/2 HP motor for dependable airflow.
  • Factory-installed Intelliswitch digital programmable controller with touch screen and ten speeds.
  • Washable filter, articulating Pro-V nozzle, and low-noise design help simplify upkeep.
  • Wall mounting system is included, and top mounting is also supported for added flexibility.

Overall Dimensions:

38.13"W x 22.0"D x 12.63"H

Product Weight:

109.0 lb

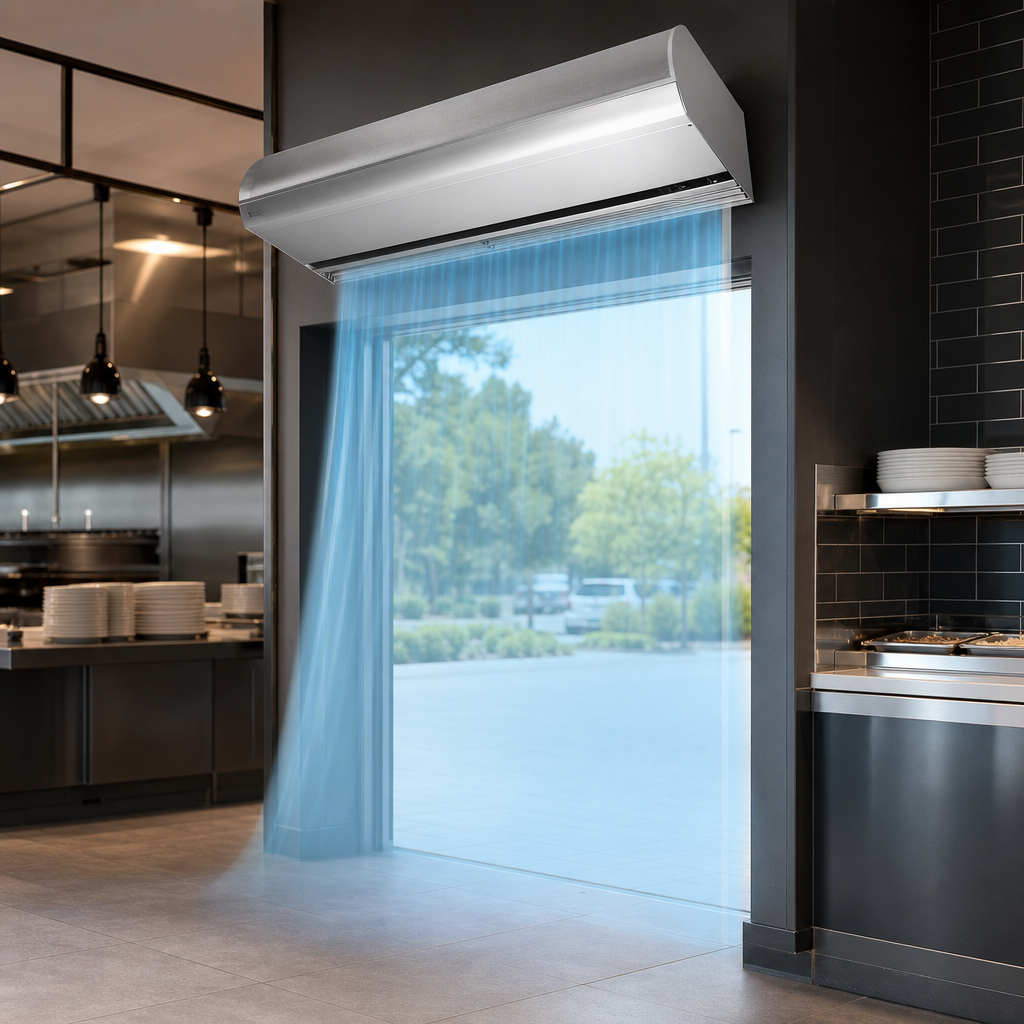

10-Foot Climate Control Coverage

Built for mounting heights up to 10 feet, with insect protection up to 8 feet.

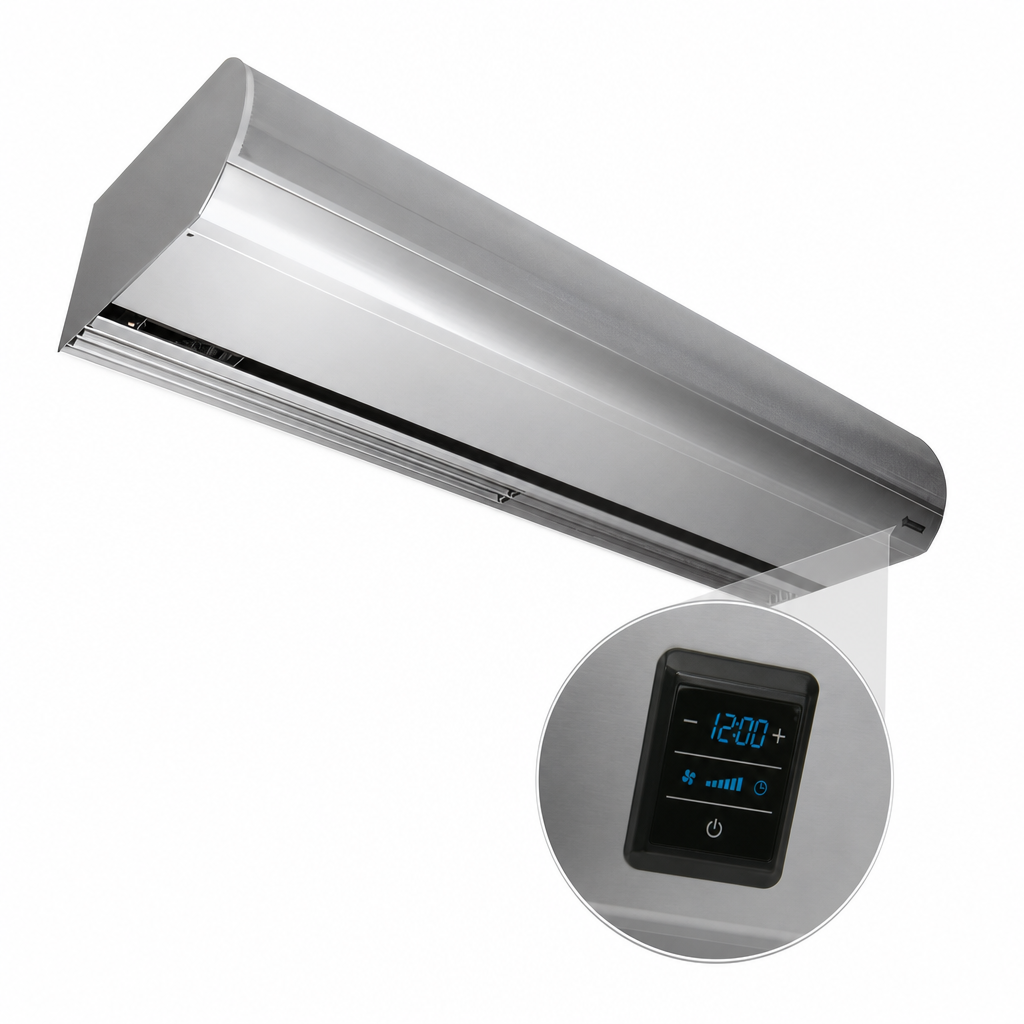

Factory-Installed Intelliswitch Controller

Digital programmable controller with touch screen, LED clock display, ten speeds, and external activation provisions.

Single 1/2 HP Motor

One AC motor provides airflow for the 36-inch architectural cabinet.

Washable Filter

Reusable filter helps protect internal components and simplifies routine maintenance.

Architectural Anodized Cabinet

Clear satin anodized aluminum exterior cabinet delivers a clean, low-profile appearance.

Low-Noise Pro-V Nozzle

High-efficiency articulating nozzle helps direct airflow while supporting quieter operation.

Flexible Mounting and Service Access

Wall mounting system is included, 1/4-inch threaded inserts are provided for top mounting, and a bottom access panel improves service access.

Type Unheated Air Curtain
Style Architectural
Installation Type Wall Mounted
Controls Programmable Digital Touchscreen
Maximum Opening Height 10 Feet
Insect Protection Height 8 Feet
Motors 1
Horsepower 1/2 HP
Filter Type Washable
Nozzle Type Articulating Pro-V
Material Aluminum
Finish Clear Satin Anodized
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 39 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 109 lb.

Certifications & Compliance

Warranty & Protection

5-year parts warranty for ambient units

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is designed for climate control at a 10-foot mounting height and provides insect protection up to 8 feet.
It includes a factory-installed Intelliswitch digital programmable controller with a touch screen, LED clock display, ten-speed control, and activation provisions.
Yes. A wall mounting system is included, and the unit also has threaded inserts for top mounting.
No assembly is required. The unit also includes a bottom access panel for easier service access.
Ambient units carry a five-year parts warranty. Heated units carry a two-year parts warranty.
