Berner Architectural Icon 8 Electric Heated Air Curtain, 108 Inch, 2-Motor, 1/5 HP

Recommended for up to 8 ft openings; wall or top mount; touchscreen control

This slim, low-noise air curtain is built for architectural entrances, delivering heated climate control and insect protection through a 108-inch, touchscreen-controlled design.

  • 108-inch electric heated air curtain for architectural entrance applications
  • Recommended for mounting heights up to 8 feet, with insect protection up to 7 feet
  • Factory-installed Intelliswitch digital controller with touch screen and programmable operation
  • Two 1/5 HP motors provide ten-speed performance
  • Wall or top mounting supports flexible installation
  • Clear satin anodized aluminum cabinet offers a clean, durable architectural look
  • Washable filter simplifies routine maintenance
  • Heated units include a 2-year limited warranty

Overall Dimensions:

110.13"W x 16.0"D x 8.25"H

Product Weight:

173.0 lb

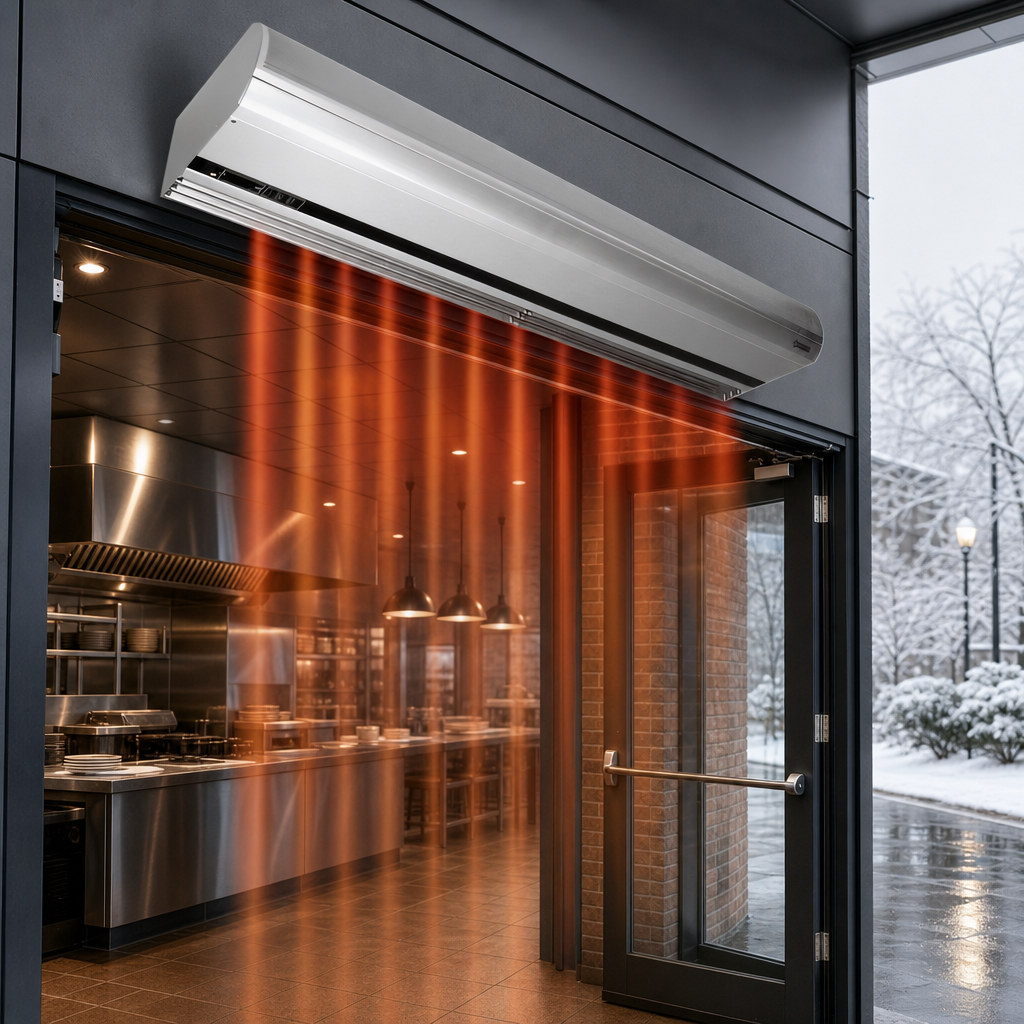

Electric Heated Air Curtain

Provides heated air discharge for open-door environmental separation at architectural entrances.

Electric Heated Air Curtain

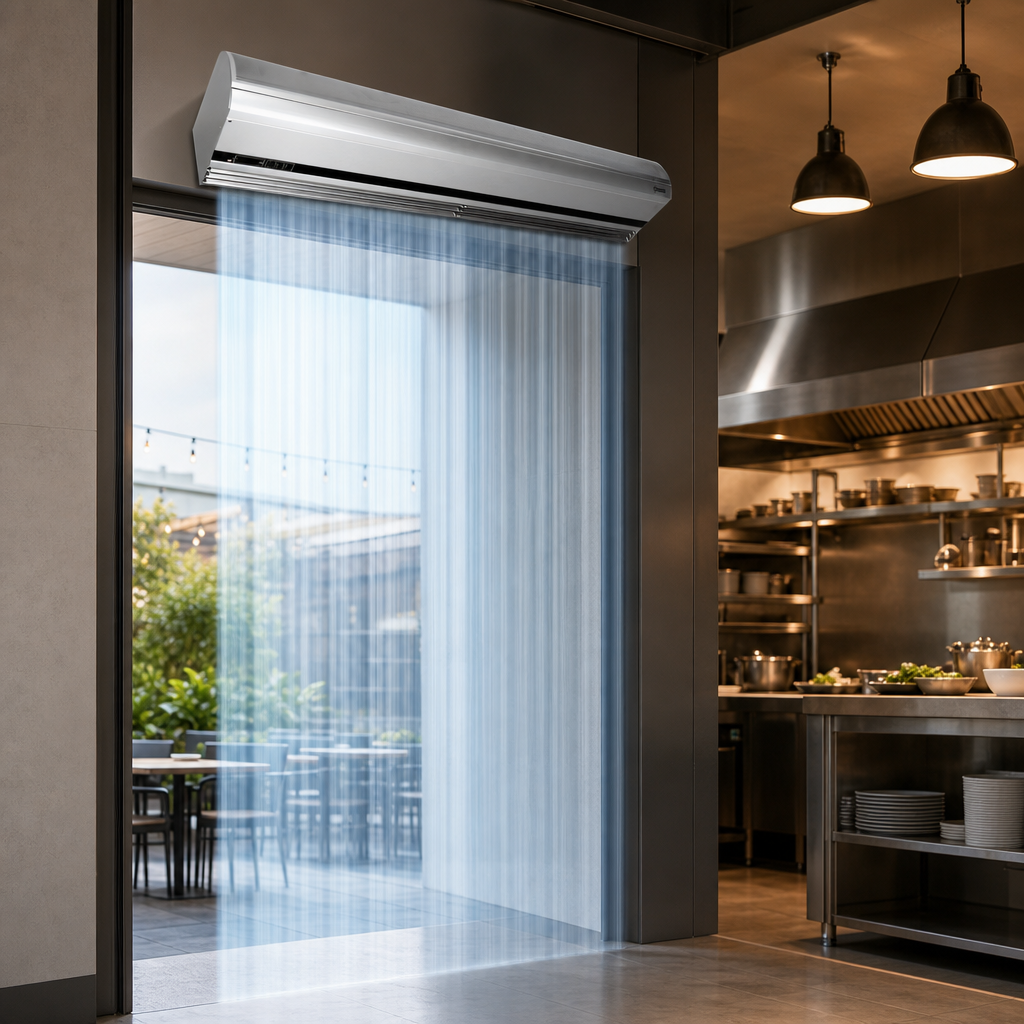

Recommended Mounting Height Up To 8 Feet

Designed for environmental separation at openings up to 8 feet high.

Recommended Mounting Height Up To 8 Feet

Insect Control Up To 7 Feet

Can be used for insect protection at mounting heights up to 7 feet.

Intelliswitch Digital Controller

Factory-installed programmable controller with touch screen display.

Two 1/5 HP Motors

Dual motors deliver ten-speed operation for air movement control.

Wall Or Top Mounting

Supports flexible installation with removable wall mounting bracket and spacer for top mounting.

Washable Filter

Re-cleanable filter helps simplify maintenance and extend service life.

Clear Satin Anodized Aluminum Cabinet

Durable architectural exterior finish for a clean, professional appearance.

Pro-V Nozzle

High-efficiency, low-noise articulating three-vane nozzle helps direct airflow effectively.

Type Electric Heated Air Curtain
Style Architectural
Installation Type Wall Mounted (Top Mount Option)
Controls Digital Programmable Touch Screen
Motor Count 2
Motor Horsepower 1/5 HP Each
Watts 28.8 kW
Material Aluminum
Finish Clear Satin Anodized Aluminum
Recommended Mounting Height Up to 8 Feet
Insect Control Height Up to 7 Feet
Shipping Width 111 Inches
Shipping Depth 16 Inches
Shipping Height 9 Inches
Shipping Weight 173 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for environmental separation at mounting heights up to 8 feet and for insect control up to 7 feet.
Yes. It comes with a factory-installed Intelliswitch digital controller with a touch screen.
Yes. The unit supports wall or top mounting, and the wall mounting bracket and spacer are removable for top mounting.
It uses a washable filter, so the intake filter can be cleaned and reused.
Heated units carry a 2-year limited warranty.
