Berner Architectural Icon 8 96-Inch Electric Heated Air Curtain, Dual Motor, Wall or Top Mount

SKU: AI08-F-2096E
$5,305.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

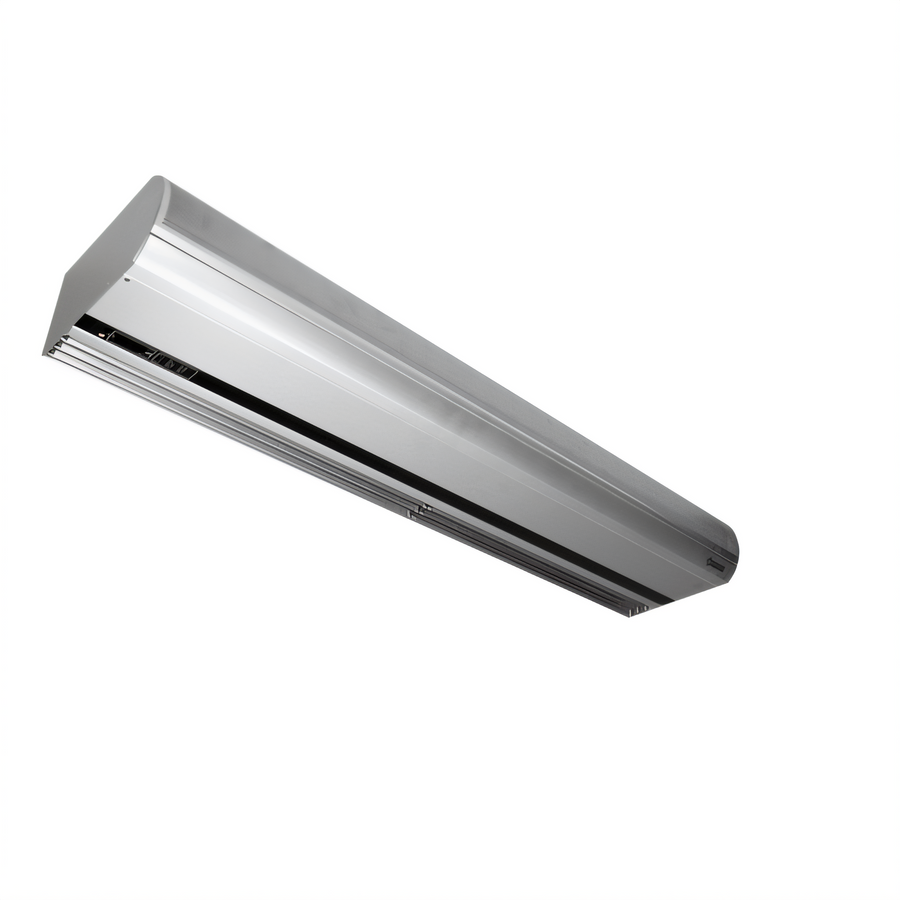

Berner Architectural Icon 8 96-Inch Electric Heated Air Curtain, Dual Motor, Wall or Top Mount

For openings up to 8 ft; insect control up to 7 ft; factory Intelliswitch controller

This 96-inch electric heated air curtain helps maintain comfortable interior conditions and insect protection at wide commercial entrances while keeping a clean architectural look.

  • Designed for environmental separation at mounting heights up to 8 feet and insect control up to 7 feet.
  • 96-inch width with 2 motors at 1/5 HP each for broad entrance coverage.
  • Factory-installed Intelliswitch digital controller with touch screen for easy operation.
  • Wall or top mounting flexibility supports a variety of installation needs.
  • Clear satin anodized aluminum cabinet blends into architectural spaces.
  • Washable filter and Pro-V nozzle help support efficient, low-noise performance.

Overall Dimensions:

98.13"W x 16.0"D x 8.25"H

Product Weight:

158.0 lb

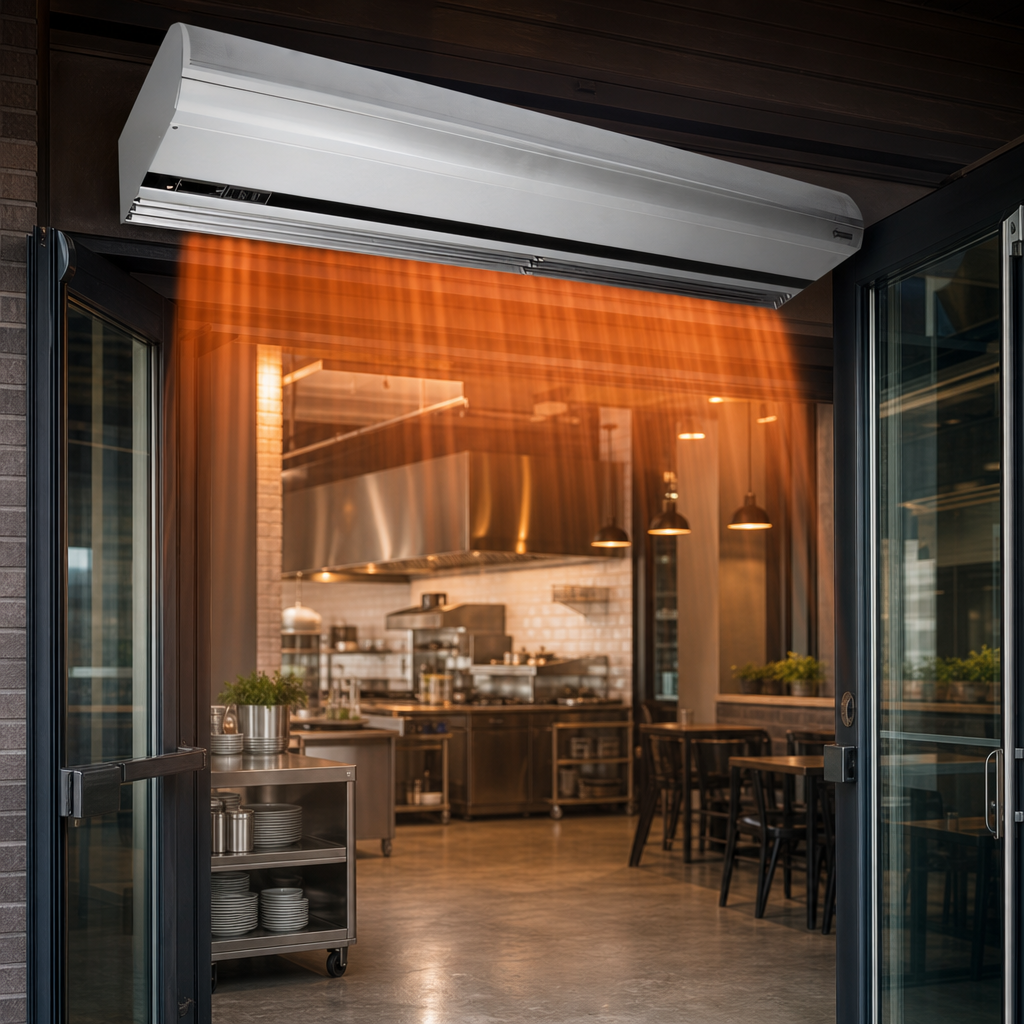

Electric Heated Air Curtain

Provides a heated air stream for climate control over open doorways and entryways.

Electric Heated Air Curtain

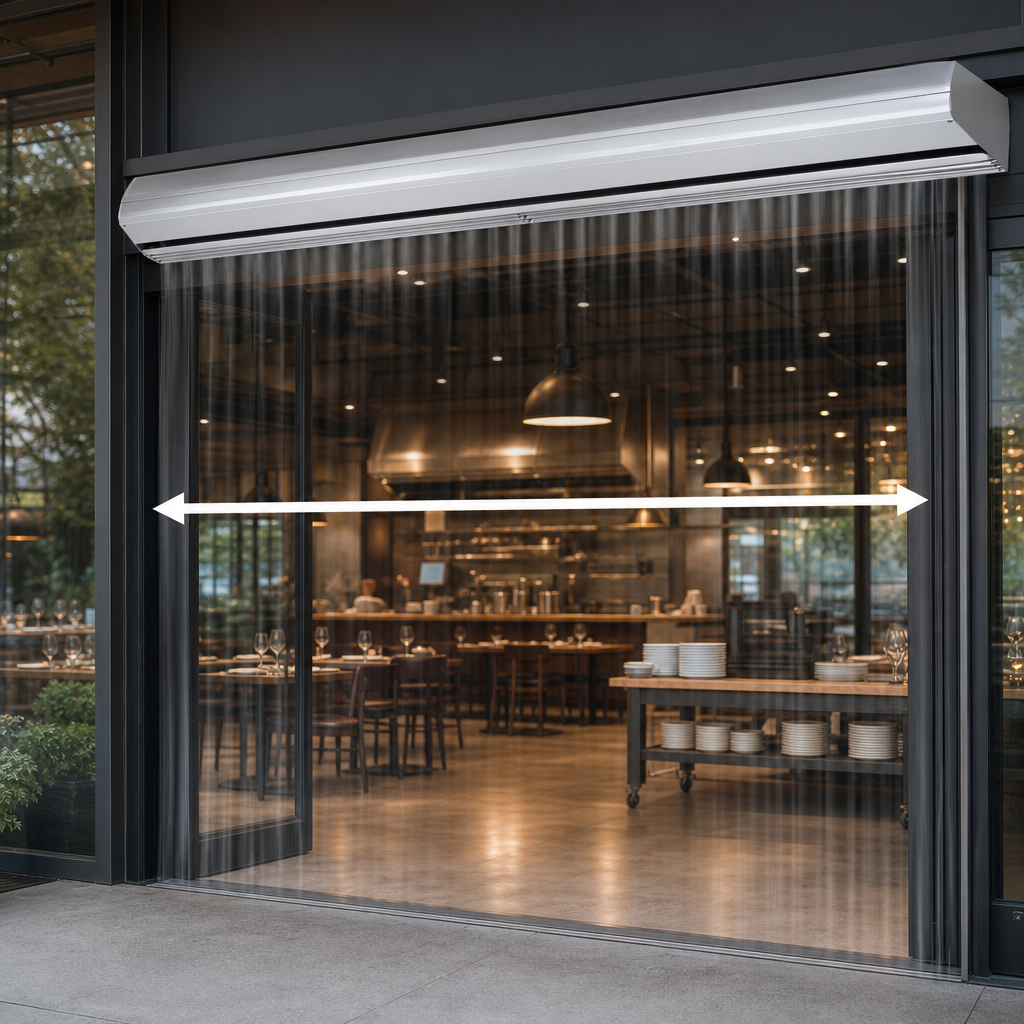

96-Inch Coverage

Sized for wide openings, making it suitable for larger commercial entrances.

96-Inch Coverage

Dual 1/5 HP Motors

Uses two motors to support air movement across the full unit width.

Intelliswitch Digital Controller

Factory-installed programmable controller with touch screen interface.

Washable Filter

Re-cleanable intake filter simplifies maintenance and helps keep the unit operating efficiently.

Wall Or Top Mounting

Installation flexibility allows the unit to be mounted on the wall or from the top.

Clear Satin Anodized Aluminum Cabinet

Durable, low-profile exterior finish designed for architectural applications.

Pro-V Nozzle

High-efficiency articulating three-vane nozzle designed for smooth air delivery.

Heated Unit Mounting Heights

Recommended for environmental separation up to 8 feet and insect protection up to 7 feet.

Type Heated Air Curtain
Style Architectural
Installation Type Wall Mounted
Material Aluminum
Finish Clear Satin Anodized
Controls Digital Programmable Touch Screen
Nozzle Type Pro-V
Motor Count 2
Horsepower Per Motor 1/5 HP
Maximum Mounting Height 8 Feet
Insect Control Mounting Height 7 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 99 Inches
Shipping Depth 16 Inches
Shipping Height 9 Inches
Shipping Weight 158 Pounds

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 8 feet for environmental separation and up to 7 feet for insect control.
Yes. The unit is designed for either wall mounting or top mounting.
Yes. It includes a factory-installed Intelliswitch digital controller with touch screen.
It uses a single-stage electric heater with an open-element design.
Yes. The unit includes a washable filter.
The heated unit carries a 2-year limited warranty.
