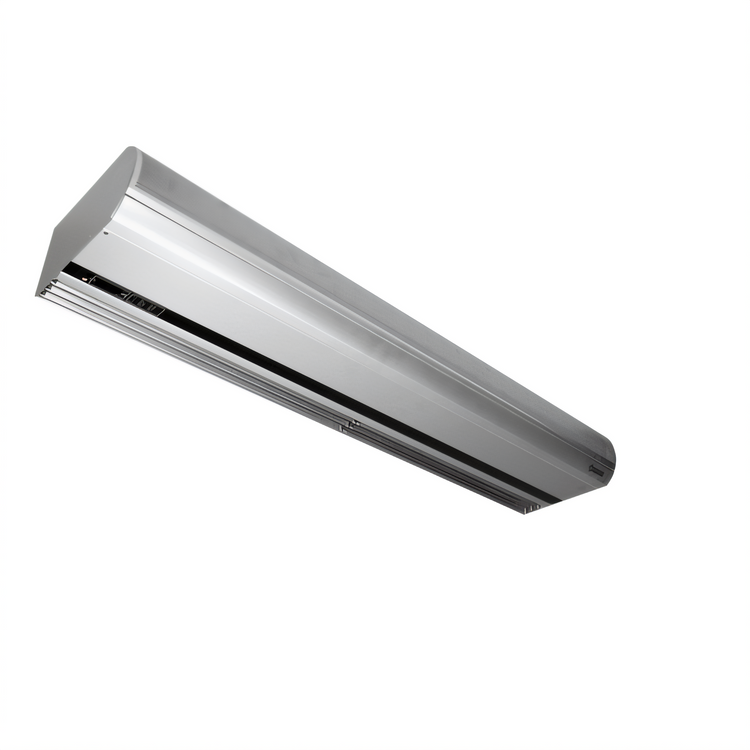

Berner Architectural Icon 8 Electric Heated Air Curtain, 84-Inch, Dual-Motor

Factory-Installed Intelliswitch Touchscreen Controller, Wall or Top Mount

A sleek architectural air curtain that delivers heated climate separation and insect control for entrances up to 8 feet high.

  • Recommended for environmental separation at mounting heights up to 8 feet and insect control up to 7 feet.
  • Factory-installed Intelliswitch digital programmable controller with touch screen.
  • Dual 1/5 HP motors provide dependable airflow performance with ten-speed operation.
  • Clear satin anodized aluminum cabinet with washable intake filter for easy maintenance.
  • Wall or top mounting design supports flexible installation.
  • Single-stage electric heater helps maintain comfort at open entrances.
  • Made in USA with a 2-year limited warranty on heated units.

Overall Dimensions:

86.13"W x 16.0"D x 8.25"H

Product Weight:

146.0 lb

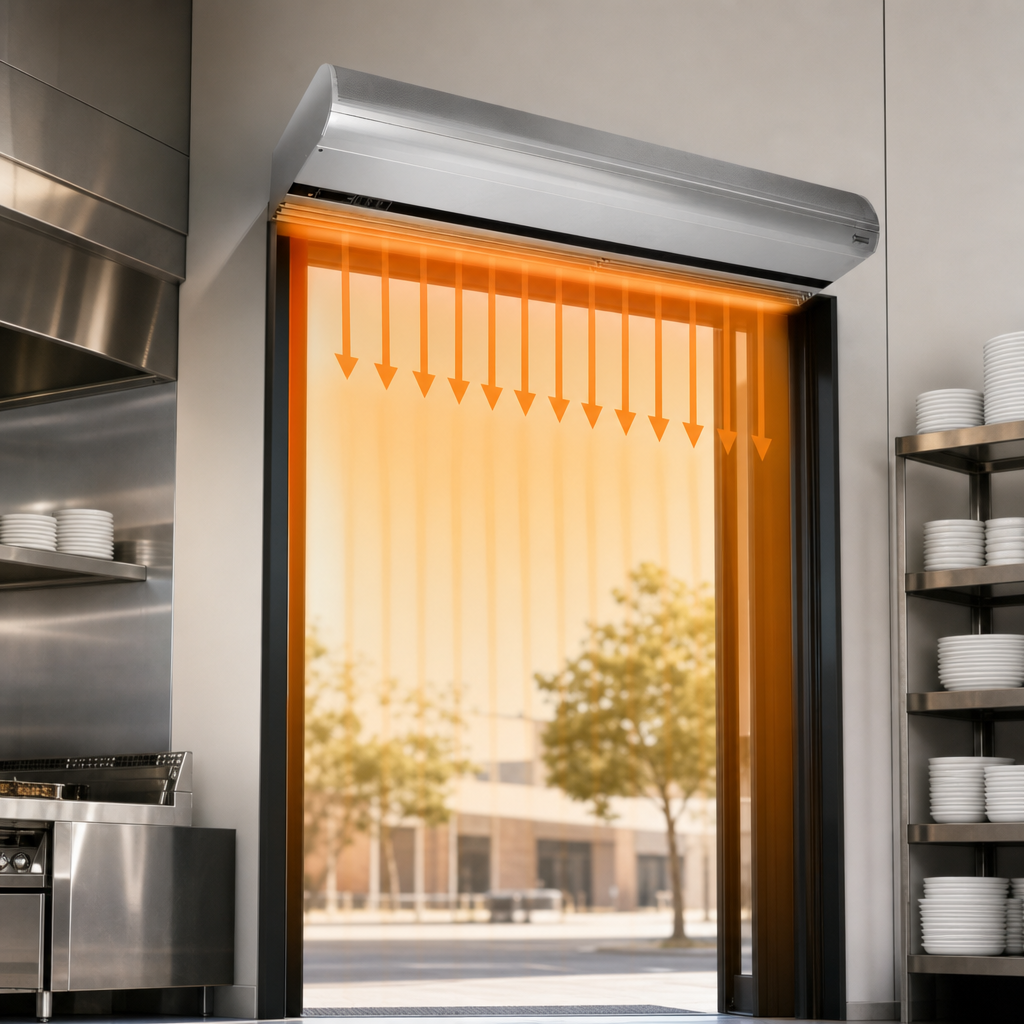

Electric Heated Air Curtain

Single-stage open-element electric heat provides climate control at entrance openings.

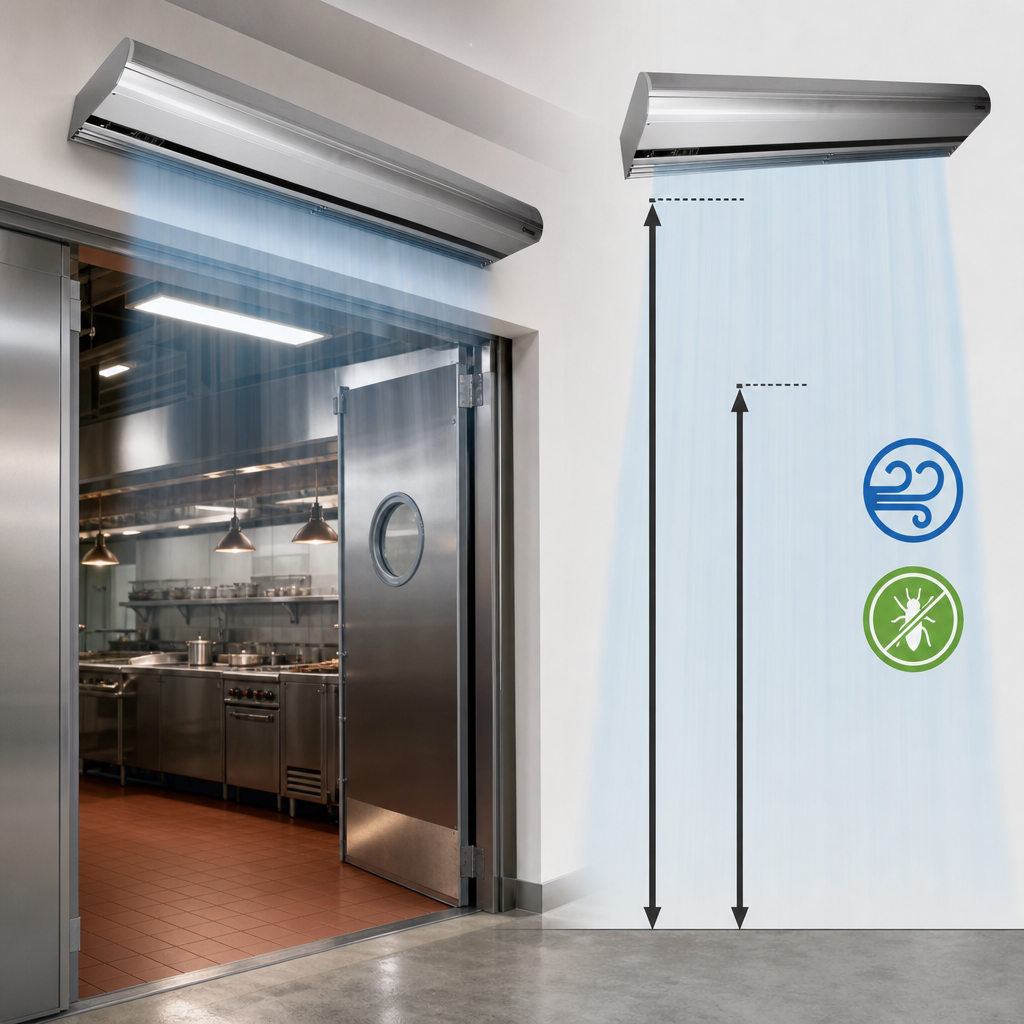

Recommended Mounting Height

Designed for environmental separation up to 8 feet and insect control up to 7 feet.

Dual 1/5 HP Motors

Two motors and ten-speed operation support strong airflow performance for larger openings.

Intelliswitch Touchscreen Controller

Factory-installed digital programmable controller with touch screen for convenient setup and operation.

Wall or Top Mounting

Flexible mounting design supports wall installation or top mounting.

Washable Filter

Re-cleanable aluminum intake filter helps simplify maintenance.

Clear Satin Anodized Aluminum Cabinet

Durable architectural exterior finish gives the unit a clean, professional appearance.

Pro-V Nozzle

Articulating three-vane nozzle helps direct airflow efficiently across the opening.

Type Electric Heated Air Curtain
Style Architectural
Installation Type Wall Mounted
Controls Digital Programmable Touchscreen
Nozzle Width 84 Inches
Motor Count 2
Horsepower Per Motor 1/5 HP
Max Opening Height 8 Feet
Max Insect Control Height 7 Feet
Material Aluminum
Finish Clear Satin Anodized Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 87 Inches
Shipping Depth 16 Inches
Shipping Height 9 Inches
Shipping Weight 146 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for environmental separation at mounting heights up to 8 feet and for insect control up to 7 feet.
Yes. It comes with a factory-installed Intelliswitch digital programmable controller with a touch screen.
Yes. The unit is designed for wall mounting or top mounting.
It uses a washable, re-cleanable aluminum intake filter.
Heated units carry a 2-year limited warranty.
