Berner

Berner Architectural Icon 08 Series Unheated Air Curtain, 60 Inches Wide, 1/5 HP

SKU: AI08-F-1060A
$2,787.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

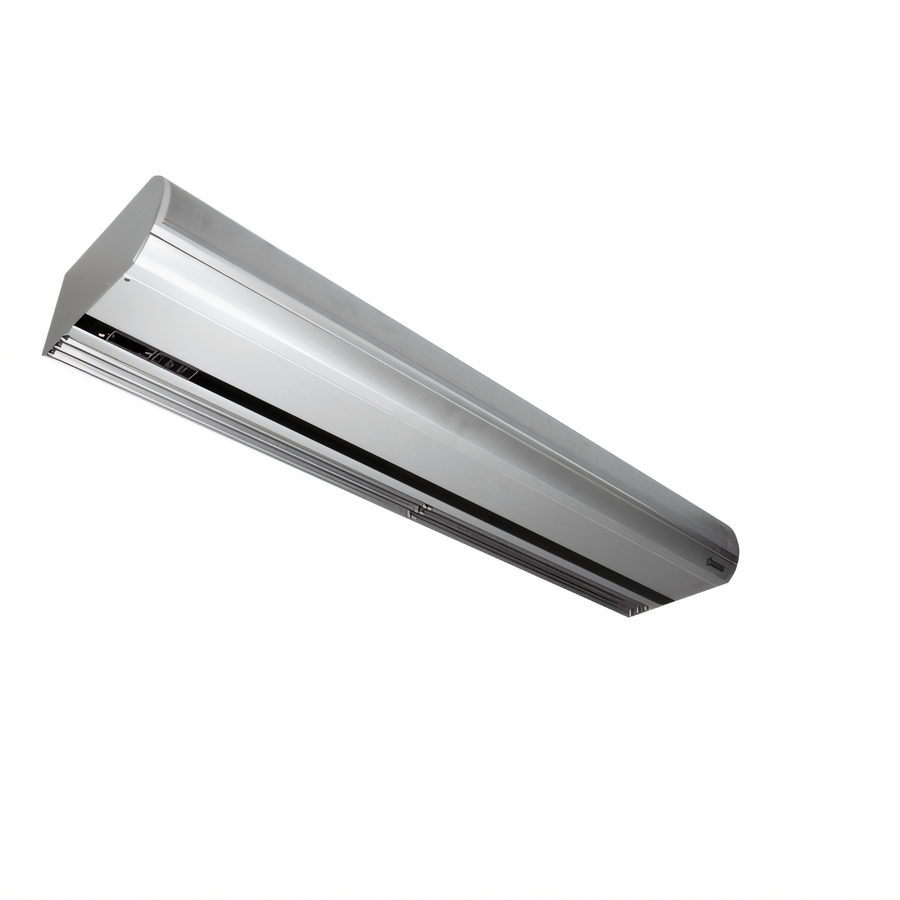

Berner Architectural Icon 08 Series Unheated Air Curtain, 60 Inches Wide, 1/5 HP

Up to 8-Foot Mounting Height, Wall or Top Mount, Clear Satin Anodized Aluminum Cabinet

A sleek unheated air curtain that helps preserve indoor comfort and keep insects out while maintaining a modern architectural look.

  • Designed for openings with climate control up to an 8-foot mounting height.
  • Helps provide insect protection up to a 7-foot opening height.
  • 60-inch-wide single-length unit with one 1/5 HP motor.
  • Factory-installed Intelliswitch digital controller with touchscreen operation.
  • Wall or top mounting flexibility with a washable filter for easier maintenance.
  • Clear satin anodized aluminum cabinet built for a low-profile architectural appearance.

Overall Dimensions:

61.13"W x 16.0"D x 8.25"H

Product Weight:

88.0 lb

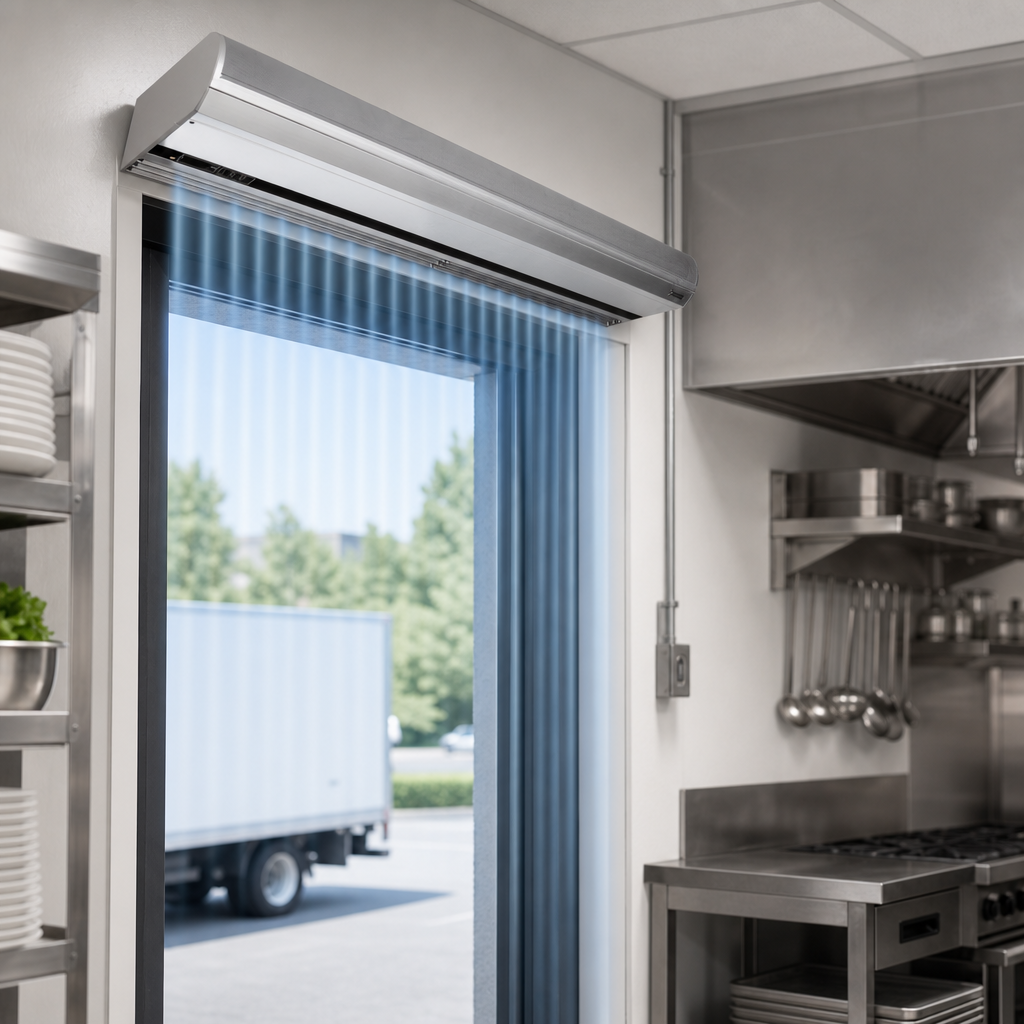

Unheated Ambient Operation

Provides air curtain performance without electric, steam, or hot water heat.

Unheated Ambient Operation

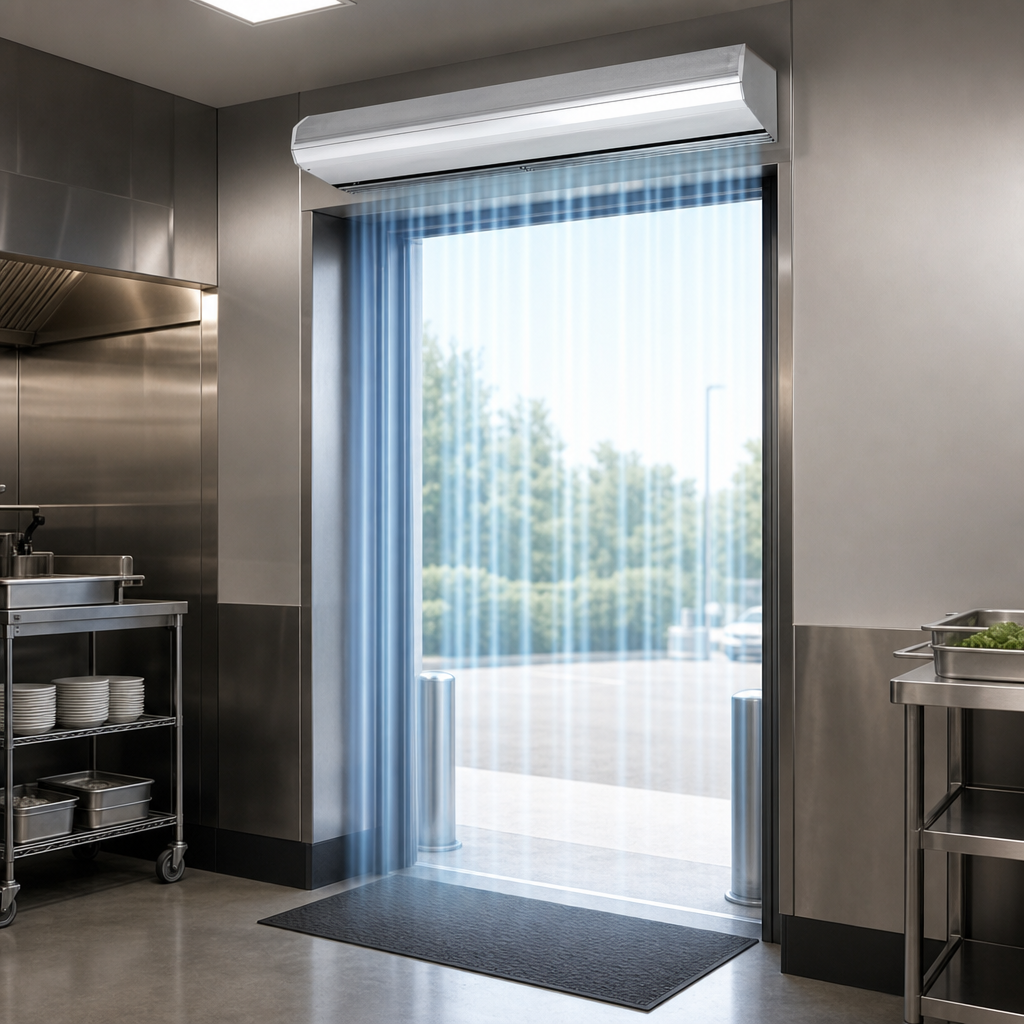

8-Foot Mounting Height

Suitable for climate control applications up to an 8-foot mounting height.

8-Foot Mounting Height

7-Foot Insect Protection Height

Designed to help protect entrances from insects up to a 7-foot mounting height.

Intelliswitch Digital Controller

Factory-installed digital controller with touchscreen, LED clock display, ten speeds, and provisions for low-voltage activation, external thermostat, and Comfort Plus.

Washable Filter

Reusable filter helps simplify routine maintenance.

Pro-V Nozzle

High-efficiency, low-noise articulating nozzle helps deliver a more effective air stream.

Wall or Top Mounting

Wall mounting system is included, and 1/4-inch threaded inserts support top mounting.

Anodized Aluminum Cabinet

Clear satin anodized aluminum exterior cabinet provides a clean, architectural finish.

Type Air Curtain
Style Architectural
Heat Type Unheated
Installation Type Wall Mounted
Controls Digital Programmable Touchscreen
Maximum Mounting Height 8 Feet
Maximum Insect Protection Height 7 Feet
Motor Count 1
Horsepower Per Motor 1/5 HP
Material Aluminum
Finish Clear Satin Anodized
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 62 Inches
Shipping Depth 16 Inches
Shipping Height 9 Inches
Shipping Weight 88 lb.

Certifications & Compliance

Warranty & Protection

5-year parts warranty for ambient models

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

No. This AI08 model is unheated (ambient).
It is designed for climate control up to an 8-foot mounting height and insect protection up to a 7-foot opening height.
It includes a factory-installed Intelliswitch digital controller with touchscreen operation and ten speeds.
It supports wall or top mounting, and the wall mounting system is included.
It includes a washable filter and a bottom access panel for easier access to internal components.
Ambient models carry a five-year parts warranty; heated models carry a two-year parts warranty.
