Berner

Berner Architectural Icon 8 Series 48-Inch Unheated Air Curtain, 1/5 HP

SKU: AI08-F-1048A
$2,668.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

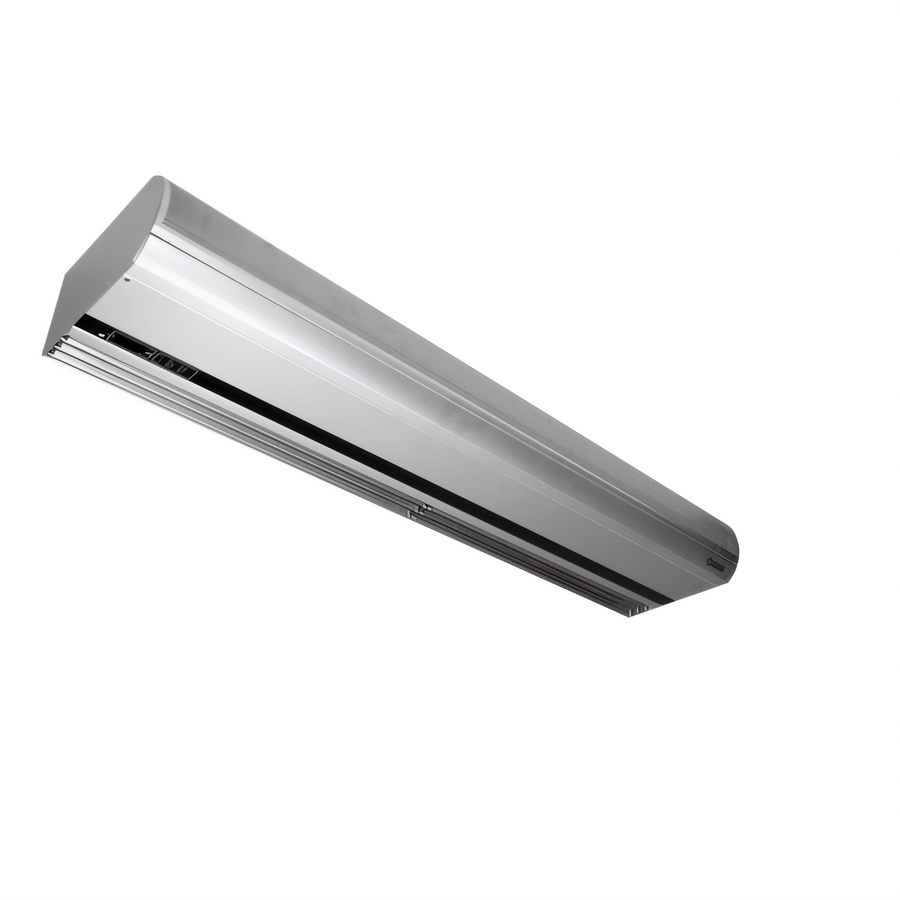

Berner Architectural Icon 8 Series 48-Inch Unheated Air Curtain, 1/5 HP

Wall or Top Mount, Up to 8-Ft Mounting Height

This sleek, unheated air curtain helps protect openings up to 8 feet high while maintaining a clean architectural look.

  • 48-inch-wide unheated air curtain designed for climate control at entrances up to an 8-foot mounting height.
  • Single 1/5 HP motor configuration for reliable air movement in the Architectural Icon 8 series.
  • Factory-installed Intelliswitch digital controller with touch screen and ten-speed operation.
  • Clear satin anodized aluminum cabinet with a washable filter for a polished look and easier maintenance.
  • Supports wall or top mounting and includes wall mounting hardware.
  • Helps protect against insects up to a 7-foot mounting height.
  • Made in the USA.

Overall Dimensions:

50.13"W x 16.0"D x 8.25"H

Product Weight:

74.0 lb

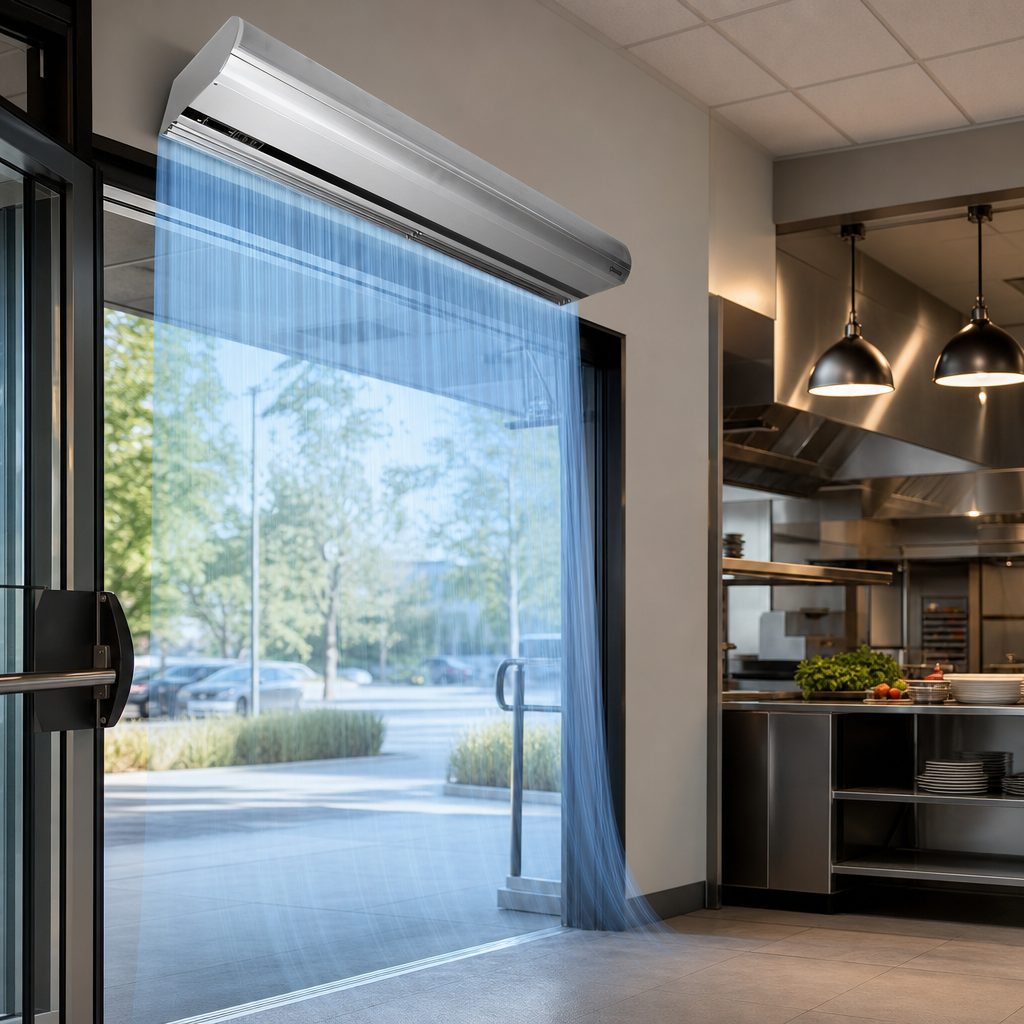

Unheated Air Curtain

Ambient, unheated design helps maintain interior comfort without adding heat.

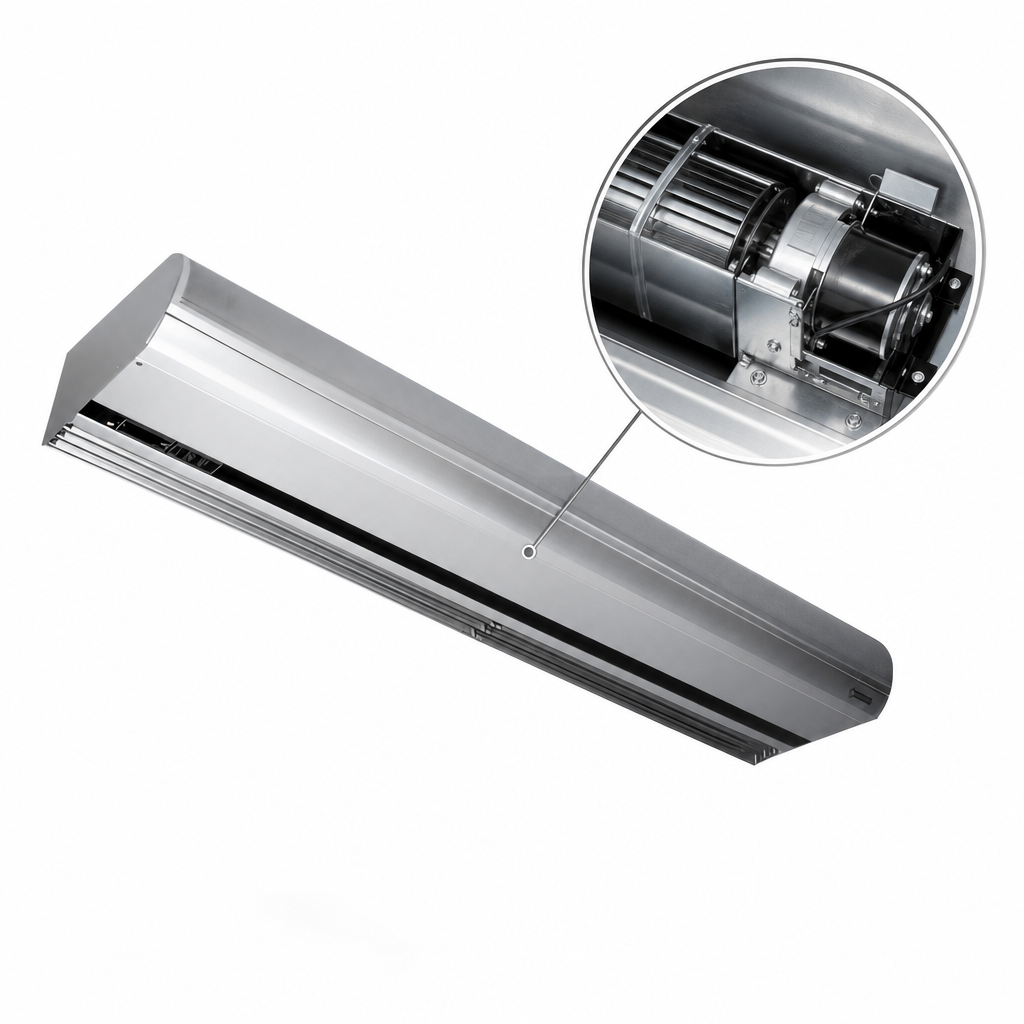

1/5 HP Motor

Single motor configuration sized for the Architectural Icon 8 series.

Intelliswitch Digital Controller

Factory-installed programmable touchscreen controller with ten speeds, LED clock display, low-voltage unit activation, and external thermostat provision.

Clear Satin Anodized Aluminum Cabinet

Durable aluminum exterior with a clean architectural finish.

Washable Filter

Reusable filter helps protect internal components and simplifies maintenance.

Wall or Top Mounting

Can be wall mounted or top mounted; wall mounting system is included and threaded inserts are provided for top mounting.

Bottom Access Panel

Provides easier access to internal components for service and maintenance.

Mounting Height Performance

Designed for climate control up to 8 feet and insect protection up to 7 feet.

Type Unheated
Style Air Curtain
Installation Type Wall Mounted
Motor Count 1
Horsepower Per Motor 1/5 HP
Maximum Opening Height 8 Feet
Insect Protection Height 7 Feet
Controls Programmable Digital Touch Screen
Material Aluminum
Finish Clear Satin Anodized Aluminum
Country of Origin USA
Shipping Width 51 Inches
Shipping Depth 16 Inches
Shipping Height 9 Inches
Shipping Weight 74 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year parts warranty for ambient units.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is designed for climate control up to an 8-foot mounting height and insect protection up to 7 feet.
No. This model is unheated, or ambient.
It includes a factory-installed Intelliswitch digital controller with a touch screen and ten-speed operation.
Yes. It supports wall or top mounting, with a wall mounting system included and threaded inserts for top mounting.
Yes. A washable filter is included for easier maintenance.
It is made in the USA.
