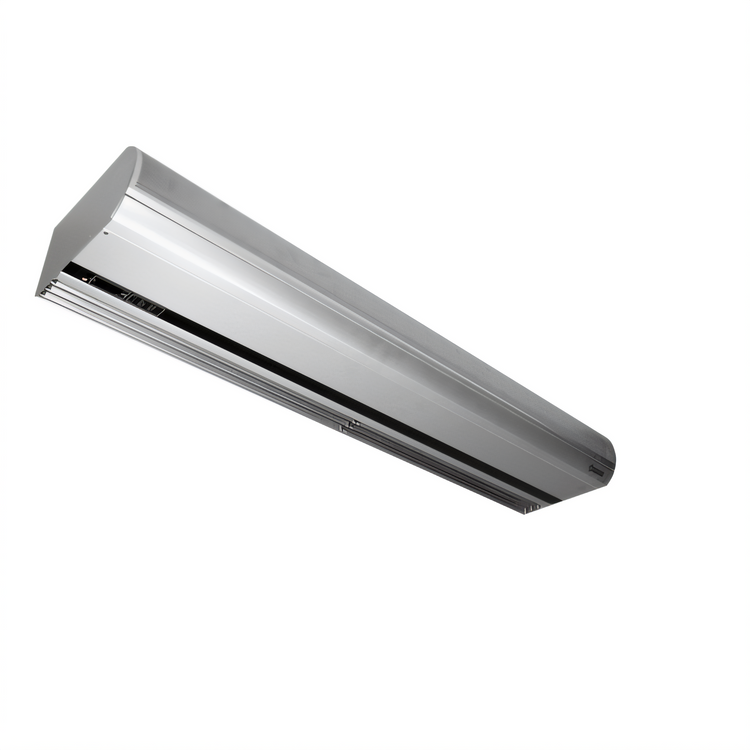

Berner Architectural Icon 08 42-Inch Electric Heated Air Curtain for 8-Ft Openings

1/5 HP motor, wall or top mount, Intelliswitch touchscreen controller

Deliver climate control and insect protection at doorways up to 8 feet high with a quiet, electric-heated air curtain built for architectural installations.

  • Designed for environmental separation up to 8 feet high and insect control up to 7 feet high.
  • 42-inch air curtain with one 1/5 HP motor and ten-speed operation for strong airflow.
  • Factory-installed Intelliswitch digital controller with touch screen simplifies operation.
  • Single-stage electric heater and low-noise Pro-V nozzle help deliver effective, comfortable performance.
  • Clear satin anodized aluminum cabinet gives the unit a clean architectural appearance.
  • Washable filter and re-cleanable intake screen help reduce maintenance.
  • Wall or top mounting provides flexibility for new installs and retrofits.

Overall Dimensions:

44.13"W x 16.0"D x 8.25"H

Product Weight:

73.0 lb

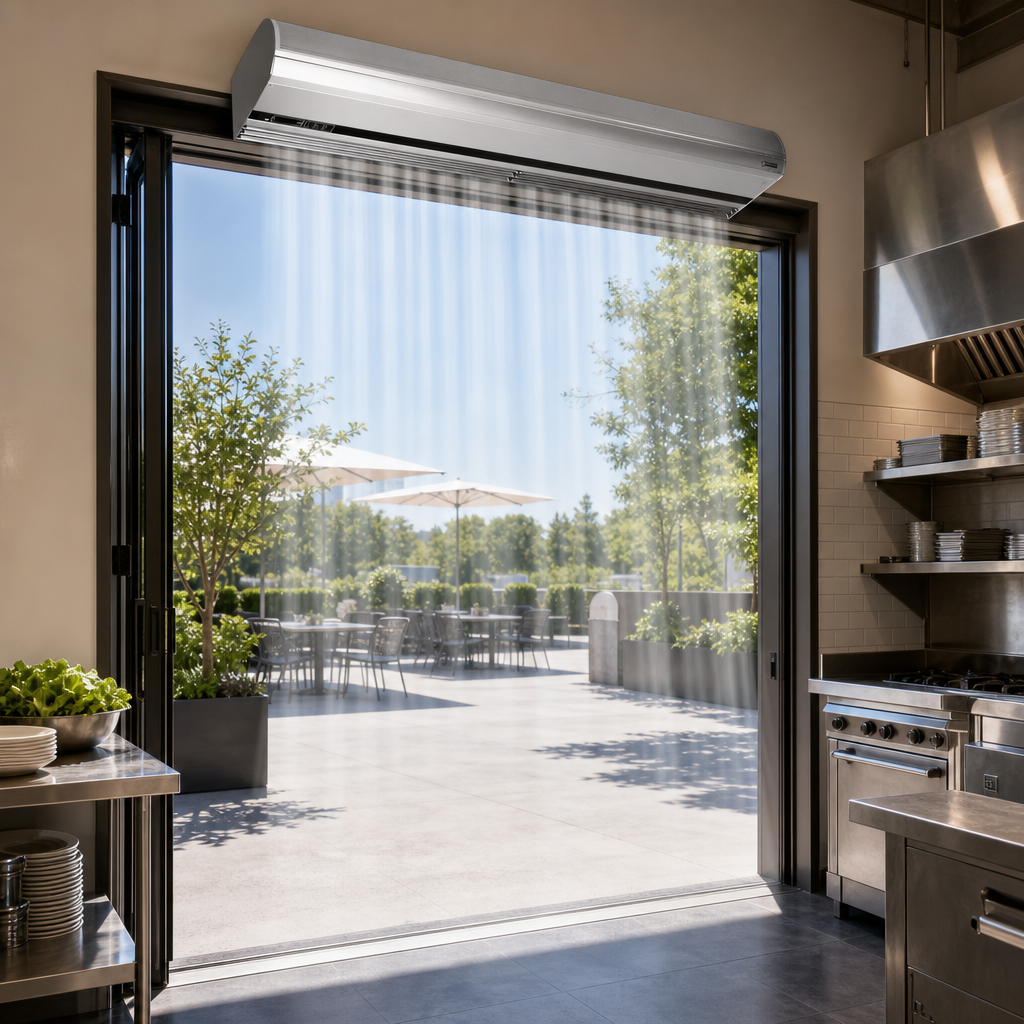

Environmental Separation Coverage

Recommended for mounting heights up to 8 feet for climate control and 7 feet for insect protection.

Environmental Separation Coverage

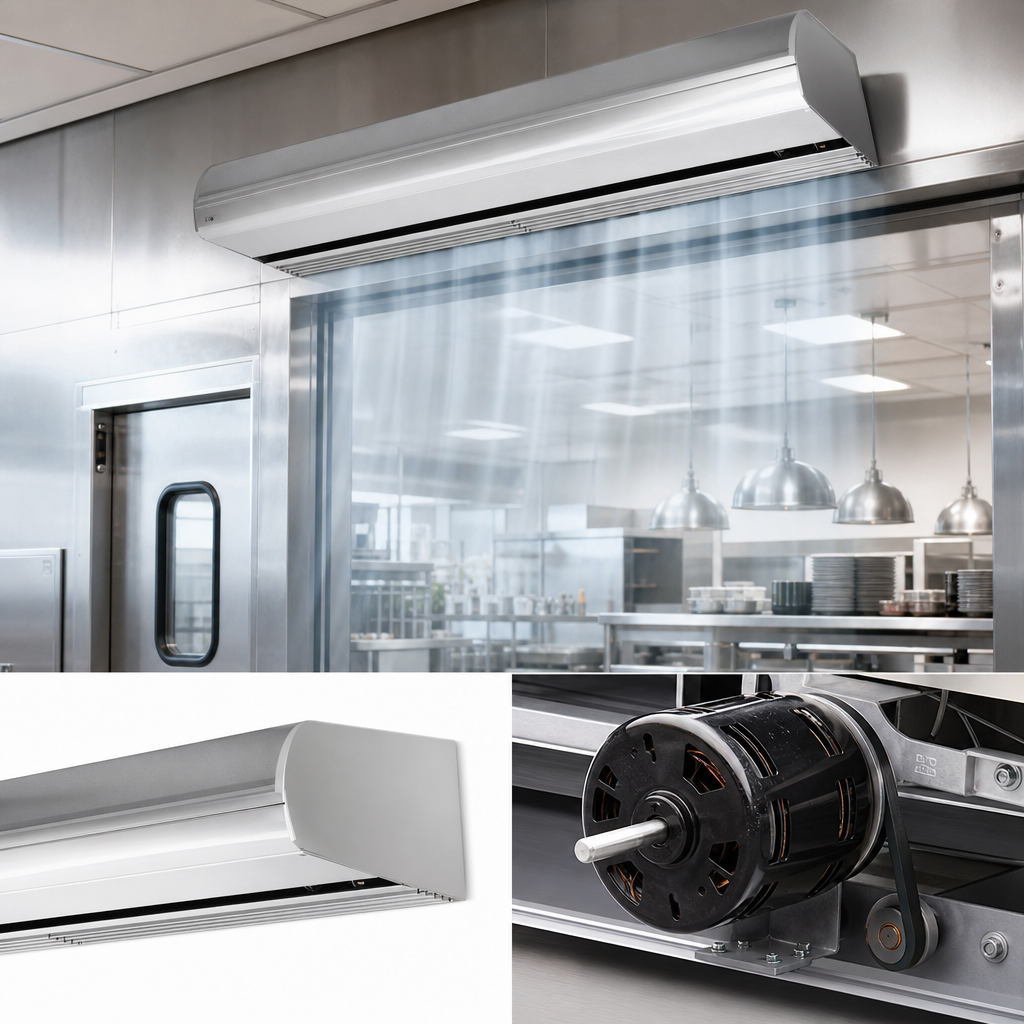

Single 1/5 HP Motor

Uses one motor with ten-speed operation to support dependable airflow performance.

Single 1/5 HP Motor

Intelliswitch Touchscreen Controller

Factory-installed digital programmable controller with touch screen for convenient setup and control.

Electric Open-Element Heat

Single-stage electric heater provides heated airflow without gas connection requirements.

Clear Satin Anodized Cabinet

Anodized aluminum exterior cabinet delivers a clean look suited for front-of-house applications.

Washable Filter

Re-cleanable intake filter helps simplify routine maintenance.

Wall or Top Mounting

Can be installed on the wall or mounted from the top to fit different openings and layouts.

Pro-V Nozzle

High-efficiency, low-noise articulating three-vane nozzle helps direct and shape the air stream.

Type Air Curtain
Style Electric Heated
Installation Type Wall Mounted
Controls Digital Programmable Touchscreen
Motors 1
Horsepower Per Motor 1/5 HP
Nozzle Width 42 Inches
Max Mounting Height 8 Feet
Insect Protection Height 7 Feet
Heater Capacity 10 kW
Air Volume 1,134 CFM
Temperature Rise 28 °F
Material Aluminum
Finish Clear Satin Anodized
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 45 Inches
Shipping Depth 16 Inches
Shipping Height 9 Inches
Shipping Weight 73 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for environmental separation up to 8 feet high and for insect control up to 7 feet high.
It includes a factory-installed Intelliswitch digital programmable controller with a touch screen.
Yes. The unit supports both wall mounting and top mounting.
Yes. The air curtain includes a washable filter and re-cleanable intake screen.
It uses a single-stage electric heater with an open-element design.
The heated unit carries a 2-year limited warranty.
