Berner

Berner Architectural Icon 08 Series 36-Inch Unheated Air Curtain

SKU: AI08-F-1036A
$2,436.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

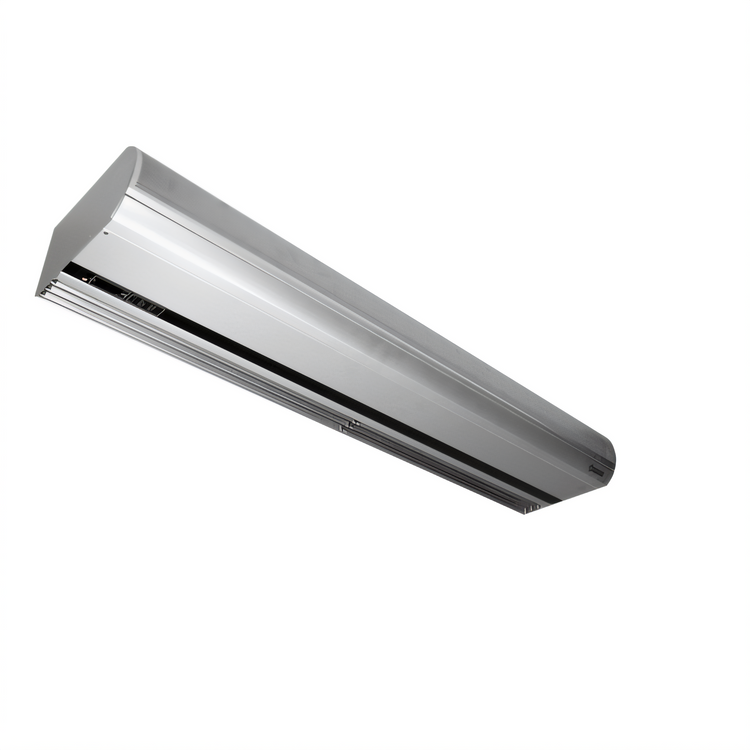

Berner Architectural Icon 08 Series 36-Inch Unheated Air Curtain

1 Motor, 1/5 HP, Wall or Top Mount

A low-profile 36-inch air curtain that helps preserve conditioned air and improve entryway comfort without adding heat.

  • 36-inch-wide unheated air curtain for architectural entrance applications
  • Single 1/5 HP motor supports climate control up to an 8-foot mounting height
  • Helps protect openings from insects up to a 7-foot height
  • Factory-installed Intelliswitch digital controller with touch screen and ten speeds
  • Washable filter and anodized aluminum cabinet for easier upkeep
  • Wall or top mounting for flexible installation
  • No assembly required for a faster install

Overall Dimensions:

38.13"W x 16.0"D x 8.25"H

Product Weight:

61.0 lb

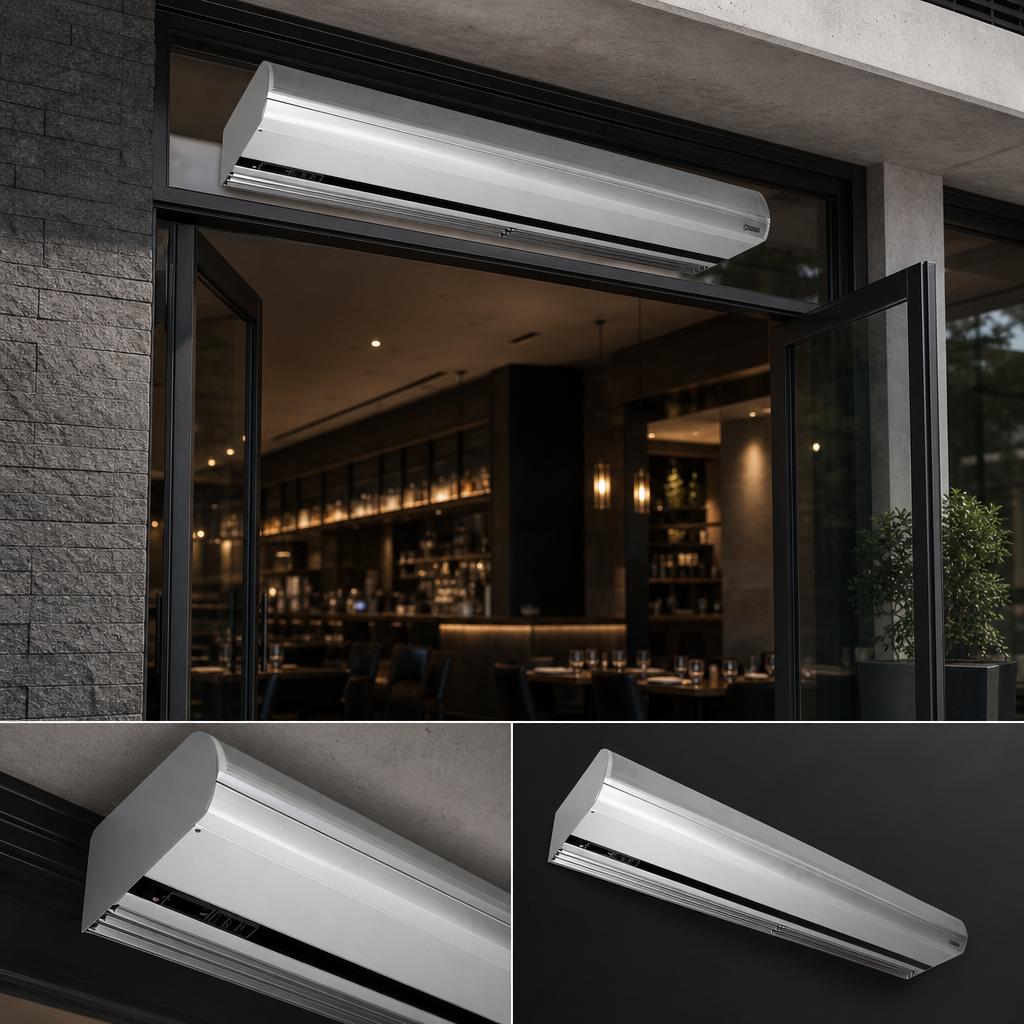

Architectural Icon 08 Series

Low-key, versatile air curtain design intended for main entrance applications.

Architectural Icon 08 Series

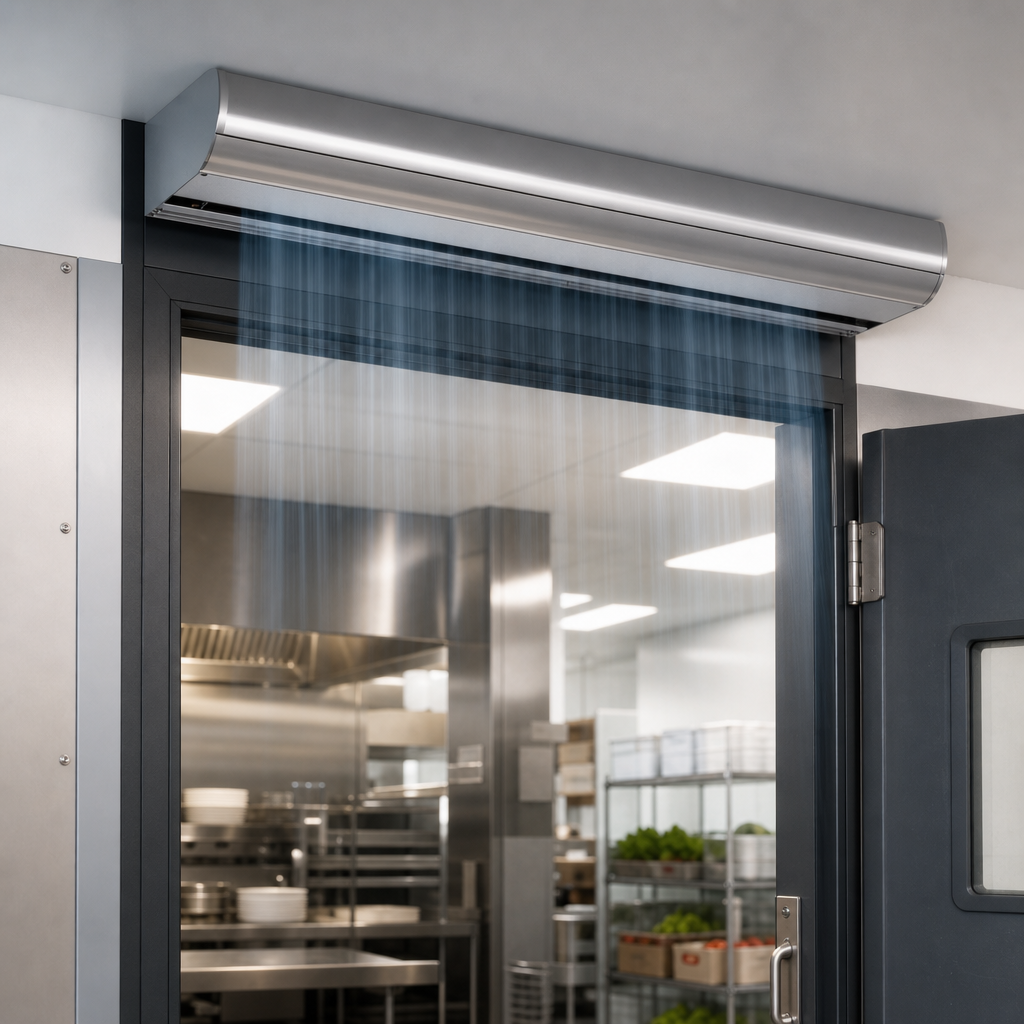

Unheated Ambient Operation

Air-only model with no electric, steam, or hot-water heat.

Unheated Ambient Operation

Single 1/5 HP Motor

One-motor configuration for the 36-inch unit.

Intelliswitch Digital Controller

Factory-installed controller with touch screen, ten speeds, LED clock display, low-voltage activation for BMS, external thermostat provision, and Comfort Plus provision.

Washable Filter

Reusable filter helps simplify routine maintenance.

Clear Satin Anodized Aluminum Cabinet

Durable exterior cabinet finish with optional custom color or stainless upgrades.

Wall or Top Mounting

Wall mounting system is included, and threaded inserts support top mounting.

High-Efficiency Pro-V Nozzle

Low-noise articulating nozzle helps deliver an even air stream.

Bottom Access Panel

Provides easier access to internal components for service.

Type Unheated Air Curtain
Style Architectural
Installation Type Wall Mounted
Motors 1
Horsepower Per Motor 1/5 HP
Maximum Opening Height 8 Feet
Insect Protection Height 7 Feet
Controls Digital Programmable
Nozzle Type Articulating Pro-V
Material Aluminum
Finish Clear Satin Anodized
Country of Origin USA
Shipping Width 39 Inches
Shipping Depth 16 Inches
Shipping Height 9 Inches
Shipping Weight 61 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year parts warranty for ambient/unheated units.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

No. This is the unheated ambient version.
It can be wall mounted or top mounted.
It is designed for climate control up to an 8-foot mounting height and insect protection up to a 7-foot opening height.
It comes with a factory-installed Intelliswitch digital controller with a touch screen and ten speeds.
Yes, the unit includes a washable filter.
Ambient or unheated units carry a 5-year parts warranty.
