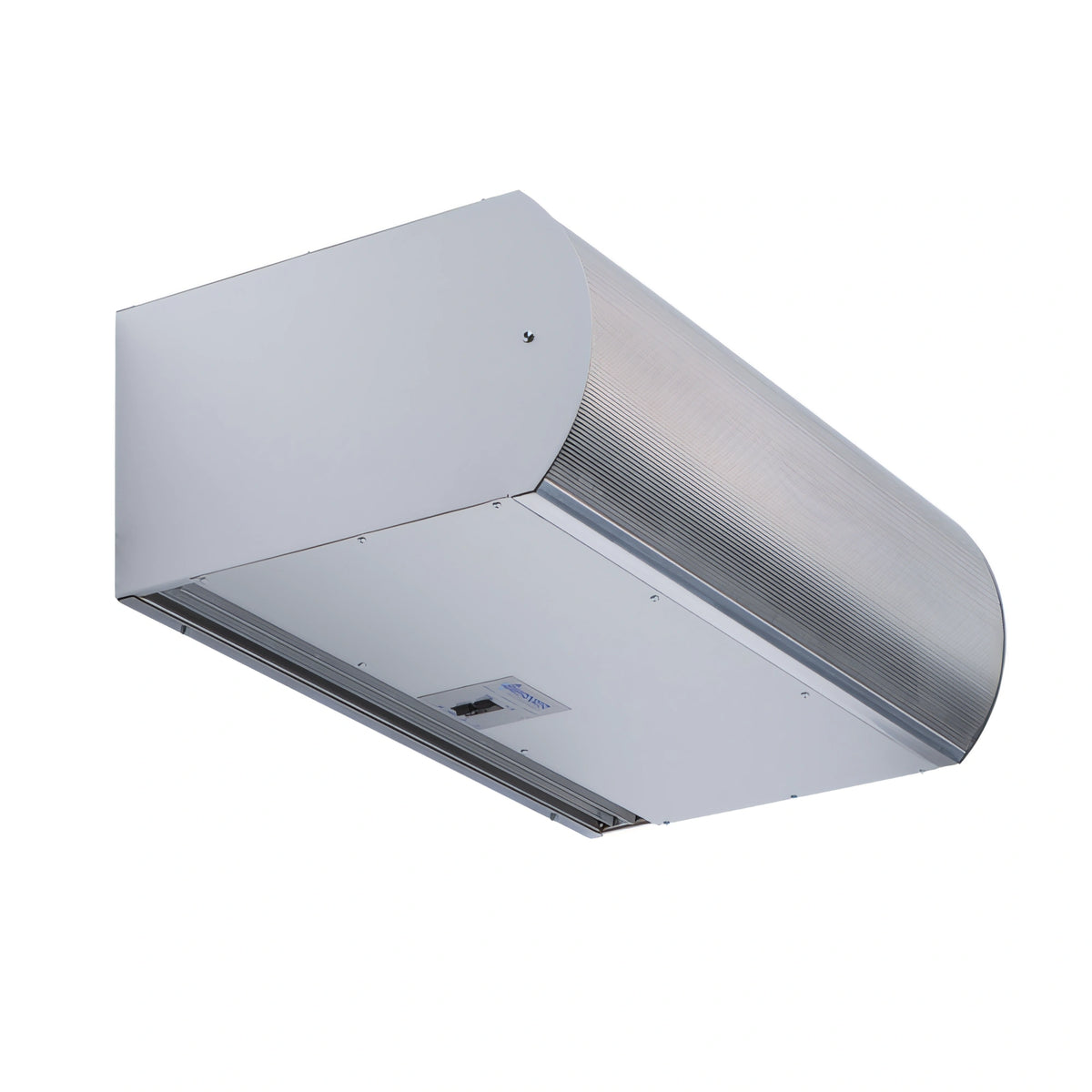

Berner Architectural AHC10-2060A Unheated 60-Inch Architectural Air Curtain, Dual 1/2 HP Motors, 3-Speed, Up to 10-Ft Door
$3,879.20
/each
Ships in 16–19 business days
- Product type
- Architectural Series High Performance Air Curtain
- Heating
- Unheated
- Length
- 60 in
- Nozzle width
- 60.75 in
- Motors
- 2 motors
- Horsepower per motor
- 1/2 hp
Specifications
Product type
Architectural Series High Performance Air Curtain
Heating
Unheated
Length
60 in
Nozzle width
60.75 in
Motors
2 motors
Horsepower per motor
1/2 hp
Speed settings
3
Maximum door height
10 ft
Exterior
Anodized aluminum
Mounting
Wall mounting plate
Power rating
1.01 kW
Air volume
2,540 cfm
Maximum nozzle velocity
3,950 fpm
Average outlet velocity
2,393 fpm
Outlet velocity uniformity
92%
Sound level
57/58/59 dBA at 10 ft, low/medium/high speed
Electrical configuration
120 V / 1 ph / 60 Hz
Description
AHC10-2060A is an unheated Architectural Series air curtain measuring 60 inches long. It uses two 1/2 hp motors with three-speed operation for customer entrance doors up to 10 feet high.
The unit features an anodized aluminum cover, wall mounting plate, and a 1.01 kW power rating.
Product Weight:

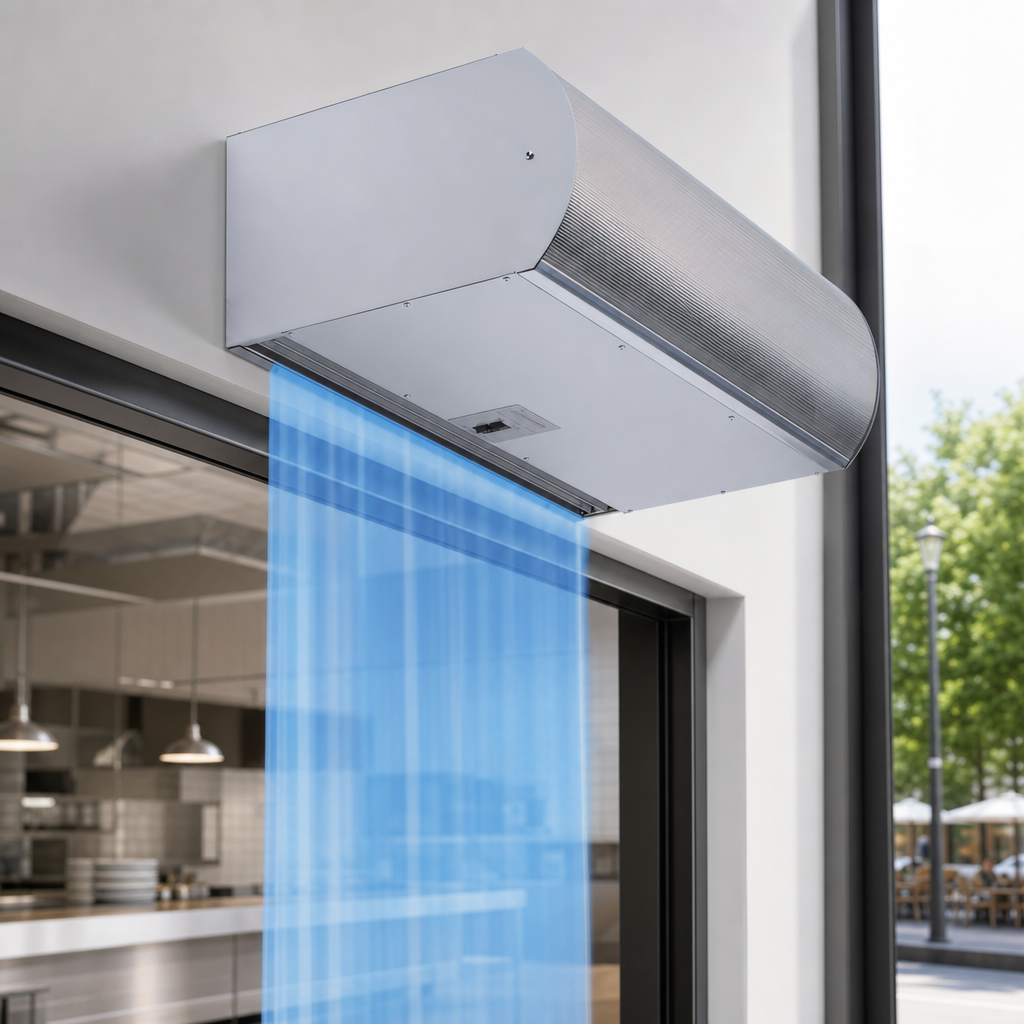

160.0 lbUnheated operation
Specified as an ambient, unheated air curtain.
Dual motors
Uses two 1/2 hp motors.
Three-speed operation
Provides low, medium, and high speed settings.
60-inch format
The unit is specified at 60 inches long, with a 60.75-inch nozzle width listed on the data sheet.
Anodized aluminum cover
Includes an anodized aluminum exterior cover.
Wall mounting plate
Includes a wall mounting plate.
Power rating
Rated at 1.01 kW.
Documentation
Frequently Asked Questions
No. It is specified as an ambient, unheated air curtain.
It has two 1/2 hp motors.
The unit has three speed settings: low, medium, and high.
It is specified for customer entrance doors up to 10 feet high.
The data sheet lists the standard construction at 12.25 inches high by 21.25 inches deep, and the product specification lists a 60-inch length.
Berner's warranty provides five-year limited coverage for unheated models from the original date of shipment, subject to the stated warranty conditions.
