Belshaw

Belshaw Cabinet Proofer CP-3 Mobile Cabinet Proofer, 208–240V, 2 Doors, 16 Shelf Brackets, Temperature and Humidity Controls

SKU: CP-3
$9,168.96
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

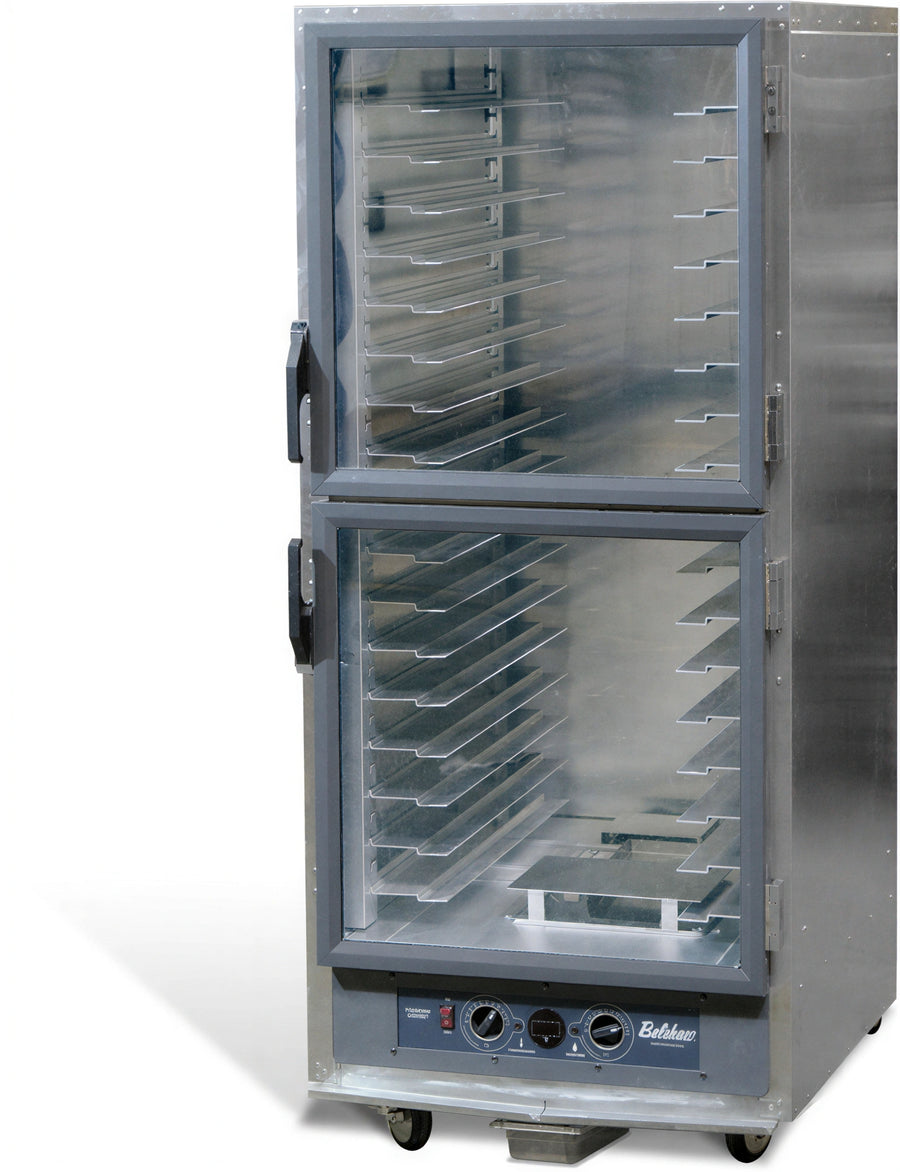

CP-3 is a mobile cabinet proofer for baked goods with independently controlled heat and humidity and a Celsius temperature display.

  • Accepts screens or pans in several sizes, including 17 x 25 in, 18 x 26 in, 23 x 23 in, and 24 x 24 in.
  • Includes 16 shelf brackets with adjustable shelf positions and 3 in spacing.
  • Features two Dutch doors with insulating gaskets and clear plexiglass windows.
  • Uses a manually filled water reservoir with an Autowater option available.
  • Rolls on four casters, including two lockable casters.

Overall Dimensions:

30.5"W x 30.5"D x 69.75"H

Product Weight:

330.0 lb

Independent heat and humidity controls

Heat and humidity are controlled independently, with a real-time temperature display.

Celsius temperature display

The CP-3 model is specified with a Celsius temperature display.

Shelf support

Sixteen shelf brackets are supplied and can be placed on any of 34 shelf positions with adjustable 3 in spacing.

Screen and pan compatibility

Accepts screens or pans sized 17 x 25 in, 18 x 26 in, 23 x 23 in, or 24 x 24 in.

Dutch doors

Two Dutch doors enable screen insertion or removal without opening a full-height door; the doors are reversible in the field.

Insulated door construction

The doors have insulating gaskets, high-strength magnetic latches, and clear plexiglass windows.

Mobile cabinet

Four heavy-duty casters support mobility, with two casters that lock.

Water system

The water reservoir is filled manually, with an Autowater accessory option available.

Construction

The cabinet uses stainless steel and aluminum construction.

Blower and heat-humidity unit

The unit includes a blower system and a bottom-mount heat and humidity unit.

Related Searches

Belshaw Best Sellers Equipment Food Holding & Warming Equipment New Arrivals Proofing & Retarding Cabinets
Voltage 208–240 V
Frequency 50–60 Hz
Phase Single-phase
Current draw 5.5–6.0 A
Power 1210–1440 W
Temperature display Celsius
Shelf brackets 16 supplied
Shelf positions 34
Shelf spacing 3 in, adjustable
Compatible screen and pan sizes 17 x 25 in; 18 x 26 in; 23 x 23 in; 24 x 24 in
Doors 2 Dutch doors
Casters 4 total; 2 lockable
Water fill Manual, with Autowater option
Construction Stainless steel and aluminum
Door windows Clear plexiglass
Door seals Insulating gaskets
Heat and humidity unit Bottom mount
Blower system Included

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year limited warranty from the date of shipment to the original purchaser.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The CP-3 is specified for 208–240 V, 50–60 Hz, single-phase service, with a current draw of 5.5–6.0 A and power of 1210–1440 W.
Sixteen shelf brackets are supplied. They can be placed on any of 34 shelf positions with adjustable 3 in spacing.
It accepts screens or pans sized 17 x 25 in, 18 x 26 in, 23 x 23 in, or 24 x 24 in.
Yes. The CP-3 has a Celsius temperature display along with independently controlled heat and humidity.
The water reservoir is filled manually. An Autowater option is available as an accessory.
Yes. It has four casters, including two lockable casters.
The limited warranty extends for one year from the date of shipment to the original purchaser, subject to the stated terms and exclusions.
