Baxter Manufacturing

Baxter PW3S Triple-Wide Roll-In Proofer Cabinet, 40.5-Inch Deep, 2-Door, Floorless, Stainless Steel

SKU: PW3S-40.5"D
$25,952.24
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Baxter PW3S Triple-Wide Roll-In Proofer Cabinet, 40.5-Inch Deep, 2-Door, Floorless, Stainless Steel

Eye-Level Digital Controls, Electric Heat, 4-Timer Operation

Built for high-volume bakeries, this roll-in triple-wide proofer delivers precise digital heat and humidity control with floorless rack loading and all-stainless durability.

  • Triple-wide, 2-door roll-in proofer cabinet designed for easy rack access.
  • 40.5-inch deep model holds 4 single-end racks, 6 side-load racks, or 3 double racks.
  • Eye-level digital controls independently manage heat and humidity with four timers.
  • Stainless steel interior and exterior support durability and easy cleanup.
  • Patented airflow and an internally mounted humidity system help maintain consistent proofing.
  • Open floor design requires no ramp, and the 40.5"D model may be shipped assembled.

Overall Dimensions:

109.0"W x 43.3"D x 99.0"H

Product Weight:

1633.0 lb

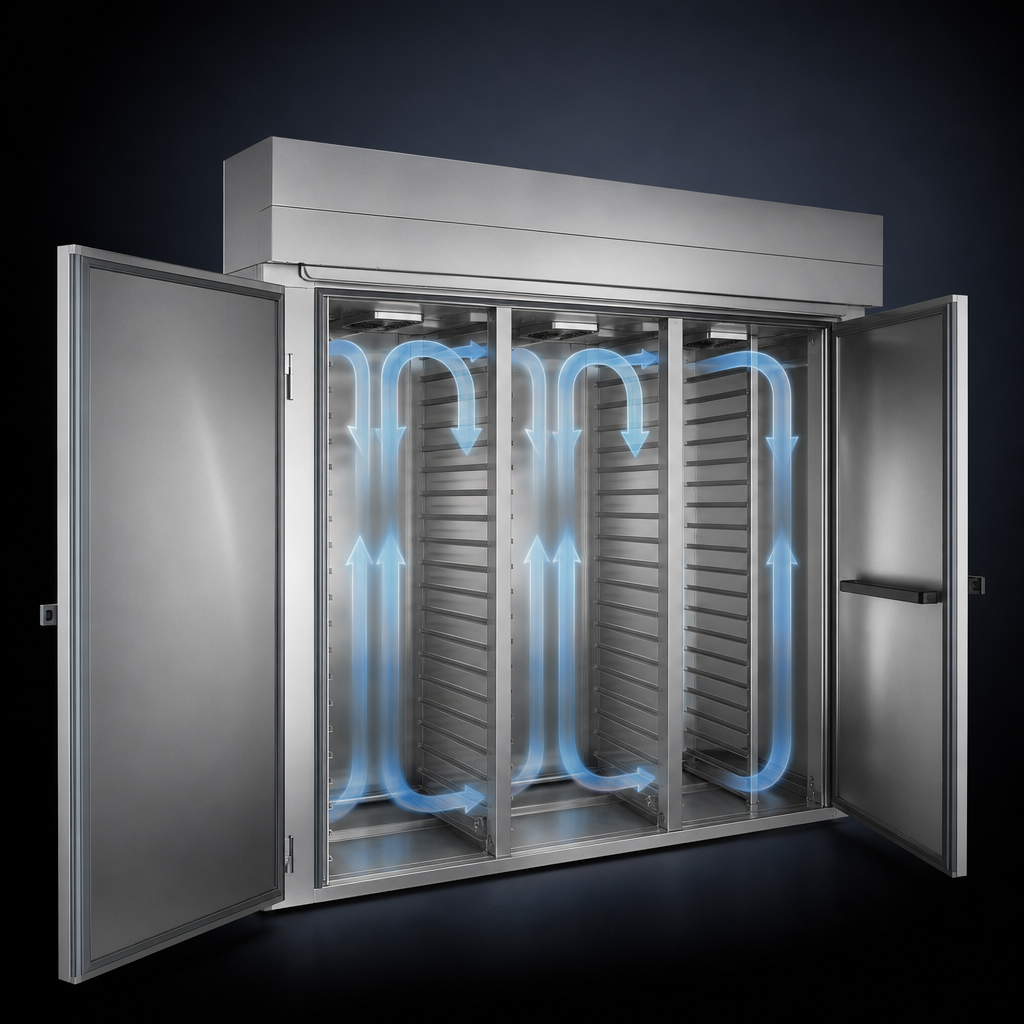

Patented Air Flow System

Engineered to promote even air circulation for consistent proofing results.

Patented Air Flow System

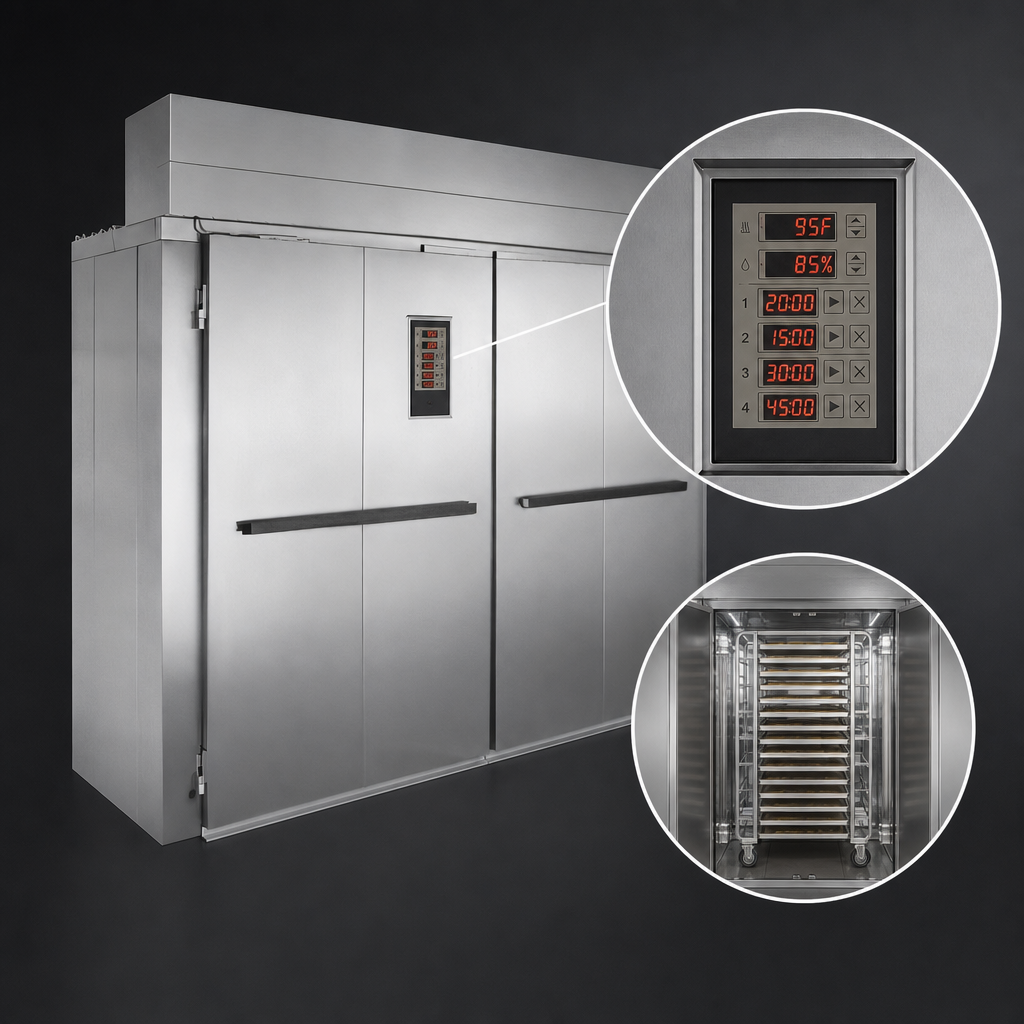

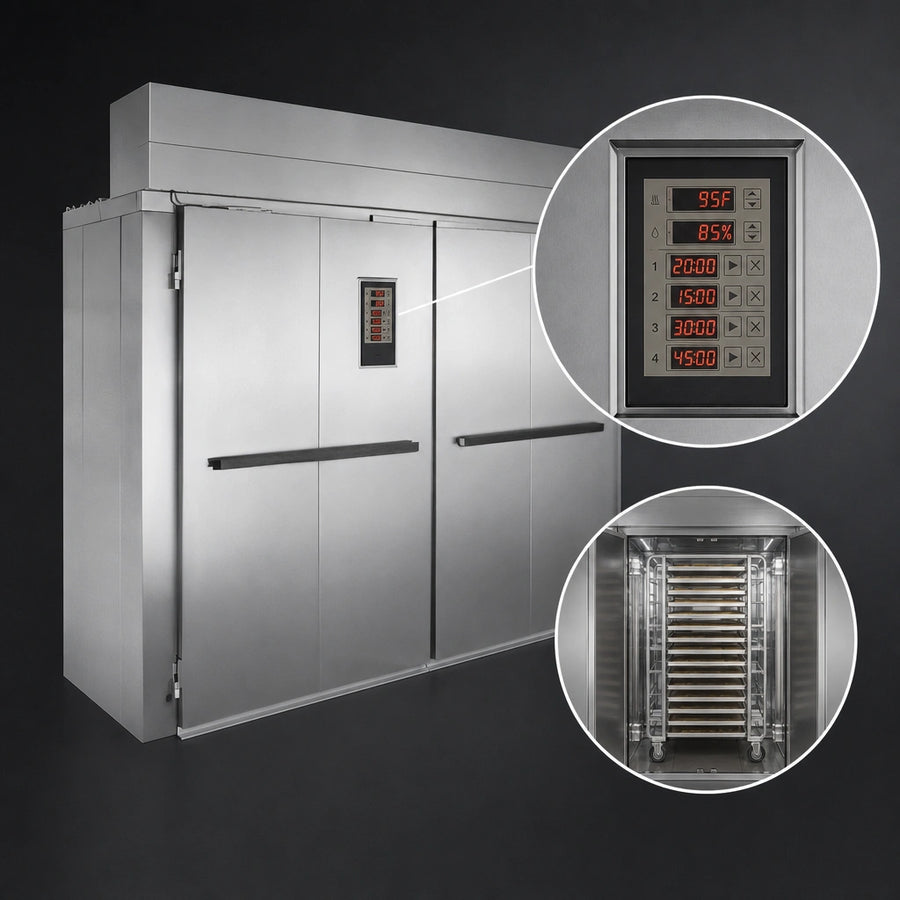

Eye-Level Digital Control Panel

Lets operators set heat and humidity from the door and includes four independent timers.

Eye-Level Digital Control Panel

Stainless Steel Interior and Exterior

All-stainless construction provides durability and simplifies cleaning.

Internally Mounted Heat and Humidity System

The heat and humidity system is mounted inside the unit and requires no flushing.

Modular Cam-Lock Panel Construction

Modular panels with cam-lock attachment support field assembly and serviceability.

Open Floor Design

Floorless construction allows roll-in loading without a ramp.

Two-Door, No-Center-Jamb Access

The 3-wide cabinet uses two doors for maximum access to the proofing chamber.

High-Height Matching Profile

99.5-inch overall height is designed to match rack oven height and improve line integration.

Type Proof Box
Style Roll-In
Installation Type Floor Model (Without Floor)
Controls Digital
Material Stainless Steel
Interior Finish Stainless Steel
Capacity 4 Single End Racks, 6 Side Load Racks, or 3 Double Racks
Compartments 3
Voltage 208-240 Volts
Amps 32-36 Amps
Hertz 60 Hz
Phase 3-Phase
Watts 6.6-8.8 kW
Water Inlet Size 1/2 Inch FNPT
Drain Connection Size 1/2 Inch FNPT
Water Connection Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 109 Inches
Shipping Depth 44 Inches
Shipping Height 99 Inches
Shipping Weight 1633 lb.

Frequently Asked Questions

It holds 4 single-end racks, 6 side-load racks, or 3 double racks.
No. The open floor design does not require a ramp.
The 40.5"D model requires 208-240V, 60Hz, 3-phase power and draws 32-36 amps.
It requires a 1/2" FNPT cold water connection and a 1/2" FNPT drain connection routed to an air-gap drain.
Yes. The 40.5"D model may be shipped assembled.
