Baxter Manufacturing

Baxter PW3S Triple Wide Roll-In Proof Box, 100.5-Inch Deep, 2-Door, Electric Heat, With Floor

SKU: PW3S-100.5"D-FL
$40,790.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

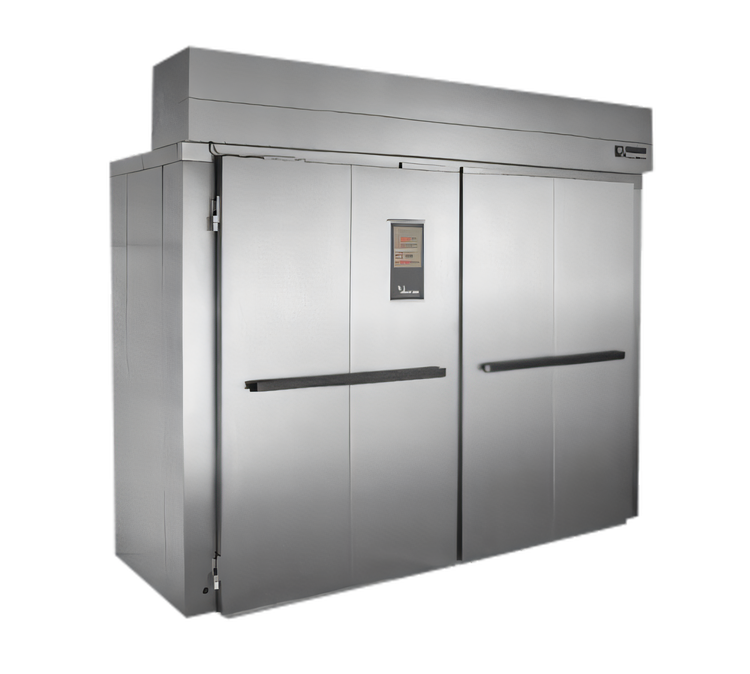

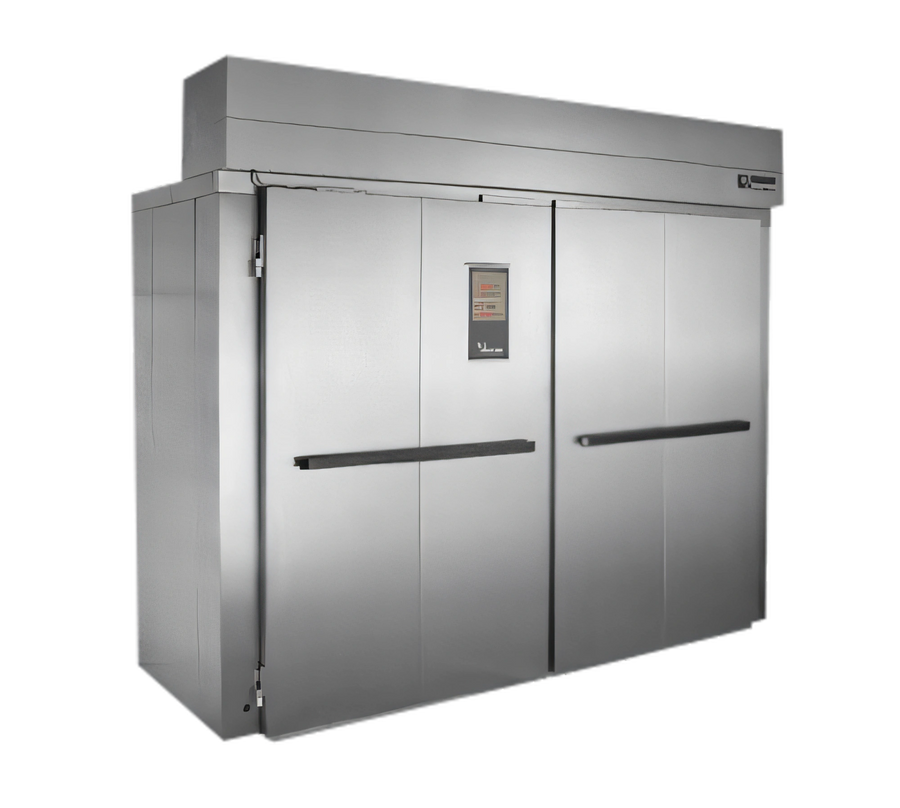

Baxter PW3S Triple Wide Roll-In Proof Box, 100.5-Inch Deep, 2-Door, Electric Heat, With Floor

Stainless Steel Interior and Exterior, Eye-Level Digital Controls

High-capacity roll-in proofing with precise digital heat and humidity control, all-stainless construction, and no-ramp access.

  • Triple wide, roll-in proof box built for high-volume bakery production.
  • 100.5-inch depth configuration holds 12 single end racks, 15 side load racks, or 6 double racks.
  • Eye-level digital control panel independently sets heat and humidity and includes four timers.
  • Patented airflow and internally mounted heat and humidity components support consistent proofing.
  • Stainless steel interior and exterior with modular cam-lock panel construction.
  • Stainless steel floor provides roll-in access without a ramp.
  • 208-240V, 3-phase electric heat with required water and drain connections.

Overall Dimensions:

109.0"W x 103.3"D x 99.0"H

Product Weight:

2270.0 lb

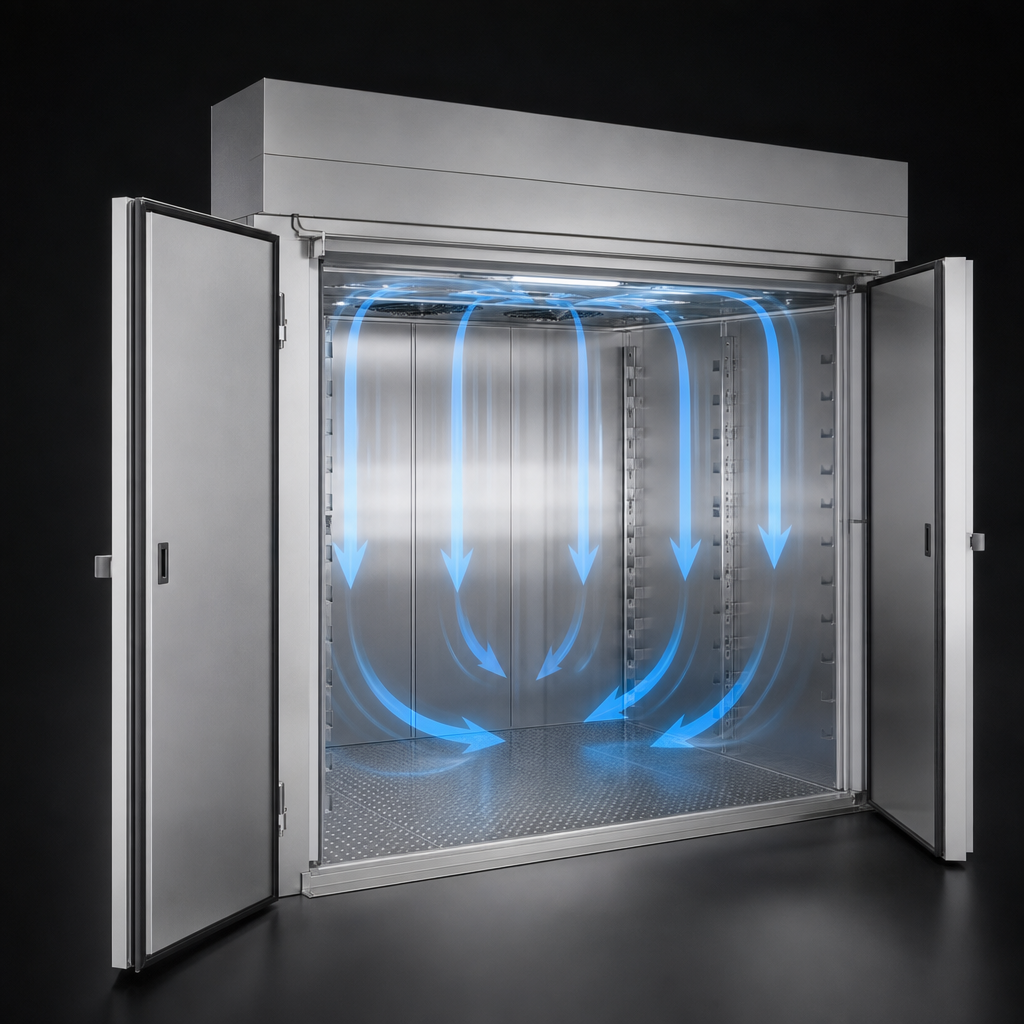

Patented Air Flow System

Promotes even circulation for consistent proofing results.

Patented Air Flow System

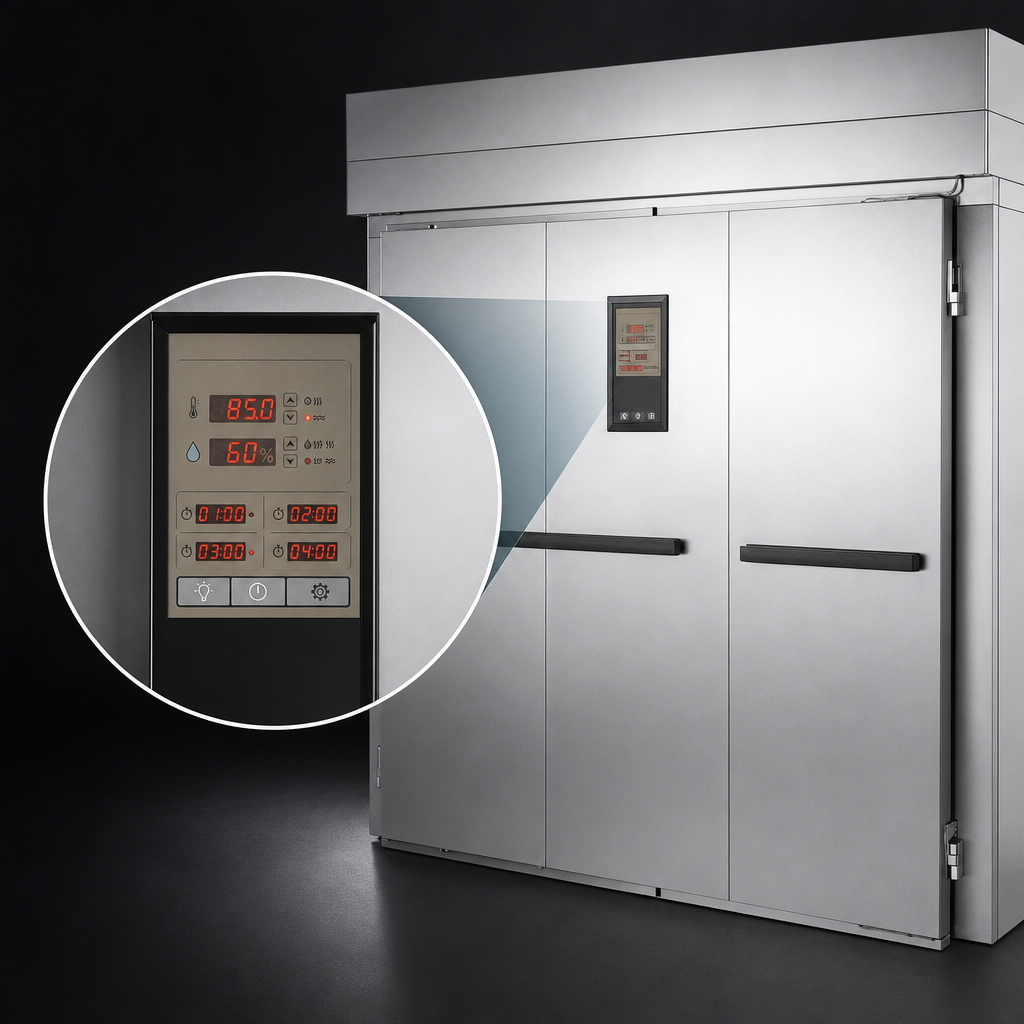

Eye-Level Digital Control Panel

Independently sets heat and humidity and includes four timers for flexible operation.

Eye-Level Digital Control Panel

Stainless Steel Interior and Exterior

Durable, easy-to-clean construction throughout the cabinet.

Modular Cam-Lock Panels

Ships knocked down and assembles on site with cam-lock attachment.

Stainless Steel Floor

Provides roll-in access without a ramp.

Two-Door Triple Wide Access

Two doors across the wide opening maximize access without a center jamb.

Internally Mounted Heat and Humidity System

Keeps components protected and eliminates flushing.

High-Capacity Rack Configuration

100.5-inch depth holds 12 single end racks, 15 side load racks, or 6 double racks.

Type Proof Box
Style Triple Wide Roll-In
Installation Type Floor Model
Compartments 3
Capacity 12 Single End Racks / 15 Side Load Racks / 6 Double Racks
Material Stainless Steel
Interior Finish Stainless Steel
Finish All Stainless Steel
Controls Digital
Voltage 208-240 Volts
Amps 34-38 Amps
Watts 9.9-13.2 kW
Hertz 60 Hz
Phase 3-Phase
Water Inlet Size 1/2 Inch FNPT
Drain Connection Size 1/2 Inch FNPT
Water Connection Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 109 Inches
Shipping Depth 104 Inches
Shipping Height 99 Inches
Shipping Weight 2270 lb.

Frequently Asked Questions

The 100.5-inch-deep configuration holds 12 single end racks, 15 side load racks, or 6 double racks.
This unit requires 208-240V, 60 Hz, 3-phase power at 34-38 amps, plus 1/2-inch FNPT cold water and drain connections.
Yes. Neutral wire circuitry is needed to supply 110-120V for the controls, and a separate line or transformer may be required if that voltage is not available.
No. The floor option is designed for roll-in access without a ramp.
No. It ships knocked down and is field assembled.
Baxter provides a 1-year parts and labor warranty from original installation, subject to standard warranty terms and authorized start-up requirements for serialized models.
