Baxter Manufacturing

Baxter PW3S Triple-Wide Roll-In Electric Proofer Cabinet, 100.5-Inch Deep, Two-Door, Stainless Steel

SKU: PW3S-100.5"D
$39,590.33
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Baxter PW3S Triple-Wide Roll-In Electric Proofer Cabinet, 100.5-Inch Deep, Two-Door, Stainless Steel

Open Floor, Eye-Level Digital Controls

Designed for high-volume bakeries, this triple-wide roll-in proofer gives you precise heat and humidity control with fast rack access and a no-ramp open floor.

  • Triple-wide roll-in proofer with a 109-inch-wide footprint and two-door access for easier loading.
  • 100.5-inch-deep configuration holds 12 single-end racks, 15 side-load racks, or 6 double racks.
  • Eye-level digital controls let operators set heat and humidity independently with four countdown timers.
  • Patented airflow and internally mounted heat/humidity components support even proofing performance.
  • Stainless steel interior and exterior with modular cam-lock panels for durability and field assembly.
  • Open floor design eliminates the ramp requirement for loading and unloading racks.

Overall Dimensions:

109.0"W x 103.3"D x 99.0"H

Product Weight:

2270.0 lb

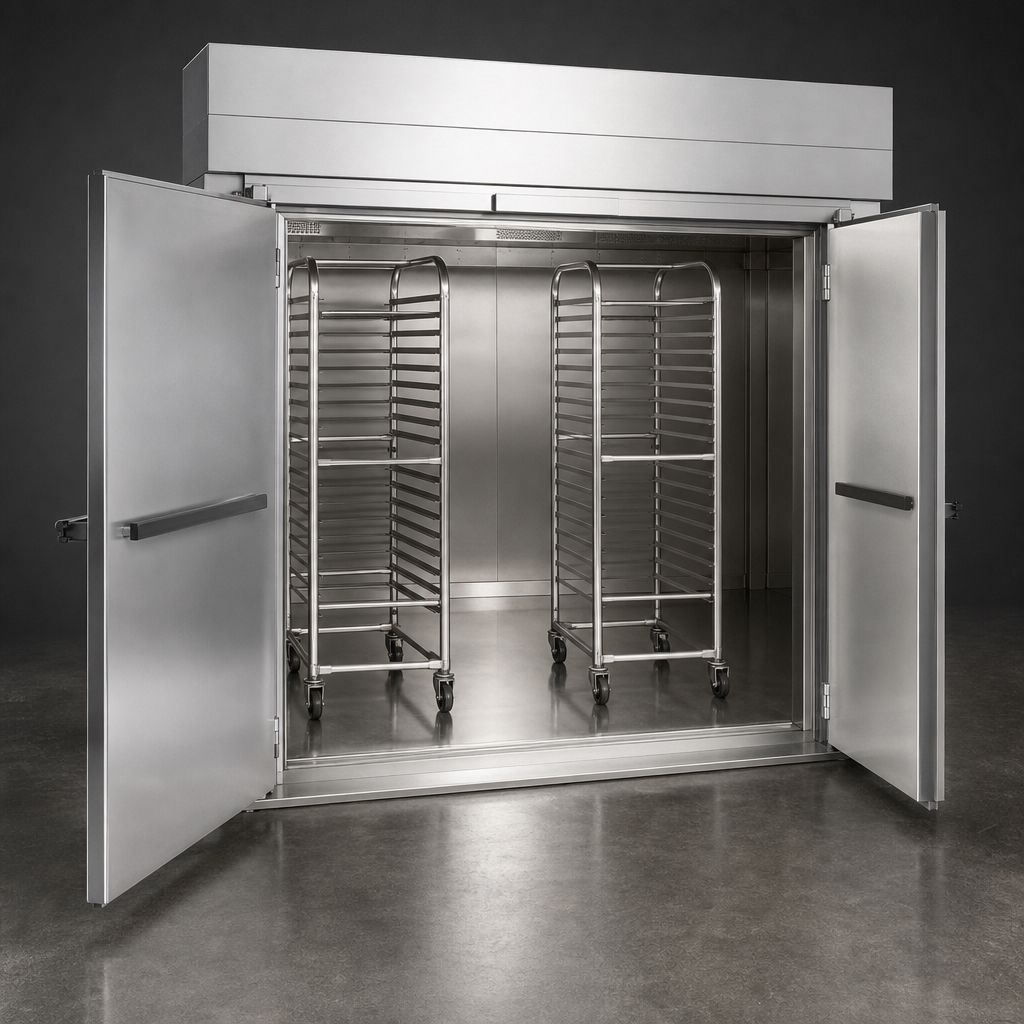

Triple-Wide Two-Door Access

Two doors and no center jamb provide broad access to the proofing chamber for roll-in racks.

Triple-Wide Two-Door Access

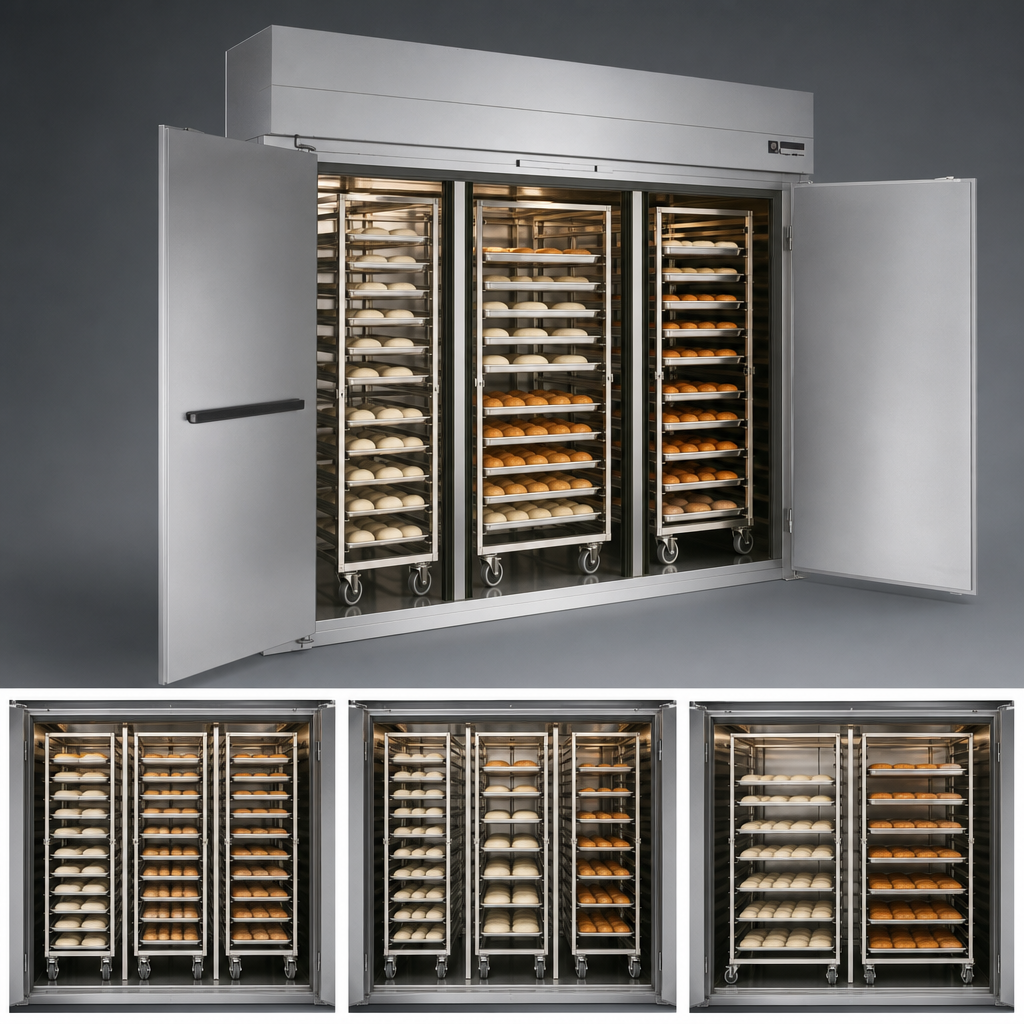

High-Capacity Rack Configuration

The 100.5-inch-deep model is configured to hold 12 single-end racks, 15 side-load racks, or 6 double racks.

High-Capacity Rack Configuration

Eye-Level Digital Control Panel

Digital controls are mounted at eye level for easy operation and allow independent temperature and humidity settings.

Four Independent Timers

Built-in countdown timers help operators manage multiple batches with different proofing times.

Patented Airflow System

Patented airflow and internally mounted heat/humidity components are designed to promote even proofing and consistent cabinet conditions.

Stainless Steel Modular Construction

Stainless steel interior and exterior with modular panel construction and cam-lock attachment supports durability and easier field assembly.

Open Floor Design

The open floor configuration removes the ramp requirement and simplifies roll-in loading.

Type Proofer Cabinet
Style Triple Wide
Installation Type Floor Model (Without Floor)
Capacity 12 Single-End Racks
Controls Digital
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Voltage 208-240 Volts
Amps 34-38 Amps
Watts 9.9-13.2 kW
Hertz 60 Hz
Phase 3-Phase
Water Inlet Size 1/2 Inch FNPT
Water Connection Required
Drain Connection Size 1/2 Inch FNPT
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 109 Inches
Shipping Depth 104 Inches
Shipping Height 99 Inches
Shipping Weight 2270 lb.

Frequently Asked Questions

It holds 12 single-end racks, 15 side-load racks, or 6 double racks.
The unit requires 208-240V, 60 Hz, 3-phase power and draws 34-38 amps, with heat wattage of 9.9-13.2 kW.
No. The open floor design means no ramp is required.
It uses an eye-level digital control panel with independent heat and humidity settings and four timers.
The unit requires a 1/2 inch FNPT cold water connection and a 1/2 inch FNPT drain routed to an air-gap drain.
