Key specifications

Amps
40.2-43.0 Amps; 75.4-86.2 Amps; 99.4 Amps
Phase
3-Phase
Dimensions
55.0"W × 83.5"D × 104.0"H
Type
Rack Oven
Style
Rotating
Installation Type
Floor Model
Spec sheet
Baxter SKU: OV520E1

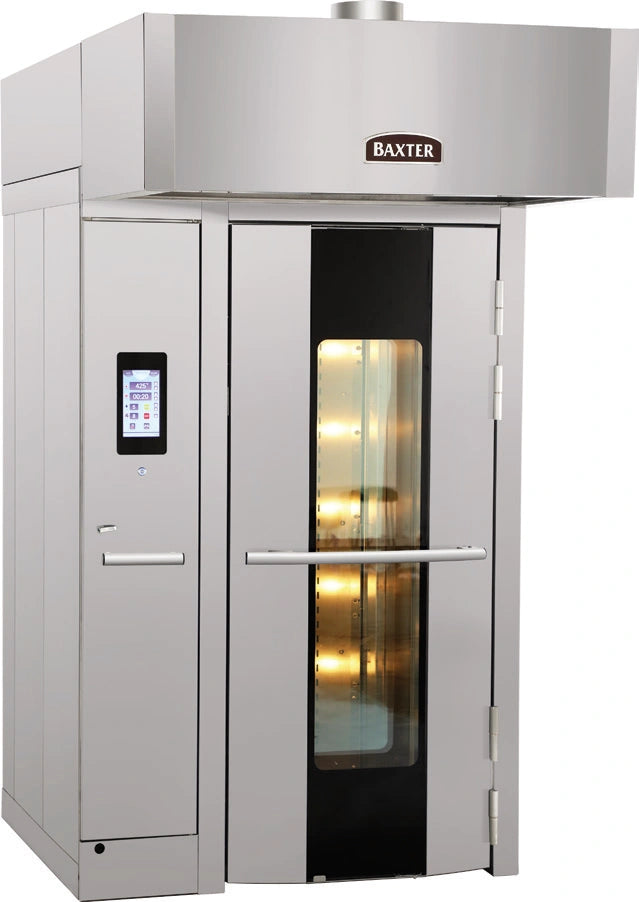

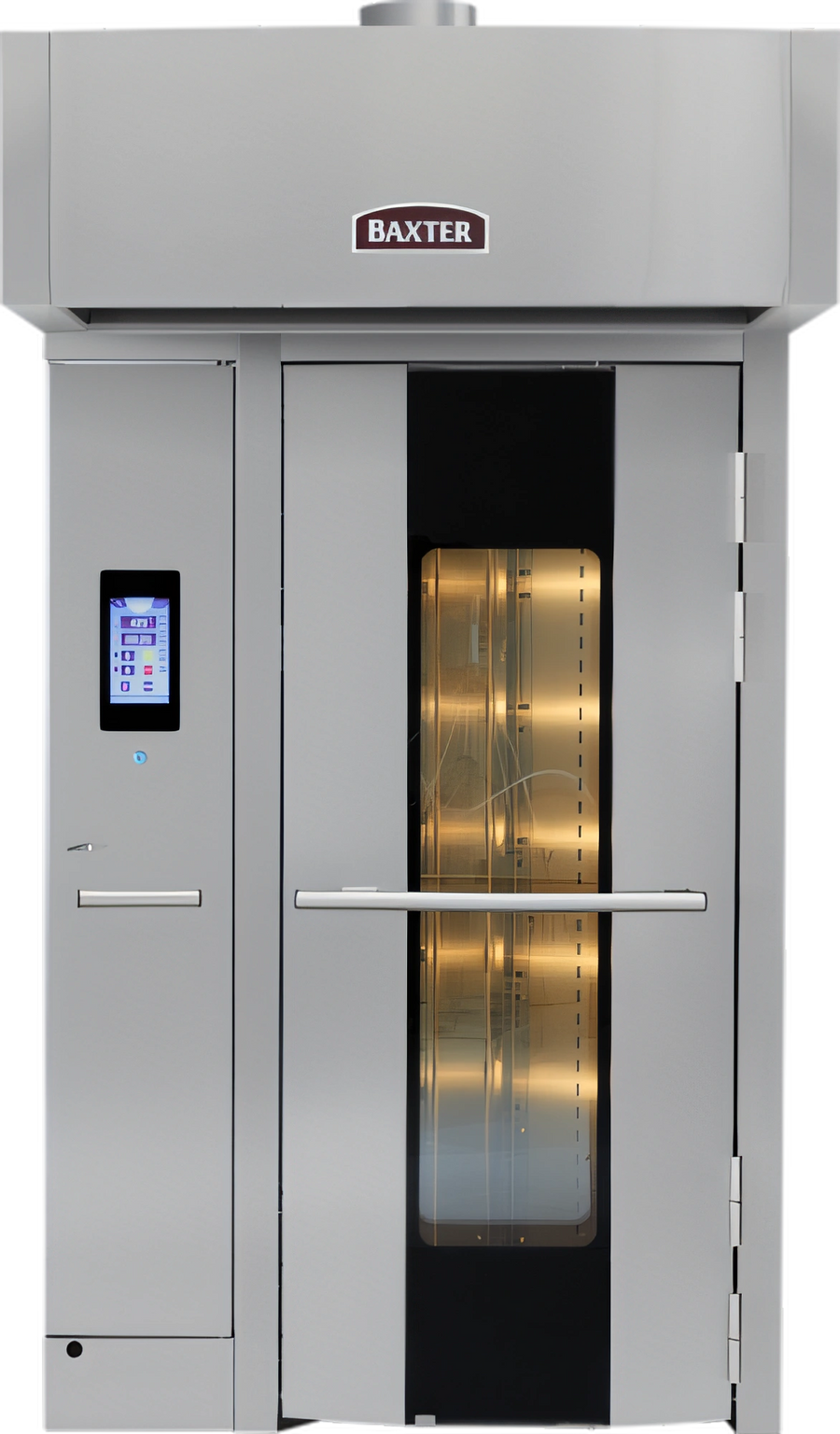

Baxter OV520E1 Single-Rack Rotating Rack Oven

$44,541.36
/each
Estimated to ship in 21–24 business days Free Shipping

Ships by freight. At about 2,985 lb it’s too heavy for a liftgate, so delivery needs a loading dock or a forklift rated for at least 6,000 lb with 6-ft forks.

Style
Control Type
ElectricalRequired
Hood type
Lift carrier
Door hinge
Factory Add-Ons

Need something else? Contact us.

Included: Baxter warranty 1-year parts and labor warranty; 10-year heat exchanger tube warranty on select models

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $4,120/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Rack Oven
Style Rotating
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Front Style Curved

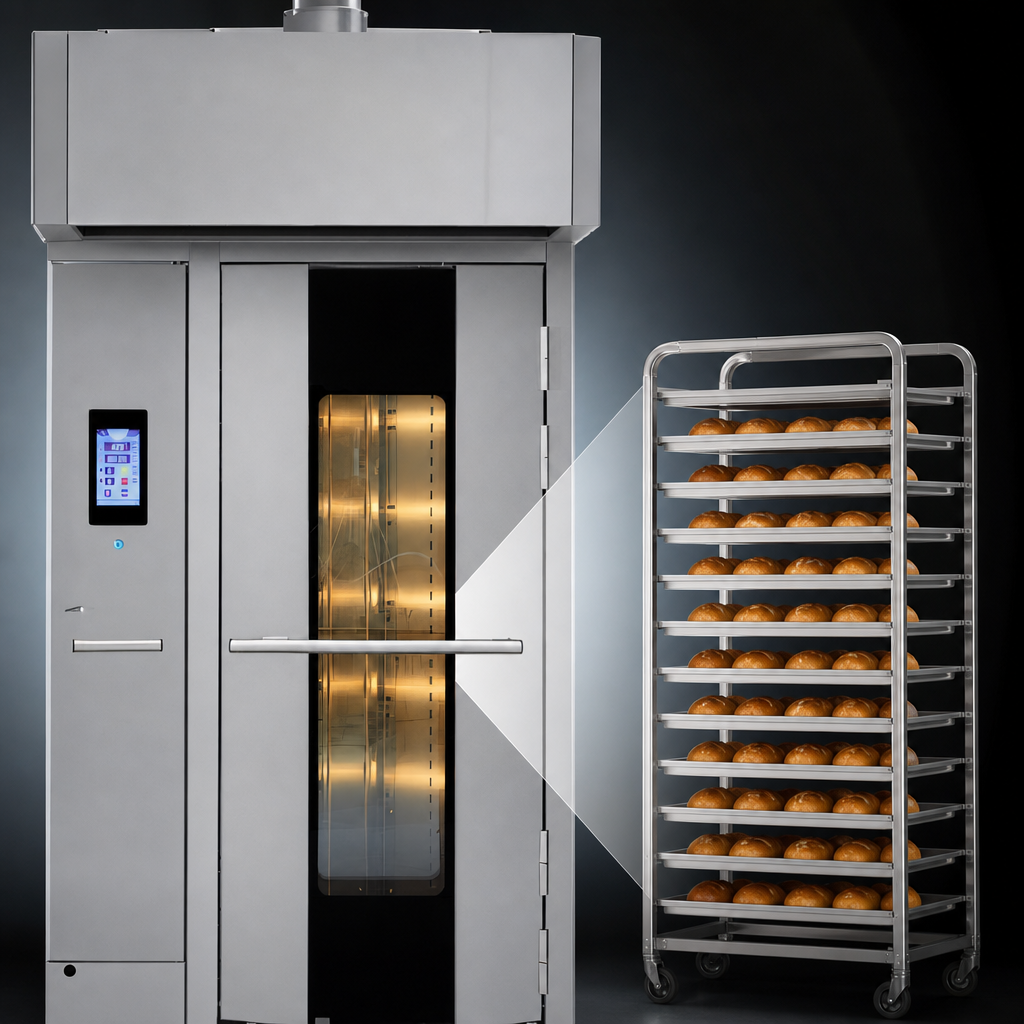

Capacity 1 Rack
Controls Smart Touch Programmable Digital Control
Cooking Stages 6
Programmable Recipes 100
Rack Lift Auto
Steam System Self-Contained
Door Type Three-Pane Field Reversible Glass
Glass Panes 3
Hood Type Fully Fire Sealed
Floor Type Flush
Vent Type Single
Voltage 208 Volts; 208/240 Volts; 440/480 Volts
Amps 40.2-43.0 Amps; 75.4-86.2 Amps; 99.4 Amps
Watts 25.7-34.2 kW; 28.7-34.2 kW; 34.2 kW
Hertz 60 Hz
Phase 3-Phase
Control Circuit Voltage 120 Volts
Control Circuit Amps 15 Amps Dedicated; 20 Amps Maximum
Control Circuit Phase 1-Phase
Water Connection 1/2 in NPT
Drain Connection 1/2 in NPT
Rack Swing Diameter 34.5 in

Description

The Baxter OV520E1 is an electric rotating rack oven with a curved front and capacity for one single oven rack. Smart Touch™ programmable digital controls provide six-stage baking and up to 100 programmable recipes.

Features include an auto rack lift, self-contained steam system, three-pane field-reversible glass door, stainless steel construction, fully fire-sealed hood, and flush floor.

  • Energy-saving idle mode and cool-down mode
  • Halogen bake-chamber lighting
  • Built-in rollers and levelers
  • cULus and UL EPH Classified

Overall Dimensions:

55.0"W x 83.5"D x 104.0"H

Product Weight:

2985.0 lb

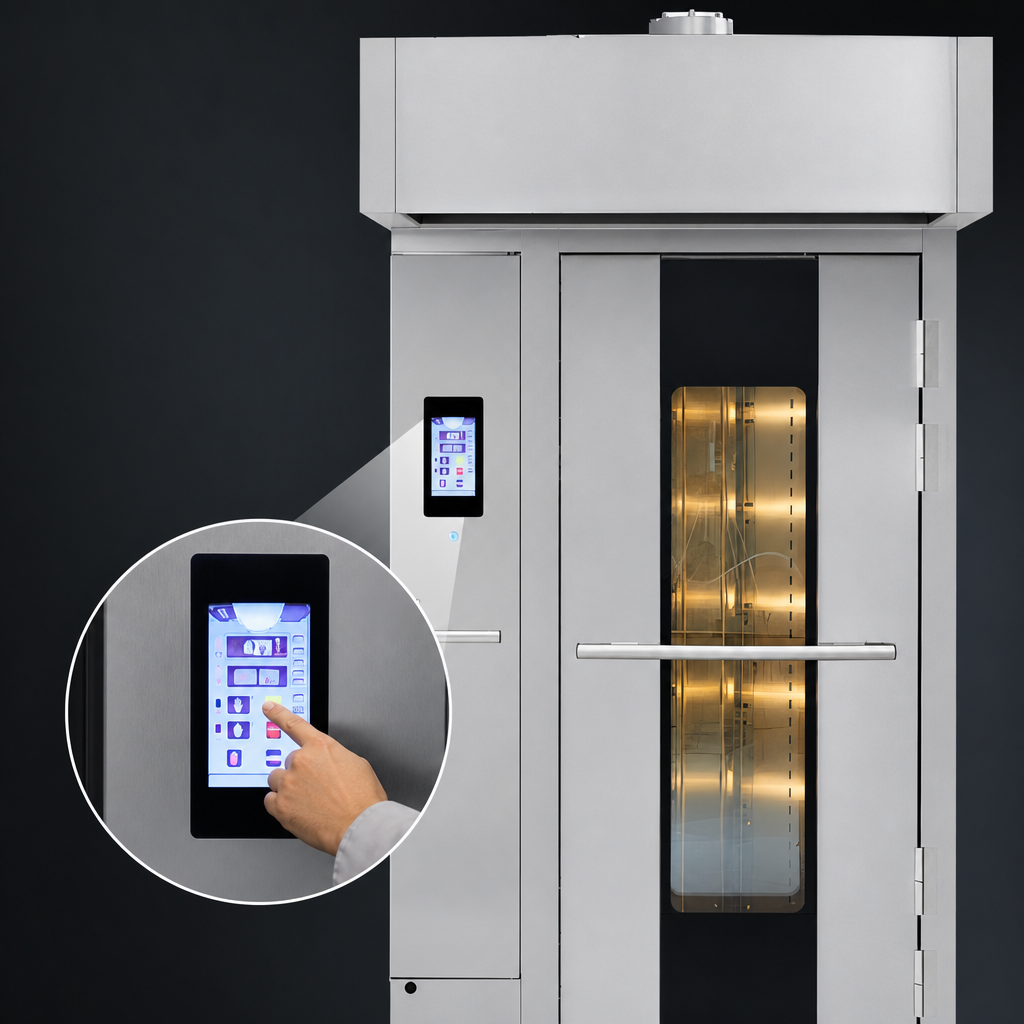

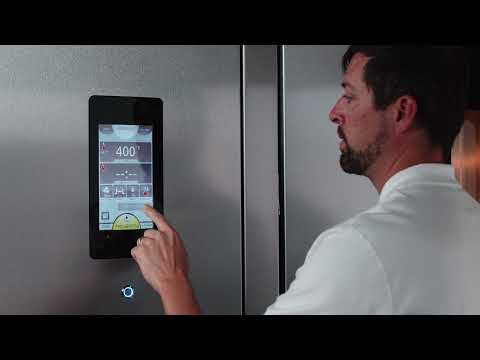

Smart Touch™ Controls

Programmable digital touch-screen controls provide six-stage baking, 100 programmable recipes, cool-down mode, and energy-saving idle mode.

Auto Rack Lift

Heavy-duty rack lift includes soft-start rotation and a rack jam warning system.

Self-Contained Steam System

The oven uses a self-contained spherical cast steam system.

Three-Pane Glass Door

The field-reversible bake-chamber door can be configured for left- or right-hinged operation.

Stainless Steel Construction

Fire-Sealed Hood

The oven has a fully fire-sealed hood with a single vent.

Flush Floor

The flush floor is designed for access without a ramp.

Bake-Chamber Lighting

Halogen lighting provides visibility inside the bake chamber.

Frequently Asked Questions

The OV520E1 holds one single oven rack.
It uses Smart Touch™ programmable digital touch-screen controls with six-stage baking and 100 programmable recipes.
Yes. The bake-chamber door is field reversible for left- or right-hinged installation.
The heating circuit options are 208V/60/3, 208-240V/60/3, or 440-480V/60/3. A separate 120V/60/1 control circuit is also specified.
The listed dimensions are 55.0 inches wide, 83.5 inches deep, and 104 inches high, with a listed weight of 2,985 pounds.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

It’s too heavy for a liftgate, so you need a loading dock, or a forklift rated for at least 6,000 lb with 6-ft forks and an operator on site. The driver won’t unload it.
