Key specifications

BTU
275,000 BTU
Dimensions
72.0"W × 92.1"D × 104.0"H
Type
Rack Oven
Style
Rotating
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Baxter SKU: CS500G2

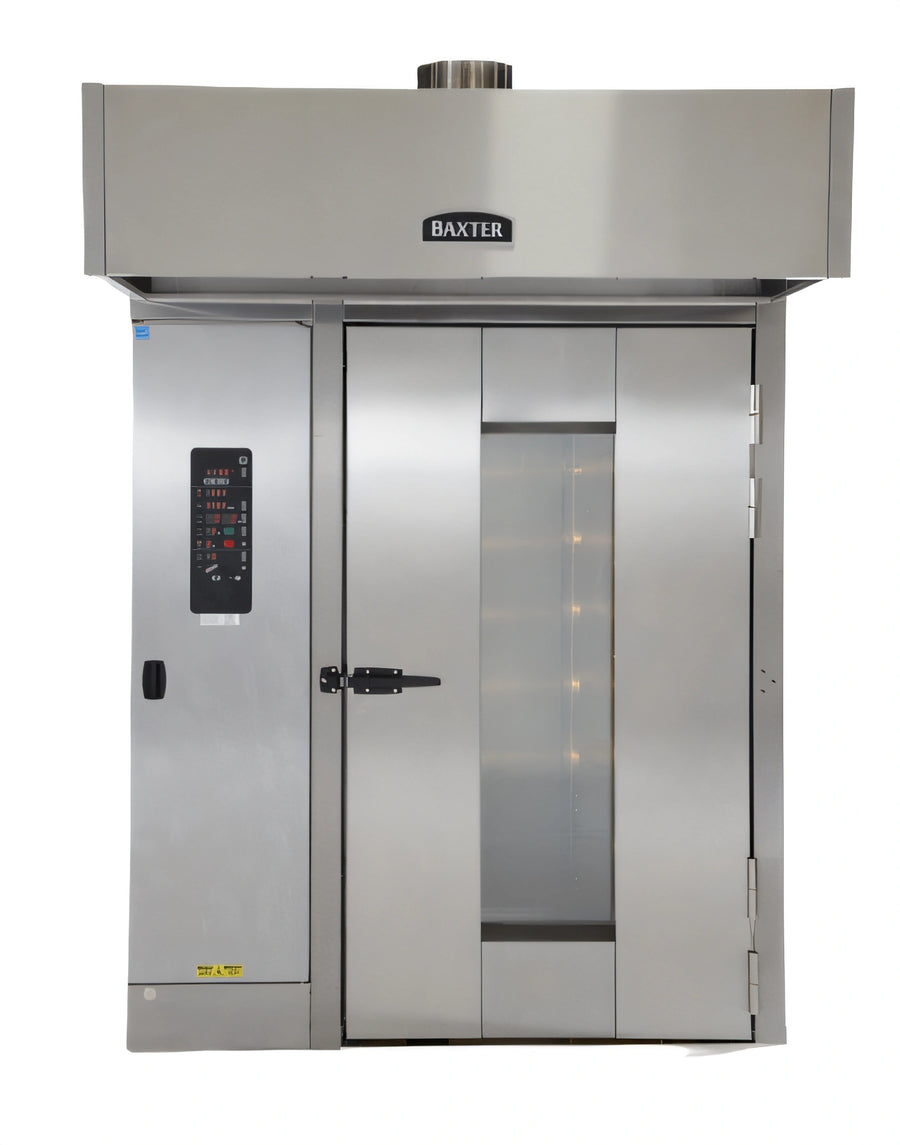

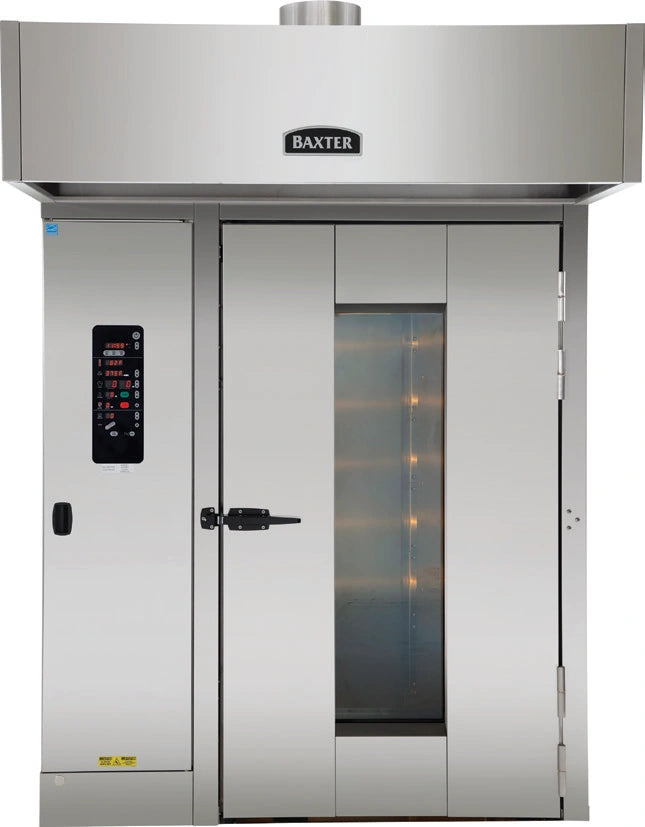

Baxter CS500G2 Gas Rotating Rack Oven, 2-Rack Capacity

$39,130.24
/each
Estimated to ship in 21–24 business days Free Shipping

Ships by freight. At about 3,660 lb it’s too heavy for a liftgate, so delivery needs a loading dock or a forklift rated for at least 6,000 lb with 6-ft forks.

ElectricalRequired
Gas typeNatural gas
Door hinge
Factory Add-Ons
Gas Connector
Included: Baxter warranty One-year parts and labor warranty from original installation, with an additional nine-year extended parts and labor warranty for the heat exchanger tubes

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $3,620/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Rack Oven
Style Rotating
Installation Type Floor Model
Material Stainless Steel
Country of Origin USA
Capacity 2 Single Racks or 1 Double Rack
Controls Digital Programmable Controls
BTU 275,000 BTU
Hertz 60 Hz
Steam System Self-Contained
Rack Lift Auto Lift
Rotation Start Soft Start
Door Reversibility Field Reversible
Window Type Dual Pane Glass
Hood Type Integrated
Vent Connection Single Point
Installation Application Type II
Floor Design Flush
Energy Efficiency ENERGY STAR®

Description

The Baxter CS500G2 is a gas rotating rack oven with capacity for two single oven racks or one double oven rack. It features programmable digital controls with a 4-stage bake setting, a self-contained steam system, and a 275,000 BTU burner system.

  • Auto rack lift with soft-start rotation and rack jam warning
  • Stainless steel construction with dual-pane glass
  • Field-reversible bake chamber door
  • Integrated hood with plenum and single-point vent connection for Type II installations only
  • Flush floor, built-in rollers, and levelers

Overall Dimensions:

72.0"W x 92.1"D x 104.0"H

Product Weight:

3660.0 lb

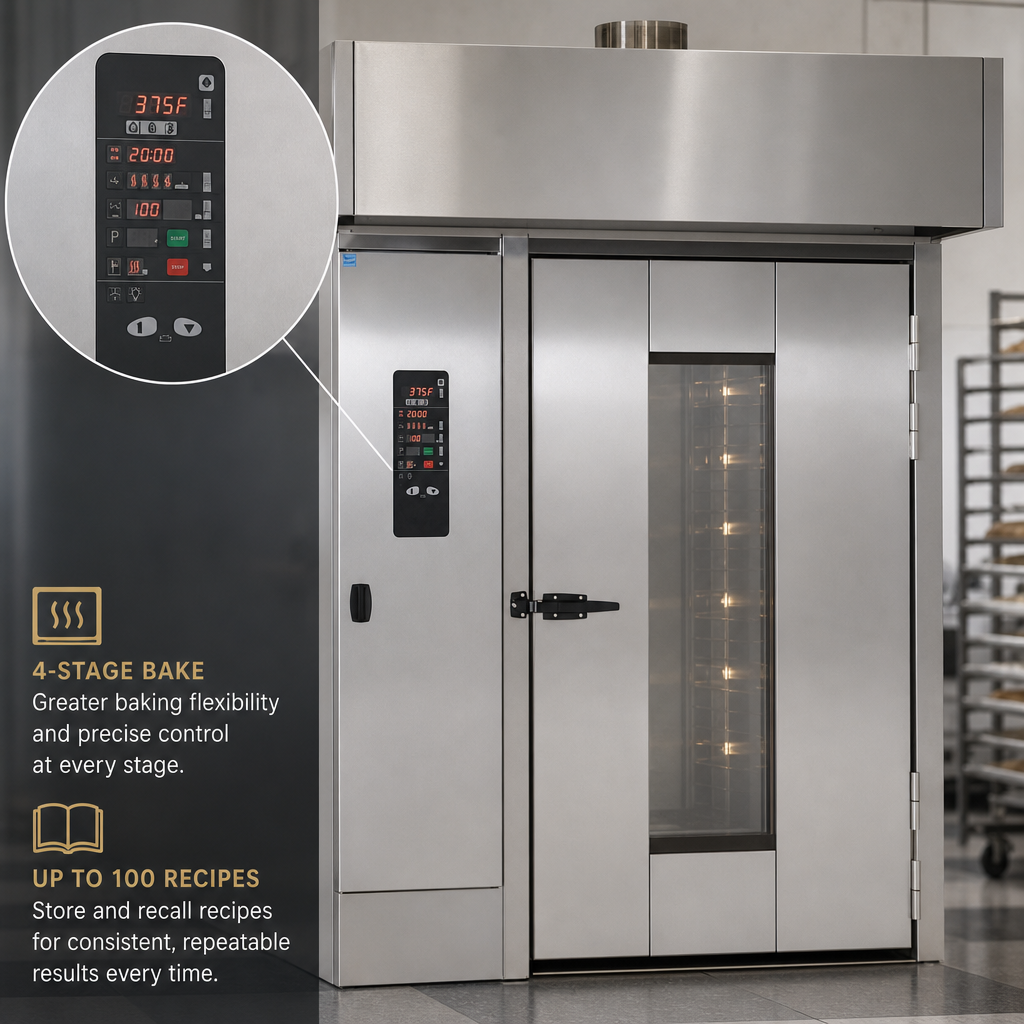

Programmable Digital Controls

Provides a 4-stage bake setting and programmable recipe capability.

Self-Contained Steam System

Includes a self-contained steam system for oven operation.

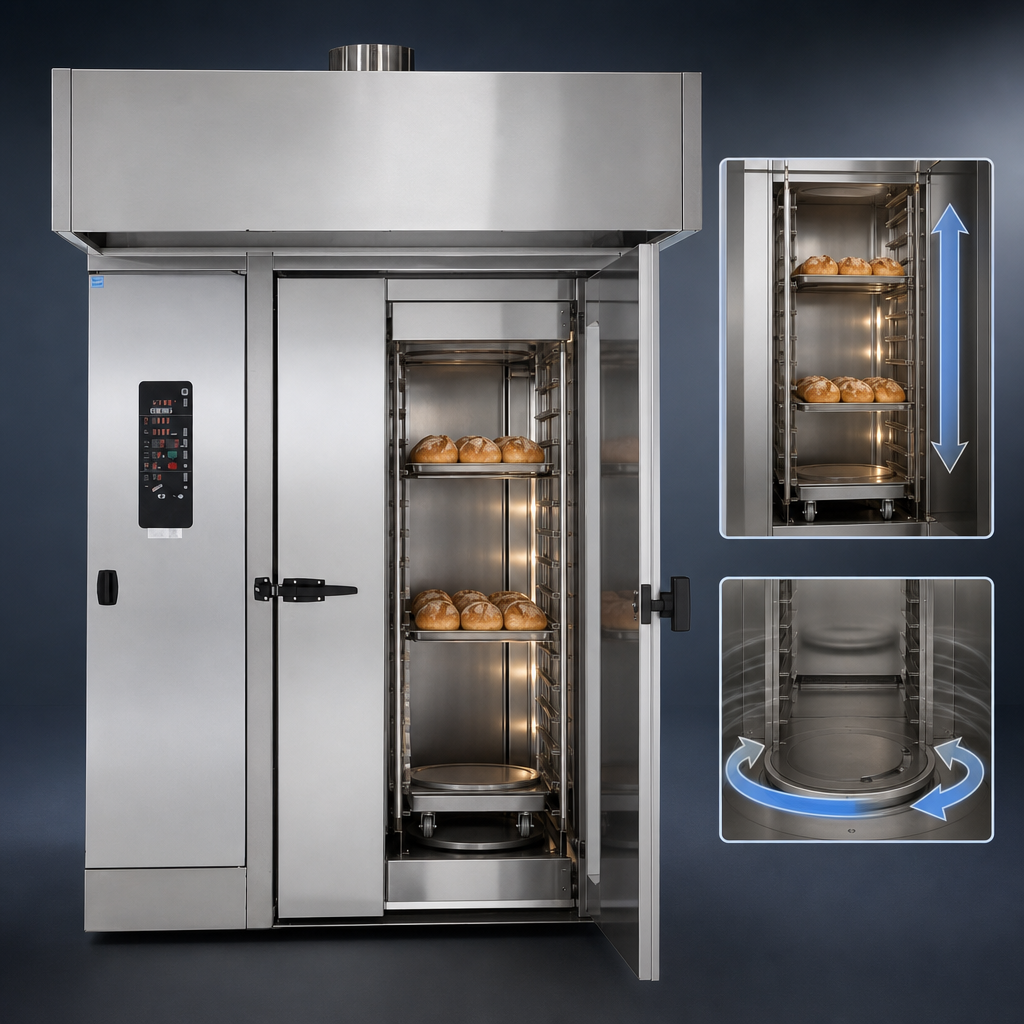

Auto Rack Lift

Lifts the rack with soft-start rotation and includes a rack jam warning system.

Field-Reversible Door

The bake chamber door can be configured for left- or right-hand hinging.

Stainless Steel Construction

The oven body uses stainless steel construction.

Dual-Pane Glass

The viewing window uses dual panes of glass and a low-E interior coating.

Integrated Hood

Includes a hood with plenum and single-point vent connection for Type II installations only.

Flush Floor

The bake chamber has a flush floor.

Energy-Saving Idle Mode

Reduces the oven to a standby temperature when left idle, with configurable idle time and standby temperature.

Halogen Lighting

Provides lighting in the bake chamber.

Frequently Asked Questions

It holds two single oven racks or one double oven rack.
It has programmable digital controls with a 4-stage bake setting.
Yes. It includes a self-contained steam system.
Yes. The bake chamber door is field reversible for left- or right-hand hinging.
The hood with plenum and single-point vent connection is for Type II installations only.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

It’s too heavy for a liftgate, so you need a loading dock, or a forklift rated for at least 6,000 lb with 6-ft forks and an operator on site. The driver won’t unload it.

Getting ready for a dock or forklift delivery

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
