Bakers Pride (Middleby) PB-24S IL Forno Classico Exhaust Only Hoods
Description

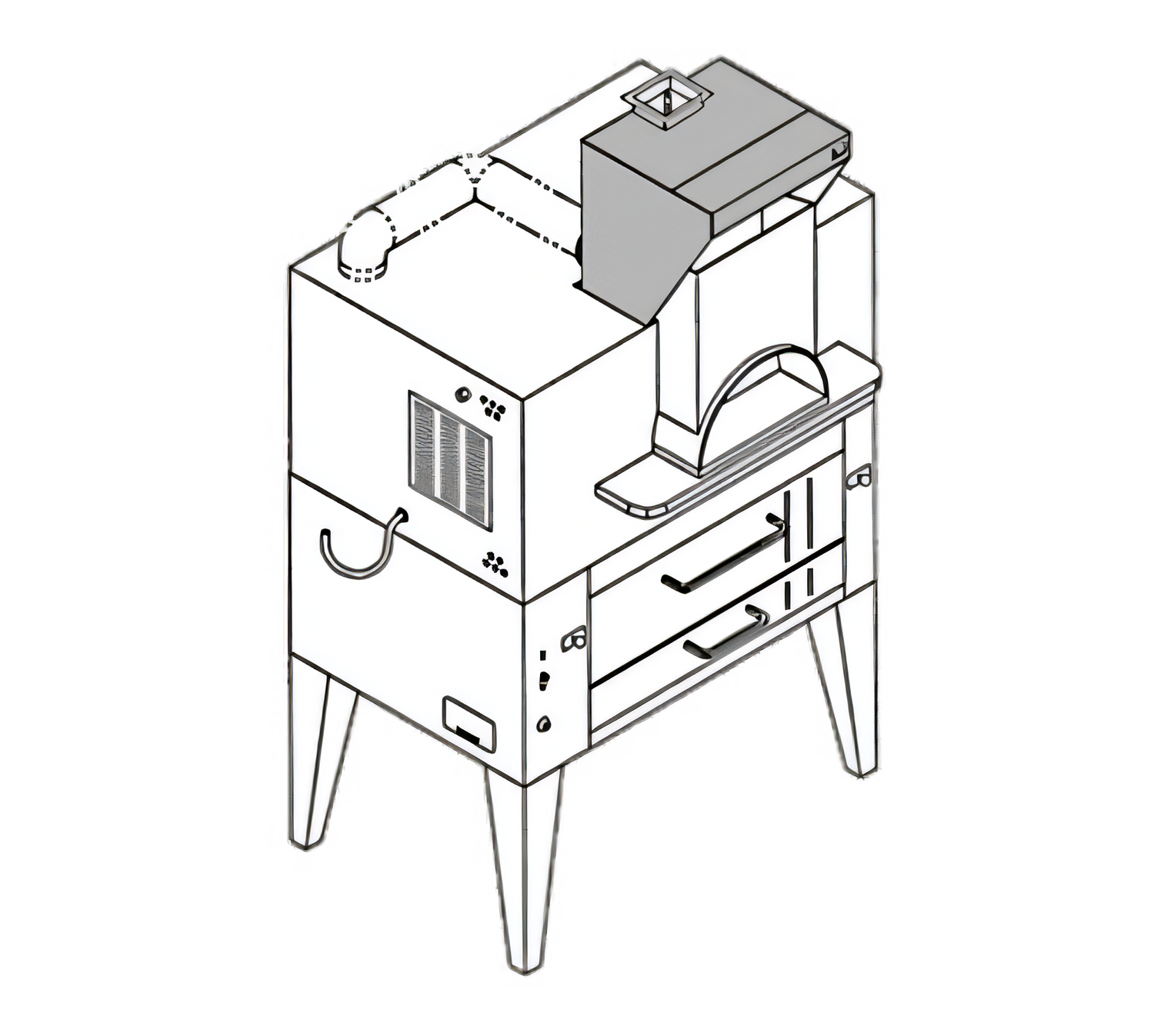

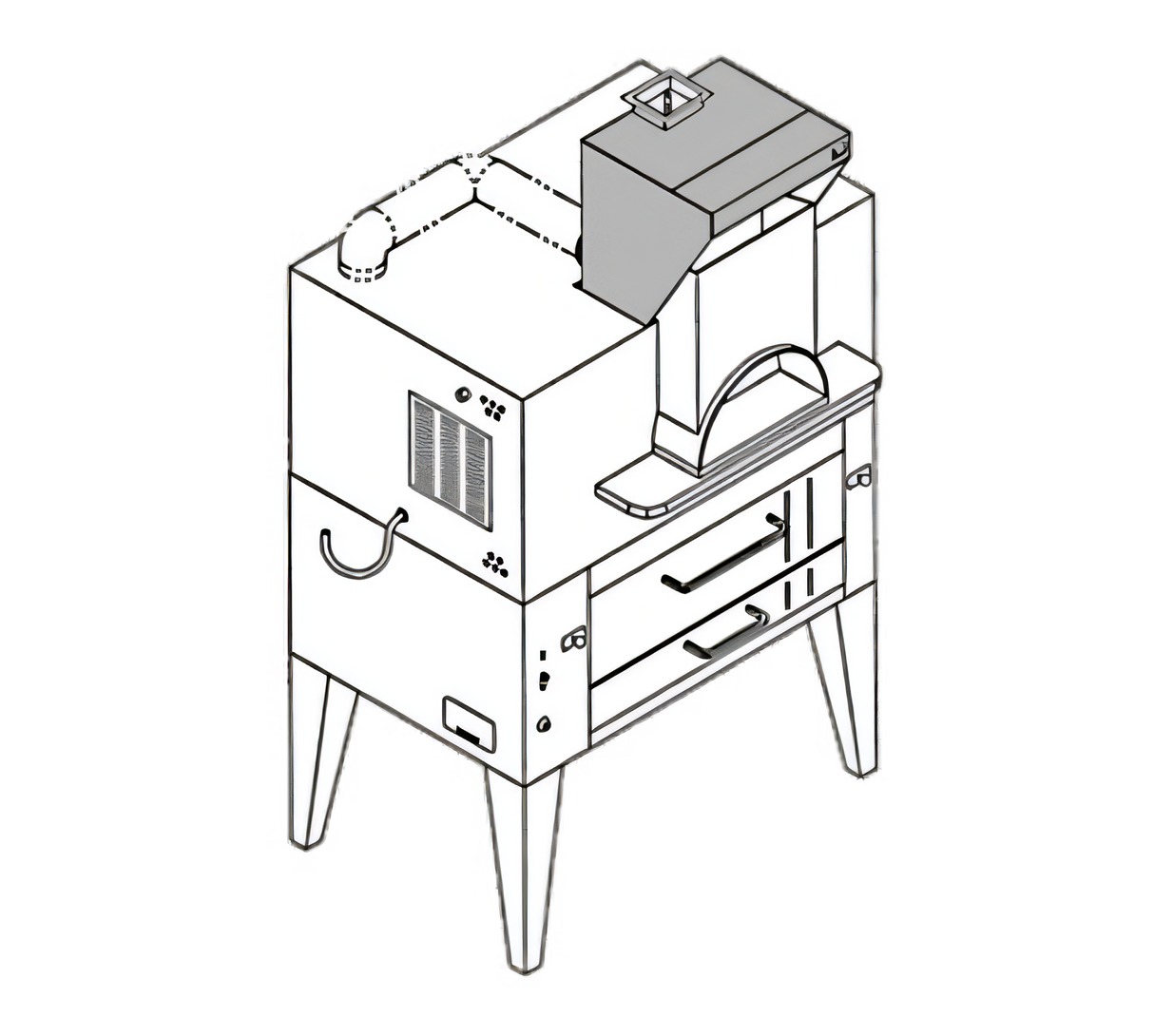

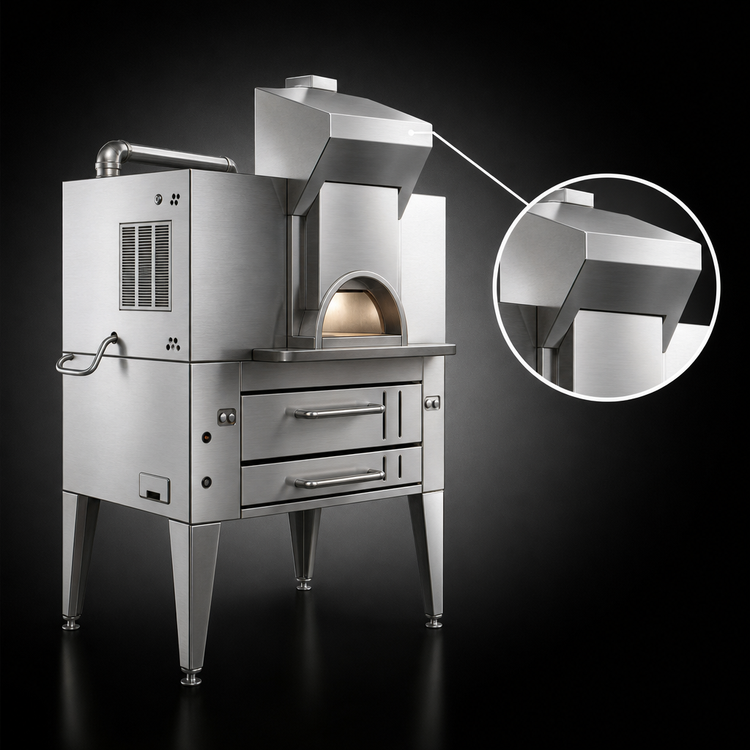

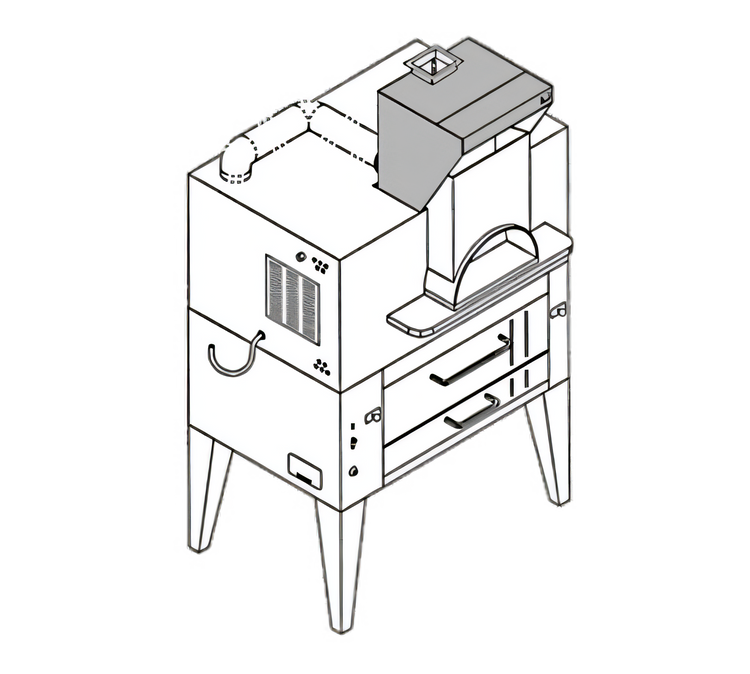

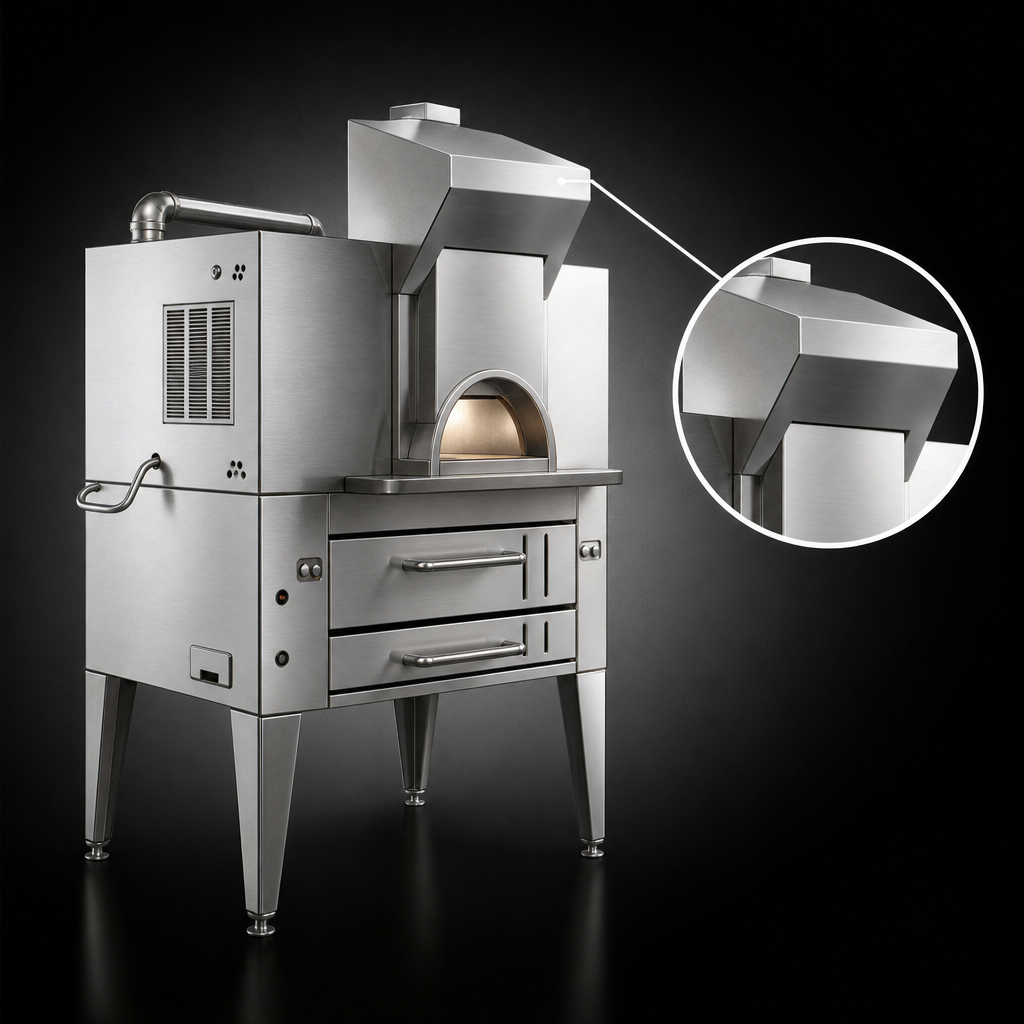

Il Forno Classico® Eyebrow Exhaust Hood
Model PB-24 – Direct-mount ventilation for single Il Forno Classico & FC-Series deck ovensKeep your kitchen comfortable, compliant, and free of grease-laden vapors with the Bakers Pride PB-24 Eyebrow Hood. Engineered to mount directly to a single Il Forno Classico brick oven (or comparable FC-Series deck oven), this low-profile hood delivers powerful extraction without the need for a full canopy system.
Why You’ll Love It
- 540 CFM induced-draft design sized for Il Forno Classico heat loads
- Stainless-steel baffle filter set at a 45° angle for efficient grease removal (#F60-1620, UL Classified)
- Built-in grease gutter with removable cup for quick, mess-free maintenance
- 6" × 7" (152 × 178 mm) duct collar simplifies connection to your exhaust system
- Ready to accept Ansul R-102 fire-suppression piping – no field fabrication required
- Heavy-gauge, all-stainless construction resists corrosion and wipes clean with ease
- NSF listed and designed to meet NFPA 96 requirements
- Ships fully assembled for fast, bolt-on installation to the oven body
Performance & Dimensions
| Model | PB-24 (single-oven application) |
|---|---|
| Overall Dimensions (W × H × D) | 26" × 25.5" × 26" (660 × 648 × 660 mm) |
| Airflow Capacity | 540 CFM @ .75 in w.g. static pressure |
| Duct Connection | 6" × 7" oval (152 × 178 mm) |
| Filter Type | Stainless baffle, UL Classified, removable |
| Shipping Weight | ≈ 100 lb (46 kg) |
| Certifications | NSF ✓ NFPA 96 ✓ |
- Provide 75–80 % tempered outside make-up air evenly across the kitchen.
- Exhaust fan, make-up air unit, and fire-suppression system are furnished by others.
- Discharge duct must run vertically and terminate at least 10 ft from any air intake.
Peace-of-Mind Warranty
Bakers Pride backs every PB-Series hood with a 1-year limited parts & labor warranty when installed and maintained according to factory guidelines.
