Description

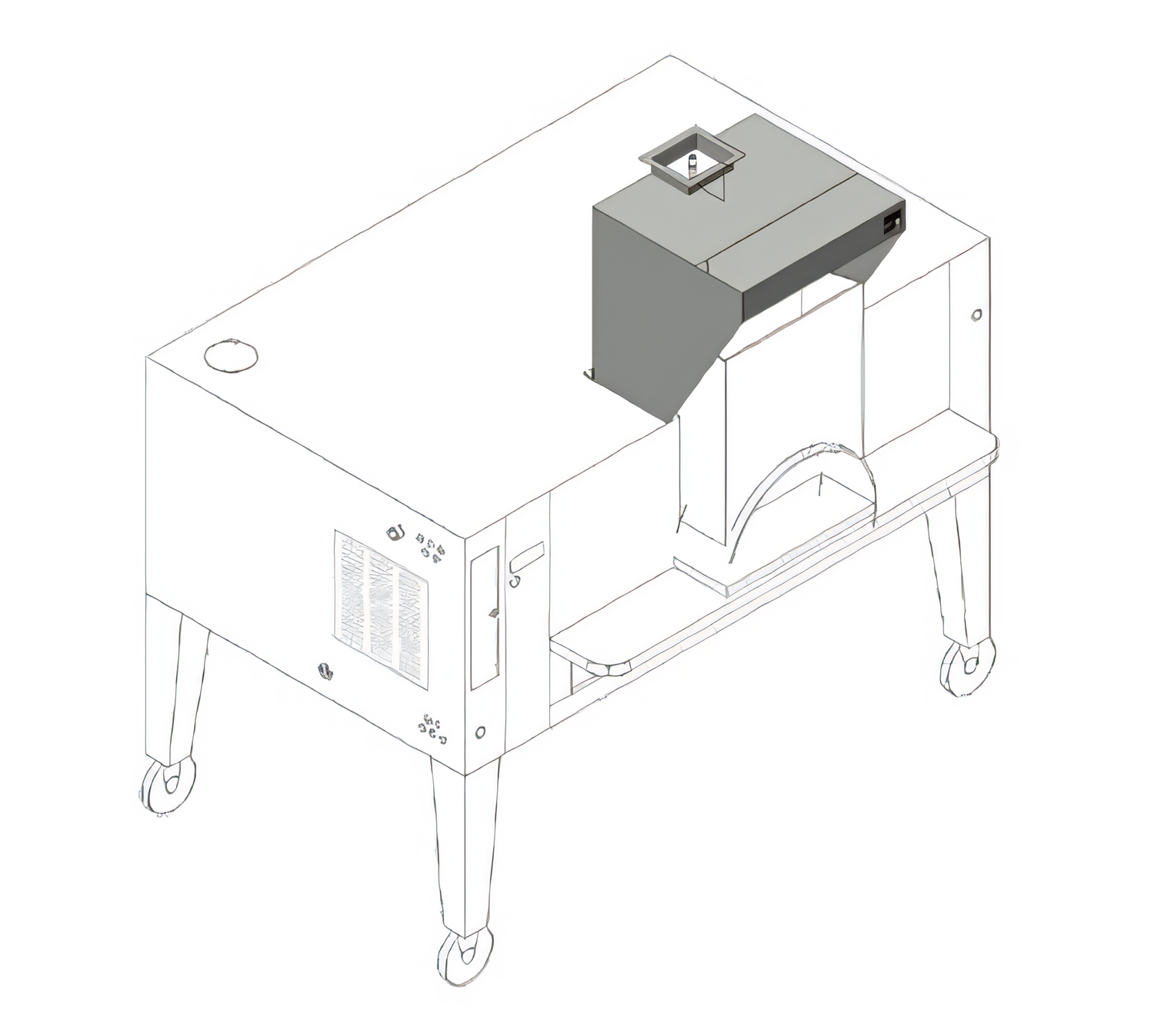

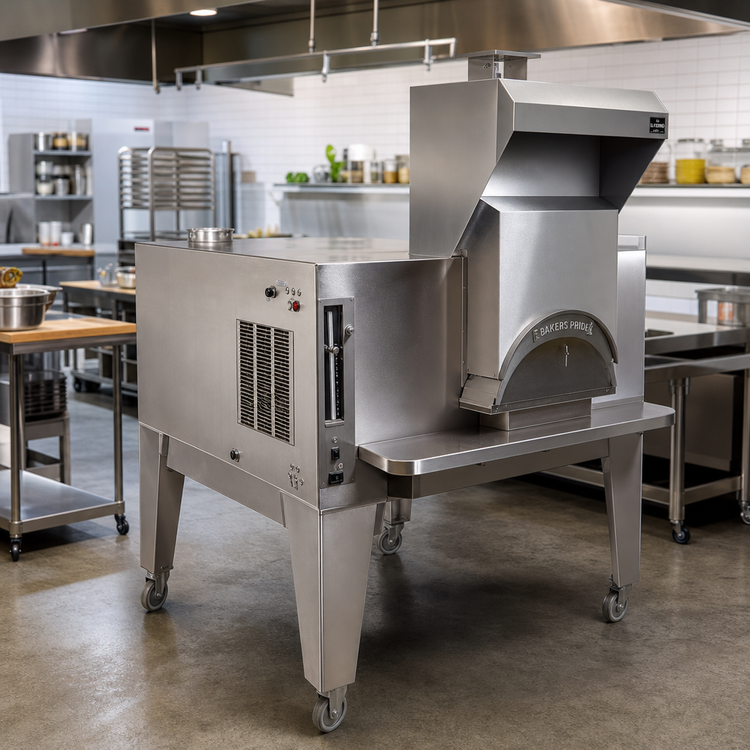

Il Forno Classico® Eyebrow Exhaust Hood

Model PB-24  |  Direct-mount ventilation for single brick ovens

Purpose-built for Bakers Pride Il Forno Classico brick ovens, the PB-24 eyebrow hood removes smoke, grease-laden vapors, and excess heat right at the oven mouth—helping you meet NSF and NFPA 96 codes without the footprint of a full canopy system.

Key advantages

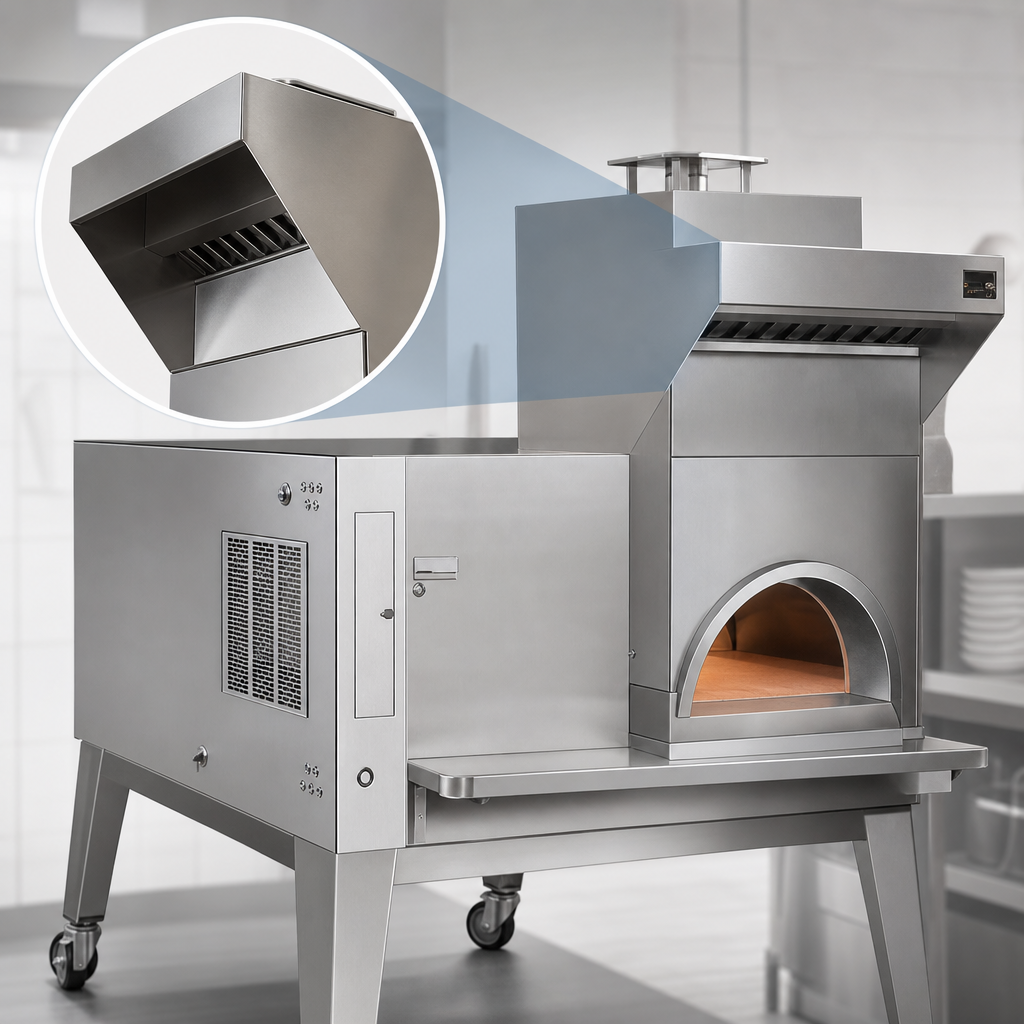

  • Direct-mount “eyebrow” design keeps the hood flush with the oven façade—no additional stand or wall support required.
  • 540 CFM induced-draft airflow engineered to evacuate the entire heat load of an Il Forno Classico single deck.*
  • UL-Classified stainless-steel baffle filter set at a 45° angle for optimal grease extraction and easy slide-out cleaning.
  • Full-length grease gutter with removable stainless cup prevents drips onto the hearth or floor.

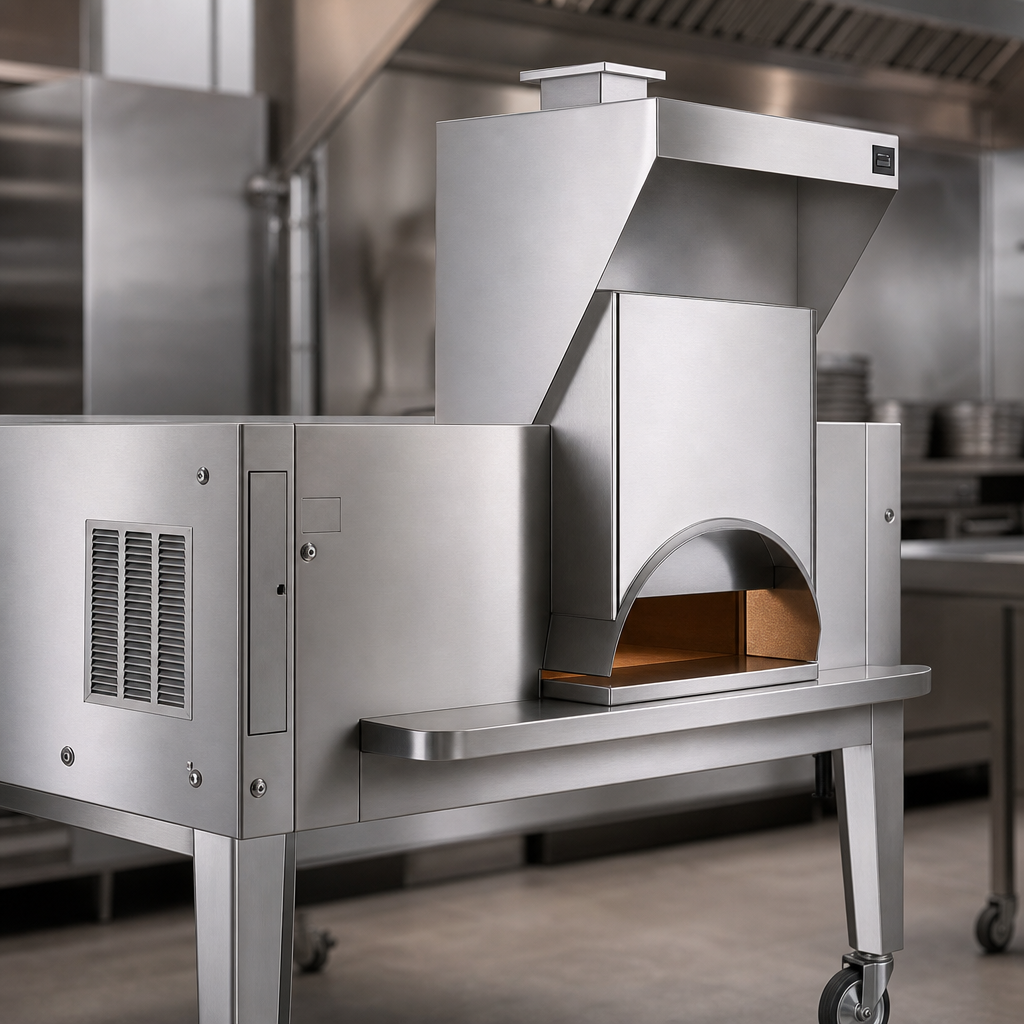

  • Heavy-gauge, polished stainless-steel construction stands up to daily high-heat production and harsh cleaning chemicals.
  • Pre-punched to accept Ansul R-102 fire suppression piping (fire damper not included).
  • Meets NSF sanitation standards and NFPA 96 ventilation requirements.

Technical specifications

Compatible oven Il Forno Classico single-deck brick oven (FC-Series)
Overall dimensions* 26 in W × 25.5 in H × 26 in D  (660 × 648 × 660 mm)
Required airflow 540 CFM @ 0.75 in w.c.
Duct collar 6 in × 7 in (152 × 178 mm) rectangular
Filter type Stainless baffle, model F60-1620, UL Classified
Grease management Integral gutter & removable cup
Fire-suppression ready Yes – pre-plumbed openings for Ansul R-102 piping
Construction All-stainless steel
Certifications NSF, NFPA 96 compliant, UL Classified filters
Shipping weight 100 lb (46 kg)
Installation reminder: Exhaust fan, make-up air unit, ductwork, and fire-suppression hardware must be supplied and installed by a qualified contractor in accordance with local codes.

Warranty

Bakers Pride backs this hood with a 1-year limited parts & labor warranty when installed and operated according to the factory manual.

*Always verify total CFM requirements in the oven manual and consult local authorities for final code compliance.

Features & Specs

Manufacturer

Bakers Pride (Middleby)

Brand_name

IL Forno Classico

Certifications

NSF

Height

25.5in

Width

26.0in

Depth

26.0in

Shipping Weight

100.0lbs

Height

26"

Make-up air

non-compensating

Depth (front - back)

25"

Hood Style

oven mount

Width (side - side)

25 - 30" wide

Specifications

Il Forno Classico® Exhaust Hood, eyebrow style, mount on single oven, full-length grease gutter with removable grease cup, stainless steel baffle type filter on 45°, stainless steel construction, with out fire damper, (Ready to accept Fire Suppression piping), NSF & NFPA 96
