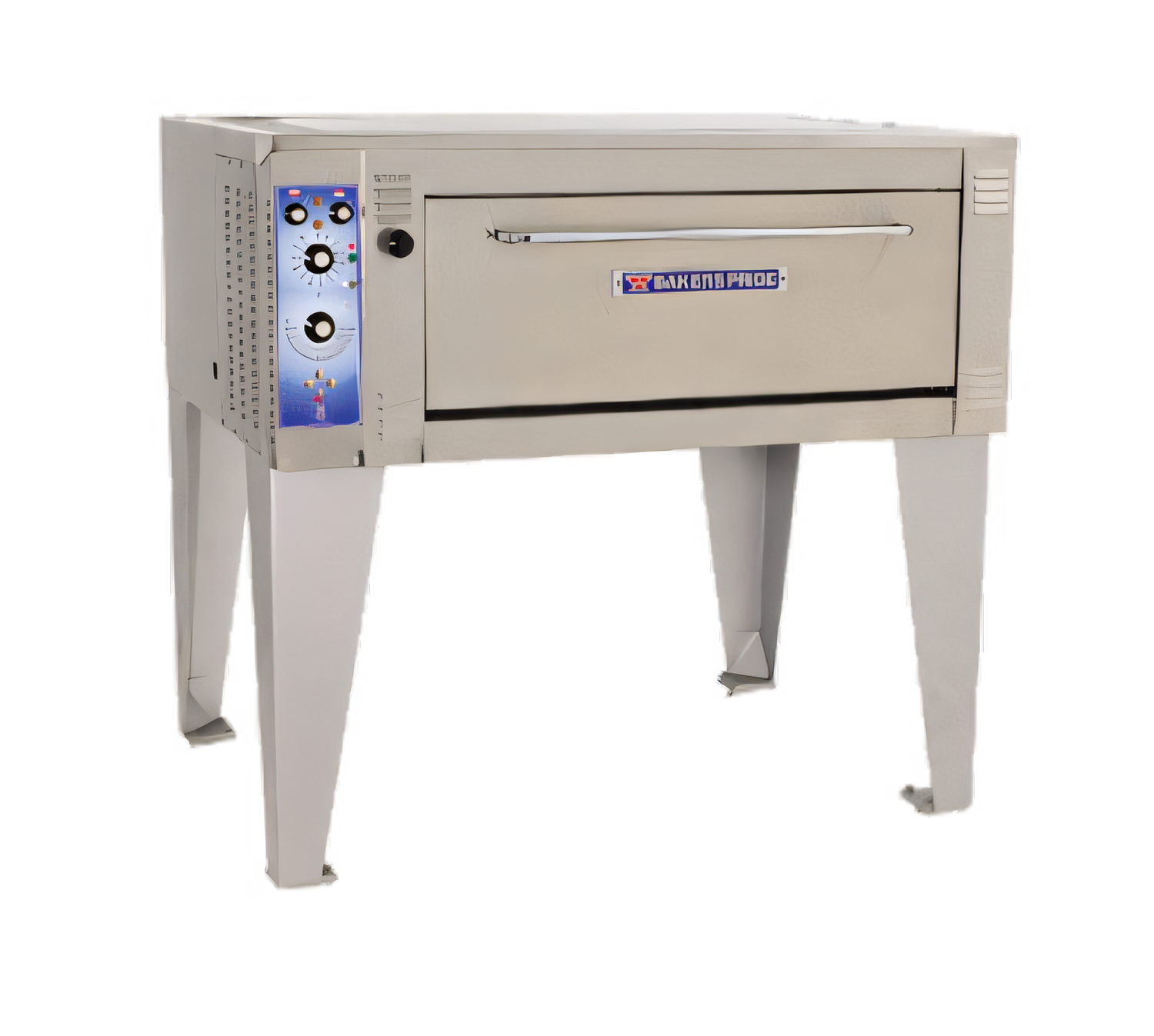

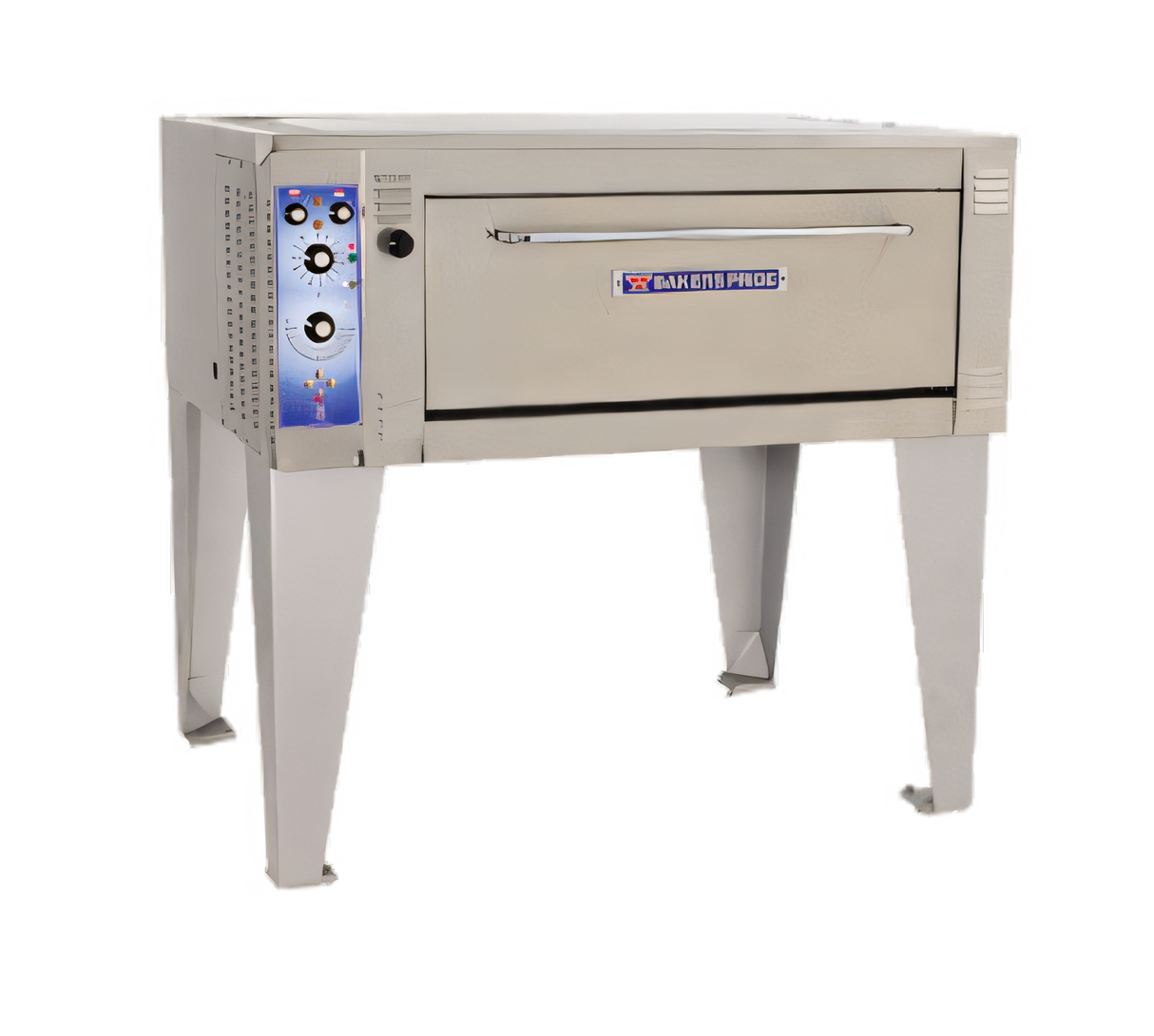

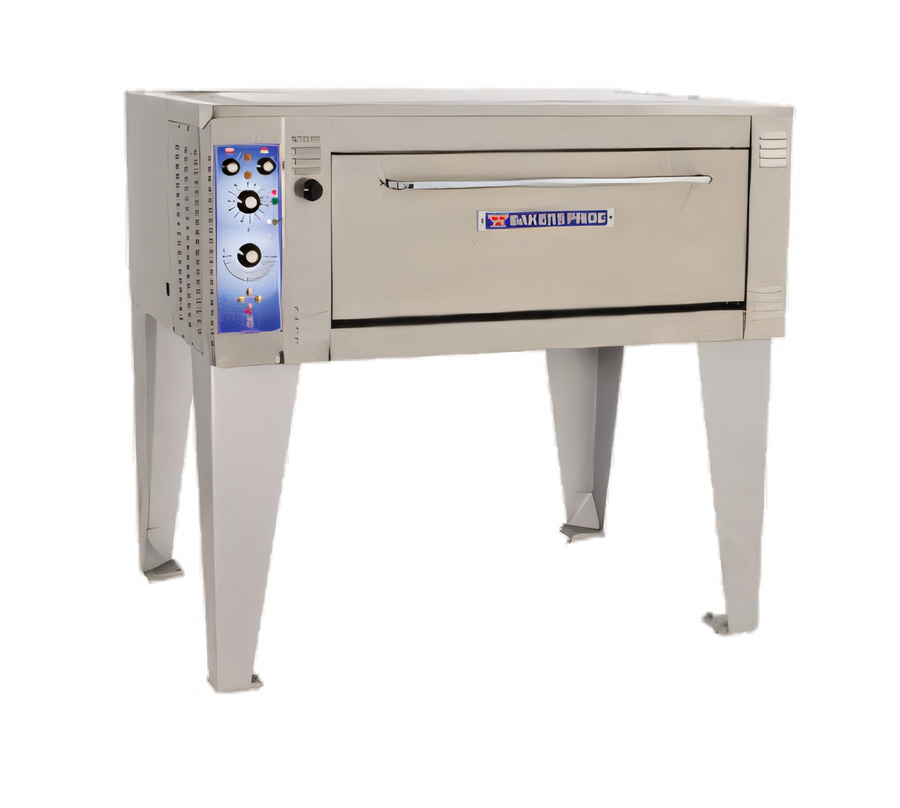

Bakers Pride (Middleby) ER-3-12-3836 Super Deck Series Deck Ovens
Bakers Pride (Middleby) ER-3-12-3836 Super Deck Series Deck Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Bakers Pride (Middleby) ER-3-12-3836 Super Deck Series Deck Ovens
Description

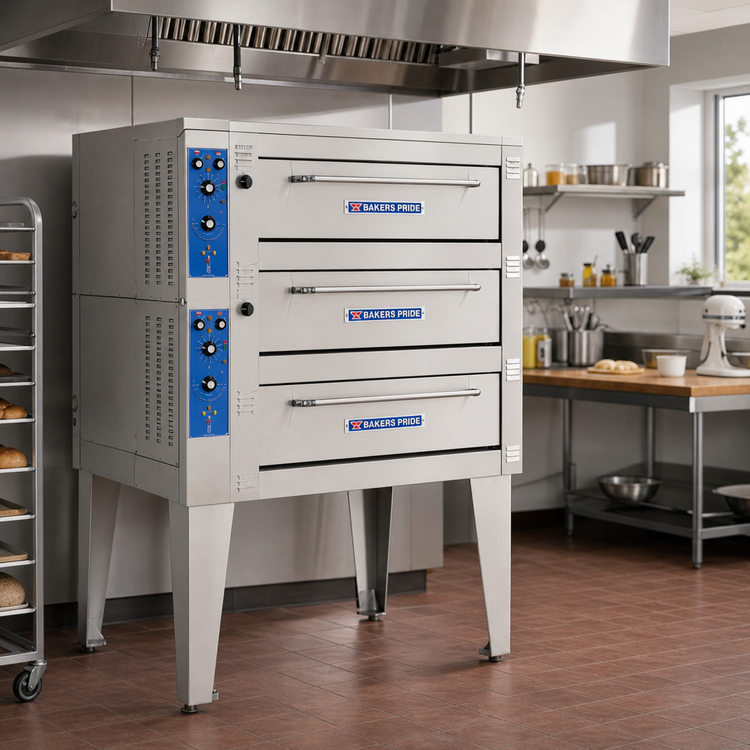

Bakers Pride Super Deck Series Triple-Deck Electric Oven
Model ER-3-12-3836 | 38" × 36" Decks | 24 kWBuilt for serious volume, the Bakers Pride Super Deck Series gives you three full-size bake/roast decks in just 55" of counter frontage. Independent top-and-bottom heating elements, rugged steel decks, and an extra-tall 12" cavity height let you effortlessly switch from artisanal pizza to pan breads, roasts, and sheet-pan entrées—all while delivering the even, consistent results that have made Super Deck a kitchen staple for decades.
Performance & Construction Advantages

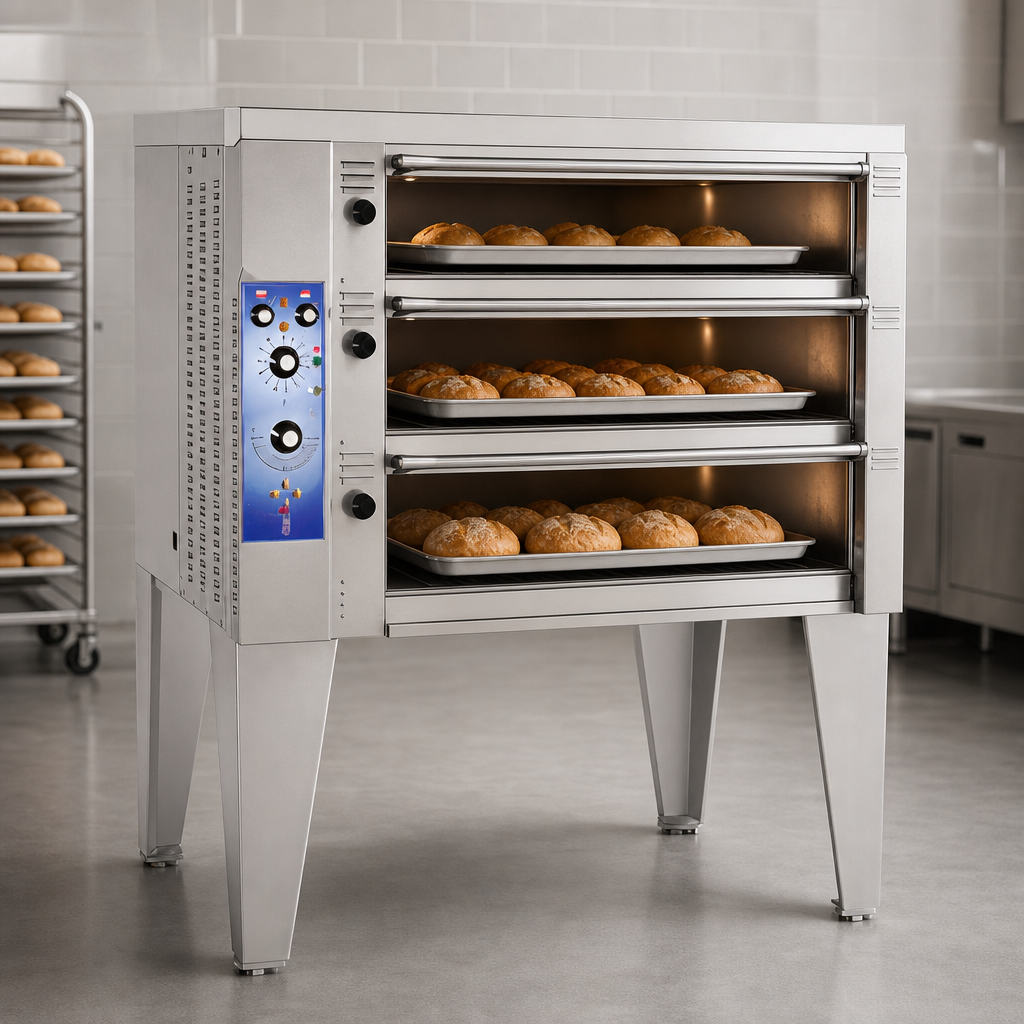

- Three completely independent 38" × 36" chambers deliver 28.5 sq ft of total baking surface.
- U-shaped heating elements above and below each deck (8 kW per deck) are spaced every 9½" for uniform heat distribution.
- Infinite top & bottom heat controls per deck, plus a 60-minute timer, give you precise bake or roast control from 140–550 °F (60–288 °C).
- Heavy-duty welded angle-iron frame is engineered for stacking; this unit ships factory-stacked on 6" legs.
- Stainless steel exterior and aluminized steel interior resist corrosion and make cleanup fast.
- Fully insulated cabinet and spring-balanced, insulated doors keep the kitchen cooler and energy costs down.
- NSF, UL, and CSA listings ensure compliance with health and safety codes right out of the crate.
Technical Specifications
| Model | ER-3-12-3836 |
|---|---|
| Decks / Chambers | 3 |
| Interior size (per deck) | 38" W × 36" D × 12" H (965 × 914 × 305 mm) |
| Total baking area | 28.5 sq ft (2.65 m²) |
| Temperature range | 140–550 °F (60–288 °C) |
| Timer | 60 minutes, mechanical (one per deck) |
| Heating elements | U-shaped, top & bottom (8 kW each deck) |
| Electrical load | 24 kW total, 208/240 V, 1 or 3-phase (field-selectable) |
| Overall dimensions | 55" W × 72" H × 43" D (1397 × 1829 × 1092 mm) |
| Legs | 6" heavy-duty steel, Bakertone painted finish |

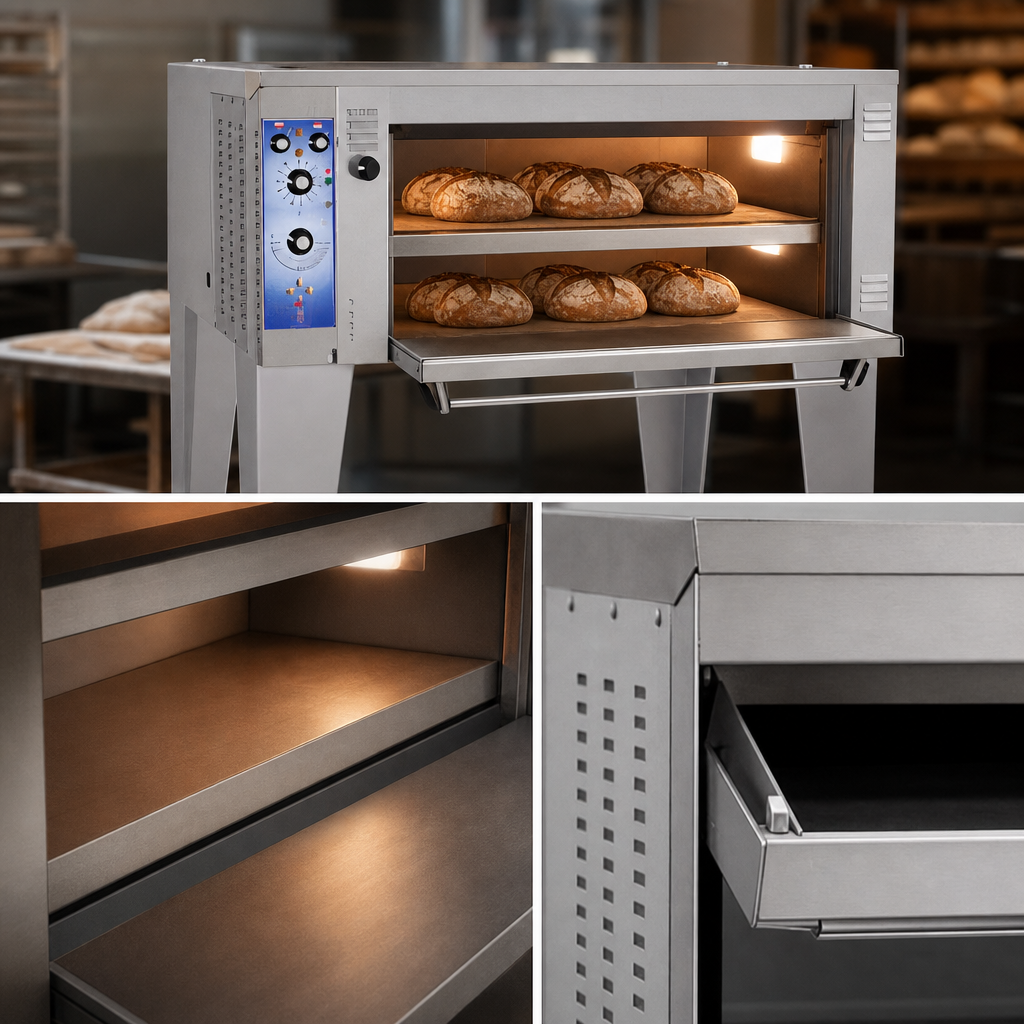

| Deck material | Steel (standard) |
| Construction | Stainless steel exterior, aluminized steel interior |
| Clearances | Zero-clearance installation permitted |
| Certifications | NSF • UL • CSA |
| Warranty | 1-year limited parts & labor |
Optional Upgrades & Accessories
- Five-hour timer kit
- Cordierite or Lightstone decks for additional heat retention
- Heavy-duty deck brush & scraper (48" wood handle)
- Stainless steel wood-chip box for smoke-infused flavor
- 6" or 24" legs with casters for added mobility
Looking for financing or different voltages? Ask our team about Middleby equipment financing programs and factory-configured electrical options.
