BakeMax BMSM320 705 lb 2-Speed Floor Model Fixed Bowl Spiral Dough Mixer

SKU: BMSM320
$70,740.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

BakeMax (TVI) Best Sellers Commercial Ranges Mixers New Arrivals Restaurant Equipment Spiral Dough Mixers

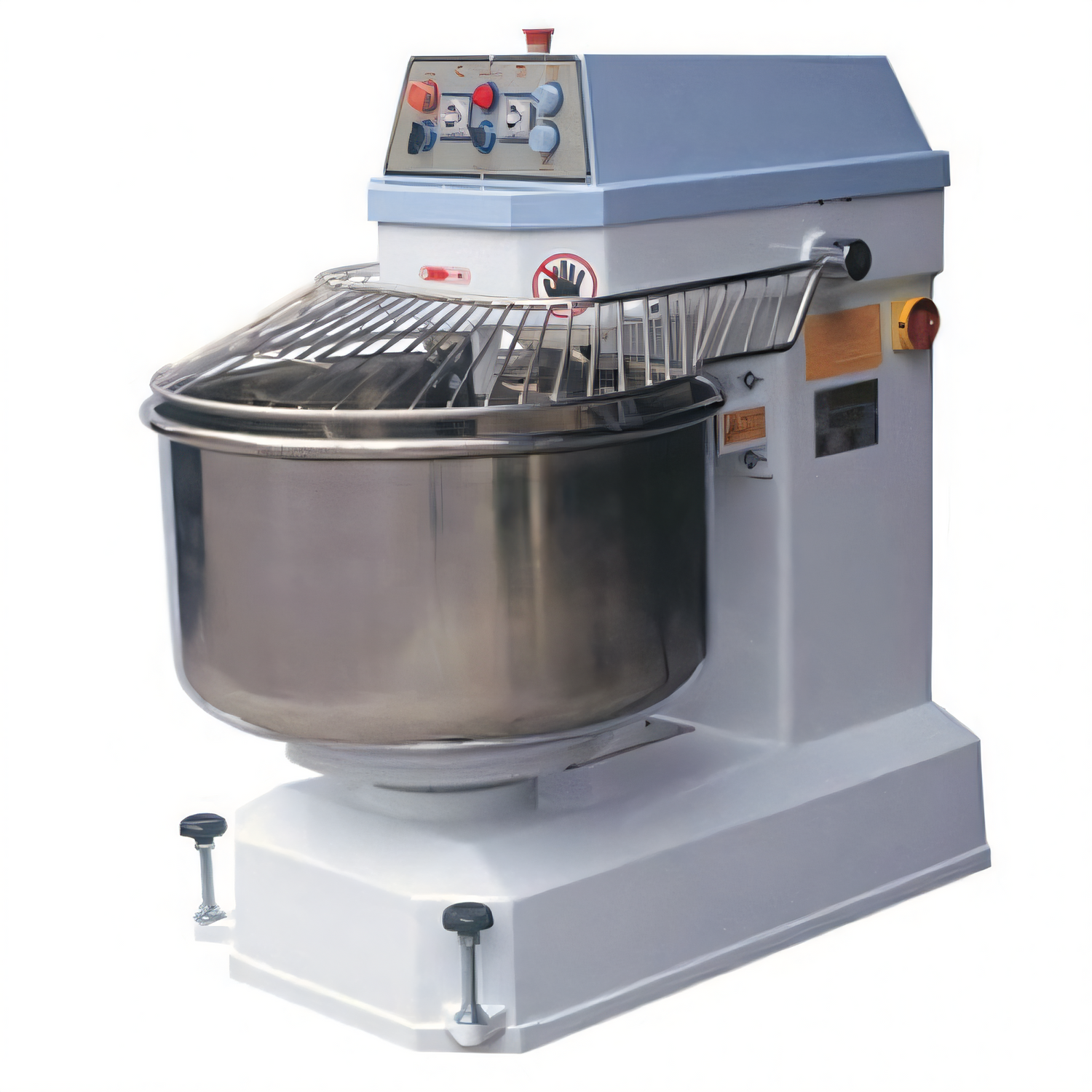

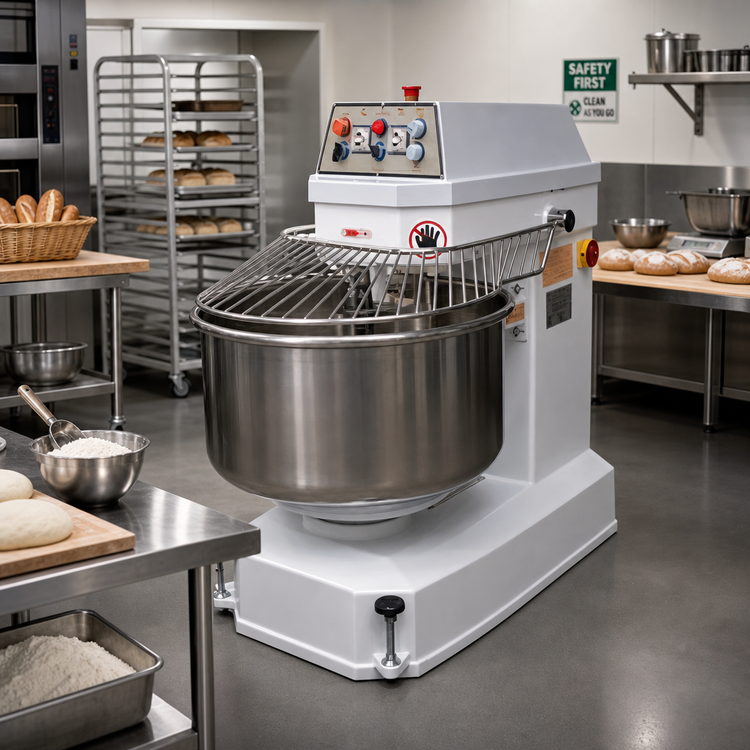

BakeMax BMSM320 705 lb 2-Speed Floor Model Fixed Bowl Spiral Dough Mixer

220V, 3-Phase, Stainless Steel Mixing Components

Built for high-volume bakery and pizzeria production, this spiral mixer combines a 705 lb capacity with dual-motor, 2-speed mixing and safety-focused operation.

  • Handles up to 705 lb (320 kg) of dough for large-batch production.
  • Dual-motor, 2-speed spiral mixing delivers consistent dough development.
  • Stainless steel bowl, spiral arm, breaker bar, and guard support durability and sanitation.
  • Safety interlock guard and hi-speed lockout help protect operators.
  • Fixed bowl design with forward/backward bowl rotation and manual mode bypass adds flexibility.
  • Two 30-minute timers and castors simplify operation and maintenance.
  • 220V, 3-phase, hard-wired electrical service for commercial kitchens.

Overall Dimensions:

47.0"W x 67.0"D x 59.0"H

Product Weight:

3031.0 lb

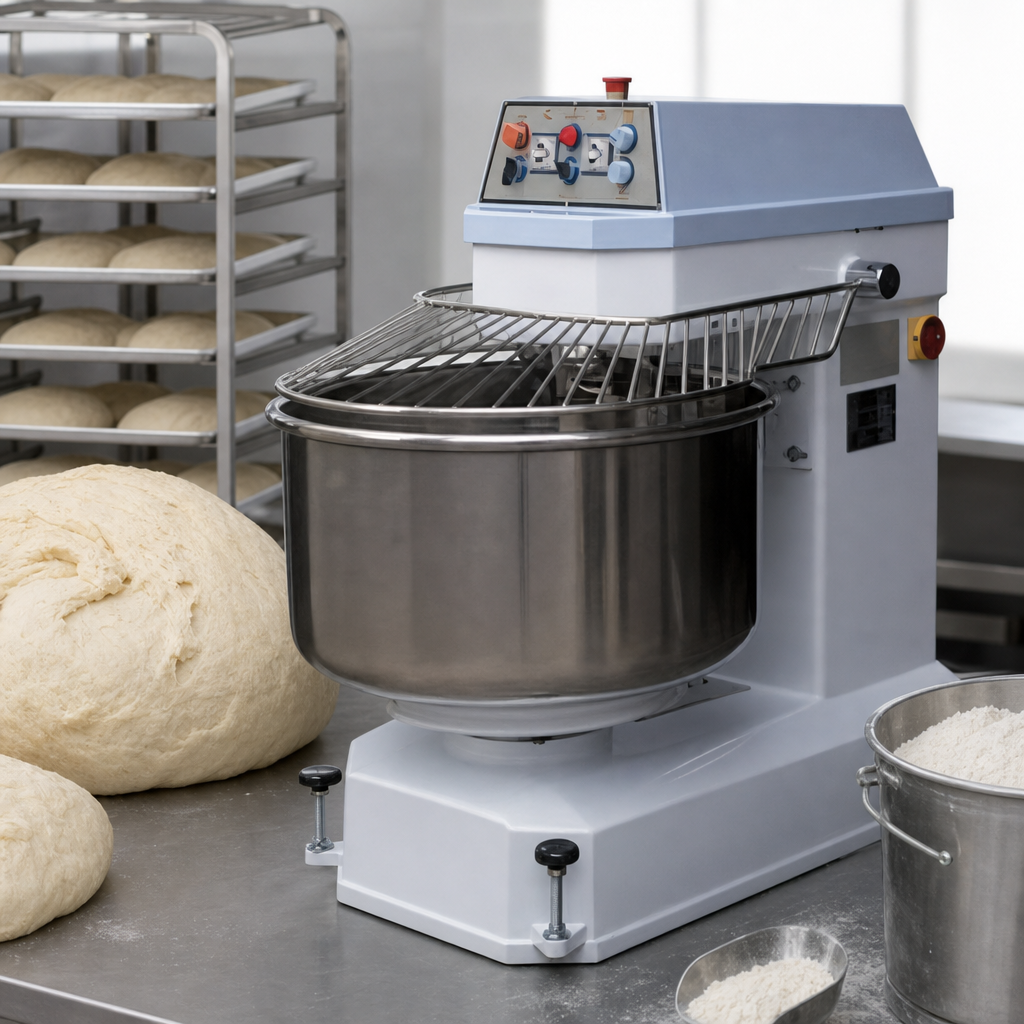

Heavy-Duty Dough Capacity

Designed to handle up to 705 lb (320 kg) of dough per batch for bakery and pizzeria production.

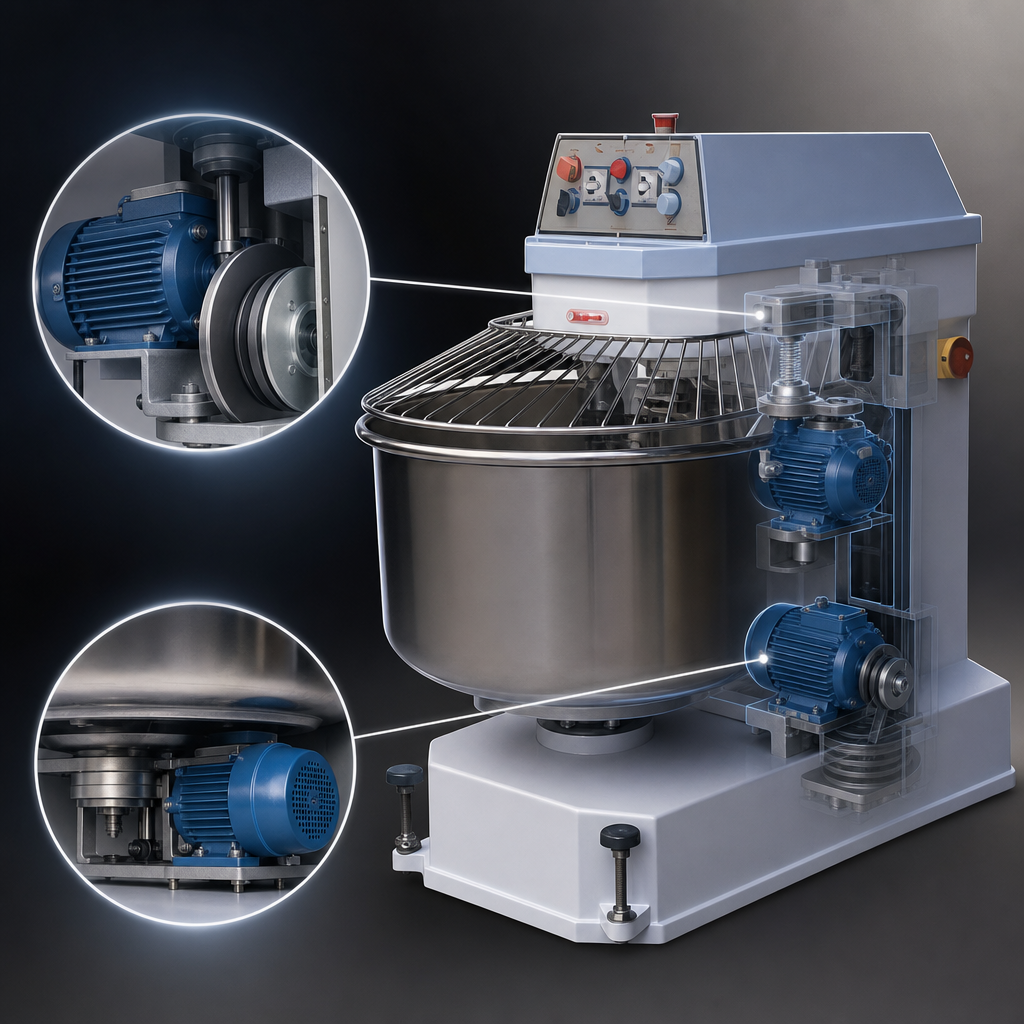

Dual-Motor, 2-Speed Drive

Separate motors for the spiral arm and bowl provide efficient mixing and consistent dough development.

Stainless Steel Mixing Components

Includes a stainless steel bowl, spiral arm, breaker bar, and guard for durability and easy cleaning.

Safety Guard Interlock

See-thru bowl guard prevents operation when open and stops the machine if the guard is lifted.

Reversible Bowl Rotation

The bowl can rotate forward or backward to support dual-direction mixing.

Timer and Manual Bypass

Two 30-minute timers automatically control mix time, and the machine remains operational if the timer is interrupted.

Mobility and Maintenance

Mounted on castors for easier repositioning and service access.

Type Spiral Mixer
Style Spiral
Installation Type Floor Model
Capacity 705 lb (320 kg)
Speed 2-Speed
Controls Timer
Voltage 220 Volts
Amps 42.75 Amps
Hertz 60 Hz
Phase 3-Phase
Plug Type Hard Wired
Horsepower 16 HP Spiral Arm / 3 HP Bowl Motor
Material Stainless Steel
Finish Painted Enamel
Country of Origin Taiwan
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 74 Inches
Shipping Height 70 Inches
Shipping Weight 3,031 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Terms & conditions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It handles up to 705 lb (320 kg) of dough.
This model is the fixed bowl configuration. The series also offers removable bowl versions.
It requires 220V, 60 Hz, 3-phase power and is hard wired.
It has a see-thru bowl guard with a safety interlock, instant stop if the guard is lifted, and a hi-speed lockout switch.
Yes, but the capacity should be reduced by 30% when mixing bagel dough and other stiffer doughs.
The mixer includes a limited 2-year warranty.
