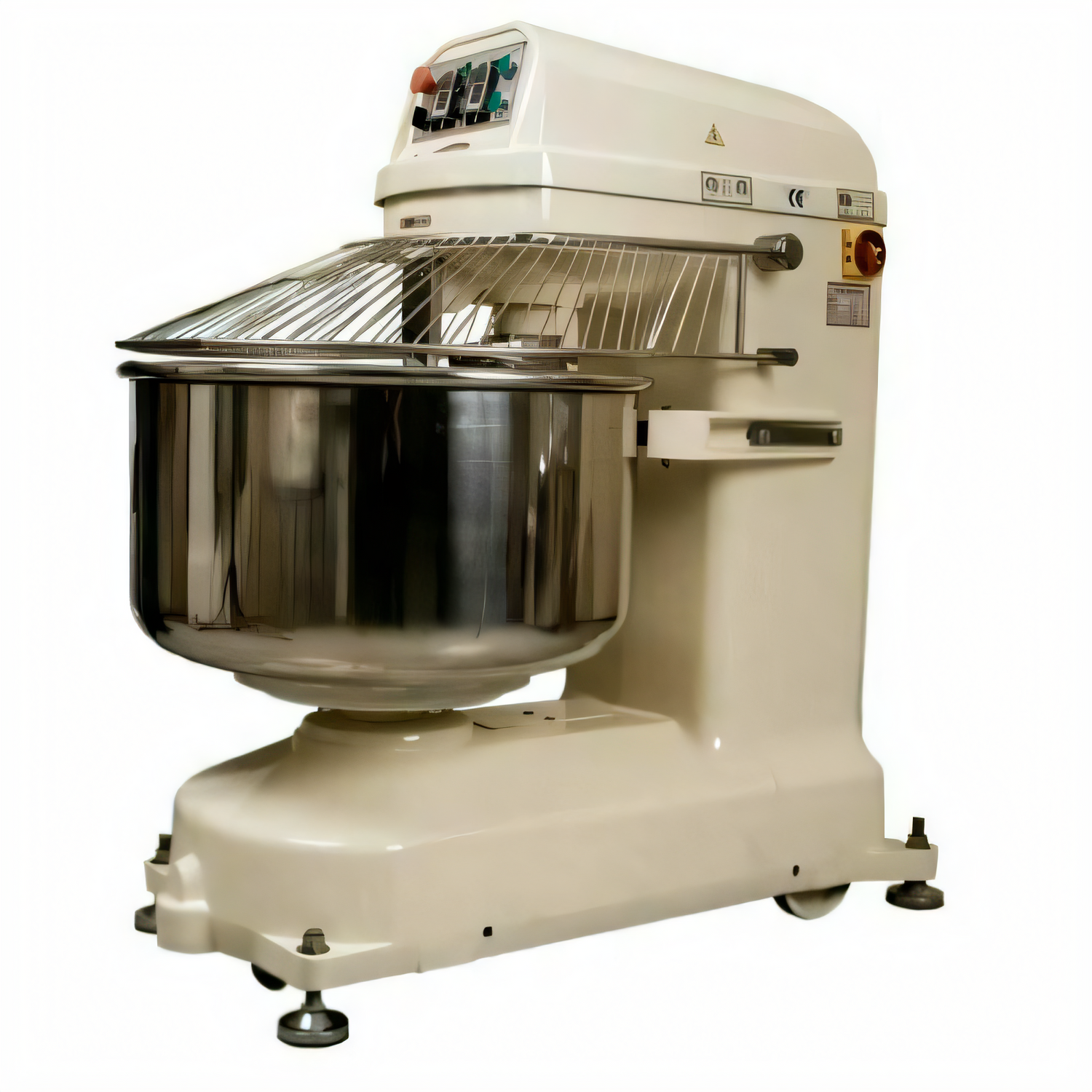

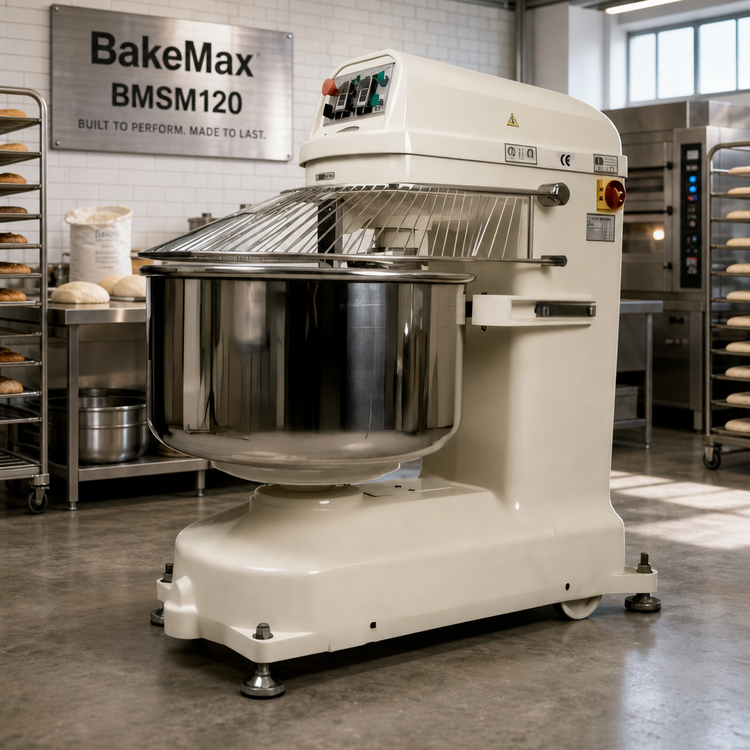

BakeMax BMSM120 Heavy-Duty Floor Spiral Dough Mixer with 190 Qt Bowl, 120 kg Capacity

SKU: BMSM120
$24,776.41
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

BakeMax (TVI) Best Sellers Commercial Ranges Mixers New Arrivals Restaurant Equipment Spiral Dough Mixers

BakeMax BMSM120 Heavy-Duty Floor Spiral Dough Mixer with 190 Qt Bowl, 120 kg Capacity

2-Speed, Dual-Motor, Reversible Bowl, 220V/3-Phase

Built for high-volume bakeries, pizzerias, and pastry shops, this spiral mixer combines a 190 Qt bowl with dual-motor power and reversible bowl action for consistently mixed dough.

  • Handles up to 120 kg (264 lb) of dough in a 190 Qt bowl.
  • Dual-motor design powers the spiral arm and bowl separately for efficient mixing.
  • 2-speed operation delivers consistent results without shifting gears.
  • Safety guard interlock stops the mixer immediately if the guard is lifted.
  • Bowl can rotate forward or backward for improved dough blending.
  • Includes two 30-minute timers, overload relay, and servo-limit switch protection.
  • Stainless steel bowl and spiral agitator are built for heavy-duty use.

Overall Dimensions:

32.0"W x 48.0"D x 71.0"H

Product Weight:

1400.0 lb

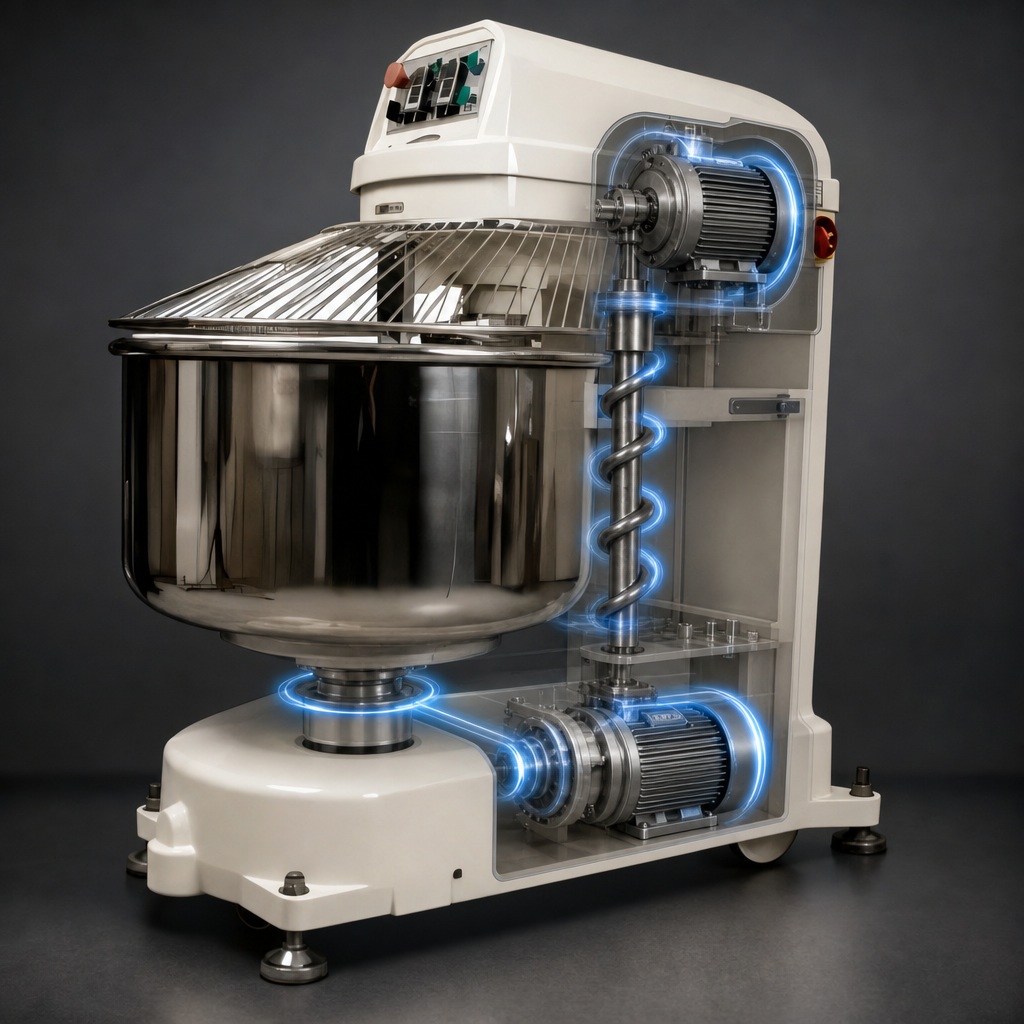

Dual-Motor Drive

Separate motors drive the spiral arm and bowl for strong, efficient dough mixing.

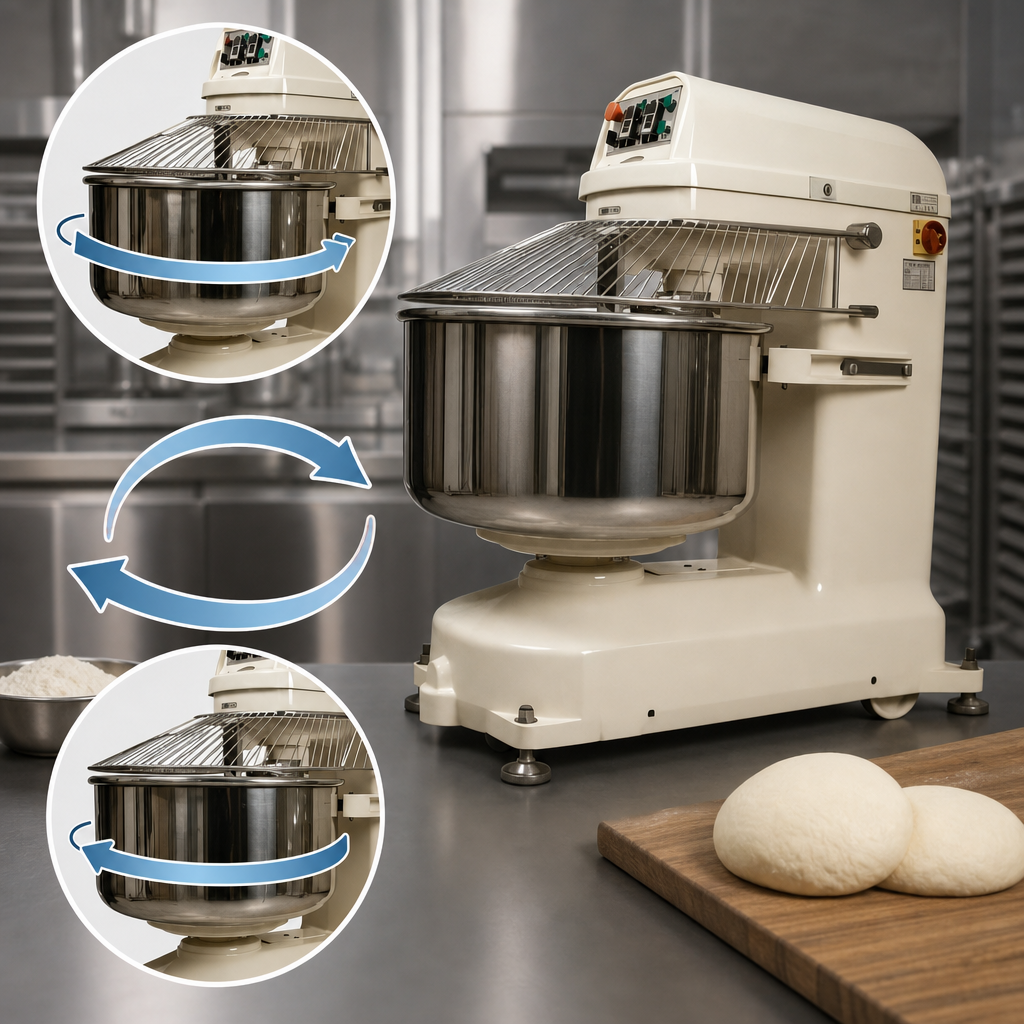

Reversible Bowl Rotation

The bowl can be set to rotate forward or backward to improve ingredient blending and dough consistency.

Safety Guard Interlock

Operation stops immediately if the safety guard is lifted, and the mixer only runs when the guard is in place.

2-Speed Mixing

High-efficiency 2-speed operation helps produce consistent results without gear shifting.

Dual 30-Minute Timers

Two timers automatically control mixing time for repeatable batch processing.

Stainless Steel Mixing Components

A stainless steel bowl and stainless steel spiral agitator provide durability for heavy dough workloads.

Overload Protection

An overload relay and instant-response servo-limit switch help protect the machine during operation.

Floor Model Construction

Painted enamel housing is designed for floor-standing installation in demanding production environments.

Type Spiral Mixer
Installation Type Floor Model
Capacity 120 kg (264 lb) Dough Capacity
Bowl Capacity 190 Qt
Bowl Type Fixed
Speed 2-Speed
Material Stainless Steel
Finish Painted Enamel
Controls Timer
Arm Motor 8.5 HP
Bowl Motor 3 HP
Voltage 220 Volts
Phase 3-Phase
Amps 35 Amps
Watts 7.7 kW
Hertz 60 Hz
Plug Type Hard Wired
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Terms & conditions PDF Download PDF Parts manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It handles up to 120 kg (264 lb) of dough and uses a 190 Qt bowl.
It requires 220 Volts, 60 Hz, 3-phase power and is hard wired.
Yes. It includes a safety guard interlock, overload relay, and instant-response servo-limit switch.
Yes. The bowl may be set to rotate either forward or backward.
Yes. It includes two 30-minute timers that automatically control mixing time.
The mixer includes a 2-year warranty.
