BakeMax BMSM040 73 Qt Floor Spiral Dough Mixer, 40 kg Capacity, 220V 3-Phase

SKU: BMSM040
$9,452.89
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

BakeMax (TVI) Best Sellers Commercial Ranges Mixers New Arrivals Restaurant Equipment Spiral Dough Mixers

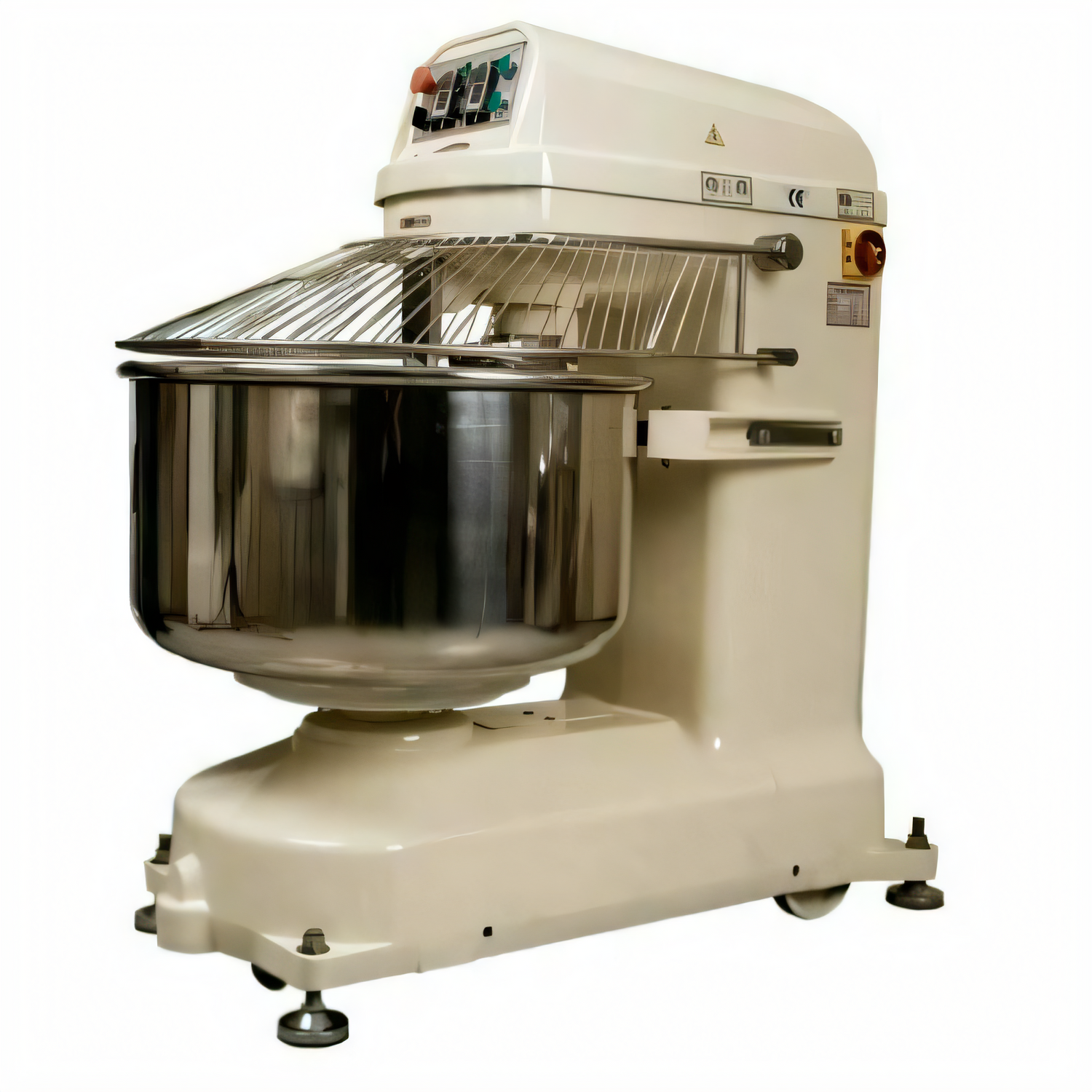

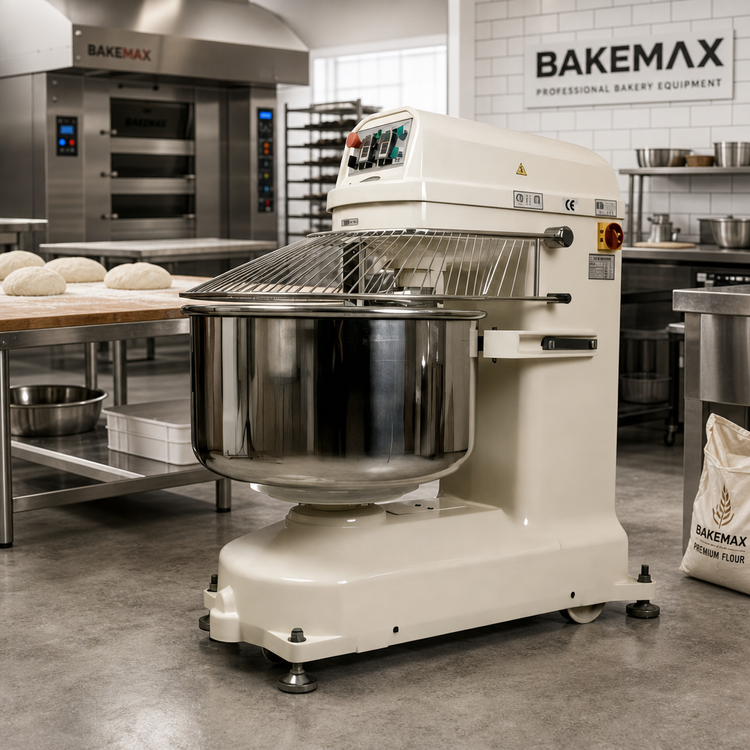

BakeMax BMSM040 73 Qt Floor Spiral Dough Mixer, 40 kg Capacity, 220V 3-Phase

Fixed Bowl, Reversible Rotation, 2-Speed, Timer Control

Built for demanding dough production, this floor-mounted spiral mixer combines a 73 qt bowl, dual motors, and a safety-focused reversible bowl design for fast, consistent mixing.

  • Handles up to 40 kg (88 lb) of dough in a 73 qt bowl.
  • Dual-motor design powers the spiral arm and bowl separately for efficient mixing.
  • 2-speed operation and forward/reverse bowl rotation help develop dough consistently.
  • Safety guard interlock stops operation immediately if the guard is lifted.
  • Includes timer control and overload protection for batch consistency and motor safety.
  • 220V, 60 Hz, 3-phase, hardwired floor model.
  • Painted enamel exterior with stainless steel bowl and spiral agitator.

Overall Dimensions:

21.0"W x 35.0"D x 55.0"H

Product Weight:

629.0 lb

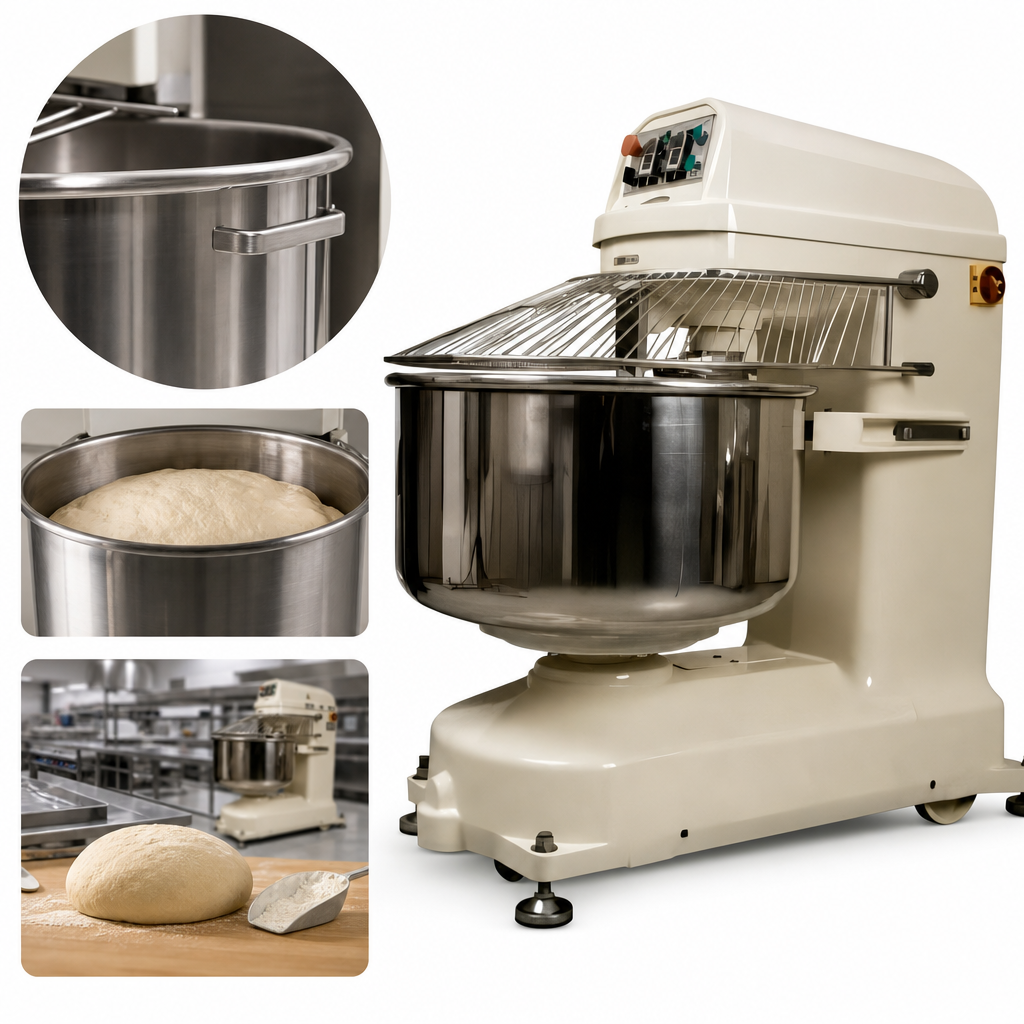

73 Qt Stainless Steel Bowl

Heavy-duty bowl handles up to 40 kg (88 lb) of dough.

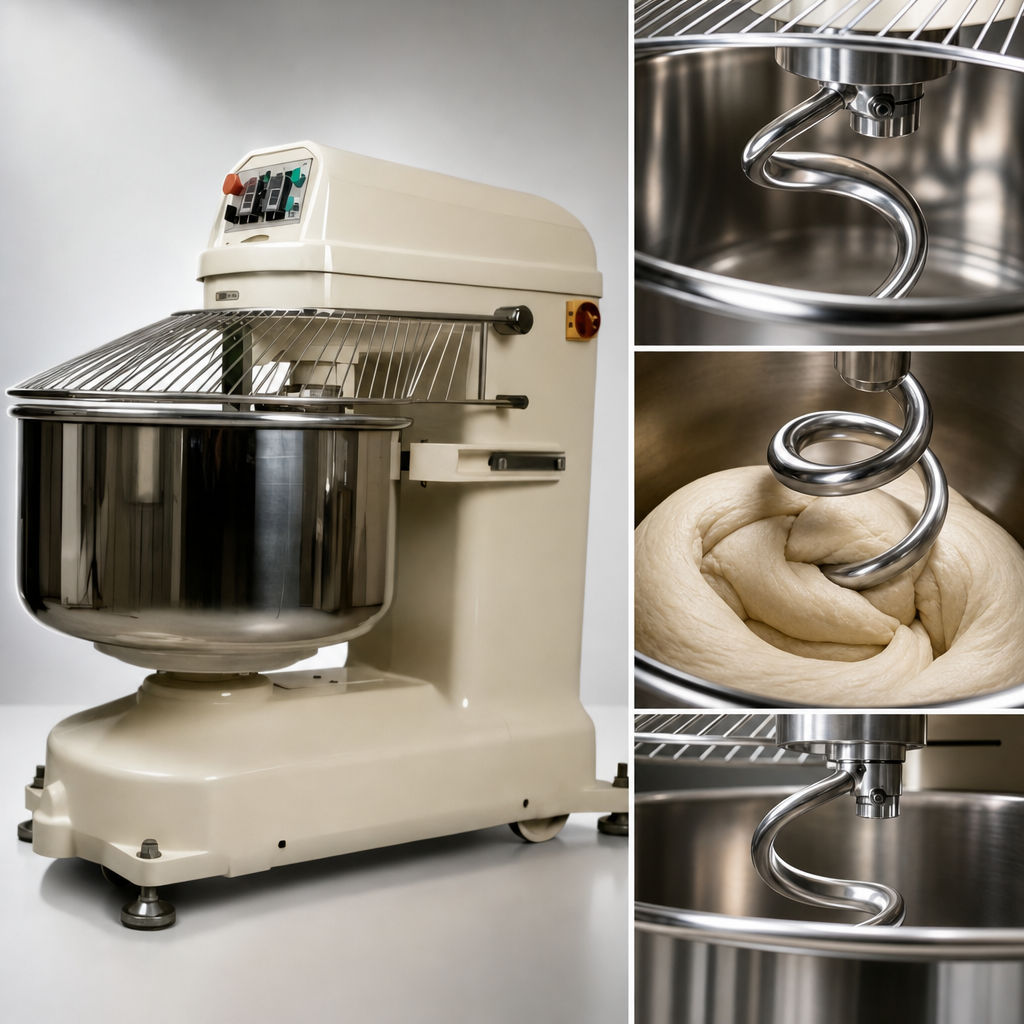

Stainless Steel Spiral Agitator

Designed for efficient dough development and thorough ingredient incorporation.

Dual-Motor Drive

Separate motors drive the spiral arm and bowl; the arm motor is 2.5 hp and the bowl motor is 1/2 hp.

2-Speed Mixing

High-efficiency two-speed operation helps deliver consistent results in shorter mix times.

Fixed, Reversible Bowl

The bowl can rotate forward or backward to improve blending and keep dough cooler.

Safety Guard Interlock

Operation stops immediately if the safety guard is lifted; the mixer only runs with the guard in place.

Timer Control

Includes two 30-minute timers for automatic mixing control.

Overload Relay

Adds protection during heavy-duty mixing applications.

Painted Enamel Finish

Durable exterior finish suited to commercial bakery environments.

Type Spiral Mixer
Style 2-Speed
Installation Type Floor Model
Bowl Type Fixed
Capacity 40 Kilograms (88 Pounds)
Bowl Size 73 Quarts
Controls Timer
Arm Motor 2.5 hp
Bowl Motor 1/2 hp
Voltage 220 Volts
Amps 12 Amps
Watts 2.64 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type Hard Wired
Finish Painted Enamel
Shipping Width 42 Inches
Shipping Depth 28 Inches
Shipping Height 50 Inches
Shipping Weight 629 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Terms & conditions PDF Download PDF Parts manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It handles up to 40 kg (88 lb) of dough in a 73 qt bowl.
It requires 220V, 60 Hz, 3-phase power and draws 12 amps; it is hardwired.
Yes. The safety guard interlock stops operation immediately if the guard is lifted, and the mixer also includes an overload relay.
Yes. The bowl may rotate forward or backward for dual-direction mixing.
The cutsheet lists a 2-year warranty.
Yes. Single-phase converters are available upon request for the BMSM040.
