BakeMax (TVI)

BakeMax Floor Model Reversible Dough Sheeter with 25 x 95 Inch Conveyor

SKU: BMFRS03
$11,860.72
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

BakeMax Floor Model Reversible Dough Sheeter with 25 x 95 Inch Conveyor

1 HP, Push-Button Control, Safety Guards, Single-Phase Power

Designed for bakeries and busy kitchens, this floor-model sheeter delivers fast, consistent dough stretching with reversible operation and built-in safety guards.

  • Floor model reversible dough sheeter for sheeting and stretching dough in bakeries, pastry shops, restaurants, and hotels.
  • Large 25" x 95" conveyor belt supports bigger dough batches.
  • Push-button control makes forward and reverse operation simple.
  • Safety guards on both sides of the rollers automatically shut off power when lifted.
  • Adjustable thickness from 3 to 50 mm for versatile dough handling.
  • Heavy-duty steel construction, stainless steel rollers, and automatic overload protection support long-term durability.
  • Fold-up sides help save space when the unit is not in use.

Overall Dimensions:

41.0"W x 100.0"D x 44.0"H

Product Weight:

557.0 lb

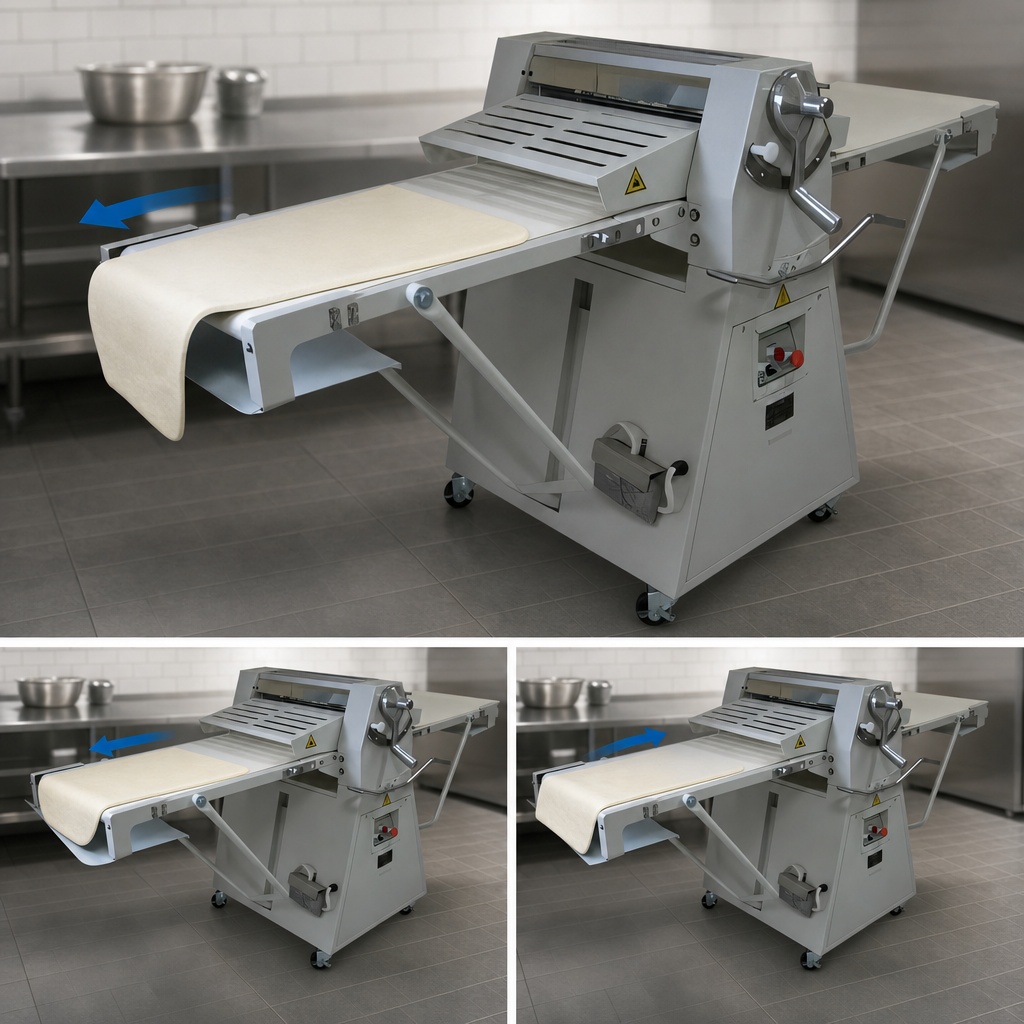

Reversible Operation

Forward and reverse movement helps sheet and stretch dough efficiently.

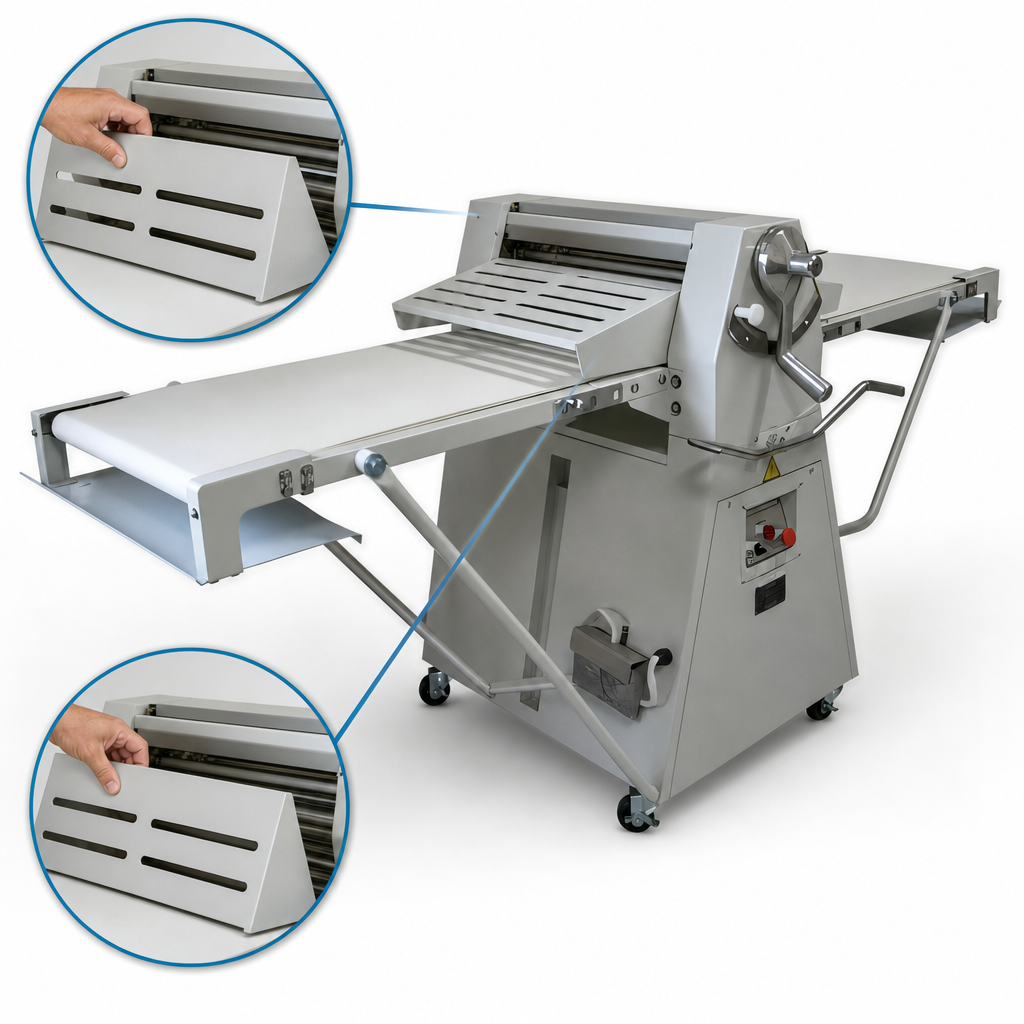

Safety Guard Shutoff

Safety guards on both sides of the rollers automatically shut off power when lifted.

Adjustable Thickness Range

Thickness can be adjusted from 3 to 50 mm to handle a range of dough applications.

Push-Button Control

Simple push-button operation provides easy forward and reverse control.

Versatile Dough Applications

Suitable for sheeting and stretching puff pastry, Danish bread, fondant, donut dough, croissants, pie crusts, cookie dough, strudel, marzipan, and pizza dough.

Heavy-Duty Steel Construction

Built with heavy-duty steel for durability and long service life.

Stainless Steel Rollers

Stainless steel rollers help support smooth dough handling and easier cleaning.

Automatic Overload Protection

Built-in overload protection helps prevent motor damage.

Fold-Up Side Panels

Side panels fold up to help save room when the sheeter is not in use.

Aluminum Alloy Head Housing

The head housing is made from aluminum alloy for added durability.

Catch Pans at Both Ends

Catch pans are located on each end of the sheeter to help collect dough and debris.

Type Dough Sheeter
Style Reversible
Installation Type Floor Model
Controls Push Button
Horsepower 1 HP
Material Steel
Voltage 208 Volts
Amps 3.88 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA L6-15P
Belt Size 25 Inches x 95 Inches
Thickness Range 3 to 50 Millimeters
Roller Size 3.5 Inches x 25.6 Inches
Shipping Width 42 Inches
Shipping Depth 32 Inches
Shipping Height 82 Inches
Shipping Weight 557 Pounds
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is suitable for puff pastry, Danish bread, fondant, donut dough, croissants, pie crusts, cookie dough, strudel, marzipan, and pizza dough.
The unit uses push-button control to move the sheeter forward and reverse.
Safety guards on both sides of the rollers automatically shut off power when they are lifted.
Yes. The thickness is adjustable from 3 to 50 mm.
The catalog lists exterior dimensions of 40" x 99" x 44" and shipping dimensions of 42" x 32" x 82".

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
