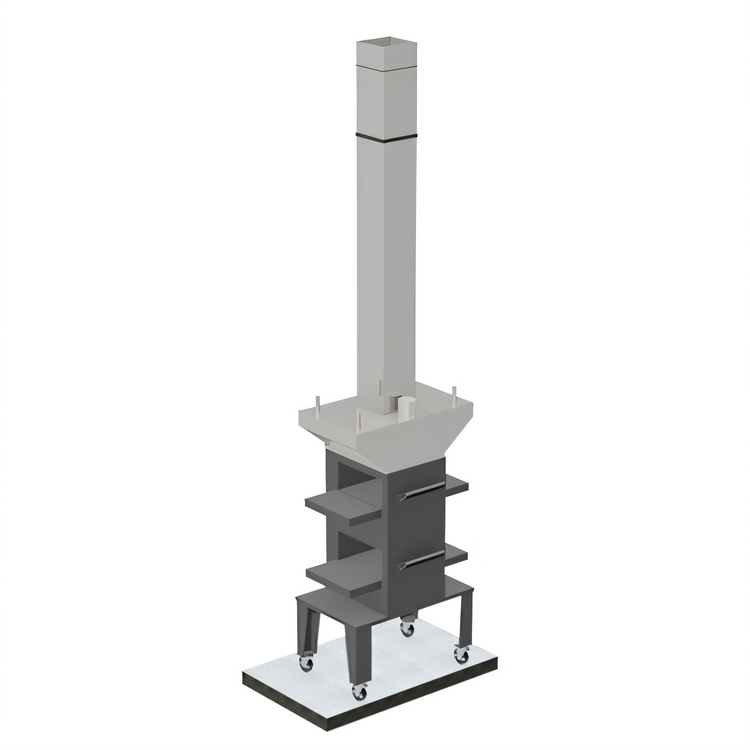

Avtec SimpleSpec Island Conveyor Pizza Oven Hood with 96-Inch Duct Enclosure, 40 x 24 x 12 Inches, for 20 x 20-22 Inch Chambers

Type I/II, 430 Stainless Steel, 750 CFM Per Deck

Built for close-proximity conveyor oven capture, this island hood combines stainless steel durability, easy-clean grease handling, and a model-specific 96-inch duct enclosure.

  • Exhaust-only close-proximity cap style hood designed for conveyor pizza ovens.
  • Suitable for Type I or Type II applications with a non-compensating make-up air design.
  • 430 stainless steel construction with stainless steel filters and removable grease trough and cup.
  • Model-specific 96-inch stainless steel duct enclosure and auto start temp sensor included.
  • Sized for ovens with 20 x 20 to 22-inch baking chambers and requires 750 CFM per deck.
  • Canopy mounts no more than 1 inch above the oven for improved capture and service access.

Overall Dimensions:

40.0"W x 24.0"D x 12.0"H

Product Weight:

350.0 lb

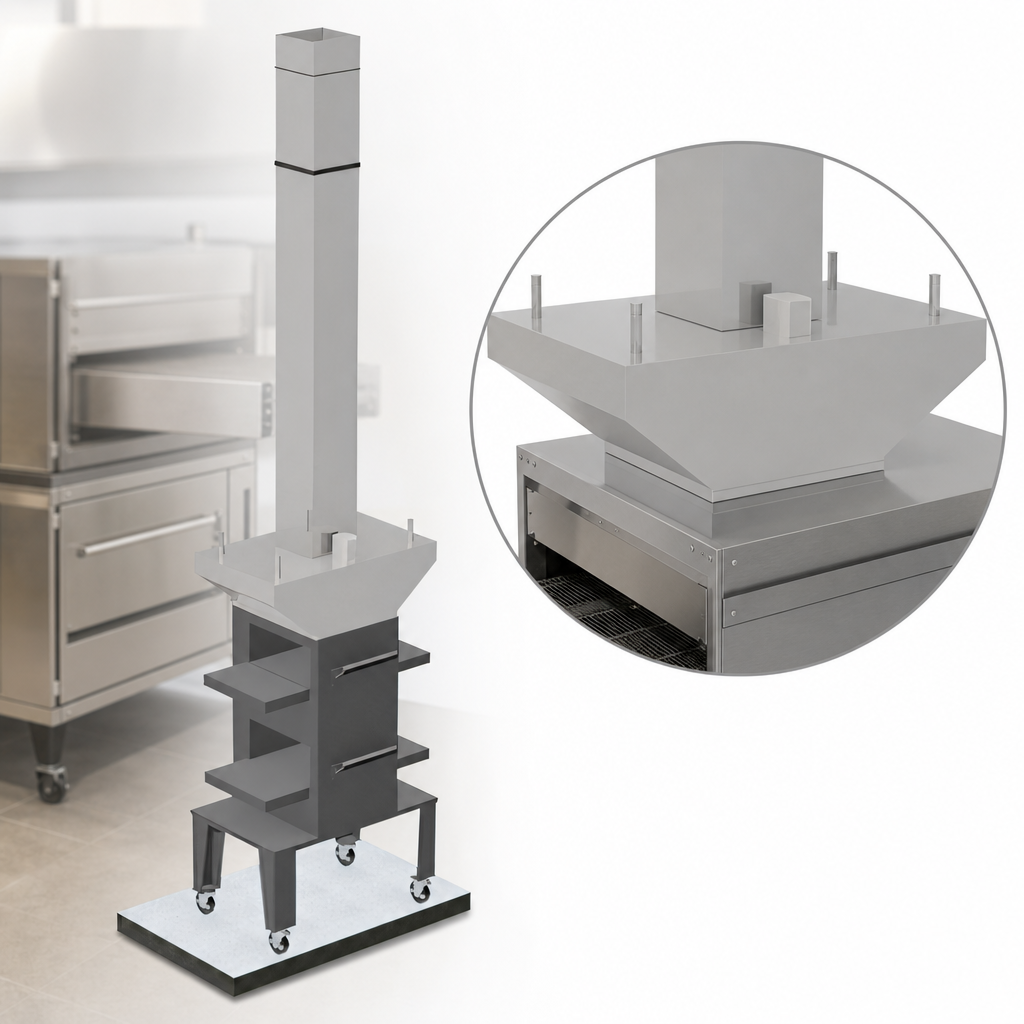

Close-Proximity Cap Style Design

Exhaust-only hood mounts no more than 1 inch above the oven to maximize capture and make cleaning and service easier.

Close-Proximity Cap Style Design

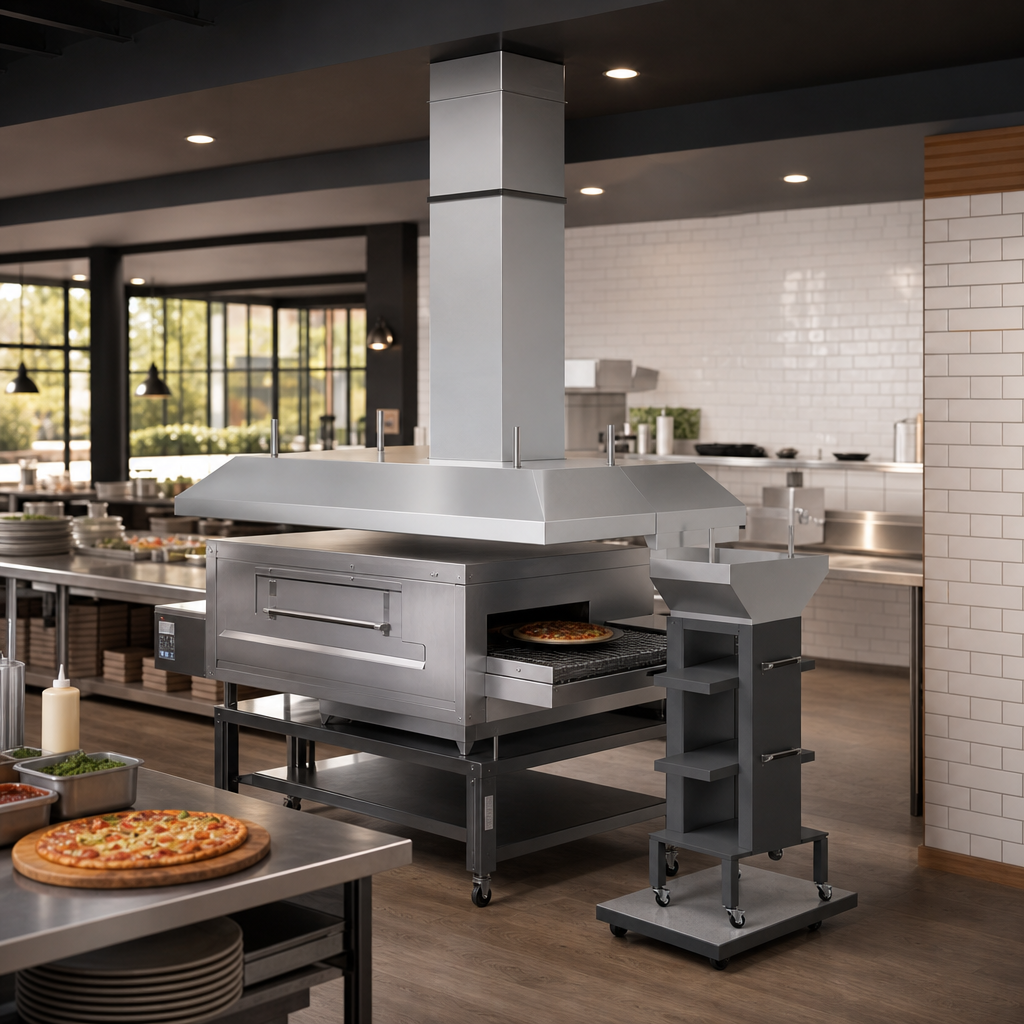

Type I / Type II Use

Designed for use as either a Type I or Type II conveyor oven hood.

Type I / Type II Use

Non-Compensating Exhaust Design

Configured as an exhaust-only system rather than a compensating make-up air hood.

Conveyor Oven Compatibility

Intended for all makes and models of electric and gas conveyor ovens.

430 Stainless Steel Construction

Durable stainless steel construction for commercial kitchen use.

Stainless Steel Grease Filters

Baffle-style stainless steel filters are positioned over the loading and unloading ends and are removable for cleaning.

Removable Grease Trough and Cup

Helps collect grease and supports easier routine maintenance.

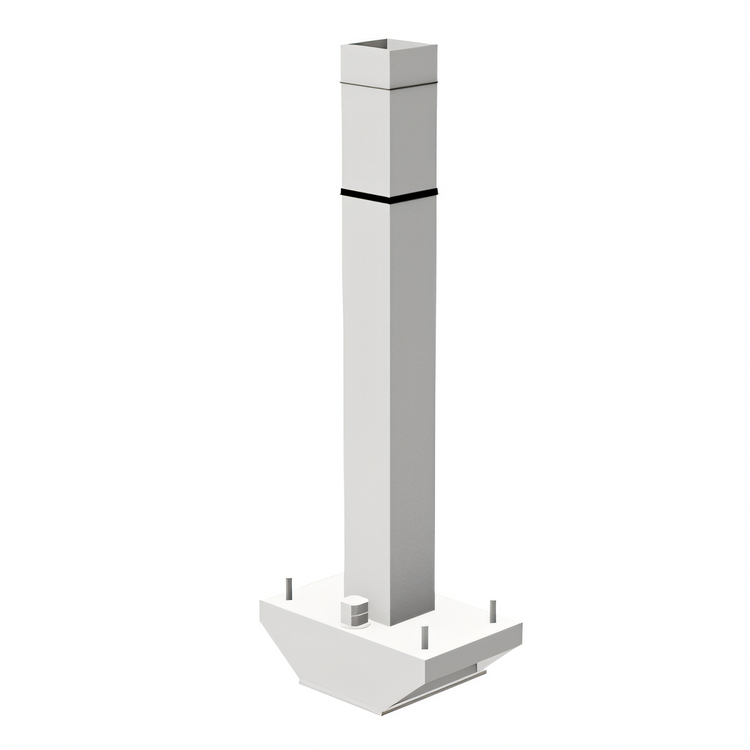

96-Inch Stainless Steel Duct Enclosure

Model-specific tall duct enclosure included for the SSA-PIZZA24040.

Auto Start Temp Sensor

Prewired fan-delay interlock helps automate exhaust fan operation.

Sized for Conveyor Pizza Oven Chambers

Designed to cover ovens with 20 x 20 to 22-inch baking chambers.

Type Conveyor Pizza Oven Hood
Style Island
Make-Up Air Non-Compensating
Material 430 Stainless Steel
CFM Per Deck 750 CFM
Baking Chamber Size 20 x 20 to 22 Inches
Exhaust Collar (1) 11 x 11 Inches @ 0.5 SP
Duct Enclosure Height 96 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 40 Inches
Shipping Depth 24 Inches
Shipping Height 12 Inches
Shipping Weight 350 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is intended for all makes and models of electric and gas conveyor ovens.
Yes. The SSA-PIZZA24040 is designed for Type I or Type II use.
It is designed to cover conveyor ovens with 20 x 20 to 22-inch baking chambers.
The canopy should be mounted no more than 1 inch above the oven.
This model is sized for 750 CFM per deck and uses a (1) 11 x 11 inch exhaust collar at 0.5 SP.
Included components listed in the documentation are 430 stainless steel construction, stainless steel filters, a removable grease trough and cup, a 96-inch stainless steel duct enclosure, and an auto start temp sensor.
