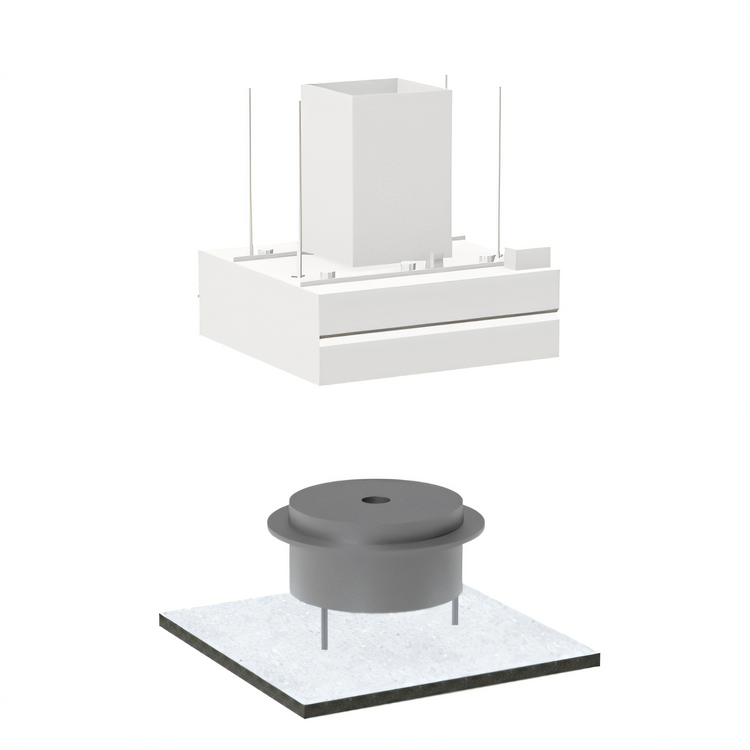

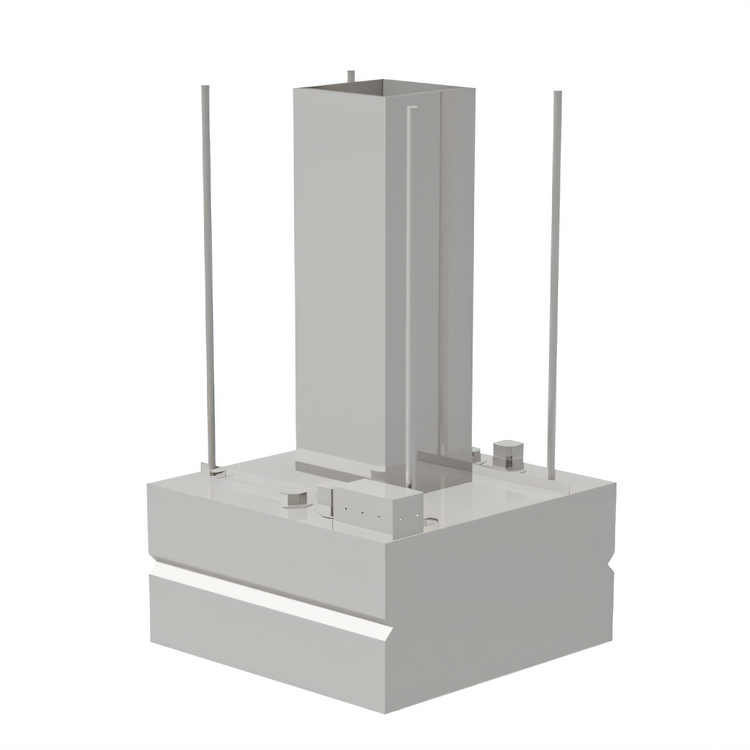

Avtec SimpleSpec 60-Inch Square Type I Island Display Cooking Hood System

Exhaust-only canopy with stainless steel filters, globe lights, and 120-inch duct enclosure.

Built for island cook lines, this stainless steel hood system combines easy-clean grease management, integrated lighting, and an auto-start temp sensor in an exhaust-only package.

  • Single-bank island canopy designed for light- and medium-duty mixed-use equipment
  • Exhaust-only Type I system built from 18-gauge 201 stainless steel
  • Includes stainless steel baffle filters, globe lights, removable grease trough, and grease cup
  • Auto-start temperature sensor fan delay interlock is prewired with the lights to a single connection box
  • Duct enclosure reaches a 120-inch ceiling and the chrome sleeve conceals the hanger rod
  • Sized for 2500 CFM; contact the factory for heavy-duty applications
  • UL 710 listed and built to NSF standards

Overall Dimensions:

60.0"W x 60.0"D x 24.0"H

Product Weight:

500.0 lb

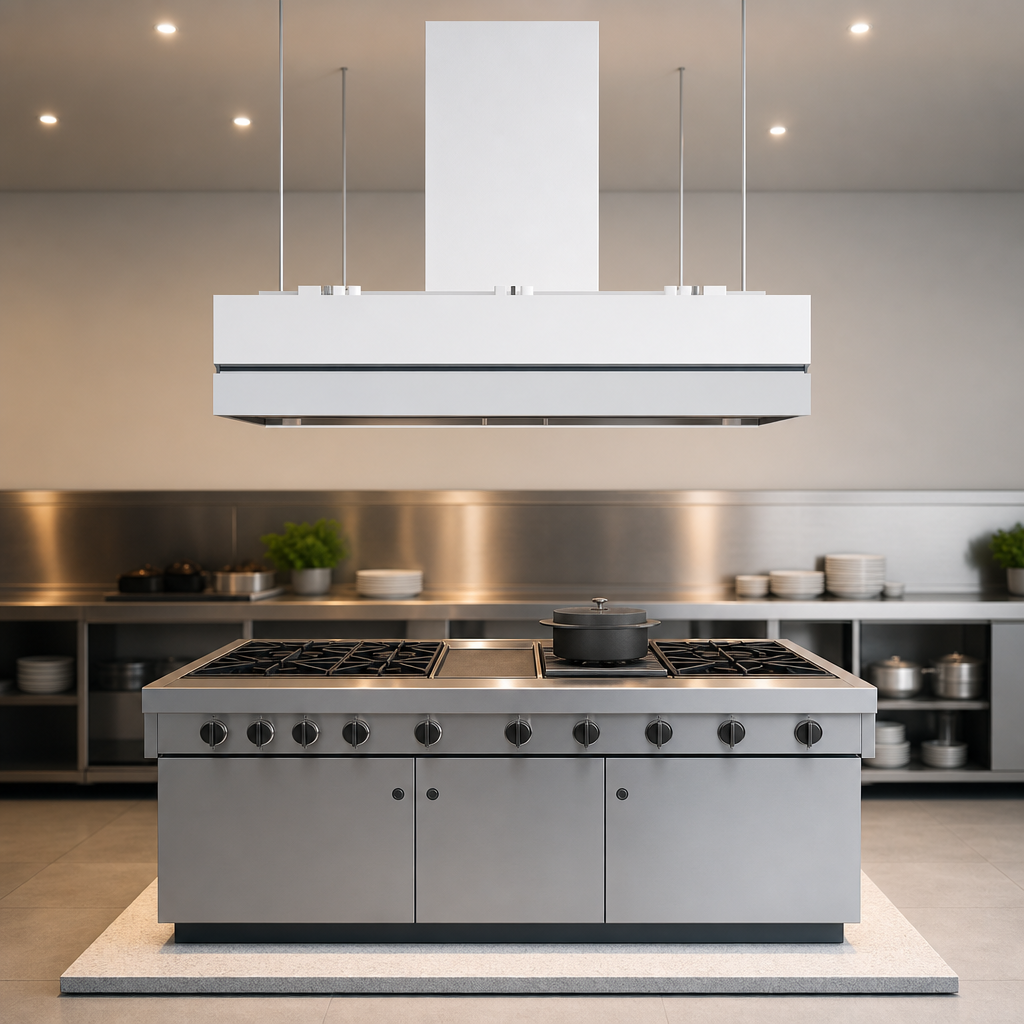

Single Island Application

Best suited for use over a single bank of cooking equipment in island applications.

Single Island Application

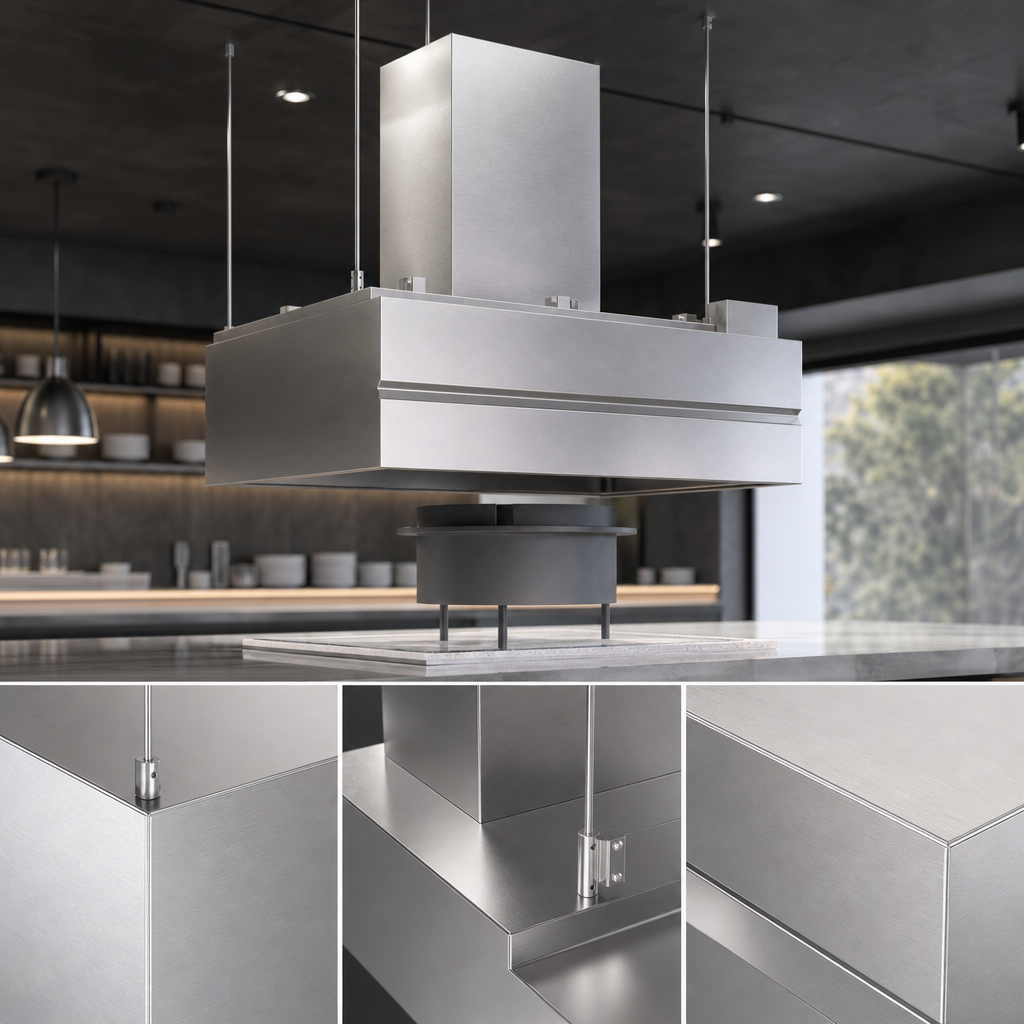

201 Stainless Steel Construction

Built from 18-gauge 201 stainless steel with welded exterior joints and seams.

201 Stainless Steel Construction

Stainless Steel Grease Filters

UL-listed baffle-style stainless steel grease filters run the full length of the exhaust hood.

Removable Grease Trough And Cup

Grease troughs slope into removable cups for easier cleaning and maintenance.

Integrated Globe Lights

UL-listed globe lights are mounted on 36-inch centers for task lighting.

Auto-Start Temp Sensor

Fan delay interlock is prewired with the lights to a single connection box.

Ceiling And Rod Coverage

Includes a duct enclosure to a 120-inch ceiling plus a 4-piece chrome sleeve to conceal the hanger rod.

Performance And Compliance

Sized for 2500 CFM, recommended for light and medium-duty appliances, and built to UL and NSF standards.

Type Display Cooking Hood System
Ventilation Type Type I
Style Island Style
Material 201 Stainless Steel
Exhaust CFM 2500 CFM
Max Cooking Equipment Size 36 Inches
Exhaust Collar (1) 10 x 20 Inches @ 0.675 SP
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 60 Inches
Shipping Height 24 Inches
Shipping Weight 500 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is designed for a single bank of mixed-use light- and medium-duty cooking equipment; contact the factory for heavy-duty CFM applications.
Yes. It includes UL-listed globe lights and stainless steel baffle-style grease filters.
The included duct enclosure is designed to extend to a 120-inch ceiling.
It is sized for 2500 CFM and uses a (1) 10 x 20 @ 0.675 SP exhaust collar.
The hood requires a minimum 9-inch overhang for light-duty equipment and 18-inch overhang for medium-duty equipment.
