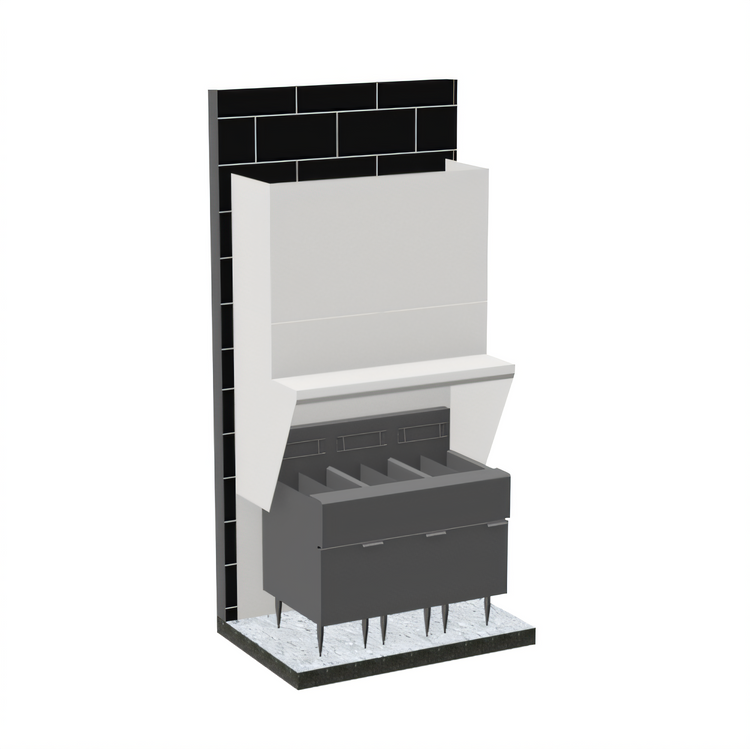

Avtec SimpleSpec Type I Wall-Mount Exhaust-Only Fryer Hood for 3 20-Inch Fryers, 66W x 31D x 42H

430 Stainless Steel, 1400 CFM, Adjustable Top Enclosure to 108-Inch Ceiling

Built for high-volume fryer lines, this wall-mounted Type I hood combines durable stainless construction, integrated grease management, and a 1400 CFM design for dependable exhaust performance.

  • Covers 3 commercial fryers at 20 inches wide each.
  • Wall-mounted, exhaust-only backshelf ventilator for fryer applications.
  • 430 stainless steel construction with stainless steel grease filters.
  • Includes removable grease trough and grease cup for easier cleanup.
  • Adjustable top enclosure fits finished ceiling heights from 96 to 108 inches.
  • Designed for 1400 CFM with a factory-installed exhaust collar.

Overall Dimensions:

66.0"W x 31.0"D x 42.0"H

Product Weight:

500.0 lb

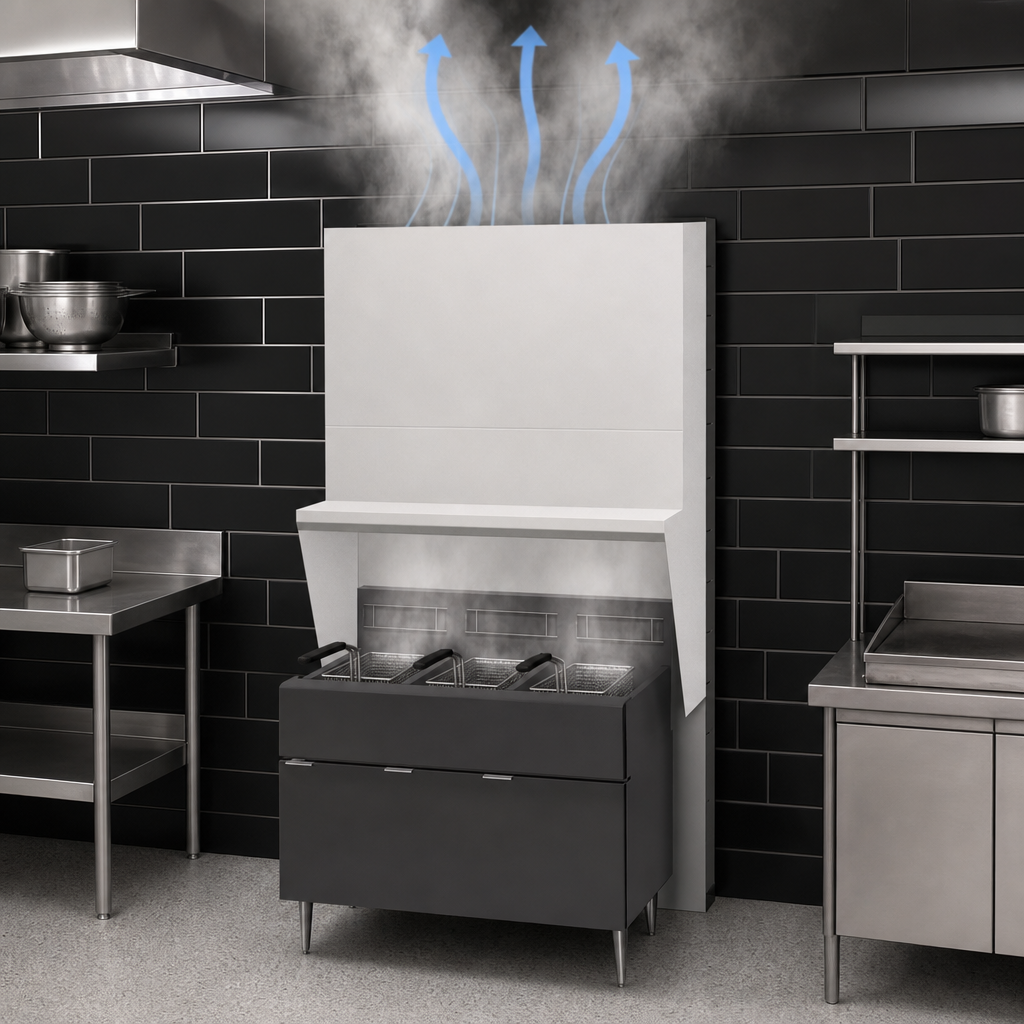

Type I Exhaust-Only Design

Low-profile backshelf ventilator intended for wall mounting over commercial fryers.

Type I Exhaust-Only Design

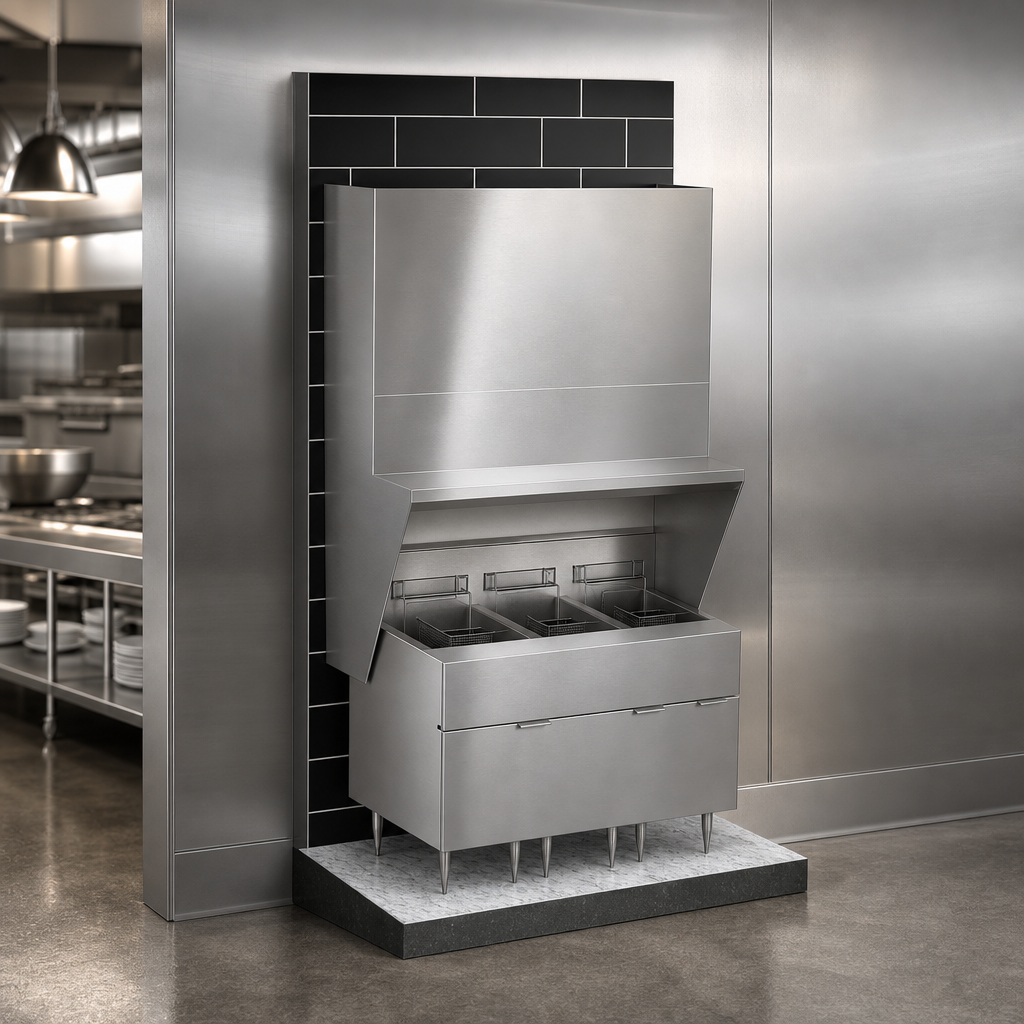

430 Stainless Steel Construction

Constructed of stainless steel on all surfaces for durability and easy cleaning.

430 Stainless Steel Construction

Built-In Plate Shelf

Front shelf provides added space for plates and condiment storage.

Stainless Steel Grease Filters

UL-listed baffle-style filters run the length of the hood to help capture grease.

Removable Grease Trough and Cup

Concealed grease trough slopes to a removable grease cup for simpler maintenance.

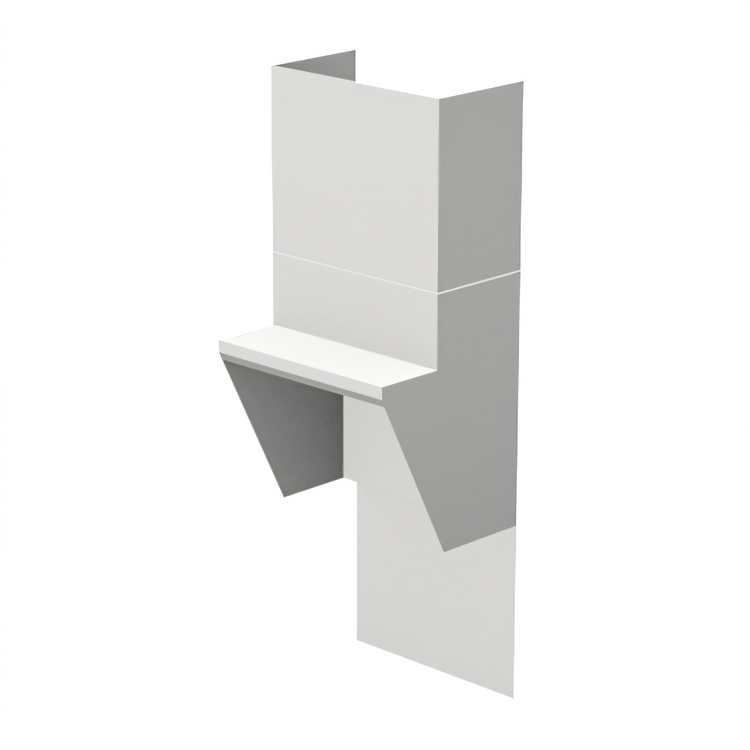

Adjustable Top Enclosure

Top trim adjusts to accommodate finished ceiling heights up to 108 inches.

Auto-Start Temp Sensor

Prewired temperature sensor with fan delay interlock for automated hood start-up.

Stainless Steel Wall Panels

42-inch-tall wall panels run the length of the hood for a finished installation.

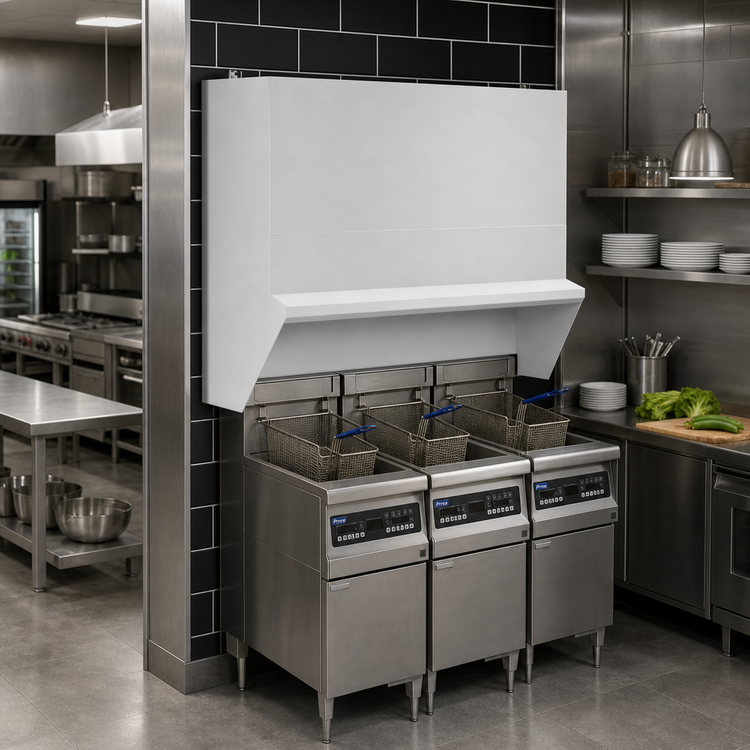

Sized for High-Capacity Fryer Coverage

Configured to cover 3 fryers at 20 inches wide with a 1400 CFM exhaust design and (1) 8 x 15 collar.

UL and NSF Construction

Built to meet UL operation and NSF construction standards for commercial kitchen use.

Type Type I
Style Backshelf Ventilator
Installation Type Wall Mounted
Material 430 Stainless Steel
Capacity 3 Fryers
Airflow 1400 CFM
Make-Up Air Non-Compensating
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

This model is designed to cover 3 commercial fryers at 20 inches wide each.
Yes. It is a wall-mounted, exhaust-only backshelf ventilator.
The adjustable top enclosure is designed for finished ceiling heights from 96 inches to 108 inches.
The hood is constructed of 430 stainless steel and uses stainless steel grease filters with stainless steel wall panels.
Yes. It includes stainless steel filters, a concealed/removable grease trough, and a removable grease cup.
This model is sized for 1400 CFM and includes a (1) 8 x 15 collar at 0.67 SP.
