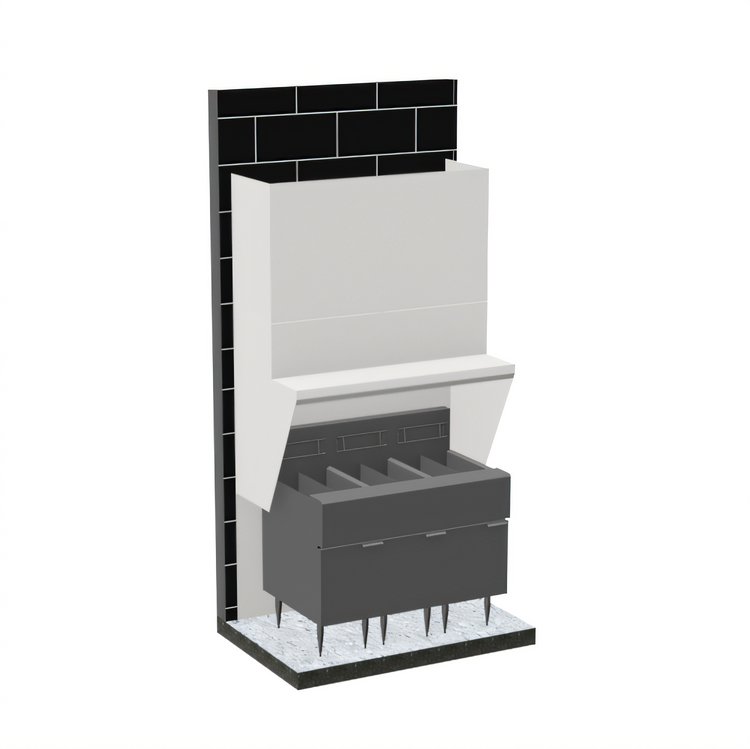

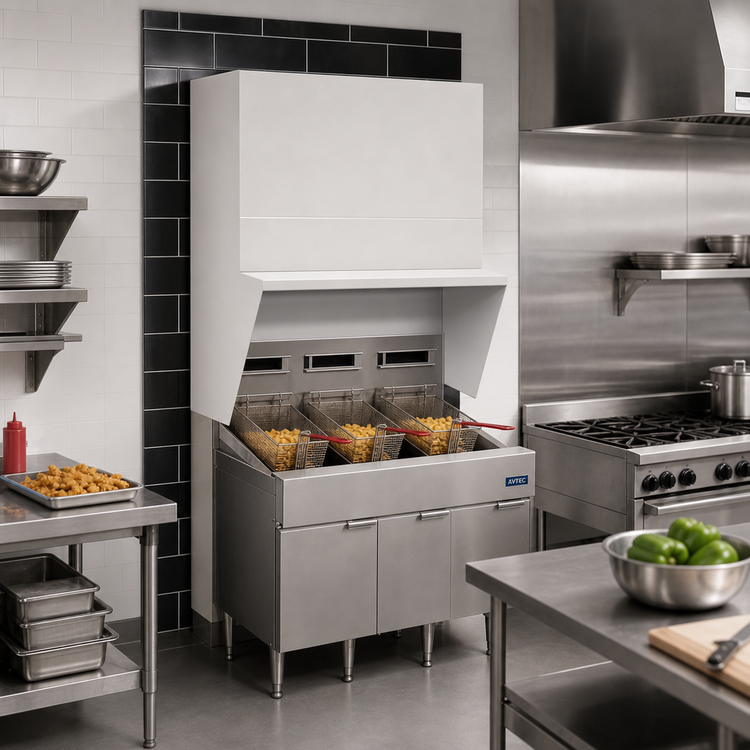

Avtec SimpleSpec 54-Inch Type I Wall-Mount Fryer Hood for 3 Fryers

430 Stainless Steel, Non-Compensating, Adjustable for 96-108 Inch Ceilings

Built to control heat and grease over a 3-fryer line, this Type I wall-mount hood combines durable stainless construction with an adjustable ceiling enclosure for easier installation.

  • Type I wall-mounted fryer hood designed for commercial fry stations.
  • Covers three fryers at 16-1/2 inches wide each.
  • 430 stainless steel construction with stainless steel filters for durability.
  • Includes a removable grease trough and cup for easier cleanup.
  • Adjustable top enclosure fits 96-inch to 108-inch ceiling heights.
  • Sized for 1100 CFM exhaust performance with a 3-inch rear air space.
  • Auto-start temperature sensor supports hood operation and safety.

Overall Dimensions:

54.0"W x 31.0"D x 42.0"H

Product Weight:

450.0 lb

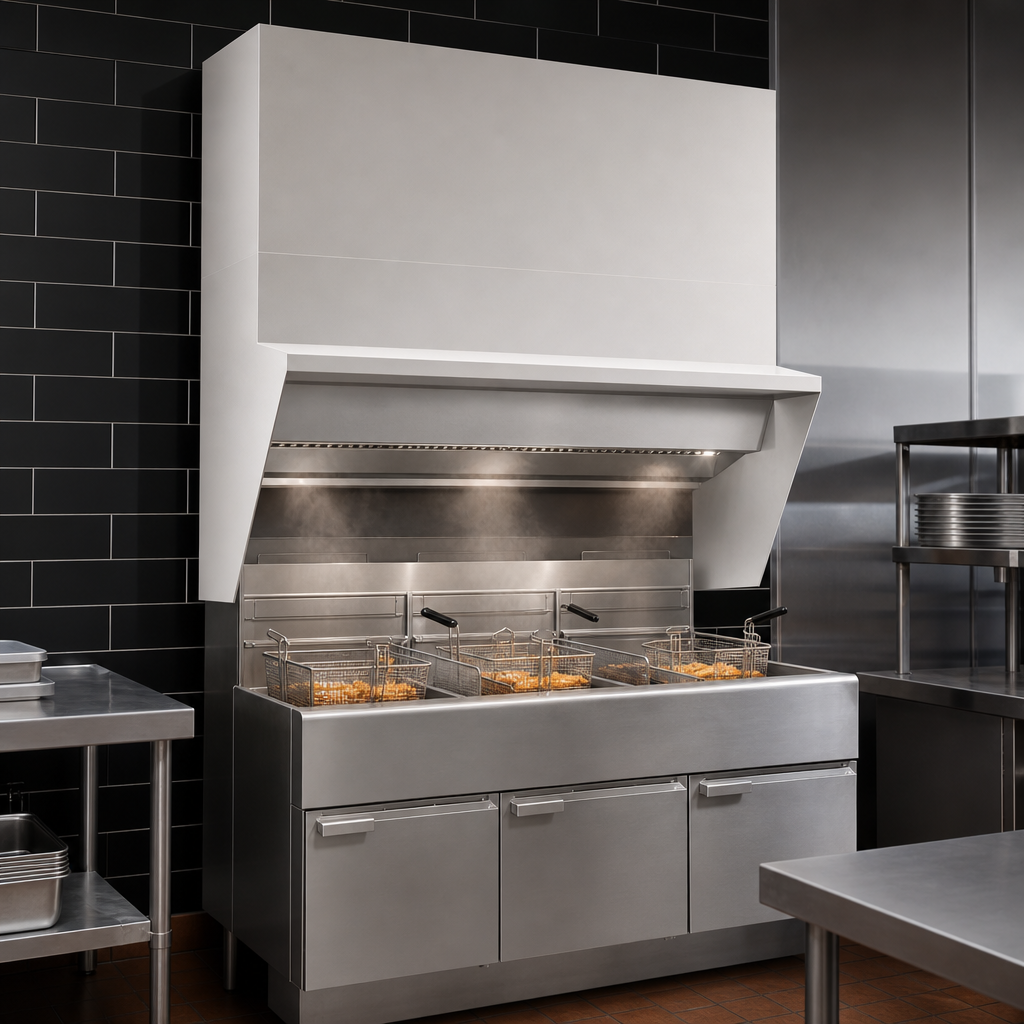

Type I Fryer Hood

Commercial kitchen exhaust hood designed specifically for fryer applications.

Type I Fryer Hood

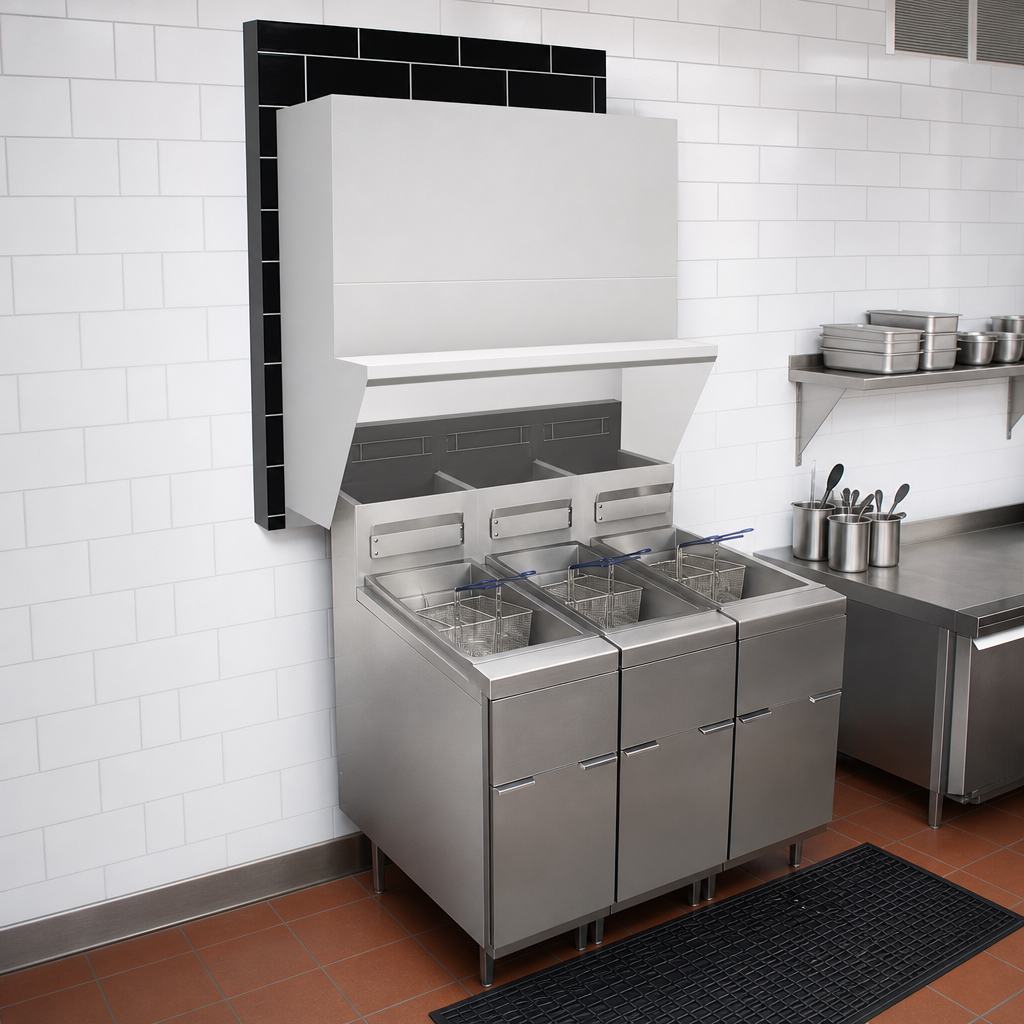

Wall-Mount Design

Installs on the wall to serve a fry line without taking up floor space.

Wall-Mount Design

Three-Fryer Capacity

Sized to cover three fryers at 16-1/2 inches wide each.

430 Stainless Steel Construction

Durable stainless build helps withstand the demands of a commercial kitchen.

Stainless Steel Filters

Built-in stainless filters help capture grease and support easier maintenance.

Removable Grease Trough And Cup

Helps collect grease and simplifies routine cleaning.

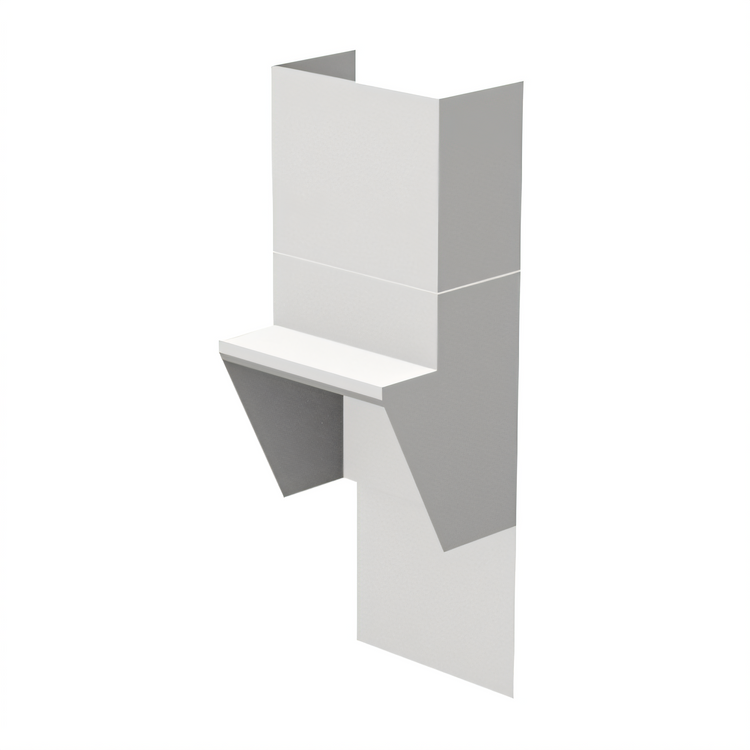

Adjustable Ceiling Enclosure

Top enclosure adjusts to fit ceiling heights from 96 inches to 108 inches.

Auto-Start Temperature Sensor

Integrated sensor supports automatic hood operation based on temperature.

Rear Air Space

Provides a 3-inch rear air space for installation clearance.

Sized For 1100 CFM

Configured for 1100 CFM exhaust with one 8x12 setup at 0.675 static pressure.

Stainless Steel Wall Panels

Wall panels run the length of the hood and extend 42 inches high.

Type Fryer Hood
Style Type I
Installation Type Wall Mounted
Material 430 Stainless Steel
Capacity 3 Fryers
Make-Up Air Non-Compensating
Airflow 1100 CFM
Rear Air Space 3 Inches
Ceiling Height Range 96 to 108 Inches
Shipping Width 54 Inches
Shipping Depth 31 Inches
Shipping Height 42 Inches
Shipping Weight 450 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

This is a Type I wall-mount fryer hood designed for commercial kitchen ventilation over fryer equipment.
It is designed to cover three fryers at 16-1/2 inches wide each.
The hood uses 430 stainless steel construction and includes stainless steel filters, a removable grease trough, and a grease cup.
The adjustable top enclosure is designed for ceiling heights from 96 inches to 108 inches.
It is sized for 1100 CFM, with one 8x12 setup at 0.675 static pressure.
