SimpleSpec Type I Wall-Mounted Fryer Hood System for 2 Fryers, 36 x 31 x 42 Inches

SKU: SSA-FRYER2-16
$6,581.66
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Avtec Best Sellers Commercial Kitchen Hoods Exhaust Only Hoods Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

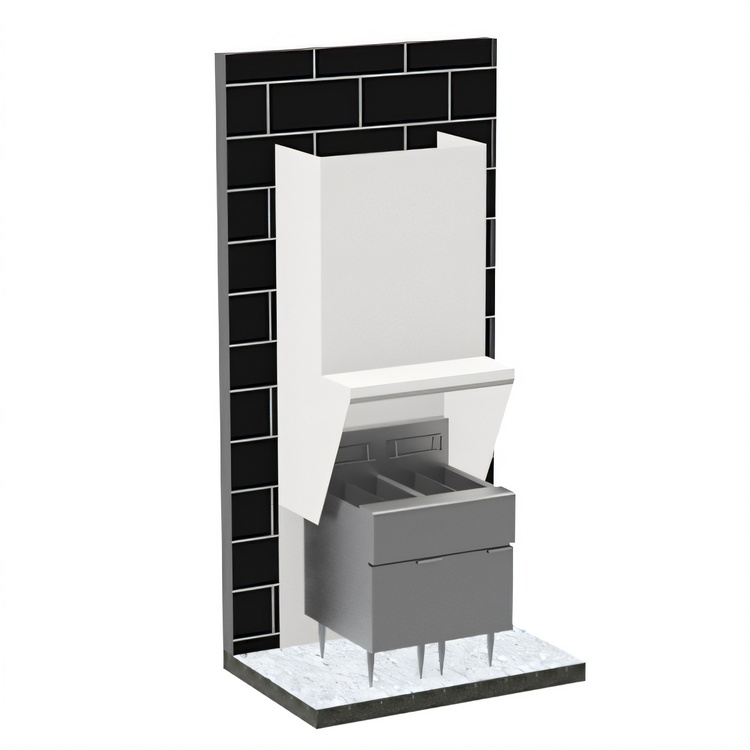

SimpleSpec Type I Wall-Mounted Fryer Hood System for 2 Fryers, 36 x 31 x 42 Inches

430 Stainless Steel, Non-Compensating, 700 CFM, Adjustable 96-108 Inch Ceiling Enclosure

Built for demanding fryer lines, this wall-mounted Type I hood combines durable stainless steel construction with easy-clean grease management and flexible ceiling-height installation.

  • Designed to cover two fryers up to 16-1/2 inches wide each.
  • 430 stainless steel construction delivers durability in commercial kitchens.
  • Stainless steel filters, removable grease trough, and cup simplify cleaning.
  • Adjustable top enclosure fits ceiling heights from 96 to 108 inches.
  • Sized for 700 CFM exhaust performance and non-compensating make-up air.

Overall Dimensions:

36.0"W x 31.0"D x 42.0"H

Product Weight:

350.0 lb

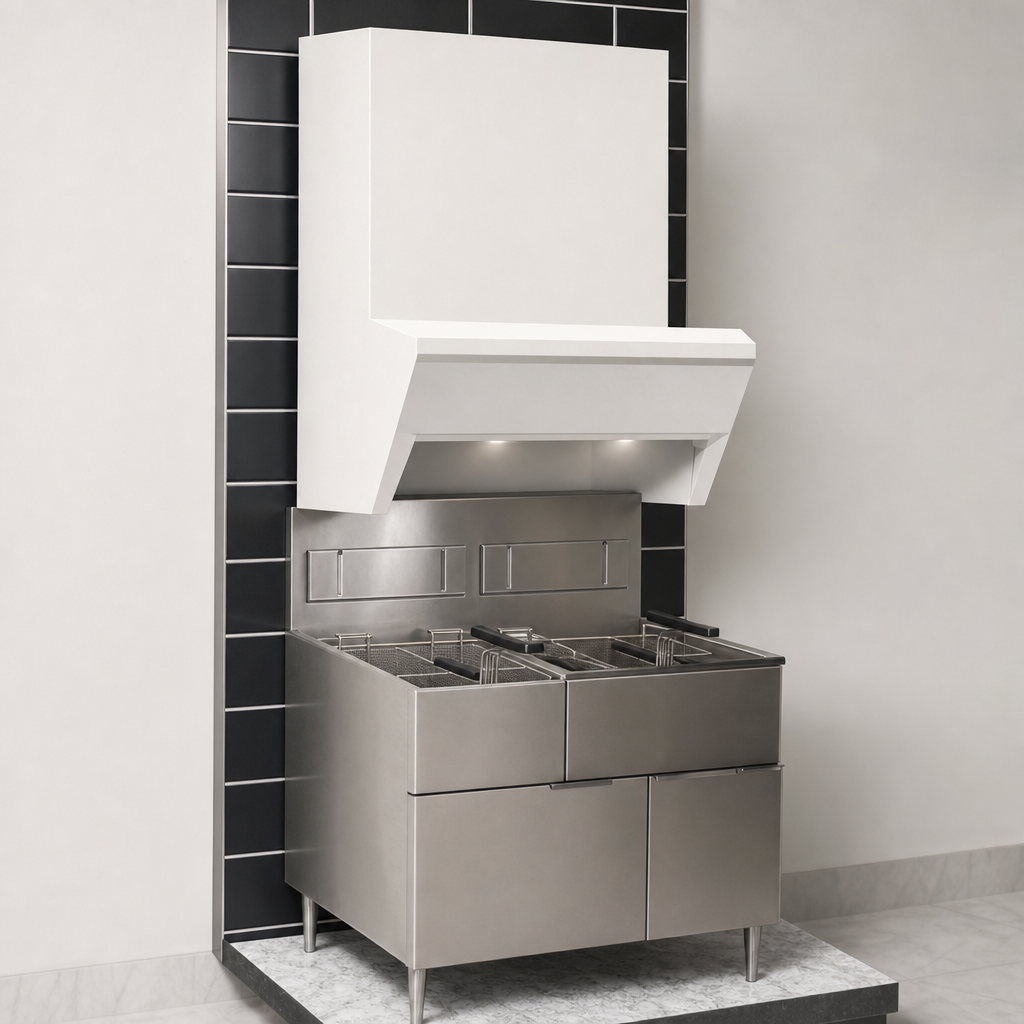

Type I Wall-Mounted Hood

Built as a Type I fryer hood for wall-mounted installation over cooking equipment.

Type I Wall-Mounted Hood

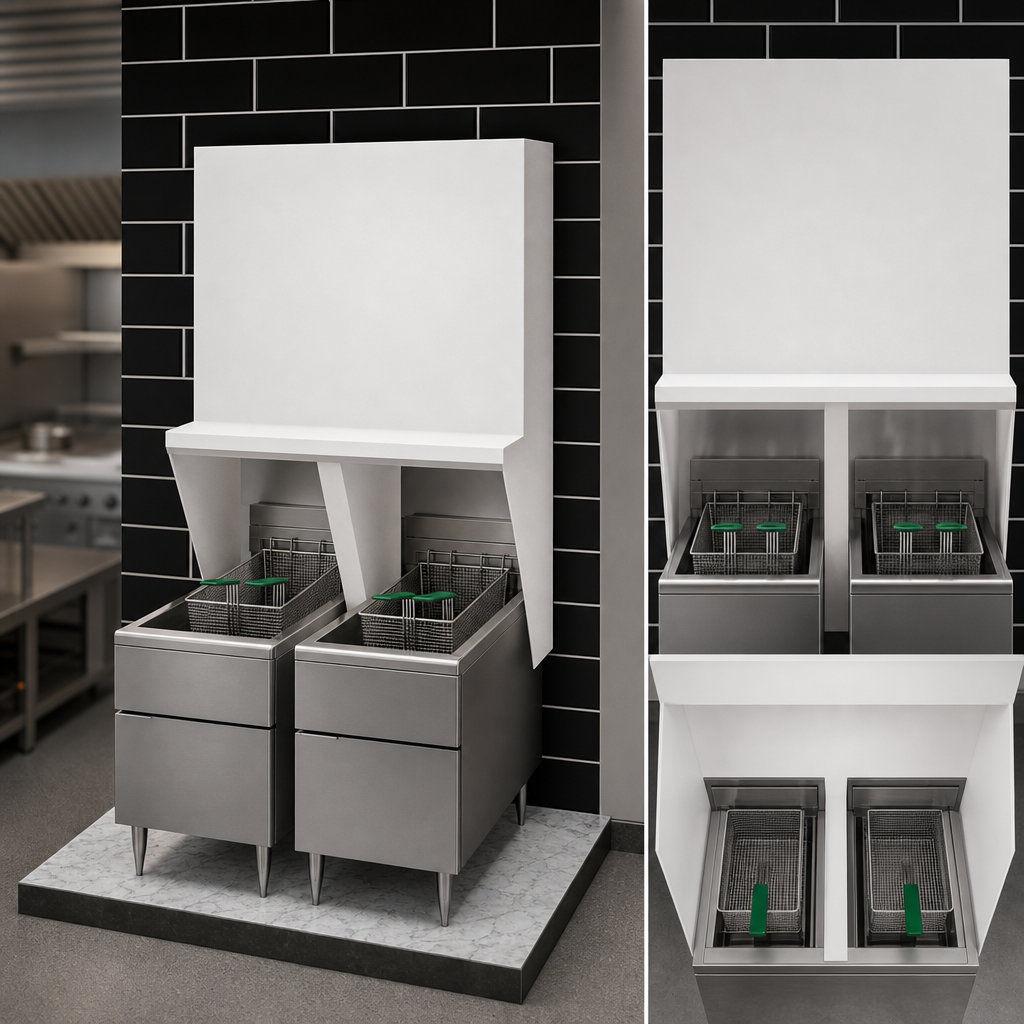

Two-Fryer Coverage

Designed to cover (2) fryers at 16-1/2 inches wide each.

Two-Fryer Coverage

430 Stainless Steel Construction

Durable stainless steel build for demanding commercial kitchen environments.

Stainless Steel Filters

Filters help capture grease and support easier hood maintenance.

Removable Grease Management

Includes a removable grease trough and cup for simplified cleaning.

Rear Air Space

Provides a 3-inch rear air space for installation clearance.

Auto-Start Temperature Sensor

Built-in temperature sensing supports automatic hood operation.

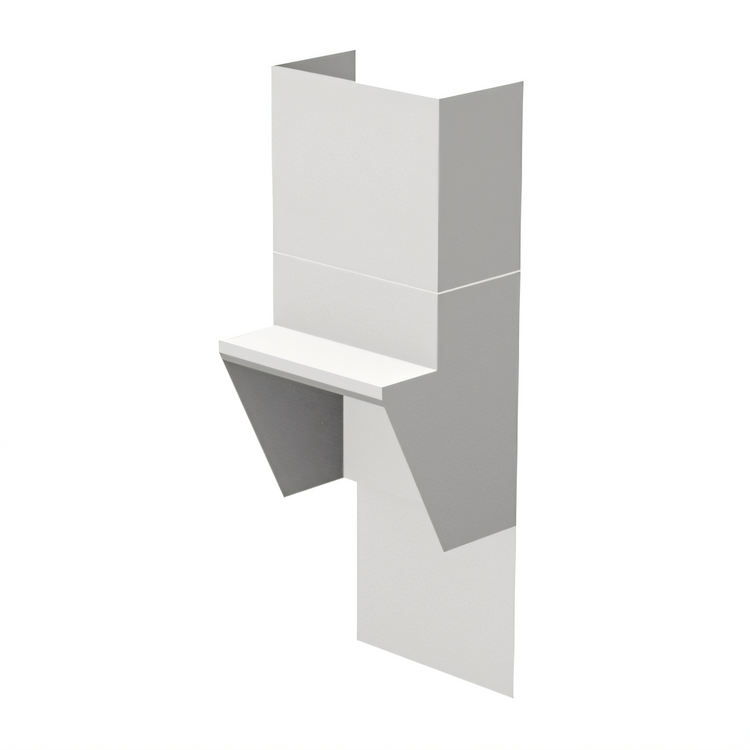

Adjustable Ceiling Enclosure

Top enclosure adjusts to fit 96- to 108-inch ceiling heights.

Full-Height Wall Panels

Stainless steel wall panels run the length of the hood to a 42-inch height.

700 CFM Rating

Sized for 700 CFM exhaust performance.

Type Fryer Hood
Style Type I
Installation Type Wall Mounted
Capacity 2 Fryers
Material 430 Stainless Steel
Make-Up Air Non-Compensating
Air Volume 700 CFM
Rear Air Space 3 Inches
Ceiling Height Range 96 to 108 Inches
Shipping Width 36 Inches
Shipping Depth 31 Inches
Shipping Height 42 Inches
Shipping Weight 350 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1 year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is designed to cover (2) fryers at 16-1/2 inches wide each.
Yes. It is a wall type / wall-mounted fryer hood system.
The hood system features 430 stainless steel construction, stainless steel filters, and stainless steel wall panels.
Yes. It includes a removable grease trough and cup.
The adjustable top enclosure is designed for ceiling heights from 96 to 108 inches.
Standard warranty coverage is 1 year parts and labor, beginning at installation or 6 months from factory shipment, whichever occurs first.
