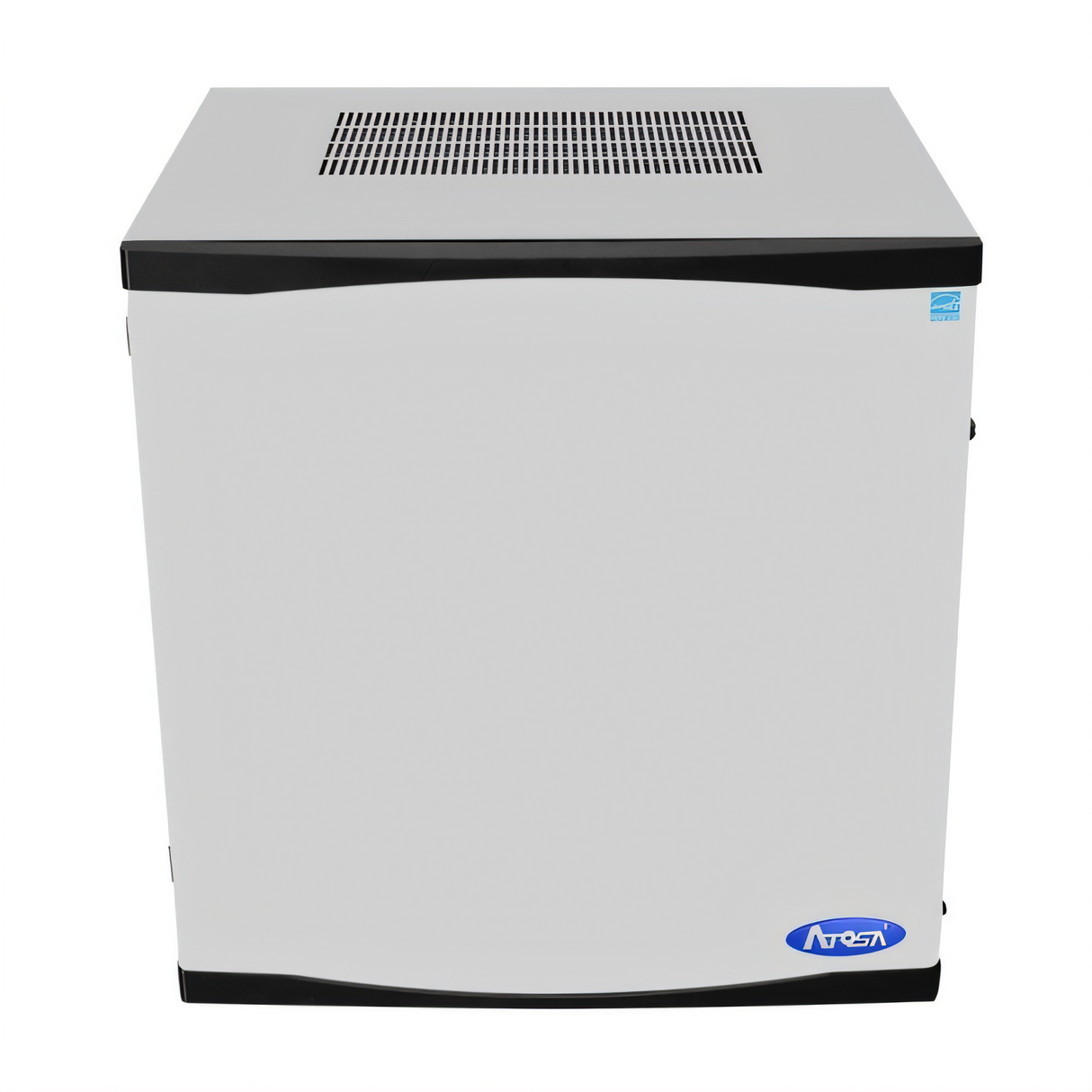

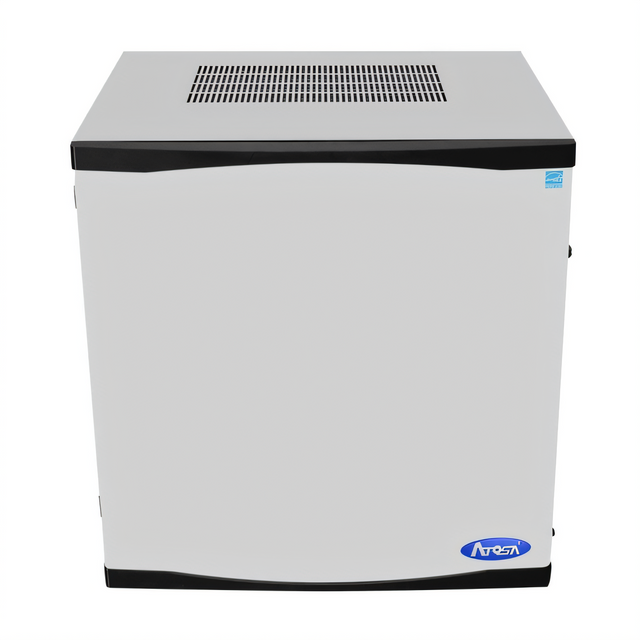

Atosa YR800-AP-261 800 lb Modular Cube Ice Machine
Air-Cooled • Self-Contained • ENERGY STAR® CertifiedProduce up to 810 lb of crystal-clear half-dice cubes in just 24 hours. The Atosa YR800-AP-261 combines robust stainless-steel construction, an efficient air-cooled condenser and included 3M™ water filtration to deliver dependable, high-volume ice production for restaurants, bars, hotels and healthcare facilities.
Key Features
- High output — up to 810 lb per day (3/8" × 7/8" × 7/8" half-dice cubes).
- ENERGY STAR® qualified — only 5.18 kWh per 100 lb of ice.
- Air-cooled, self-contained condenser eliminates extra water usage.
- Durable stainless-steel exterior stands up to busy kitchens.
- Front-accessible power switch and removable air filter for quick maintenance.
- Factory-supplied 3M™ ICE140-S water filtration system protects equipment and improves ice clarity.
- NEMA L14-20P locking plug fits standard 208-240 V/60/1-ph outlets.
- Optional ice bins available: CYR400P (400 lb) or CYR700P (700 lb).
- cETLus, ETL-Sanitation, NSF and ENERGY STAR® listed.
- Backed by a 2-year parts & labor warranty and 5-year compressor part warranty.
Specifications
| Model | YR800-AP-261 |
|---|---|
| Ice type | Half-diced cube |
| Daily production | Up to 810 lb / 24 hr |
| Condenser | Air-cooled, self-contained |
| Refrigerant | R404a |
| Energy use | 5.18 kWh / 100 lb ice |
| Electrical | 208-240 V / 60 Hz / 1-Ph • 7.5 A • 1,750 W |
| Plug type | NEMA L14-20P (locking) |
| Dimensions (W × D × H) | 30.2" × 24.45" × 31.7" |
| Net/Gross weight | 231 lb (approx.) |
| Water inlet | 1/4" O.D. tubing “slip” connector |
| Drain connection | 3/4" hose barb (gravity drain required) |
| Approvals | cETLus • ETL-Sanitation • NSF • ENERGY STAR® |
What’s Included
- Atosa YR800-AP-261 ice head
- 3M™ ICE140-S water filter head and cartridge
- Removable air filter
- Ice scoop
- Water inlet & drain hoses
- Owner’s manual
Installation note: Unit must be connected to a cold-water supply and a
dedicated floor drain. Provide adequate clearance around air intake and exhaust for
proper ventilation. Failure to use the supplied water filter or to clean the condenser
regularly may void the warranty.

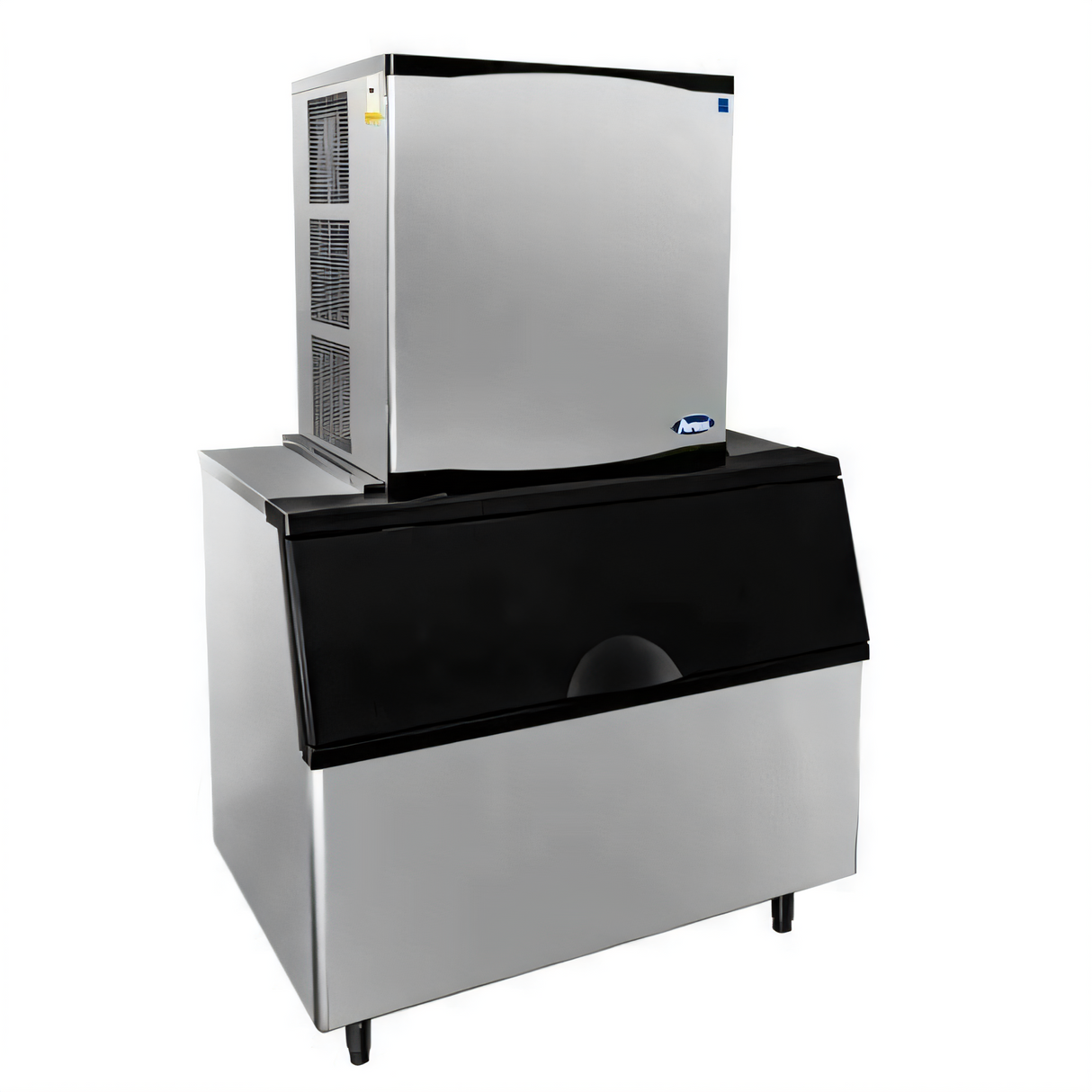

Pair with the Atosa CYR400P or CYR700P bin (sold separately) for a complete ice production and storage solution.
$4,268.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Atosa YR800-AP-261 cube ice machine: 810 lb/24h, stainless steel, air-cooled, ENERGY STAR, NSF, removable filter, compact 30.2"W footprint.
Manufacturer
Atosa USA, Inc.
Brand name
Atosa
Certifications
NSF, cETLus, ETL-Sanitation, ENERGY STAR
Height
31.7in
Width
30.2in
Depth
24.45in
Shipping Weight
328.49lbs
Width (side - side)
30 - 39" wide
Production per 24 hr
801 - 900 lb = 364 - 408 kg
Ice Type
half size / half dice cubes
Energy Efficiency
ENERGY STAR®
Refrigeration
self-contained refrigeration
Condenser Type
air-cooled
Specifications
Ice Maker, cube-style, air-cooled, self-contained condenser, 30.2"W x 24.45"D x 31.7"H, production capacity up to 810-lb/24 hours, removable air filter, stainless steel exterior, R404a refrigerant, 208-240v/60/1-ph, 7.5 amps, cETLus, ETL-Sanitation, NSF, ENERGY STAR® (drain required)
