Atosa USA, Inc. YR140-AP-161 Atosa Ice Machines
Atosa USA, Inc. YR140-AP-161 Atosa Ice Machines is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Atosa USA, Inc. YR140-AP-161 Atosa Ice Machines
Description

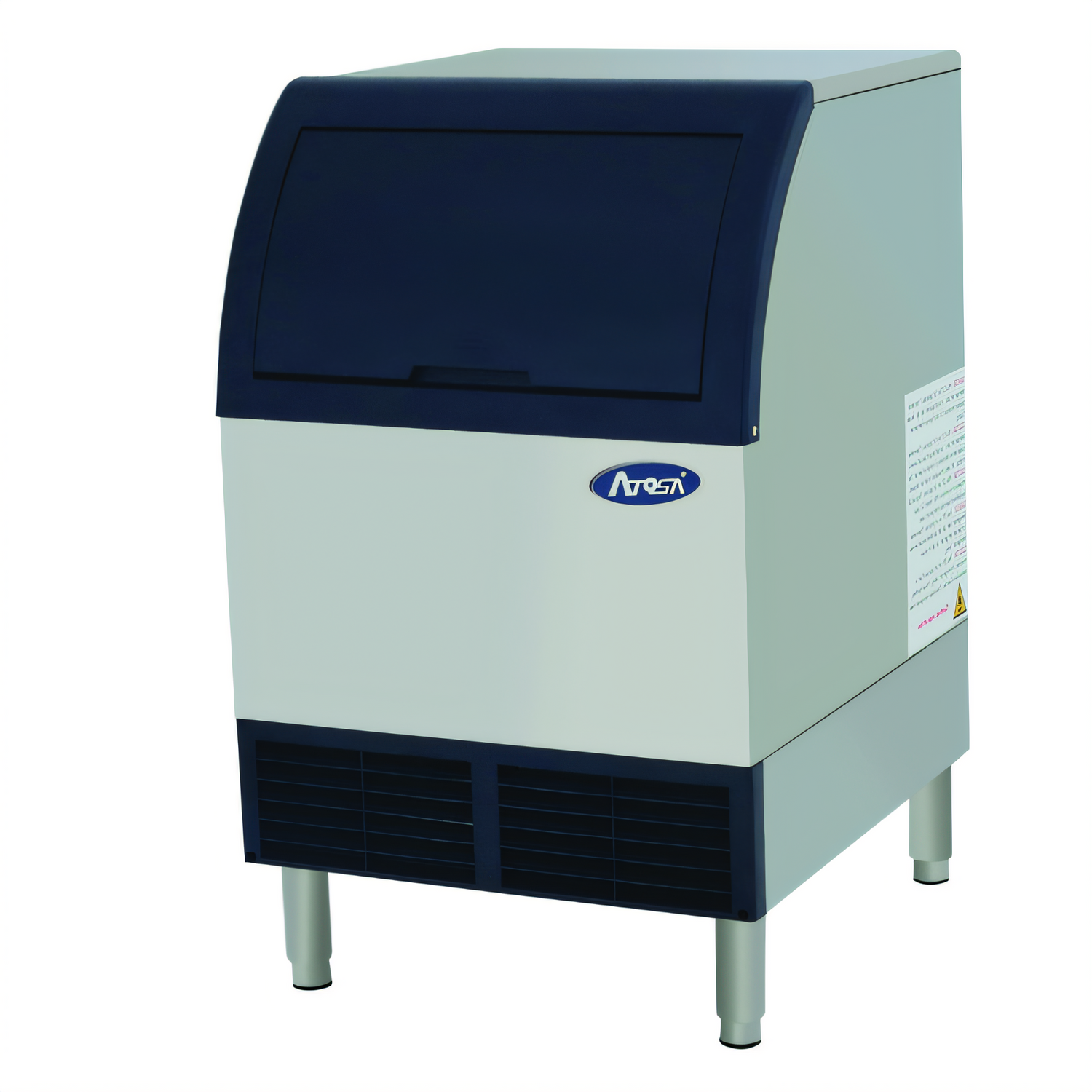

Atosa YR140-AP-161 140 lb Ice Maker with 88 lb Bin
Air-Cooled • Half-Dice Cubes • ENERGY STAR® QualifiedProduce fresh, crystal-clear half-dice ice the efficient way. At only 23.7″ wide, the Atosa YR140-AP-161 combines a high-output, self-contained ice machine and a spacious 88 lb storage bin in a sleek, stainless steel cabinet built for demanding commercial kitchens, bars and break-rooms.
Why You’ll Love It
- Up to 142 lb of ice every 24 hours (AHRI certified)
- Generous 88 lb built-in bin with easy-glide, slanted blue door
- Half-dice cube size: ⅜″ × ⅞″ × ⅞″ — perfect for soft drinks & cocktails
- Quiet, energy-saving air-cooled, self-contained R290 refrigeration
- Durable all-stainless exterior & 6″ adjustable legs for simple leveling
- Removable, washable air filter and front-access power switch for fast service
- Includes ice scoop, drain hose & 3M™ ICE120-S water filter system
- Pre-wired NEMA 5-15P cord — just plug & produce
- Certified cETLus, ETL-Sanitation, NSF & ENERGY STAR®
Technical Specs
| Ice type / shape | Half-dice cube |
|---|---|
| Production | 142 lb / 24 hr (64 kg) at 70°F air / 50°F water |
| Bin capacity | 88 lb (40 kg) |
| Ice dimensions | ⅜″ × ⅞″ × ⅞″ (9.5 × 22 × 22 mm) |
| Refrigerant | R290 Hydrocarbon |
| Electrical | 115 V / 60 Hz / 1-Ph, 3.1 A, 363 W |
| Energy consumption | 6.13 kWh / 100 lb ice |
| Plug | NEMA 5-15P (6′ cord) |
| Dimensions (W × D × H) | 23.7″ × 28.5″ × 38.6″ (602 × 724 × 982 mm) |
| Legs | 6″ (152 mm) adjustable |
| Net weight | 176 lb (80 kg) |
| Certifications | cETLus, ETL-Sanitation, NSF, ENERGY STAR® |
Rock-Solid Warranty
2-year parts & labor coverage plus a 5-year compressor parts warranty backed by Atosa’s nationwide service network.
For optimal performance and to maintain warranty validity, the included 3M™ water filter system must be installed and its cartridge replaced every 6 months (may vary with local water quality). Routine cleaning & maintenance are the owner’s responsibility.
