Atosa USA, Inc.  |  Atosa  |  SKU: MKC90GR

Atosa USA, Inc. MKC90GR Atosa Back Bar Coolers

$4,003.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual
Related Searches
Atosa Atosa USA, Inc. Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

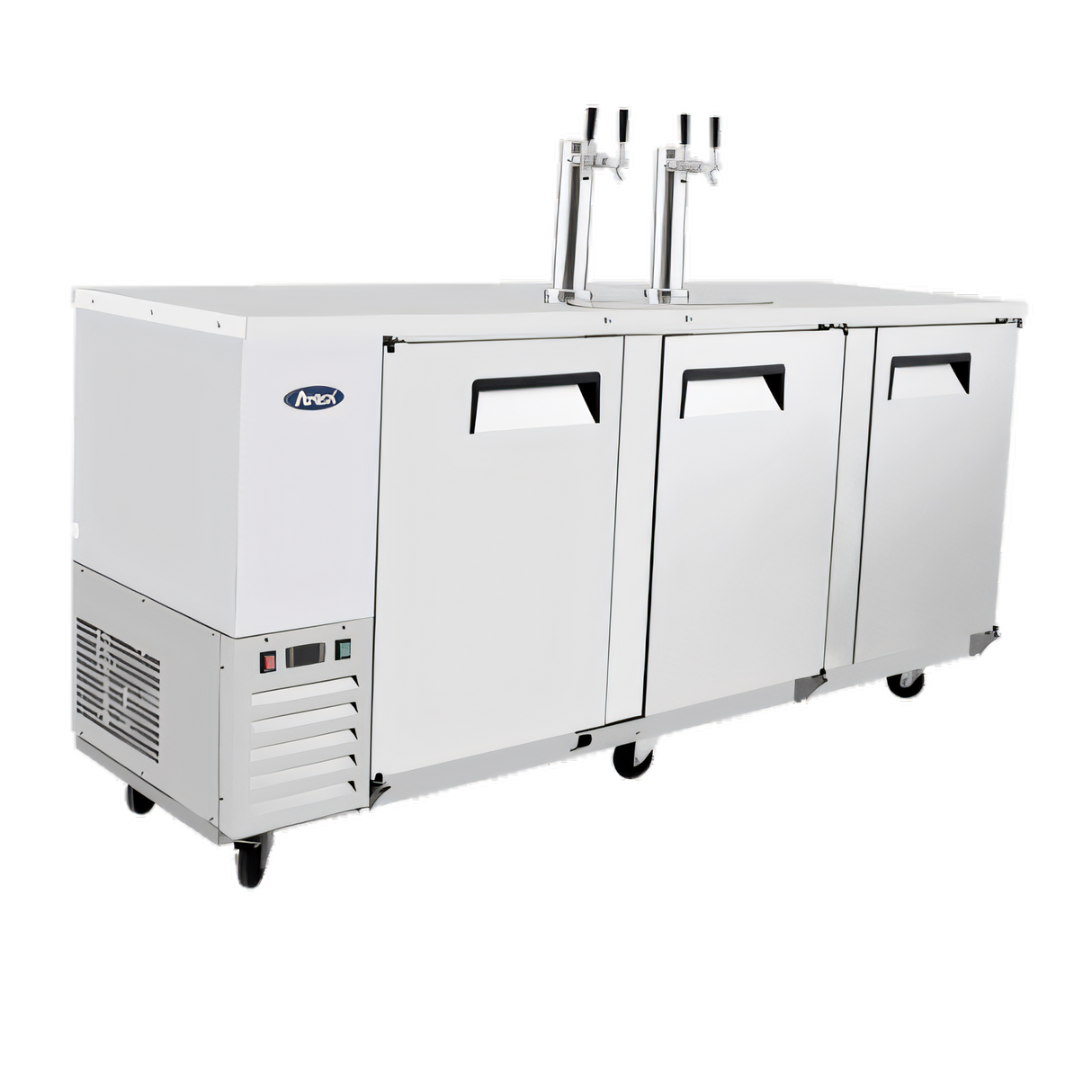

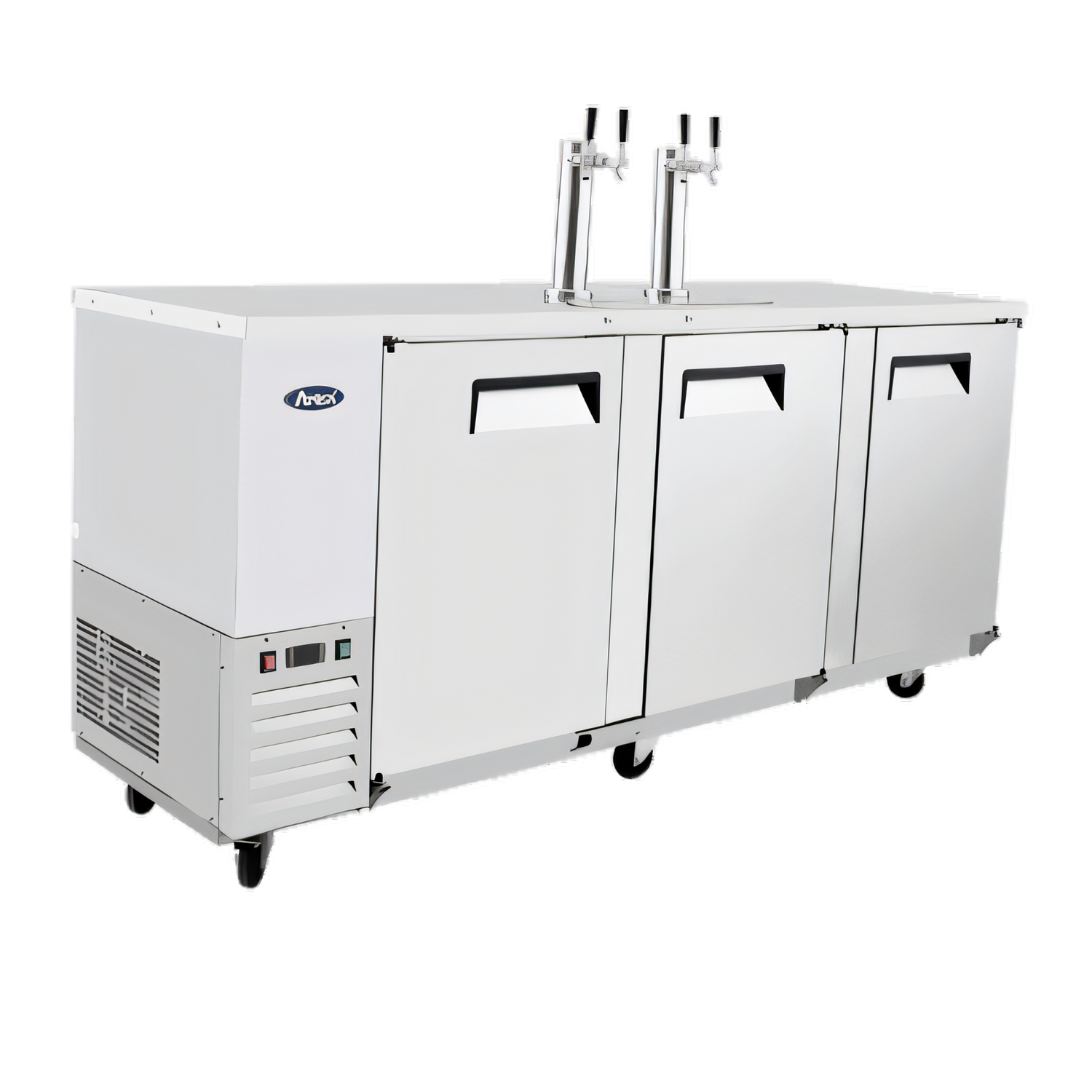

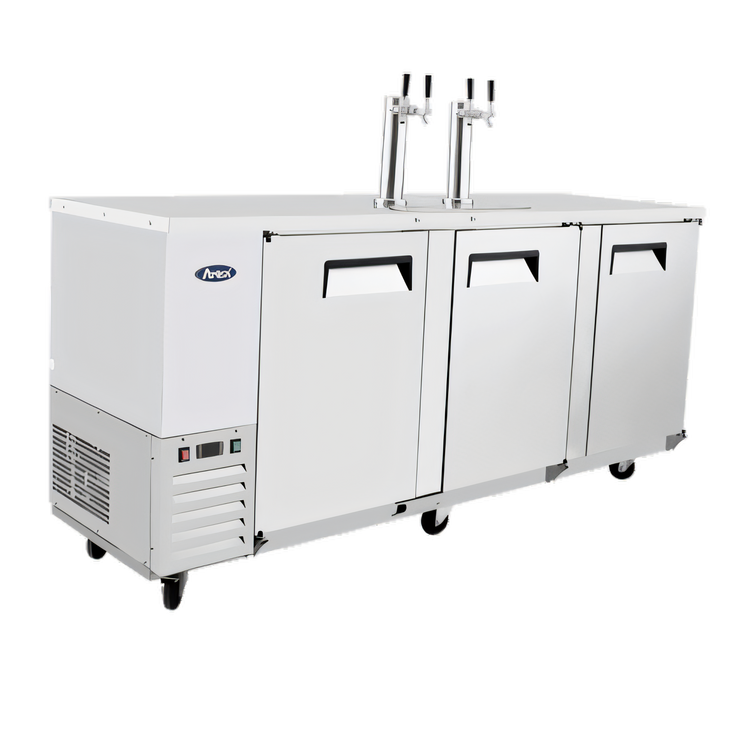

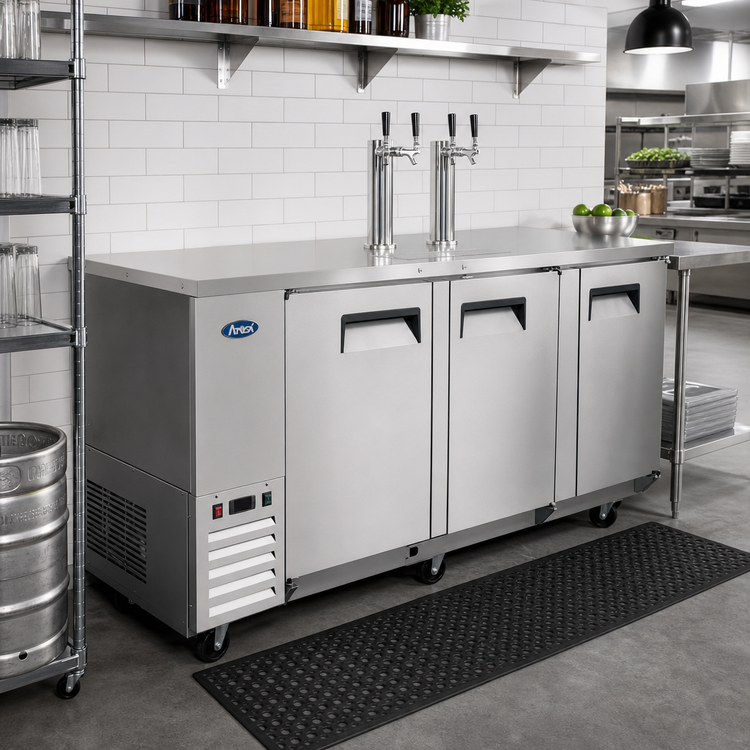

Atosa MKC90GR Direct-Draw Beer Cooler

89 3⁄10"W • 30.1 cu. ft. • (4) ½-Barrel Capacity

Keep every pint ice-cold and perfectly poured with Atosa’s flagship 3-door draft system. Engineered for high-volume bars, taprooms and banquet operations, the MKC90GR delivers reliable performance, intuitive controls and the polished look of full stainless steel—front, back and everywhere in between.

Why You’ll Love It

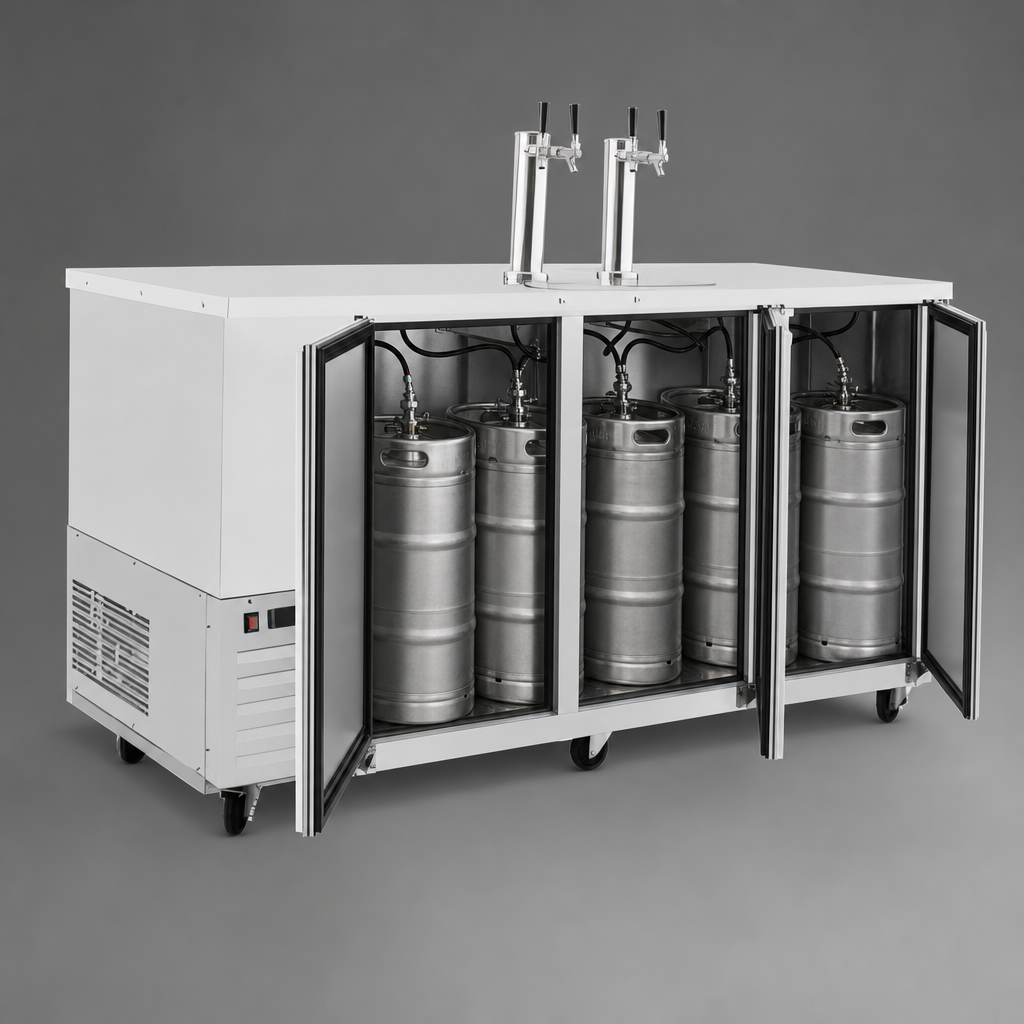

  • Holds up to (4) full-size / ½-barrel kegs—or configure for slim, quarter or sixth barrels (up to 14 sixths).

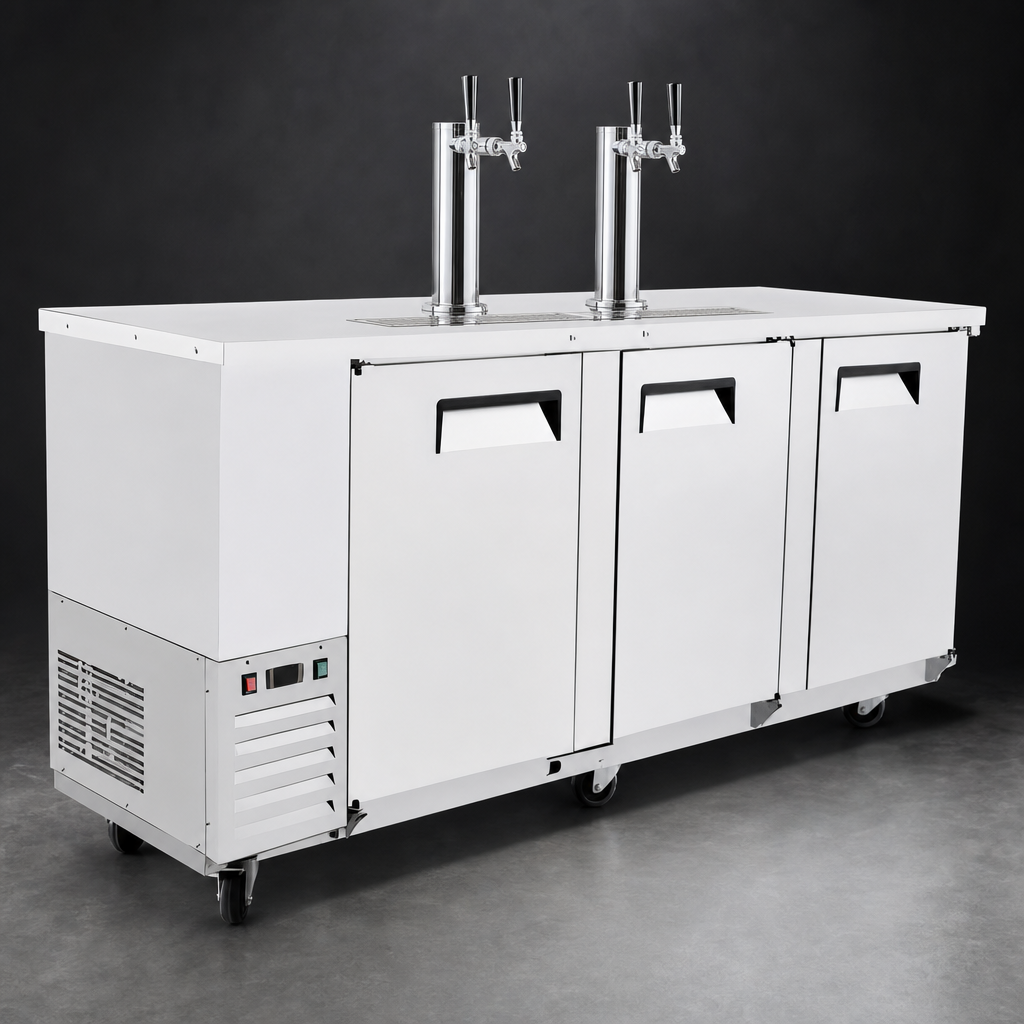

  • (2) dual-faucet towers (4 taps total) with stainless steel drip tray keep the bar top tidy.
  • All-stainless interior & exterior resists dents, rust and everyday wear.
  • Dixell digital controller maintains a steady 33 °F–40 °F for consistently crisp pours.
  • Side-mounted, slide-out Embraco compressor uses environmentally friendly R290 hydrocarbon refrigerant.
  • Factory-installed door locks protect your inventory after hours.
  • 2" swivel casters (front locking) make cleaning and service a breeze.

Included in the Box

  • Pre-plumbed beer manifold & ball taps
  • (2) dual-faucet stainless steel towers
  • Magnetic door gaskets (field-replaceable)
  • NEMA 5-15P cord & plug—just roll in and power up

Technical Specifications

Model MKC90GR
Exterior Dimensions (W × D × H) 89 3⁄10" × 28 1⁄10" × 55 3⁄5"
(40 1⁄10" cabinet height, 55 3⁄5" with towers)
Capacity 30.1 cu. ft. / (4) ½-barrel kegs
Doors / Construction (3) solid, locking – stainless inside & out
Dispensing Towers (2) dual faucets (4 total taps)
Temperature Range 33 °F – 40 °F
Refrigeration System Side-mounted, self-contained, 1⁄5 HP Embraco compressor, R290
Electrical 115 V / 60 Hz / 1-phase, 2.8 A, NEMA 5-15P
Certifications cETLus, ETL-Sanitation (NSF/ANSI 7)
Net / Gross Weight 282 lb / 357 lb
Casters (4) 2" swivel (front locking)
Warranty 2-Year Parts & Labor • 5-Year Compressor

Peace-of-Mind Coverage

  • Backed by Atosa’s nationwide service network
  • Quick-swap slide-out compressor minimizes downtime

Images may show other models in the MKC series for reference. Verify keg capacities and clearances prior to installation.

Features & Specs

Manufacturer

Atosa USA, Inc.

Brand_name

Atosa

Certifications

cETLus, ETL-Sanitation

Height

55.6in

Width

89.3in

Depth

28.1in

Shipping Weight

357.0lbs

Column Qty

2 columns / towers

Faucet Qty

2 faucets per column

Barrel Style

1/2 barrel (full keg)

Width

73" (and up)

Top Style

flat top

Keg Capacity

3 - 4 kegs

Exterior Finish

all stainless steel exterior

Specifications

Atosa Draft Beer Cooler, 89-3/10"W x 28-1/10"D x 55-3/5"H, side-mounted self-contained refrigeration, (4) 1/2 barrel capacity (30.1 cu. ft.), (2) dual faucet towers, (3) locking solid doors, Dixell digital controller, stainless steel interior & exterior, 2" casters, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, includes: manifold & ball taps, cETLus, ETL-Sanitation
