Description

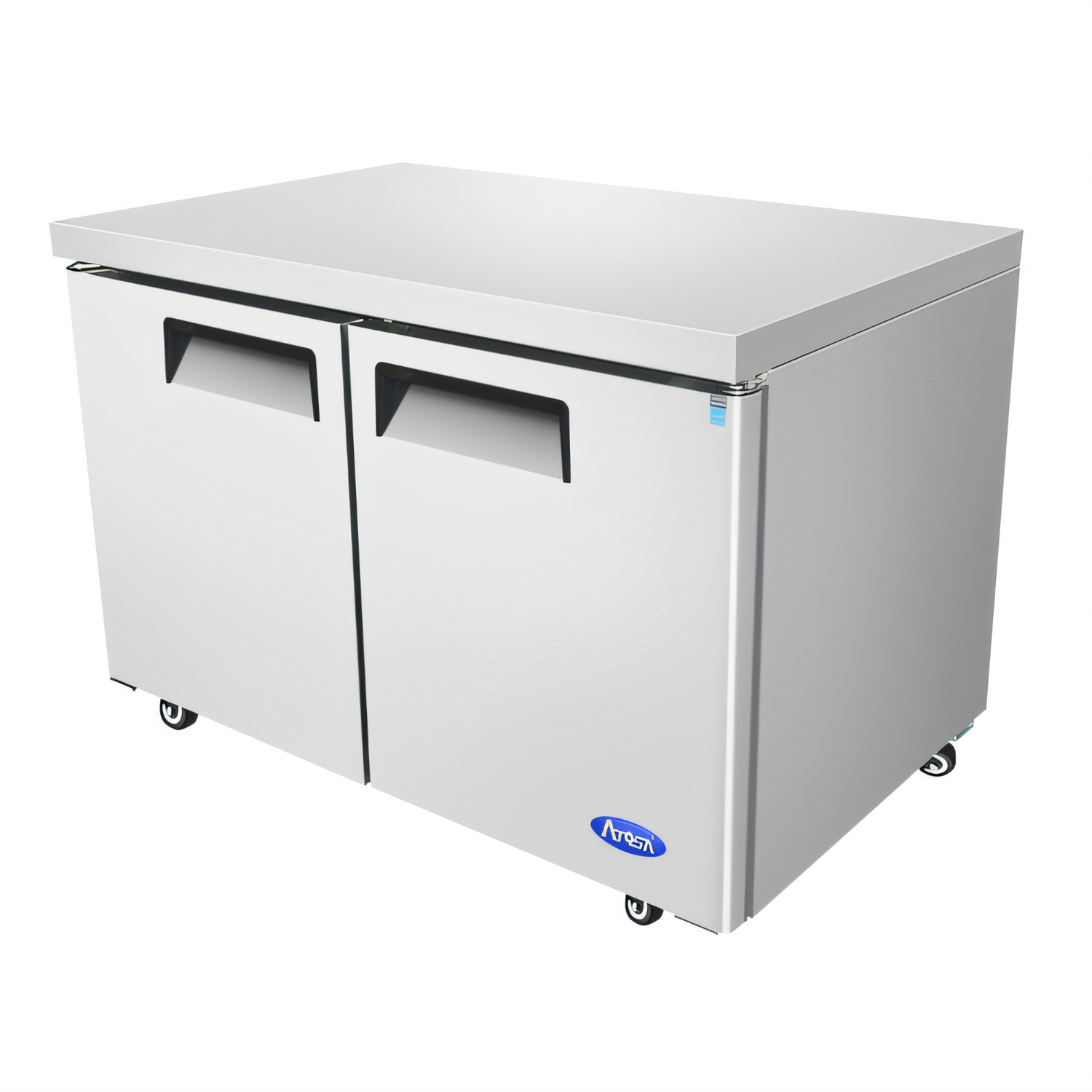

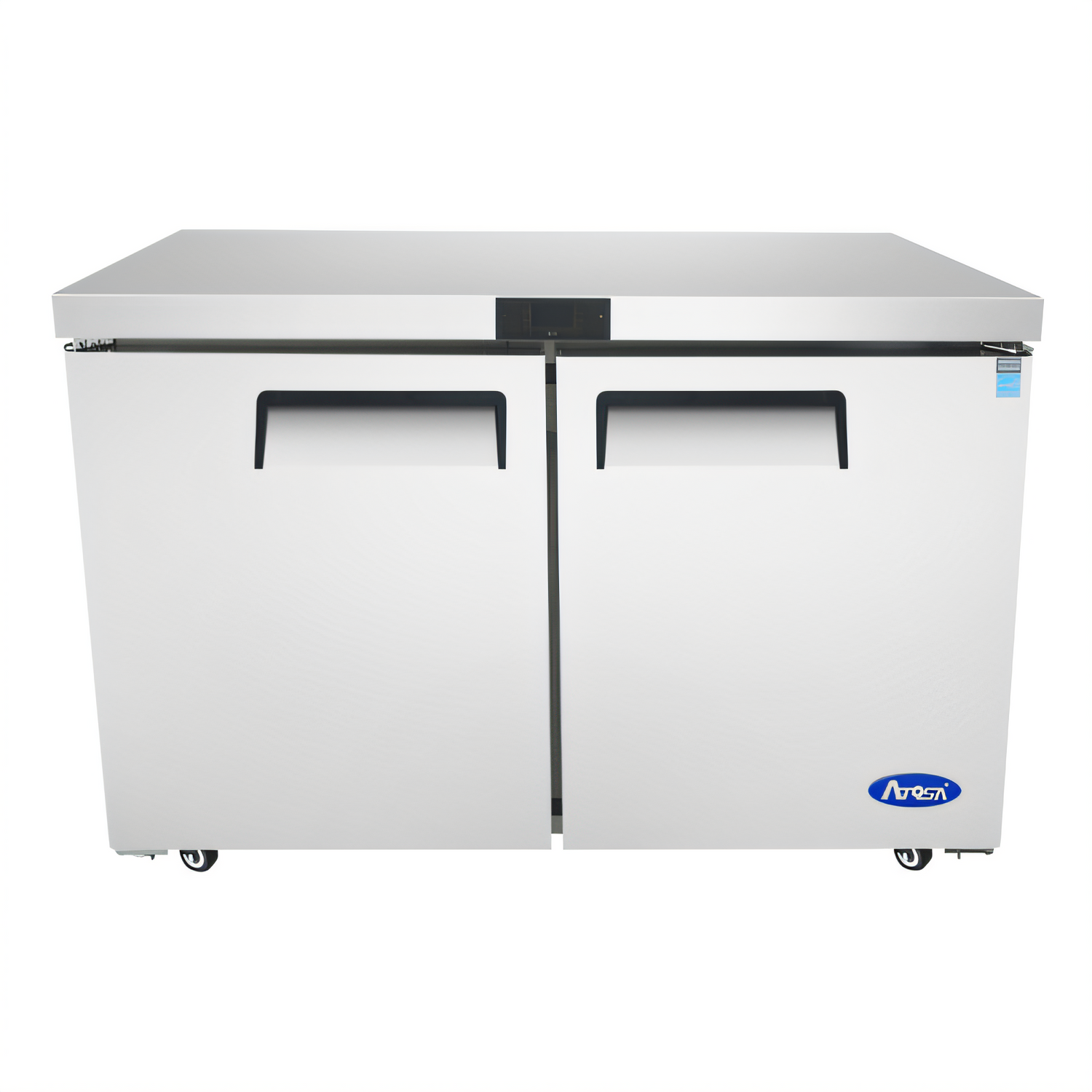

Atosa MGF8406GR 48" Two-Section Undercounter Freezer
ENERGY STAR® Certified | 13.4 cu. ft. | -8°F – 0°F Holding RangePut high-performance freezing power exactly where you need it. The Atosa MGF8406GR tucks neatly beneath counters and prep tables while delivering rock-solid, ENERGY STAR®-rated efficiency for ice-cold food storage in any commercial kitchen.
Key Features
- Rear-mounted, self-contained refrigeration with eco-friendly R290 hydrocarbon.
- Digital temperature controller maintains a consistent -8°F – 0°F.
- Durable stainless-steel interior & exterior with reinforced worktop.
- (2) hinged solid doors – self-closing with stay-open feature for easy loading.
- Recessed full-length handles and magnetic gaskets for a positive seal.
- (2) epoxy-coated adjustable shelves (1 per section) for flexible organization.
- Automatic electric defrost and evaporation – no floor drain required.
- Factory-installed 2" swivel casters (front locking) for quick cleaning & mobility.
- 1/4 HP compressor engineered for quiet, energy-saving performance.
- cETLus & ETL-Sanitation listed for electrical safety and food-service compliance.
Technical Specifications
| Model | MGF8406GR |
|---|---|
| Capacity | 13.4 cu. ft. |
| Sections / Doors | 2 / 2 solid, self-closing |
| Shelves (adjustable) | 2 epoxy-coated wire |
| Temperature Range | -8°F to 0°F |
| Exterior Dimensions (W × D × H) | 48-1/4" × 30" × 34-1/2" |
| Compressor | 1/4 HP, rear-mounted |
| Refrigerant | R290 (Hydrocarbon) |
| Electrical | 115 V / 60 Hz / 1-Ph, 2.6 A, NEMA 5-15P cord included |
| Casters | 2" swivel (front brakes) |
| Certifications | ENERGY STAR®, cETLus, ETL-Sanitation |
| Warranty | 2 yrs parts & labor | 5 yrs compressor (parts) |
Optional Accessories
- Extra shelf – part # W0402171 (includes 4 clips)
- Double overshelf – part # MROS-4RE
Installation Tip: Allow at least 3" of clearance behind the unit and clean the condenser regularly to ensure maximum efficiency and service life.
Atosa continually improves its products; specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Atosa USA, Inc.
Brand_name
Atosa
Certifications
cETLus, ETL-Sanitation, ENERGY STAR
Height
34.5in
Width
48.2in
Depth
30.0in
Shipping Weight
245.0lbs
Access Type
doors
Size
2 section
Exterior Finish
galvanized & stainless steel exterior
Compressor HP
1/4 HP
Width
48"- 59"
Refrigeration
self-contained, rear mounted
Doors
solid door(s)
Specifications
Atosa Undercounter Freezer, reach-in, two-section, 48-1/5"W x 30"D x 34-1/2"H, rear-mounted self-contained refrigeration, 13.38 cu. ft., (2) hinged solid doors, digital temperature control, -8° to 0°F temperature range, (2) adjustable shelves, automatic evaporation, stainless steel interior & exterior, galvanized steel back, 2" casters, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.6 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®
