Description

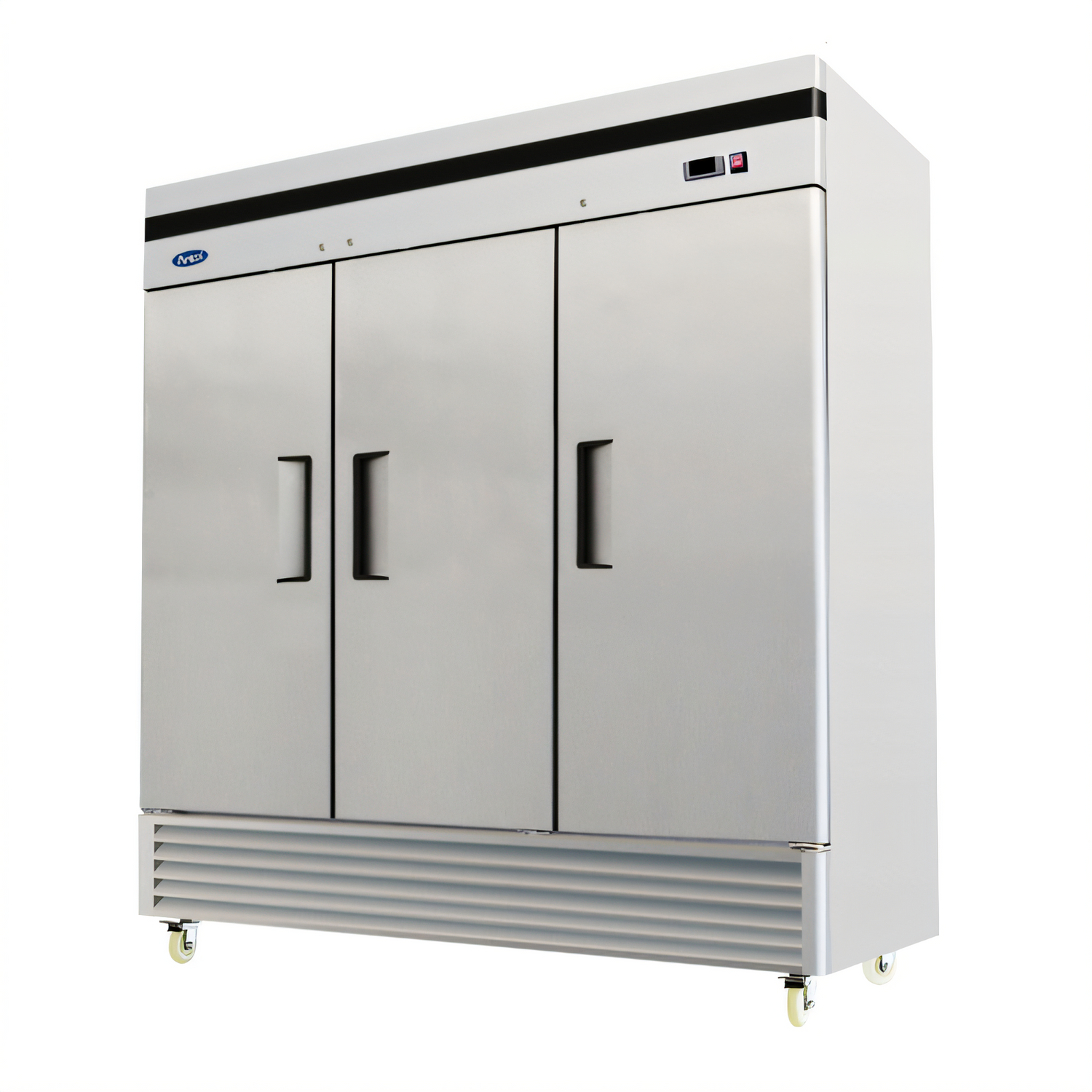

Atosa MBF8504GR 3-Door Bottom-Mount Reach-In Freezer — 71 Cu. Ft.

High-capacity, energy-smart frozen storage for demanding kitchens

Engineered for restaurants, hotels and institutions that move serious volume, the Atosa MBF8504GR packs a generous 71 cu. ft. of storage into a rugged, all-stainless cabinet. Its bottom-mounted 1 HP compressor and eco-friendly R290 refrigerant deliver rock-solid performance while trimming operating costs.

Key Features

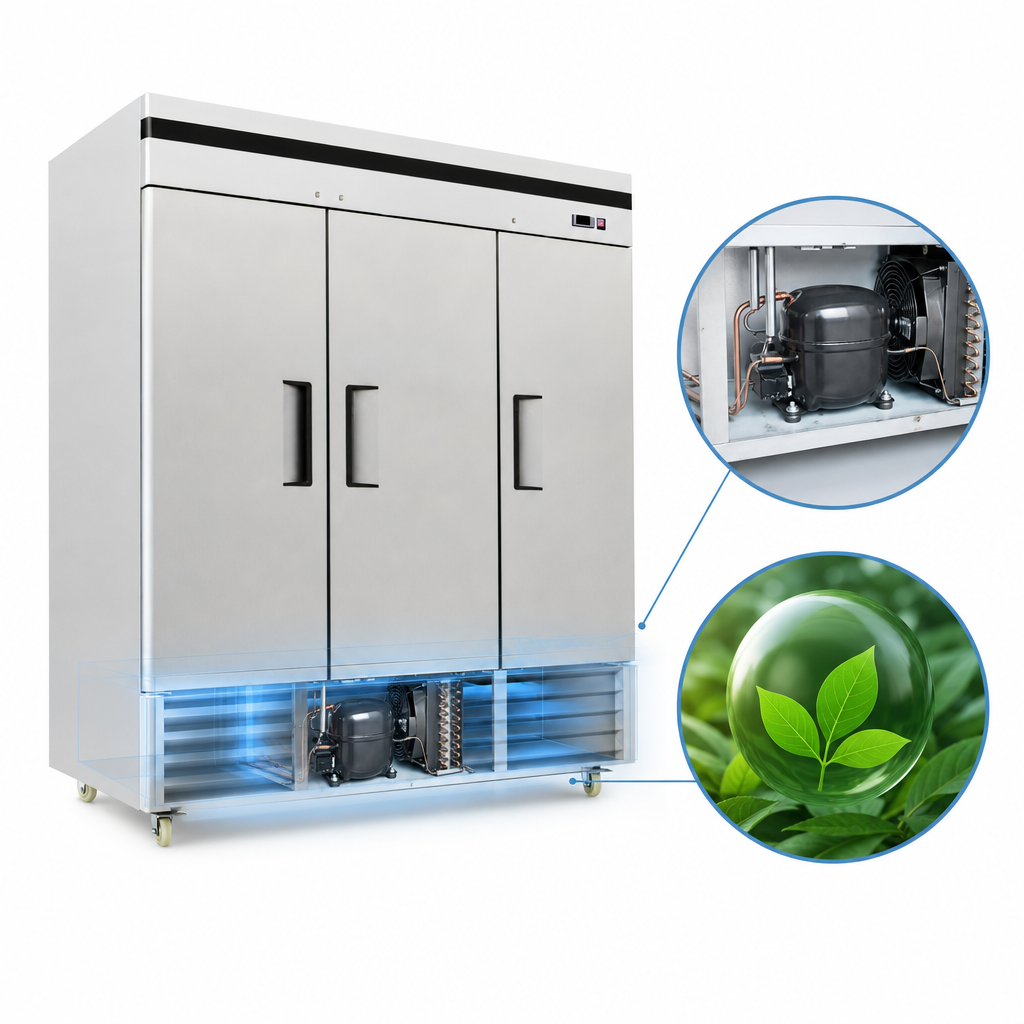

  • Bottom-mount, self-contained refrigeration keeps the compressor in a cooler zone and makes service a breeze.
  • Eco-conscious R290 hydrocarbon refrigerant offers low global-warming potential without sacrificing power.

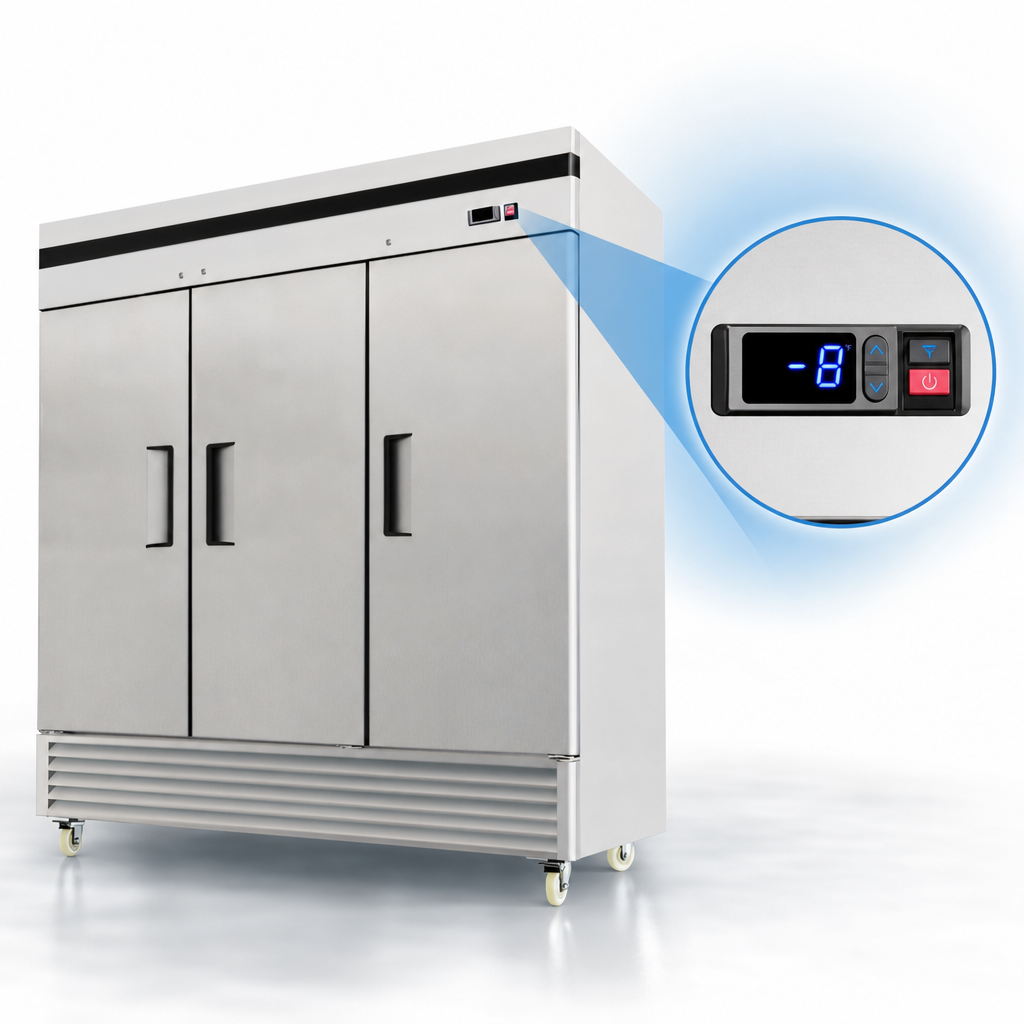

  • Digital temperature control holds product safely between –8°F and 0°F.
  • Three locking, self-closing solid doors with stay-open feature for hands-free loading.
  • Nine height-adjustable epoxy-coated wire shelves (3 per section) maximize organization.
  • Bright, energy-saving LED interior lighting improves product visibility.
  • Automatic evaporation & electric defrost systems keep maintenance low.
  • All-stainless interior & exterior with galvanized steel back resists corrosion and cleans easily.
  • Pre-installed 4" swivel casters (front locking) for effortless mobility.
  • Shipped with NEMA L14-20P cord; cETLus & ETL-Sanitation listed.

Specifications

Model MBF8504GR
Capacity 71 cu. ft. (3 sections)
Exterior Dimensions (W × D × H) 81 7/8" × 31 7/10" × 83 1/10"
Temperature Range –8°F to 0°F
Doors / Shelves 3 locking solid doors / 9 adjustable shelves
Refrigeration System Bottom-mount, R290 hydrocarbon
Horsepower 1 HP
Electrical 115/208-230 V, 60 Hz, 1-phase, 5.5 A, NEMA L14-20P
Certifications cETLus, ETL-Sanitation
Warranty 2-year parts & labor / 5-year compressor

Bottom-Mount Advantages

  • Compressor operates in the coolest part of the kitchen for increased efficiency.
  • Interior floor is higher; no deep bending when loading heavy pans.
  • Easy, ground-level access for routine condenser cleaning.

Need extra shelving? OEM shelf kits are available (part # W0402387 left/right, W0402388 center).

Electrical notice: This unit ships with a NEMA L14-20P plug and requires a dedicated 20-amp, 115/208-230 V outlet. Confirm your facility’s power configuration before ordering.

Features & Specs

Manufacturer

Atosa USA, Inc.

Brand_name

Atosa

Certifications

cETLus, ETL-Sanitation

Height

83.1in

Width

81.9in

Depth

31.7in

Shipping Weight

638.0lbs

Size

3 section

Door Style

full hinged

Interior Finish

all stainless steel interior

Refrigeration

self-contained, bottom mounted

Capacity

54 - 85 cu. ft.

Exterior Finish

all stainless steel exterior

Compressor HP

1 HP

Door Type

solid door(s)

Specifications

Atosa Freezer, reach-in, three-section, 81-9/10"W x 31-7/10"D x 83-1/10"H, bottom-mount self-contained refrigeration, 71.0 cu. ft., (3) locking hinged solid doors, digital temperature control, -8° to 0°F temperature range, (9) adjustable shelves, interior LED lighting, automatic evaporation, stainless steel interior & exterior, galvanized steel back, 4" casters, R290 Hydrocarbon refrigerant, 1 HP, 115/208-230v/60/1-ph, 5.5 amps, cord with NEMA L14-20P, cETLus, ETL-Sanitation
