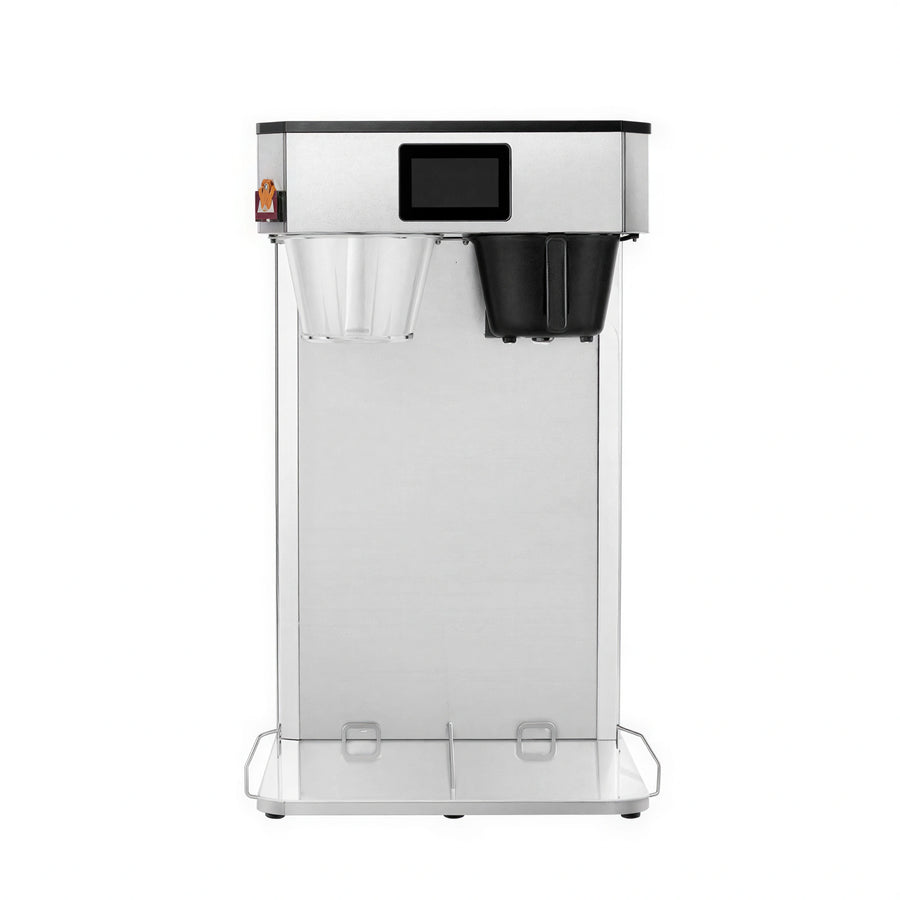

Atosa CB3T021 Automatic-Fill Twin Coffee and Tea Brewer, 3-Gallon Capacity, Stainless Steel

SKU: CB3T021
$1,863.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Atosa CB3T021 is a tall, twin automatic-fill coffee and tea brewer with a 3 gal (11.36 L) capacity and stainless steel body.

  • Brews up to 160 cups (12 gal) of coffee or tea per hour.
  • Field-adjustable for 120 V or 208–240 V operation.
  • Includes sprayhead technology, pre-infusion, pulse brew, programmable brew recipes, and USB programming.
  • Features a 5 in color touchscreen, digital controls, energy-saver mode, and brew counter.
  • Includes a hot water dispenser and supports standard 1–1.5 gal and larger coffee servers or tea dispensers.
  • Uses a 3/4 in MNPT water inlet and includes a water inlet connector and tubing.

Overall Dimensions:

24.38"W x 26.0"D x 38.62"H

Product Weight:

77.0 lb

Tall twin configuration

Designed as a tall, twin coffee and tea brewer with automatic fill.

Programmable touchscreen controls

A 5 in color touchscreen provides programmable brewing and digital controls.

Brewing control technology

Sprayhead technology, pre-infusion, and pulse brew support the brewing cycle.

Recipe and settings management

Programmable brew recipes, USB programming, an energy-saver mode, and a brew counter are included.

Hot water dispensing

The brewer includes a hot water dispenser.

Server compatibility

Supports standard 1–1.5 gal and larger coffee servers or tea dispensers.

Water-line connection

Includes a 3/8 in O.D. Push-To-Connect x 3/4 in FNPT water inlet connector and 3/8 in O.D. tubing.

Stainless steel body

The stainless steel body is specified for durability and easy cleaning.

Related Searches

Airpot Coffee Makers Atosa Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Coffee Brewers Commercial Coffee Brewers Commercial Coffee Makers Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment
Product type Coffee and tea brewer
Configuration Tall, twin
Fill type Automatic fill
Capacity 3 gal (11.36 L)
Brew per batch 2–3 gal
Brew capacity Up to 160 cups (12 gal) per hour
Finish Stainless steel
Controls 5 in color touchscreen with digital controls
Brewing functions Sprayhead technology, pre-infusion, and pulse brew
Power 1440 W / 2180–2880 W
Voltage 120 V / 208–240 V, 60 Hz, 1 ph
Current 12 A / 10.4–12 A
Plug type NEMA 5-15P optional; NEMA L14-20 standard
Water inlet 3/4 in MNPT
Water pressure 7.3–87 psi
Water flow rate 0.05–0.6 MPa
Installation clearance At least 5-7/8 in (150 mm) on all sides
Hot water recovery rate 3.0–3.7 gal/hr at 1440 W; 4.6–7.4 gal/hr at 2180–2880 W

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The CB3T021 has a 3 gal (11.36 L) capacity.
Its brew capacity is up to 160 cups, or 12 gal, of coffee or tea per hour.
Yes. The unit is field-adjustable for 120 V or 208–240 V operation at 60 Hz, 1 phase.
It uses a 3/4 in MNPT water inlet and includes a 3/8 in O.D. Push-To-Connect x 3/4 in FNPT connector and 3/8 in O.D. tubing.
It supports standard 1–1.5 gal and larger coffee servers or tea dispensers.
Yes. The CB3T021 includes a hot water dispenser.
