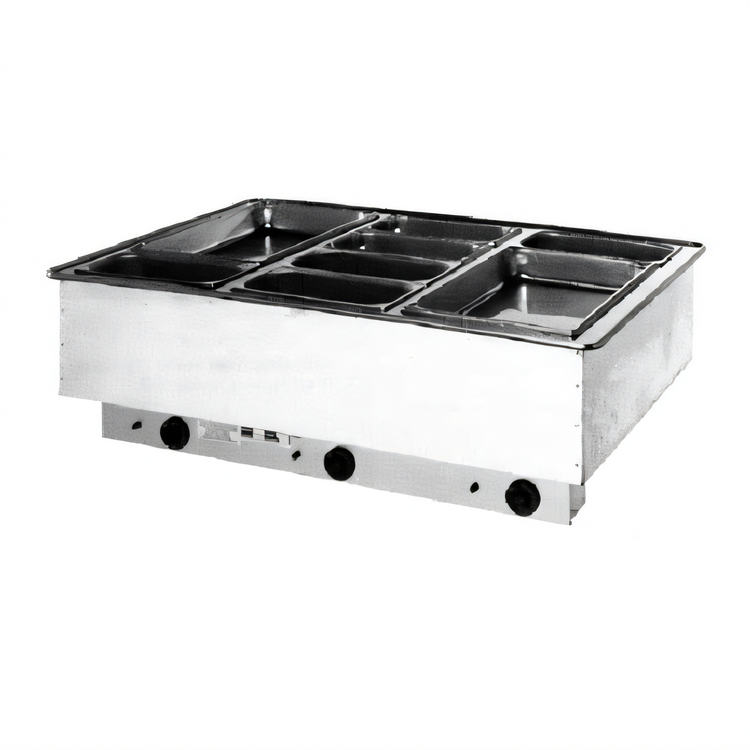

Atlas Metal WIH-57 5-Well Electric Hot Food Drop-In Well Unit

Individual Pan Design, Wet or Dry Operation, Large Capacity

Efficiently keep a variety of foods at optimal serving temperatures with the Atlas Metal WIH-57, featuring individual controls for versatile operation.

  • Designed for wet or dry operation, offering maximum versatility for various food items.
  • Individual thermostatic controls allow precise temperature management for each well.
  • Fully insulated with high-density fiberglass for energy efficiency and to protect surrounding fixtures.
  • Constructed with durable 18 gauge, type 304 stainless steel wells and top for commercial use.
  • Accommodates (5) 12" x 27" pans, or fractional sizes with adapter bars.
  • Factory-applied vinyl gasket ensures a secure and easy drop-in installation without additional sealing.

Overall Dimensions:

71.0"W x 31.13"D x 12.75"H

Product Weight:

260.0 lb

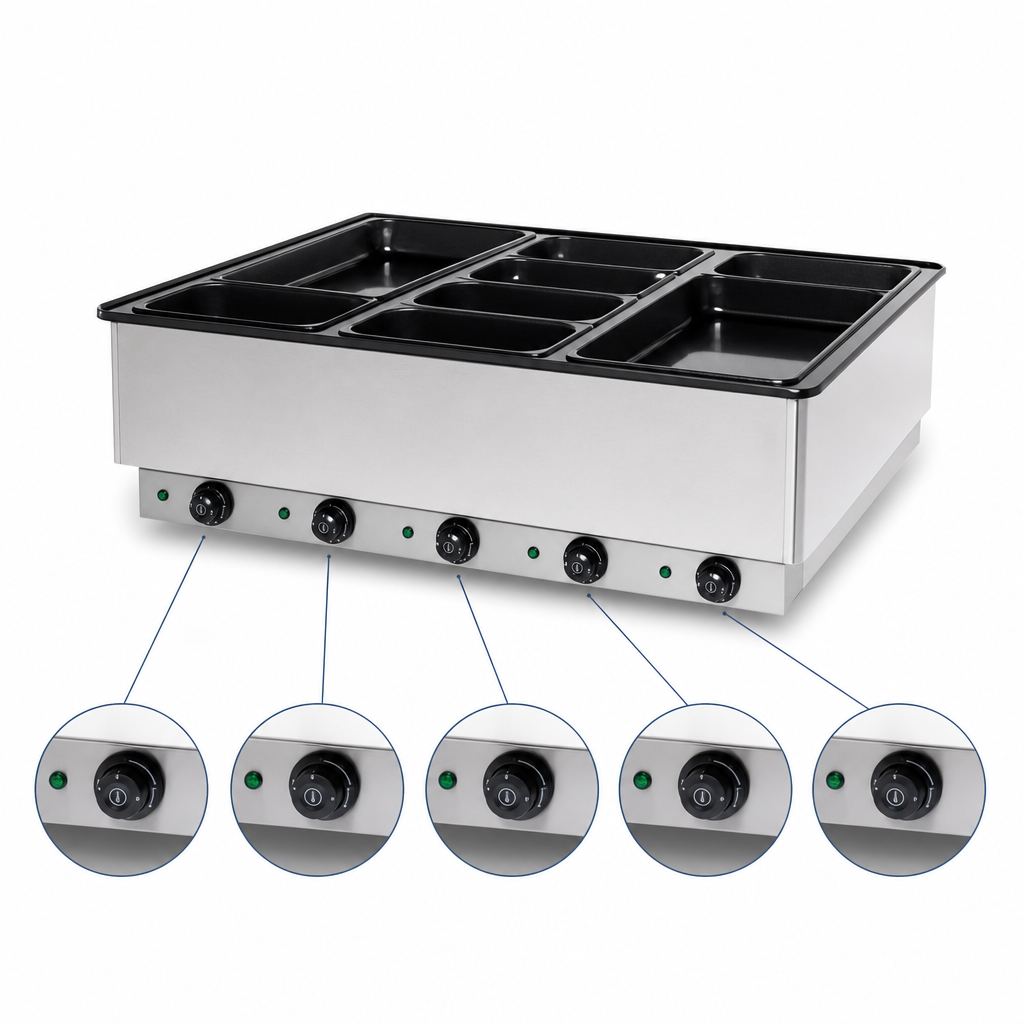

Individual Thermostat Controls

Each well is equipped with its own thermostat control and pilot light, allowing operators to precisely manage the temperature of each food item separately.

Individual Thermostat Controls

Wet or Dry Operation

This unit offers the flexibility of both wet and dry heating methods, though wet operation is recommended for optimal food quality.

Full Insulation

High-density fiberglass insulation, 1 inch thick on all sides and 2 inches thick on the bottom, efficiently retains heat, reduces energy consumption, and protects surrounding countertop fixtures from excessive heat.

Durable Stainless Steel Construction

The top and individual hot food wells are constructed from 18 gauge, type 304 stainless steel with coved corners, ensuring longevity and ease of cleaning in a commercial kitchen.

Large Capacity Pan Openings

Designed to hold five 12" x 27" pans, this unit can also accommodate standard 12"x20" pans or fractional sizes when used with adapter bars.

Factory Applied Gasket

A solid vinyl gasket is factory-applied under the beaded edge of the unit, providing a secure seal to the countertop, preventing seepage, and simplifying installation.

Easy Electrical Access

The bottom of the 22 gauge galvanized steel outer case is removable, providing convenient access to electrical components for maintenance.

Pre-wired for Installation

All heating elements and controls are pre-wired, and a 6-foot, 3-wire cord and plug are provided, extending from the control box for straightforward electrical hook-up.

Type Hot Food Well Unit
Style Individual Pan
Installation Type Drop-In
Material 304 Stainless Steel (Top & Wells), Galvanized Steel (Outer Liner)
Interior Finish 304 Stainless Steel
Pan Capacity 5 Full-Size (12" x 27")
Compartments 5
Controls Individual Thermostatic
Wet or Dry Operation Yes
Insulation Fiberglass
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 71 Inches
Shipping Depth 32 Inches
Shipping Height 13 Inches
Shipping Weight 268 lb.

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

Yes, the WIH-57 is designed for both wet and dry operation, offering versatility for various food warming needs. However, the use of water is generally recommended for best results.
This unit is designed to hold five large 12" x 27" pans. It can also accommodate standard 12"x20" pans or fractional size pans with the use of appropriate adapter bars.
Each of the five wells features an individual thermostat control and a pilot light, allowing the operator to set and maintain separate temperatures for different food items.
To clean, use soapy warm water and rinse thoroughly to remove all residues. It is critical to NEVER clean pans with chloride-based products, steel wool, or abrasive products, as this could scar, mark, corrode the pans, and void the warranty.
The WIH-57 offers several electrical configurations, including 208V or 240V options with wattages of either 4.25 KW or 5.0 KW, each with specific amperage requirements and NEMA plug types like L6-30P.
The unit is designed for drop-in installation into a correct counter cut-out opening. A factory-applied vinyl gasket ensures complete seating and sealing to the countertop, preventing seepage and making installation straightforward.
