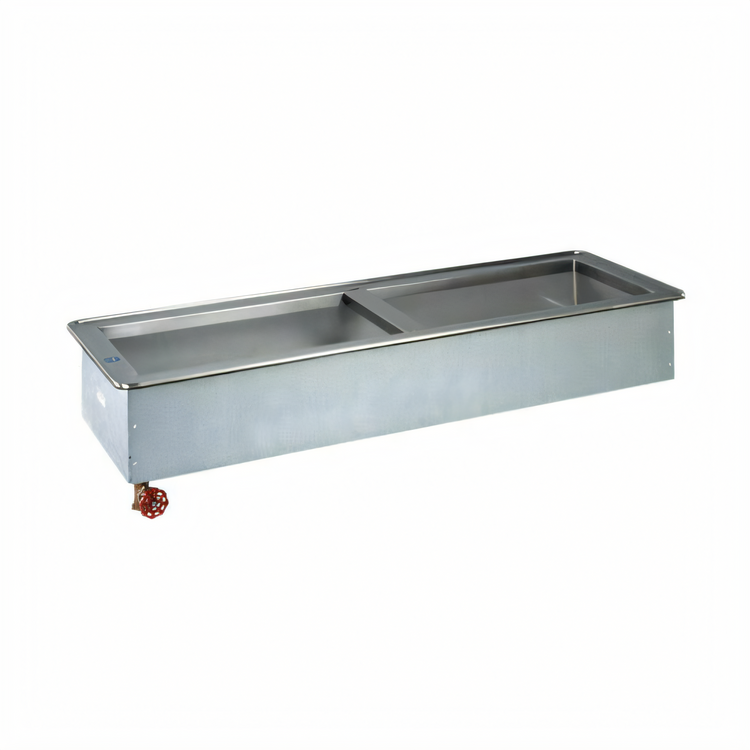

Atlas Metal WICL-3 Slim-Line Iced Cold Drop-In Pan, 3-Pan, Standard Depth

304 Stainless Steel Top and Inner Liner, Galvanized Steel Outer Case

This slim-line 3-pan cold well drops into compact counter cutouts and is fully insulated to help keep ice colder longer.

  • Slim-line drop-in design for counter installations in food bars and buffet lines.
  • 3-pan standard-depth size with an 11-7/8" x 63-1/2" x 4-5/8" pan opening.
  • Requires a 14-1/4" x 66" cut-out for installation.
  • 18-gauge, type 304 stainless steel top and inner liner for durability and easy cleaning.
  • Fully insulated with high-density polystyrene to help retain ice longer.
  • Includes a 3/4" drain with strainer, 4" PVC nipple, and valve for draining.

Overall Dimensions:

67.75"W x 16.0"D x 11.13"H

Product Weight:

132.0 lb

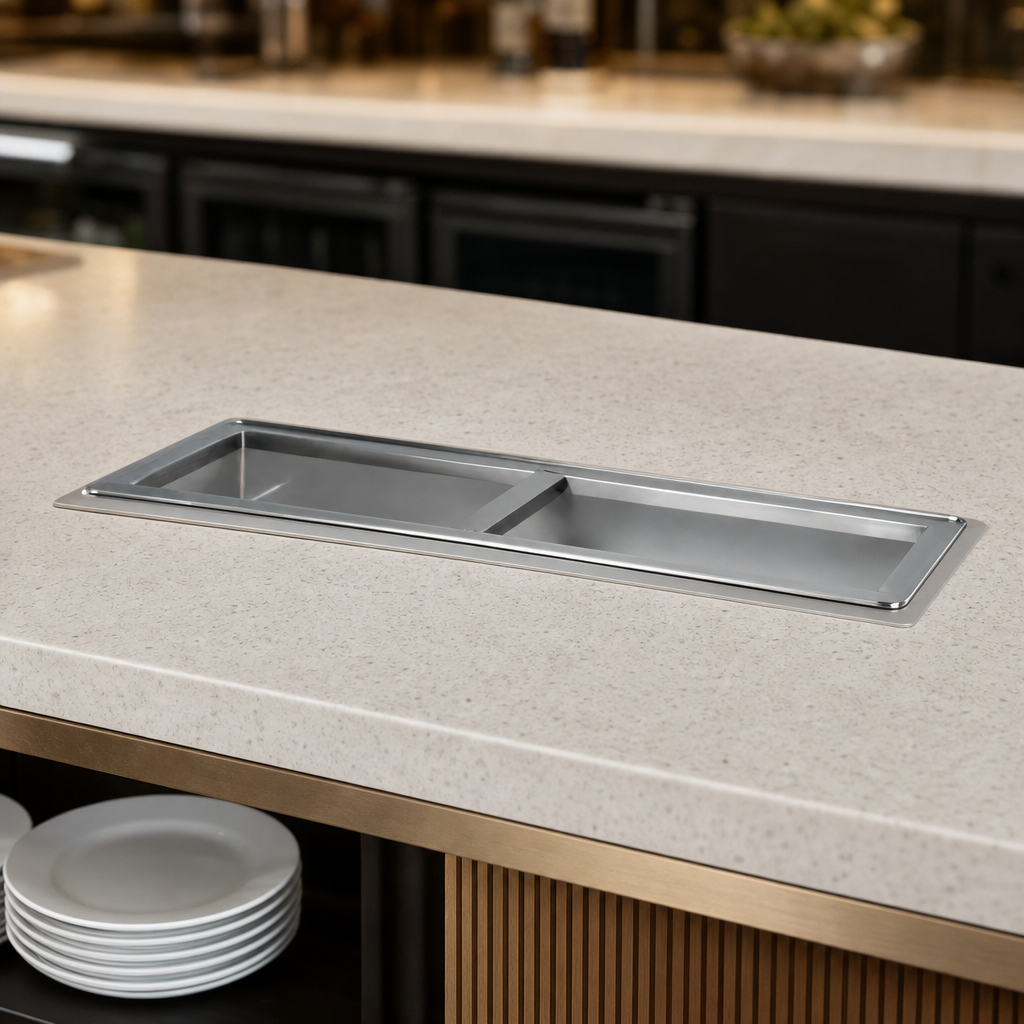

Slim-Line Drop-In Design

Designed to install directly into counters for a clean, built-in food presentation.

Slim-Line Drop-In Design

304 Stainless Steel Top

The 18-gauge, type 304 stainless steel top is die-stamped with a raised perimeter bead and gasketed edge for a secure counter seal.

Welded Stainless Steel Inner Liner

The one-piece, all-welded inner liner is made of 18-gauge, type 304 stainless steel with coved corners for sanitation and durability.

Fully Insulated Body

High-density polystyrene insulation helps the unit hold ice longer and maintain colder product temperatures.

Galvanized Steel Outer Case

A 22-gauge galvanized steel outer case provides a sturdy exterior enclosure.

Drain Assembly Included

Supplied with a 3/4" drain, strainer, 4" PVC nipple, and valve for draining.

Accessory Compatibility

Can be used with separator channels, stainless steel adapter bars, adapter plates, a perforated false bottom, a cover plate with handles, and a rear drain valve extension.

Type Iced Cold Pan
Style Slim-Line
Installation Type Drop-In
Pan Capacity 3 Pans
Pan Size 11-7/8 Inches x 63-1/2 Inches x 4-5/8 Inches
Material Stainless Steel
Interior Finish Stainless Steel
Drain Connection Required
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The required cut-out opening is 14-1/4" x 66".
The pan opening size is 11-7/8" x 63-1/2" x 4-5/8".
The top and inner liner are 18-gauge, type 304 stainless steel, and the outer case is galvanized steel.
Yes. It includes a 3/4" drain with strainer, a 4" PVC nipple, and a valve.
Yes. It is fully insulated with high-density polystyrene, 1" on all sides and 2" on the bottom.
Yes. Available accessories include stainless steel adapter bars, adapter plates, a perforated false bottom, a cover plate with handles, and a rear drain valve extension.
