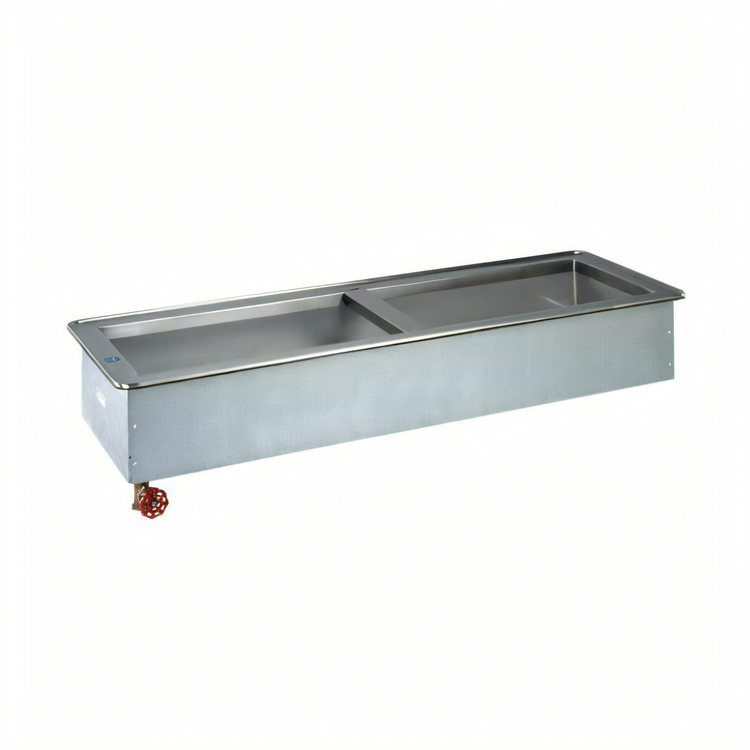

Atlas Metal Slim-Line Full-Depth 3-Pan Iced Cold Pan Drop-In Food Well

9-3/4-Inch Deep, Stainless Steel Inner Liner, Galvanized Steel Outer Case

This slim-line drop-in cold pan holds ice longer and delivers a clean, durable 3-pan presentation for buffet lines and food bars.

  • Slim-line drop-in design installs directly into countertops for a built-in look.
  • Full-depth 9-3/4-inch iced cold pan accommodates a 3-pan setup.
  • Fully insulated with high-density polystyrene to help retain ice longer.
  • 18-gauge type 304 stainless steel top and inner liner for durable food-zone construction.
  • 22-gauge galvanized steel outer case provides a rugged exterior shell.
  • Includes a 3/4-inch drain with strainer, PVC nipple, and valve for draining.
  • Factory-applied vinyl gasket helps seal the unit to the countertop and reduce seepage.
  • Can be used for ice display, standard 12 x 20 pans with separator channels, or fractional pans with optional adapter bars.

Overall Dimensions:

67.75"W x 16.0"D x 16.25"H

Product Weight:

139.0 lb

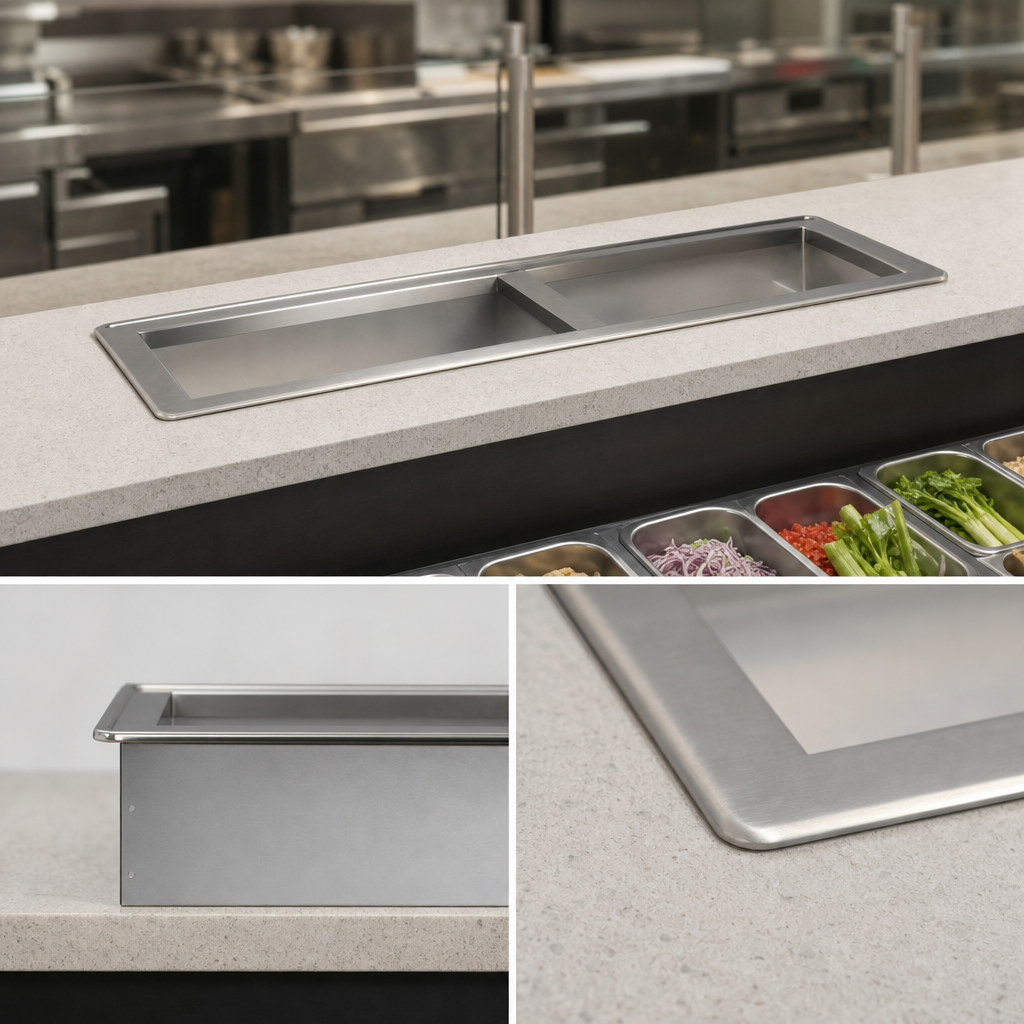

Slim-Line Countertop Design

Built to install in counters only, creating a clean drop-in presentation.

Slim-Line Countertop Design

Full-Depth Ice Pan

The 9-3/4-inch deep design provides a deeper cold pan for buffet and serving applications.

Insulated Construction

High-density polystyrene insulation on all sides and the bottom helps hold ice longer.

304 Stainless Steel Top And Liner

The top and inner liner are 18-gauge type 304 stainless steel for food-zone durability.

Galvanized Steel Outer Case

A 22-gauge galvanized steel outer case adds strength to the exterior shell.

Drain Assembly Included

Supplied with a 3/4-inch drain, strainer, 4-inch PVC nipple, and valve for draining.

Sealing Gasket

Factory-applied vinyl gasket helps seal the unit to the countertop and reduce seepage.

Pan Flexibility

Can be used for ice display, standard 12 x 20 pans with separator channels, or fractional pans with optional adapter bars.

Type Iced Cold Pan
Style Slim-Line
Installation Type Drop-In
Layout Straight
Pan Capacity 3 Pans
Pan Size 11-7/8 Inches x 63-1/2 Inches x 9-3/4 Inches
Material 304 Stainless Steel
Finish Galvanized Steel
Drain Connection Size 3/4 Inch
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 68 Inches
Shipping Depth 16 Inches
Shipping Height 17 Inches
Shipping Weight 139 lb.

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

The required cut-out opening is 14-1/4 inches x 66 inches.
This model is sized for 3 pans.
The pan size is 11-7/8 inches x 63-1/2 inches x 9-3/4 inches.
The top and inner liner are 18-gauge type 304 stainless steel, and the outer case is 22-gauge galvanized steel.
Yes. It is fully insulated with high-density polystyrene, with 1-inch insulation on all sides and 2-inch insulation on the bottom.
The unit includes a 3/4-inch drain with strainer, a 4-inch PVC nipple, and a valve.
