Atlas Metal

Atlas Metal WH-5 Electric 5-Pan Drop-In Bain-Marie Hot Food Well

SKU: WH-5
$3,982.38
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells

Atlas Metal WH-5 Electric 5-Pan Drop-In Bain-Marie Hot Food Well

Wet Type with Single Thermostatic Control

Keep buffet and serving line items hot and ready with a fully insulated drop-in bain-marie well that serves five full-size pans with simple thermostatic control.

  • Drop-in electric hot food well sized to hold five full-size 12" x 20" pans.
  • Open bain-marie design supports wet or dry serving applications.
  • Single thermostatic control with pilot light makes temperature management simple.
  • Fully insulated with high-density fiberglass to help retain heat and reduce energy loss.
  • 18-gauge 304 stainless steel top and inner liner with a galvanized outer case for durability.
  • Built-in 3/4-inch drain, vinyl gasket seal, and included cord/plug help streamline installation.
  • UL Listed and ETL-Sanitation Listed for commercial foodservice use.

Overall Dimensions:

71.0"W x 24.0"D x 12.75"H

Product Weight:

210.0 lb

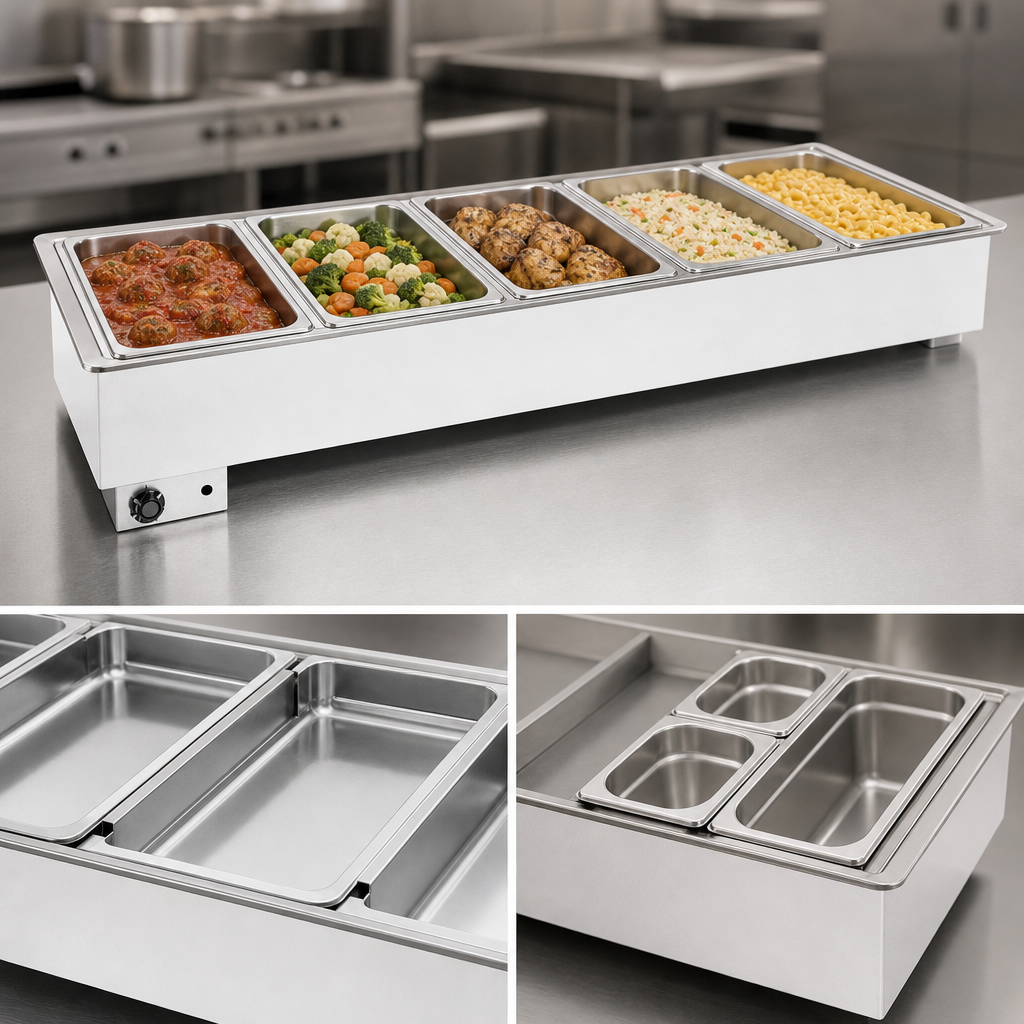

Five-Pan Capacity

Holds five standard 12" x 20" pans using removable separator channels; optional adapter bars can be used for fractional pans.

Five-Pan Capacity

Single Thermostatic Control

Pre-wired single thermostat with pilot light simplifies temperature adjustment and operation.

Wet/Dry Bain-Marie Design

Open bain-marie construction is designed for flexible wet or dry serving use.

304 Stainless Steel Food Zone

Top and one-piece inner liner are 18-gauge type 304 stainless steel with welded, polished construction.

Fully Insulated Cabinet

High-density fiberglass insulation on all sides and the bottom helps retain heat and improve energy efficiency.

Built-In Drain Assembly

Includes a 3/4-inch drain with strainer, brass nipple, and valve.

Counter-Sealing Flange

Vinyl gasket under the beaded edge helps seal the unit to the countertop and reduce seepage.

Durable Outer Case

22-gauge galvanized steel outer case provides a corrosion-resistant exterior.

Prewired Electrical Package

Supplied with a 6-foot cord and plug; designed for single-phase power only.

UL and ETL-Sanitation Listed

Listed for commercial foodservice applications.

Type Hot Food Well
Style Bain-Marie
Installation Type Drop-In
Pan Capacity 5 Full-Size (12 Inches x 20 Inches) Pans
Controls Thermostatic
Operation Wet/Dry
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Galvanized
Drain Connection Size 3/4 Inch
Phase 1-Phase
Plug Type L6-30P
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 71 Inches
Shipping Depth 24 Inches
Shipping Height 13 Inches
Shipping Weight 210 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Troubleshooting manual PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The WH-5 holds five full-size 12" x 20" pans.
It is listed for wet or dry operation and uses a bain-marie design.
The unit is single-phase only and is shown with 208V or 240V electrical options using 850W or 1000W heating elements.
The WH-5 is shown with an L6-30P plug and a 6-foot cord.
The required counter cutout for the WH-5 is 22-1/4 inches by 69-1/4 inches.
Available accessories include stainless steel adapter bars, adapter plates, a cover plate, rear drain valve extension, remote thermostats, a master on/off switch, and automatic water fill.
