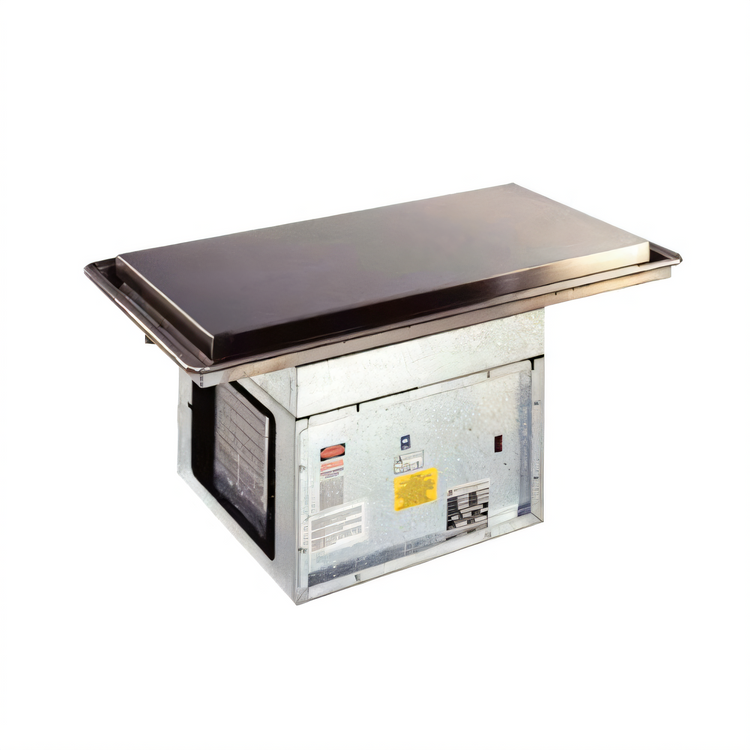

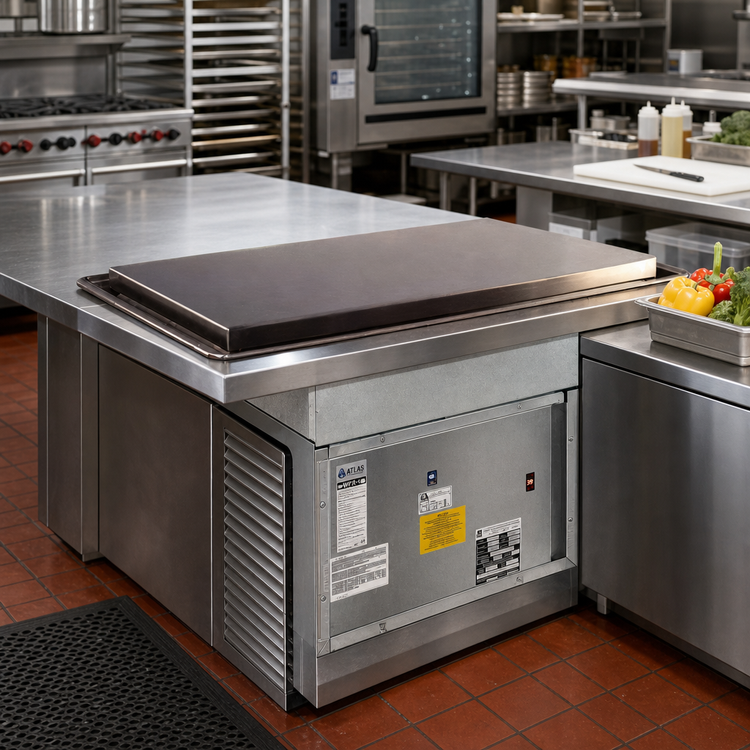

Atlas Metal WFX-6 Full-Size Drop-In Remote Frost Top

80-1/4" Width, 19-1/2" Depth Frost Top, Remote Refrigeration

Designed for attractive display and efficient cooling of pre-plated cold foods, this drop-in frost top integrates seamlessly into your serving counter with remote refrigeration capabilities.

  • Spacious 80-1/4" W x 19-1/2" D frost top surface for multiple cold food items.
  • Constructed from durable 14 gauge, type 304 stainless steel for longevity and hygiene.
  • Fully insulated with high-density materials for maximum thermal efficiency and energy savings.
  • Drop-in design with factory-applied vinyl gasket ensures easy installation and a secure, sealed fit.
  • Features a 1" I.P.S. drain with perimeter gutter for effective condensation management.
  • Designed for remote refrigeration systems, providing flexibility in kitchen layout and reduced heat/noise at the serving line.
  • UL Listed and NSF Certified for commercial food service safety and sanitation standards.

Overall Dimensions:

84.75"W x 24.0"D x 16.38"H

Product Weight:

252.0 lb

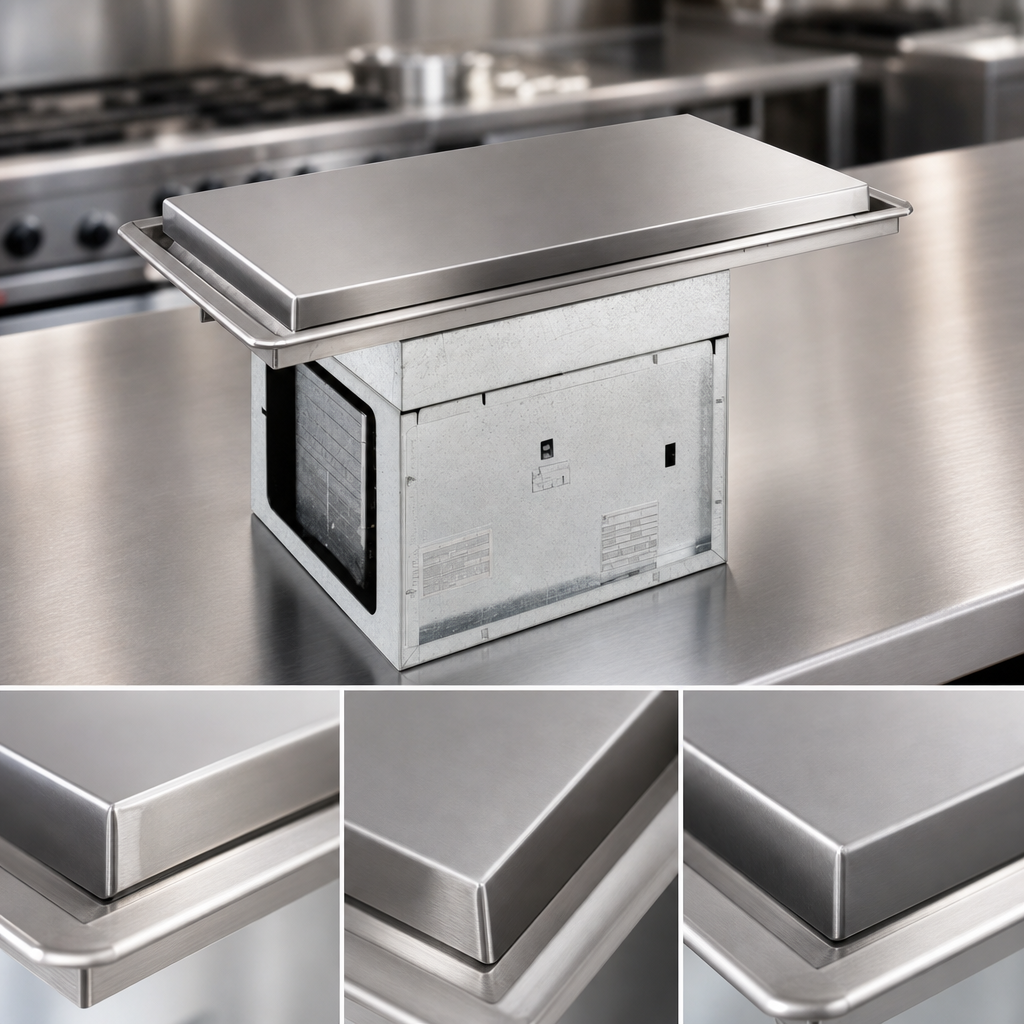

14 Gauge 304 Stainless Steel Construction

The top and frost top are constructed from heavy-duty 14 gauge, type 304 stainless steel, ensuring exceptional durability, corrosion resistance, and easy cleaning for demanding commercial use.

14 Gauge 304 Stainless Steel Construction

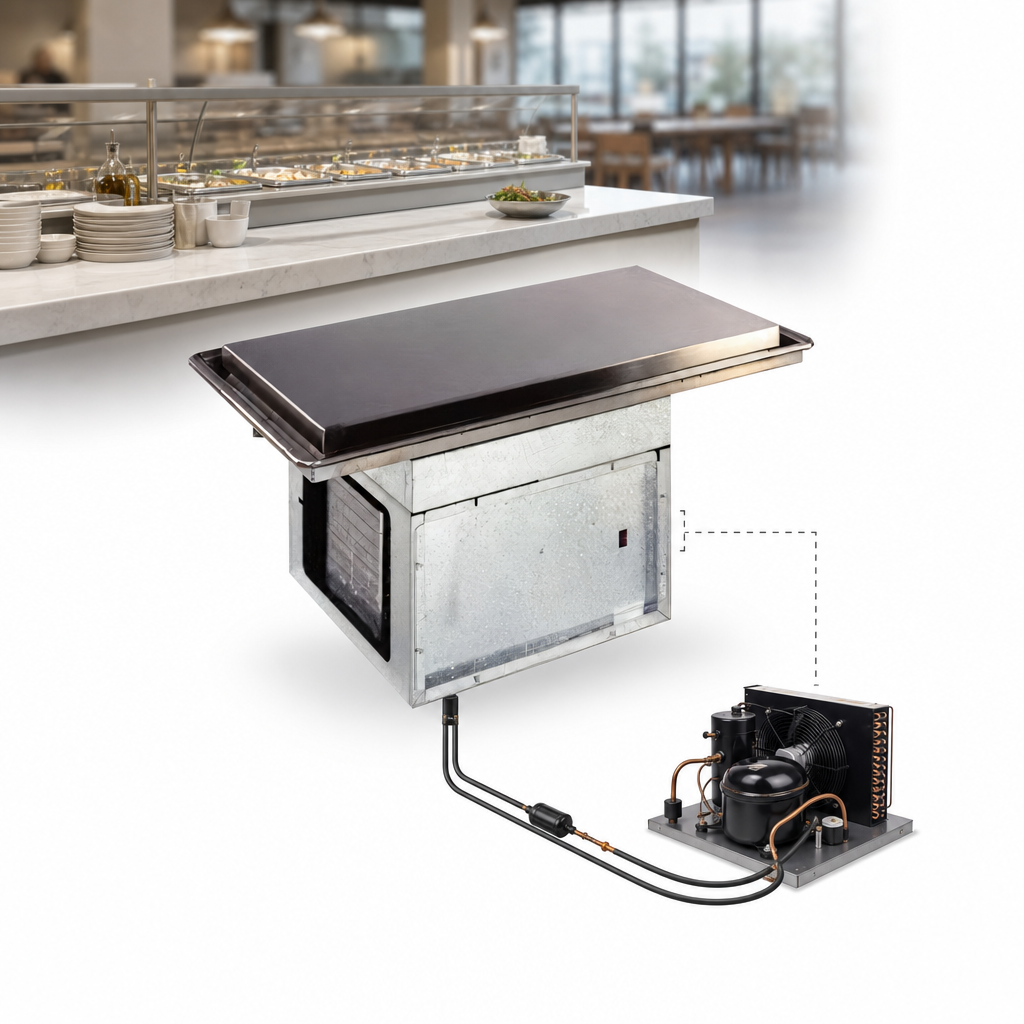

Remote Refrigeration Ready

Designed to connect to a remote refrigeration system (compressor, cap tube, and drier supplied separately), allowing for flexible installation and minimizing heat and noise at the serving counter.

Remote Refrigeration Ready

Quick Frost Top Design

The frost top surface stands 1 inch above the counter for an attractive display, creating an ideal presentation for pre-plated cold food items.

Perimeter Condensation Gutter with Drain

A 1/2 inch full perimeter gutter effectively collects condensation, leading to a 1 inch I.P.S. drain for efficient water management and hygiene.

High-Density Insulation

The pan is fully insulated with 1-1/2 inch thick high-density fiberglass and polystyrene, encased in an 18 gauge galvanized steel outer case, providing maximum thermal efficiency and energy savings.

Easy Drop-In Installation

Features a die-stamped raised perimeter bead with a factory-applied solid vinyl gasket, ensuring a tight seal to the counter top, preventing seepage, and simplifying installation.

Copper Tubing for Cooling

Copper tubing is firmly soldered to the exterior bottom of the frost top, ensuring effective and consistent cooling across the entire surface.

Type Frost Top
Style Drop-In
Installation Type Drop-In
Material 304 Stainless Steel (Top), Galvanized Steel (Outer Case)
Interior Finish 304 Stainless Steel
Frost Top Size 80-1/4" Width x 19-1/2" Depth
Cut-Out Required 83" Width x 22-1/4" Depth
Refrigeration Type Remote
Refrigerant Type 134A
Refrigerant Quantity 16 Oz
Drain Connection Size 1 Inch I.P.S.
Selling Unit Each
Units Per Case 1
Shipping Width 85 Inches
Shipping Depth 24 Inches
Shipping Height 17 Inches
Shipping Weight 252 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The Atlas Metal WFX-6 is designed for remote refrigeration and does not include a self-contained compressor. It is supplied as a refrigerated frost top unit, along with a cap tube and drier, ready for hookup to a separately purchased remote compressor in the field.
For proper installation, a counter cutout measuring 83 inches in width by 22-1/4 inches in depth is required. The unit features a factory-applied vinyl gasket to ensure a complete and sealed fit.
The WFX-6 frost top unit itself does not have direct electrical characteristics like voltage or amperage, as it is designed for a remote refrigeration system. The electrical connection would be for the separately installed remote compressor that powers the unit.
To clean the frost top, use soapy warm water and rinse thoroughly to remove all residues. It is critical to never use chloride-based products, steel wool, or abrasive materials, as these can scar, mark, corrode the surface, and void the warranty.
The WFX-6 unit includes the refrigerated frost top, a cap tube, and a drier. The compressor for the remote refrigeration system must be acquired separately and hooked up in the field.
