Atlas Metal WFX-5 Drop-In Remote Frost Top Unit - 66.5 Inch

Full-Size, Remote Refrigeration, 14 Gauge Stainless Steel

Designed for attractive and efficient cold food display, the Atlas Metal WFX-5 provides a reliable frost top solution for your commercial serving needs with flexible remote refrigeration.

  • Constructed with durable 14 gauge, type 304 stainless steel for lasting commercial use.
  • Features a 66-1/2 inch wide frost top with a 1/2 inch perimeter gutter and 1 inch I.P.S. drain for condensation.
  • Equipped for remote refrigeration, offering flexibility in compressor placement (compressor sold separately).
  • Fully insulated with high-density fiberglass and polystyrene for maximum efficiency and energy savings.
  • Integrated factory-applied gasket ensures a quick, secure, and sealed drop-in installation.
  • Ideal for pre-plated cold food display, keeping items chilled and appealing.

Overall Dimensions:

71.0"W x 24.0"D x 16.38"H

Product Weight:

217.0 lb

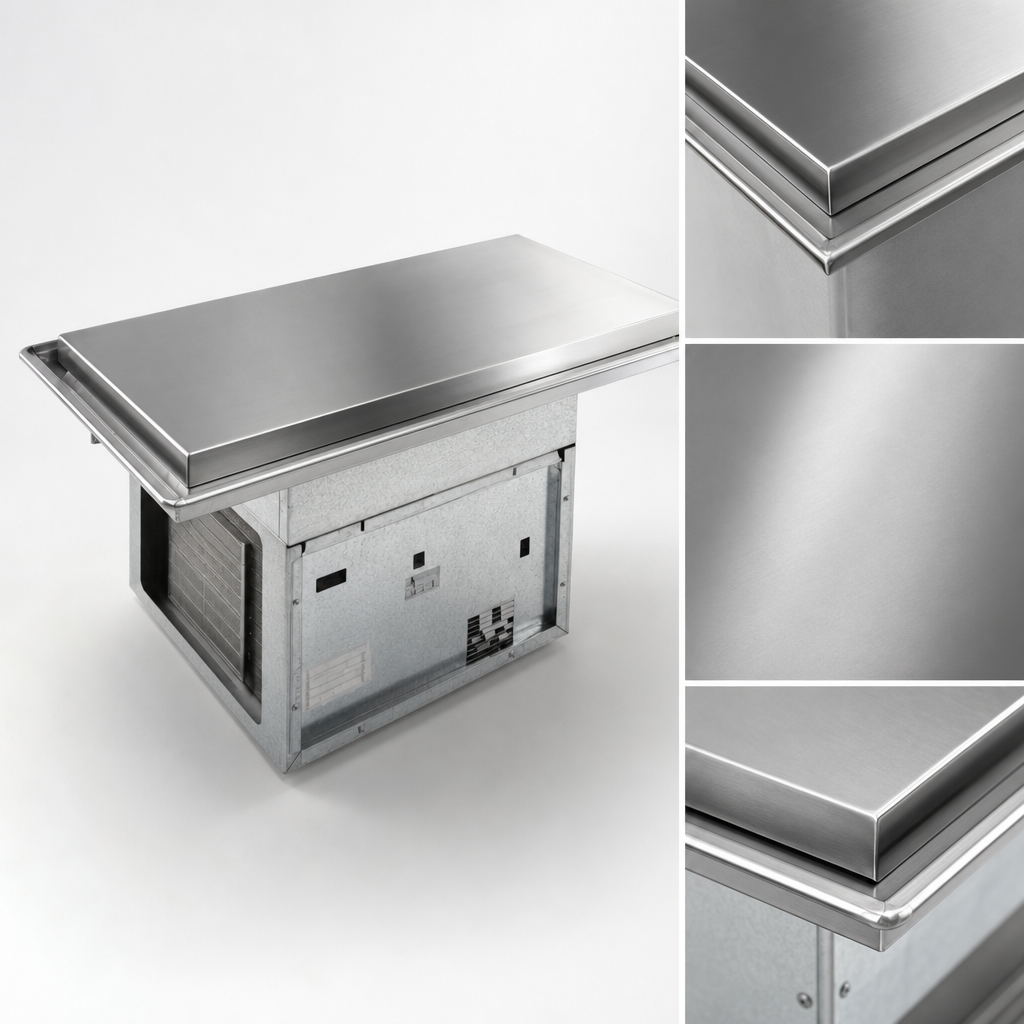

Heavy-Duty Stainless Steel Construction

The top and frost top are constructed of 14 gauge, type 304 stainless steel, die-stamped with a raised perimeter bead and welded, ground, and polished to a uniform finish for durability and hygiene.

Heavy-Duty Stainless Steel Construction

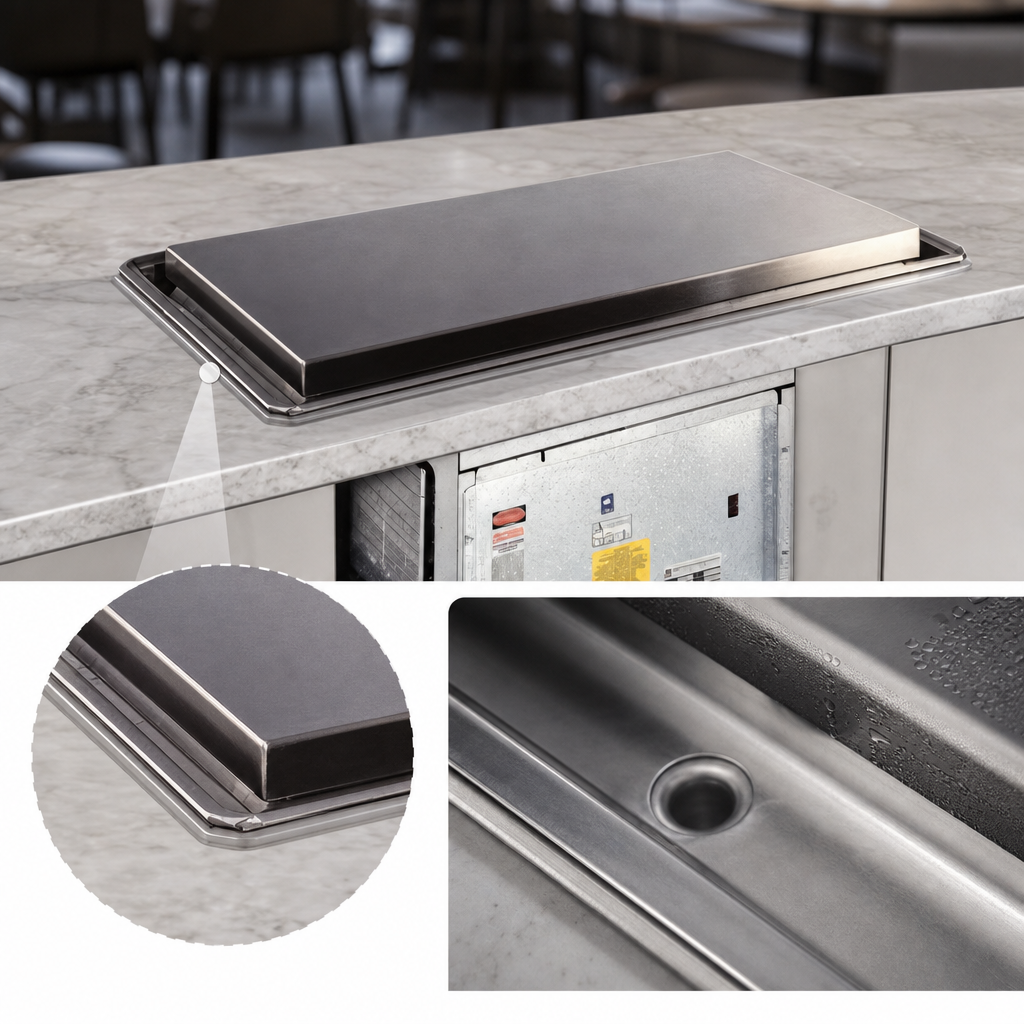

Integrated Frost Top Design

The frost top stands 1 inch above the counter top, providing an attractive display, and includes a 1/2 inch full perimeter gutter to collect condensation, with a 1 inch I.P.S. drain for easy disposal.

Integrated Frost Top Design

Efficient Insulation

The pan is fully insulated with 1-1/2 inch thick high-density fiberglass and polystyrene, enclosed in an 18 gauge galvanized steel outer case to ensure maximum efficiency and energy savings.

Remote Refrigeration Ready

This WFX-5 unit is designed for remote refrigeration and includes a cap tube and drier for field hook-up (compressor and other refrigeration components by others), offering installation flexibility.

Factory Applied Gasket

A solid vinyl gasket is factory applied under the beaded edge of the top, ensuring a complete seal to the counter top, preventing seepage and marring, and simplifying installation.

Type Frost Top
Style Drop-In
Installation Type Drop-In
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Outer Case Material 18 Gauge Galvanized Steel
Frost Top Size 19-1/2 Inches x 66-1/2 Inches
Drain Connection Size 1 Inch I.P.S.
Cut-Out Required 22-1/4 Inches x 69-1/4 Inches
Refrigeration Type Remote
Refrigerant Type 134A
Refrigerant Charge 12 oz.
Shipping Width 71 Inches
Shipping Depth 24 Inches
Shipping Height 17 Inches
Shipping Weight 217 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

No, the WFX-5 is designed for remote refrigeration and does not include a self-contained compressor. It comes with a cap tube and drier for field hook-up to a separately purchased compressor.
This unit requires a counter cut-out opening of 22-1/4 inches x 69-1/4 inches. A non-toxic silicone seal may be used between the factory-applied gasket and counter top, but it is not required.
The unit should be turned on one hour before serving begins to allow the frost to cover the entire surface, and turned off after the serving period is complete. It is not designed for 24/7 continuous operation.
To clean, use soapy warm water and rinse thoroughly to remove all residues. NEVER use chloride-based products, steel wool, or abrasive products, as these can scar, mark, corrode the surface, and void the warranty. The condenser coil (for the remote compressor) should also be cleaned regularly.
The frost top and main top are constructed of heavy-duty 14 gauge, type 304 stainless steel, known for its durability and corrosion resistance in commercial environments.
