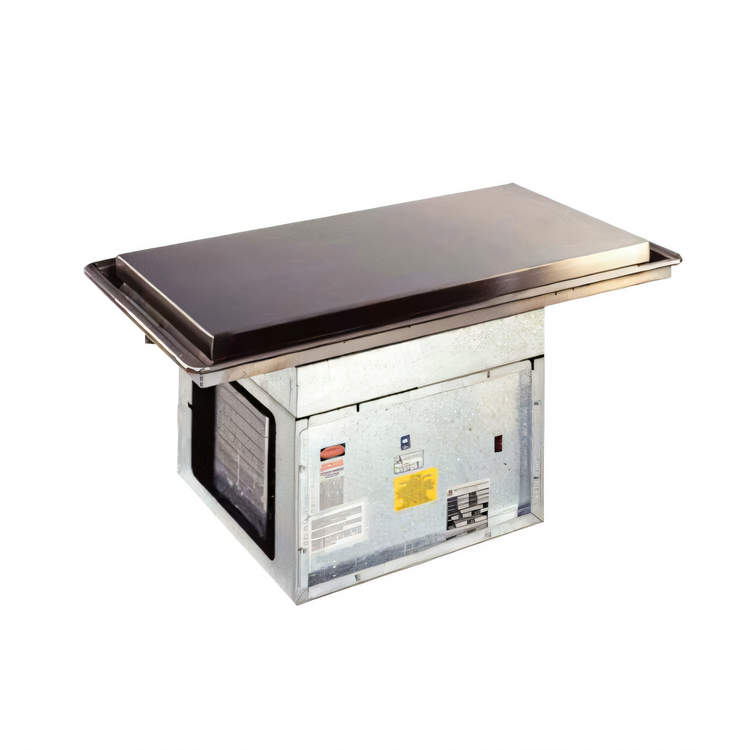

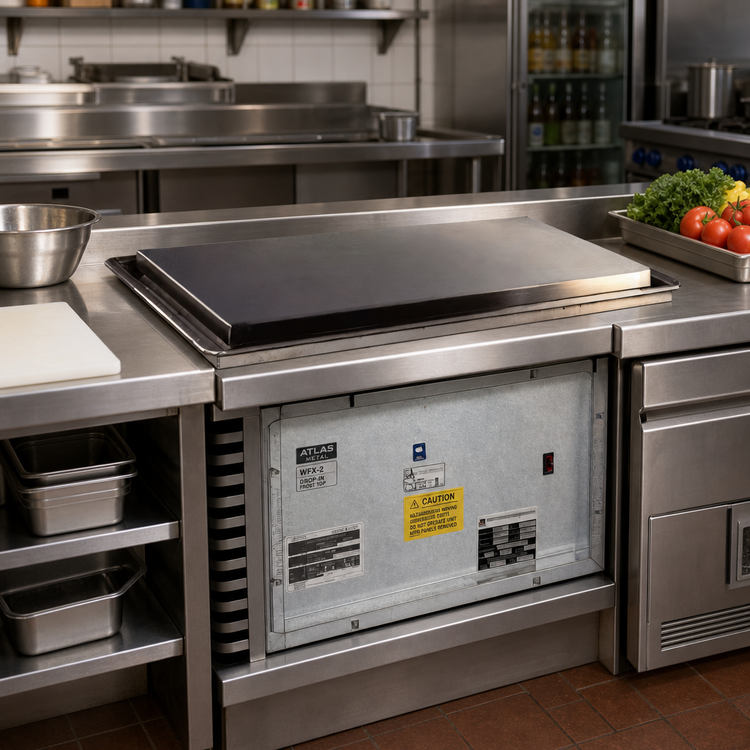

Atlas Metal WFX-2 Drop-In Refrigerated Frost Top, Remote Refrigeration, 29-3/4 x 24 Inch

Without Compressor; 14-Gauge 304 Stainless Steel Top

A drop-in frost top designed for remote refrigeration, giving you a chilled display surface without adding an on-board compressor.

  • Remote refrigeration design ships without a compressor for field hookup.
  • 25-1/4 x 19-1/2 inch frost top provides a chilled display surface for plated foods.
  • 14-gauge type 304 stainless steel top with an 18-gauge galvanized outer case.
  • Fully insulated construction helps maintain frost and improve efficiency.
  • Vinyl gasket and drop-in design help seal the unit to the counter.
  • Requires a 28 x 22-1/4 inch cutout.

Overall Dimensions:

29.75"W x 24.0"D x 16.38"H

Product Weight:

130.0 lb

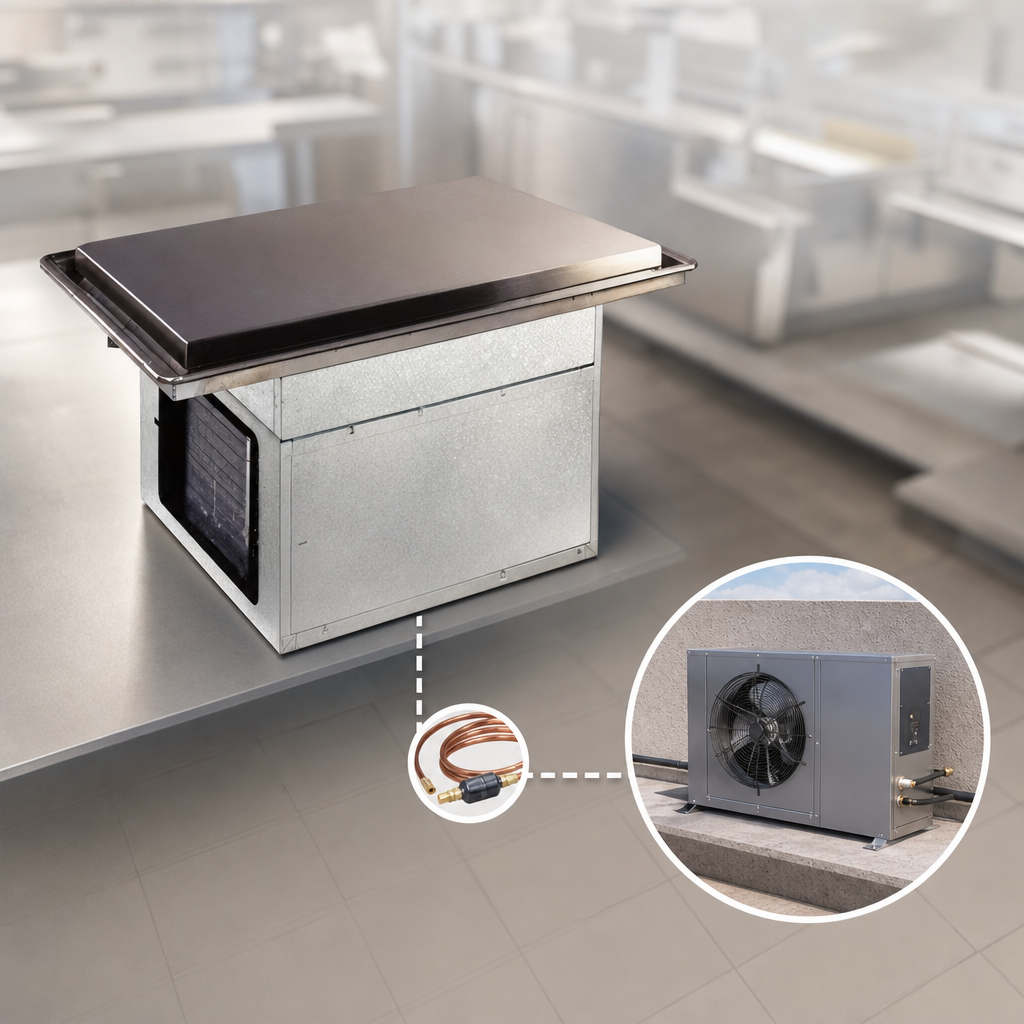

Remote Refrigeration Design

Built without a compressor for connection to a remote refrigeration system; cap tube and drier are included for field hookup.

Remote Refrigeration Design

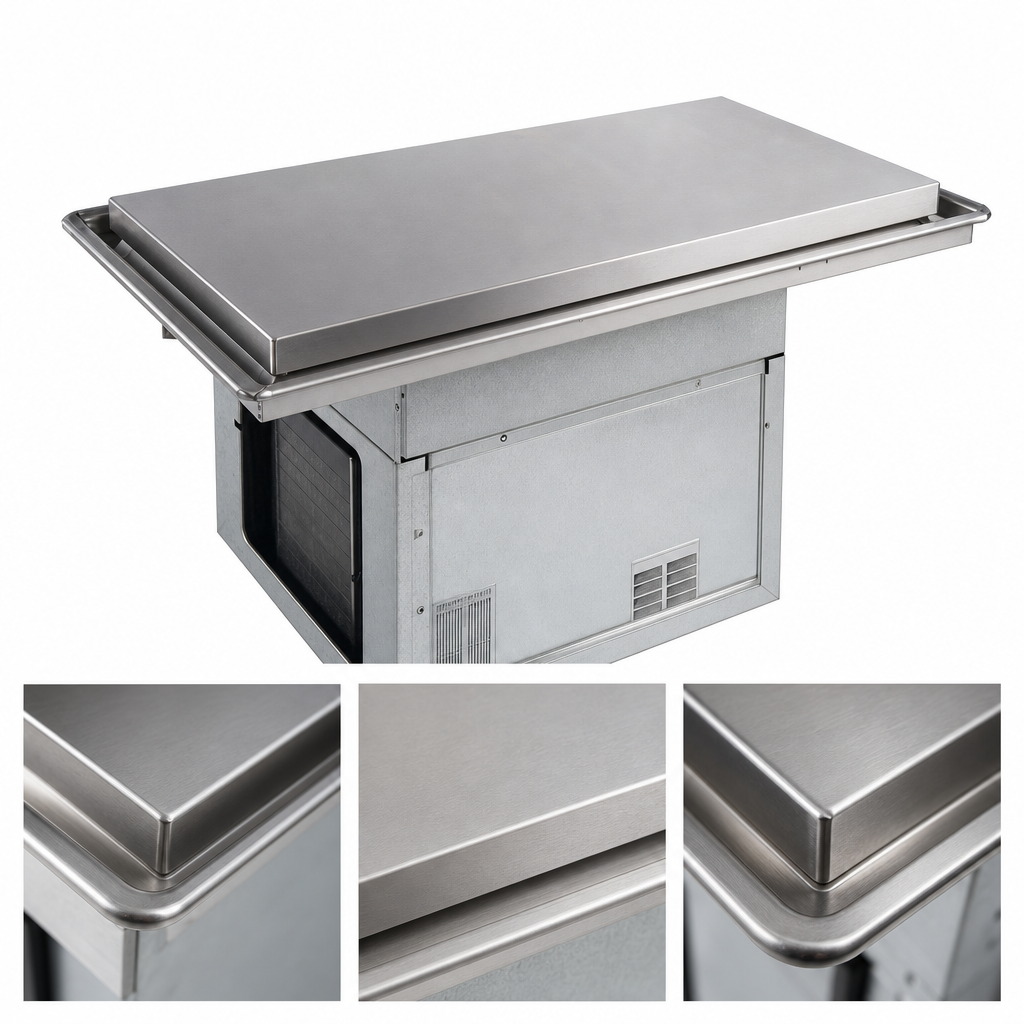

14-Gauge Type 304 Stainless Steel Frost Top

One-piece welded top is ground and polished with a raised perimeter bead for a clean, durable finish.

14-Gauge Type 304 Stainless Steel Frost Top

Condensation Management

A 1/2-inch full perimeter gutter and 1-inch IPS drain help collect and remove condensation.

Fully Insulated Pan

High-density fiberglass and polystyrene insulation helps hold the frost surface and improve efficiency.

Durable Outer Case

An 18-gauge galvanized steel outer case supports the insulated top assembly.

Factory Gasketed Drop-In Installation

A solid vinyl gasket under the beaded edge helps seal the unit to the countertop and reduce seepage.

Counter Cutout Requirement

Requires a 28 x 22-1/4 inch cutout for installation.

Type Frost Top
Style Refrigerated
Installation Type Drop-In
Refrigeration Type Remote Refrigeration
Material 304 Stainless Steel
Drain Connection Size 1 Inch IPS
Drain Connection Required
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 17 Inches
Shipping Weight 130 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

No. The WFX-2 is a remote-refrigeration frost top without a compressor; the compressor is supplied separately for remote installation.
The required counter cutout is 28 x 22-1/4 inches.
The frost top is constructed of 14-gauge, type 304 stainless steel.
The unit includes a 1/2-inch full perimeter gutter and a 1-inch IPS drain for condensation removal.
The documentation lists model 2029 as a 1/5 HP compressor for WFX-2 remote installations.
Yes. Proper ventilation must be provided in the counter, and the documentation recommends open air circulation or grill openings for intake and exhaust.
