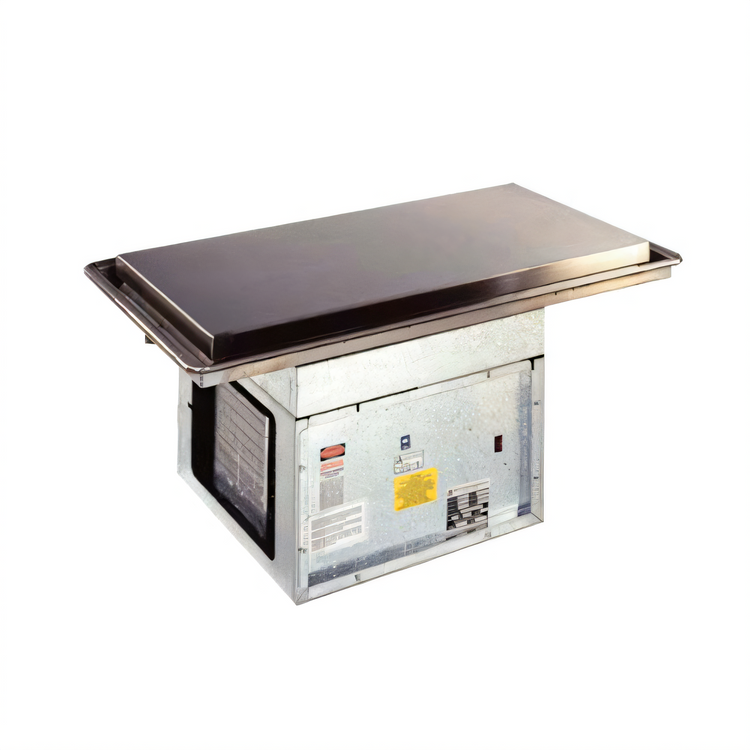

Atlas Metal WF-6 Self-Contained Drop-In Frost Top, 80-1/4" Wide

Full-Size, Self-Contained Refrigeration, Stainless Steel

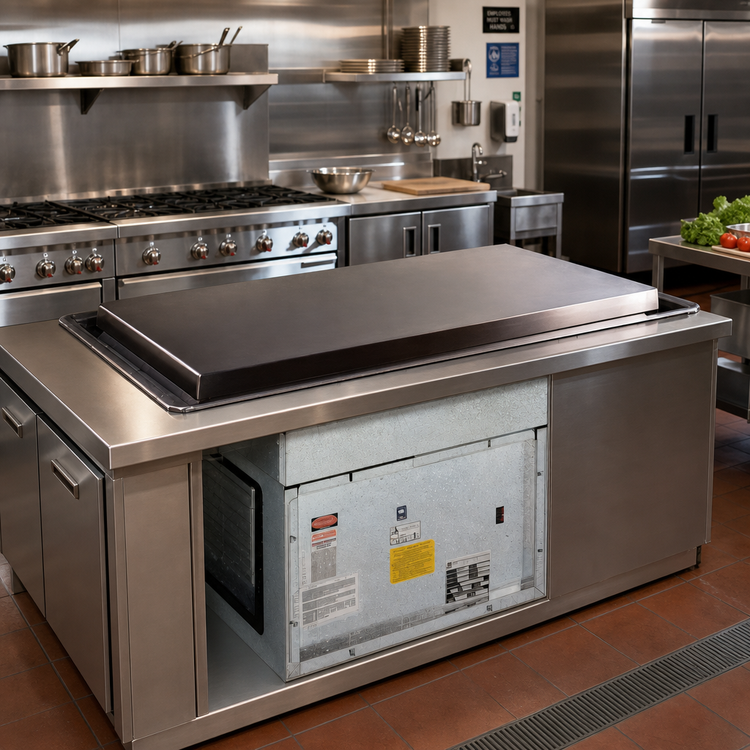

The Atlas Metal WF-6 Drop-In Frost Top provides an attractive, fully refrigerated display solution for pre-plated cold foods, ensuring maximum efficiency and energy savings.

  • Self-contained refrigeration system for easy installation.
  • "Quick" frost top design stands 1" above the counter for an appealing presentation.
  • Constructed with durable 14 gauge, type 304 stainless steel for longevity.
  • Fully insulated with high-density fiberglass and polystyrene for optimal temperature retention.
  • Includes a factory-applied gasket for a secure, seepage-free seal to the countertop.
  • Equipped with an on/off switch and pilot light for simple operation.
  • Features a 1/2" full perimeter gutter and 1" I.P.S. drain for condensation management.

Overall Dimensions:

84.75"W x 24.0"D x 16.38"H

Product Weight:

328.0 lb

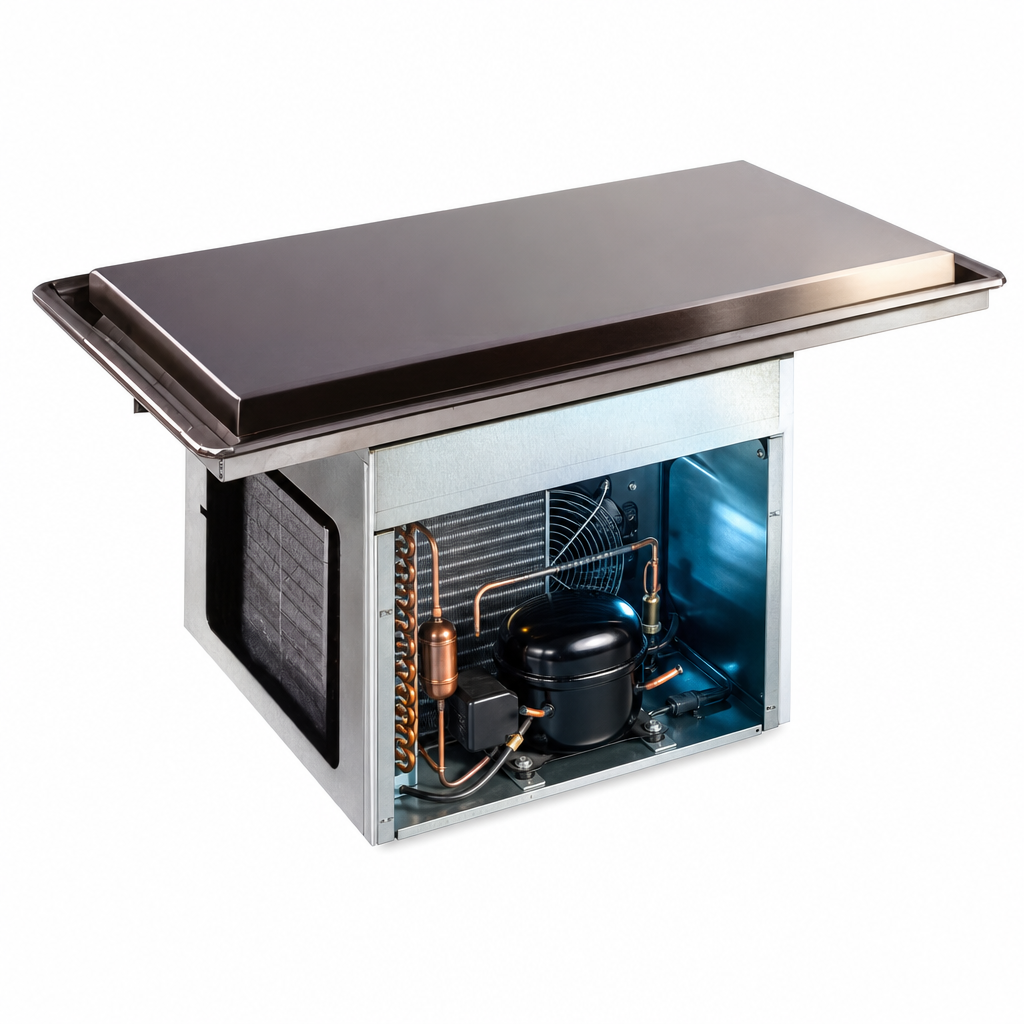

Self-Contained Refrigeration System

Features a hermetically sealed compressor and is fully charged with CFC-free R513A refrigerant, ready for immediate operation.

Self-Contained Refrigeration System

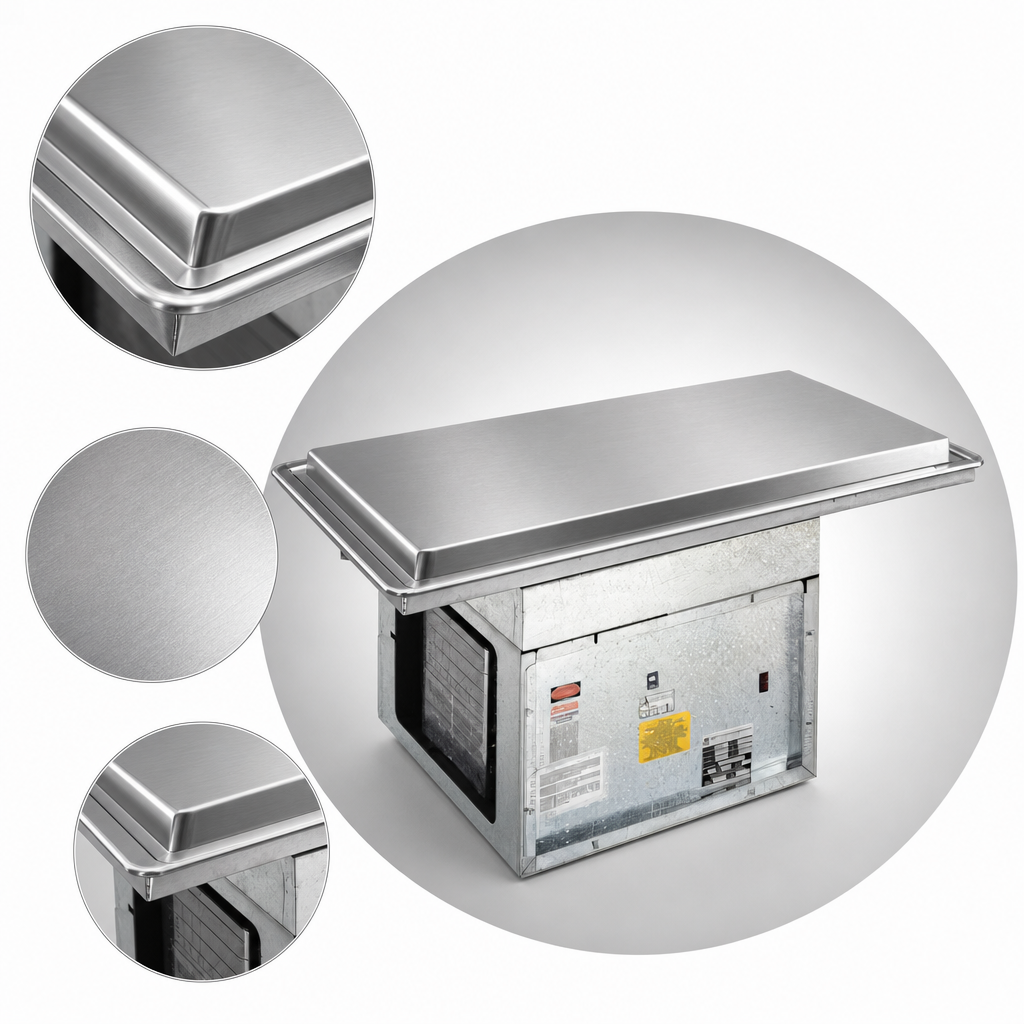

Durable Stainless Steel Construction

The top and frost top are made of 14 gauge, type 304 stainless steel, die-stamped with a raised perimeter bead and polished to a uniform finish.

Durable Stainless Steel Construction

Efficient Insulation

The pan is fully insulated with 1-1/2" thick high-density fiberglass and polystyrene, encased in an 18 gauge galvanized steel outer case for maximum efficiency and energy savings.

Attractive Frost Top Display

Designed to stand 1" above the counter, ideal for presenting pre-plated cold food with an appealing frosty surface.

Integrated Condensation Management

A 1/2" full perimeter gutter collects condensation, with a 1" I.P.S. drain provided for easy and efficient removal.

Easy Installation Gasket

A factory-applied solid vinyl gasket ensures a complete seal to the counter top upon installation, preventing seepage and marring.

Simple Controls

Equipped with a convenient on/off switch and pilot light located in the compressor housing for straightforward operation.

Type Frost Top
Style Drop-In
Installation Type Drop-In
Capacity 80-1/4"W x 19-1/2"D Frost Top
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Voltage 120 Volts
Amps 11.0 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Controls On/Off Switch, Pilot Light
Horsepower 1/2 HP
Refrigerant Type R513A
Refrigerant Charge 21 oz.
BTU 1390
Drain Connection Size 1 Inch I.P.S.
Cut-Out Required 22-1/4" X 83"
Shipping Width 85 Inches
Shipping Depth 24 Inches
Shipping Height 17 Inches
Shipping Weight 328 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The Atlas Metal WF-6 requires a counter cutout of 22-1/4" X 83" for proper flush installation into your countertop.
The unit is wired for 15 amps, 120 volt, single phase operation and comes with a 6' long 3-wire cord and NEMA 5-15P plug, designed to fit standard electrical outlets.
To clean the frost top, use soapy warm water and rinse thoroughly to remove all residues. It is critical to avoid chloride-based products, steel wool, or abrasive products, as these can scar, mark, corrode the surface, and will void the warranty.
The WF-6 comes standard with a 1-year parts and labor warranty. An optional 5-year compressor warranty (model 5YW) is also available for purchase as an accessory.
Proper ventilation must be provided in the counter. If installing in an island counter where the operator side is not completely open, it is recommended to provide two grill openings of approximately 18” x 18" for free air intake and exhaust at opposite ends of the counter.
