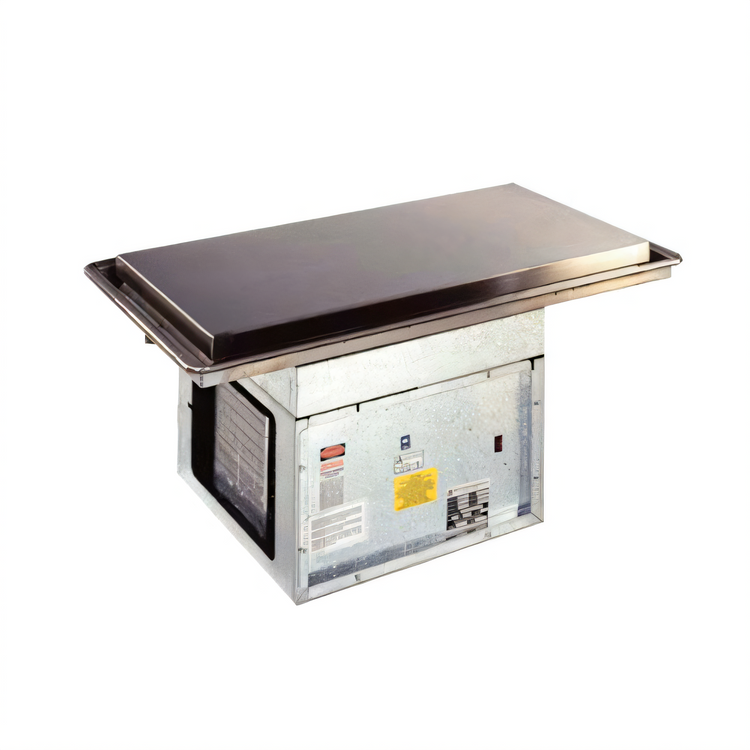

Atlas Metal WF-5 Drop-In Self-Contained Frost Top Unit

66.5" Full-Size, Stainless Steel, Self-Contained Refrigeration

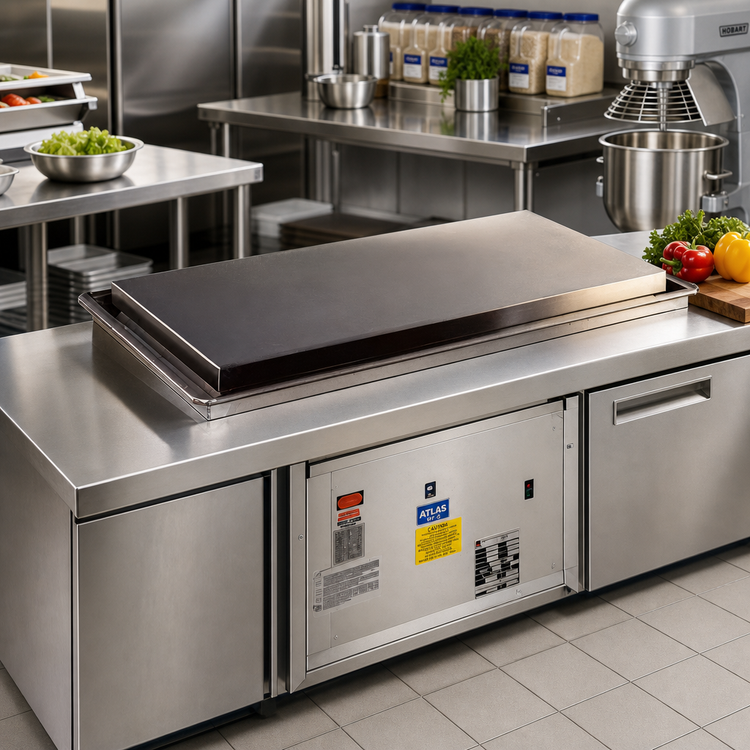

Keep your pre-plated cold foods chilled and attractively displayed with this efficient, self-contained drop-in frost top unit.

  • Durable 14 gauge, type 304 stainless steel construction ensures longevity and hygiene.
  • Self-contained refrigeration system with a hermetically sealed 1/2 HP compressor for easy installation and operation.
  • Fully insulated with high-density fiberglass and polystyrene for maximum energy efficiency.
  • Features a 1" raised frost top with a 1/2" perimeter gutter and 1" IPS drain to manage condensation.
  • Quick-install design with a factory-applied vinyl gasket seals the unit to the counter, preventing seepage.
  • Equipped with an on/off switch and pilot light for straightforward control.

Overall Dimensions:

71.0"W x 24.0"D x 16.38"H

Product Weight:

263.0 lb

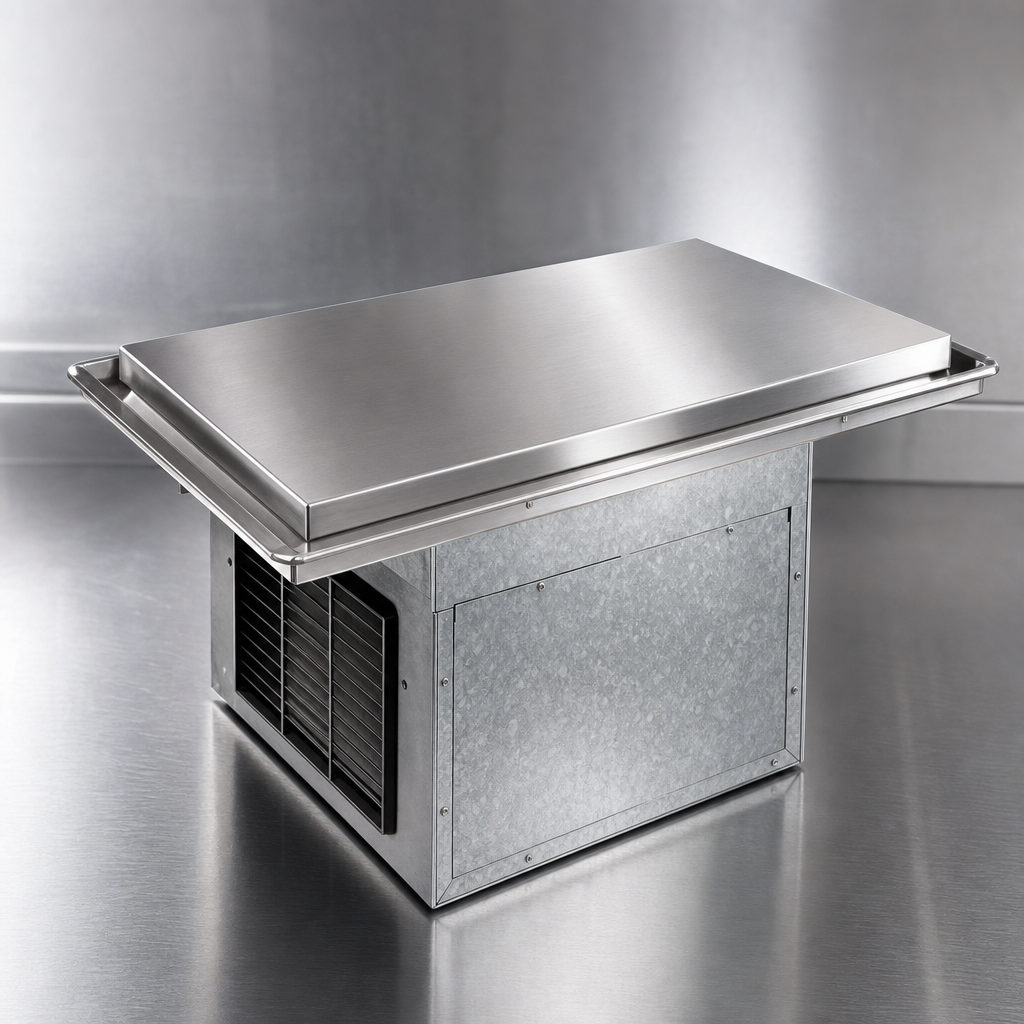

Heavy-Duty Stainless Steel Construction

Top and frost top constructed of durable 14 gauge, type 304 stainless steel, fully welded, ground, and polished to a uniform finish. The outer case is 18 gauge galvanized steel.

Heavy-Duty Stainless Steel Construction

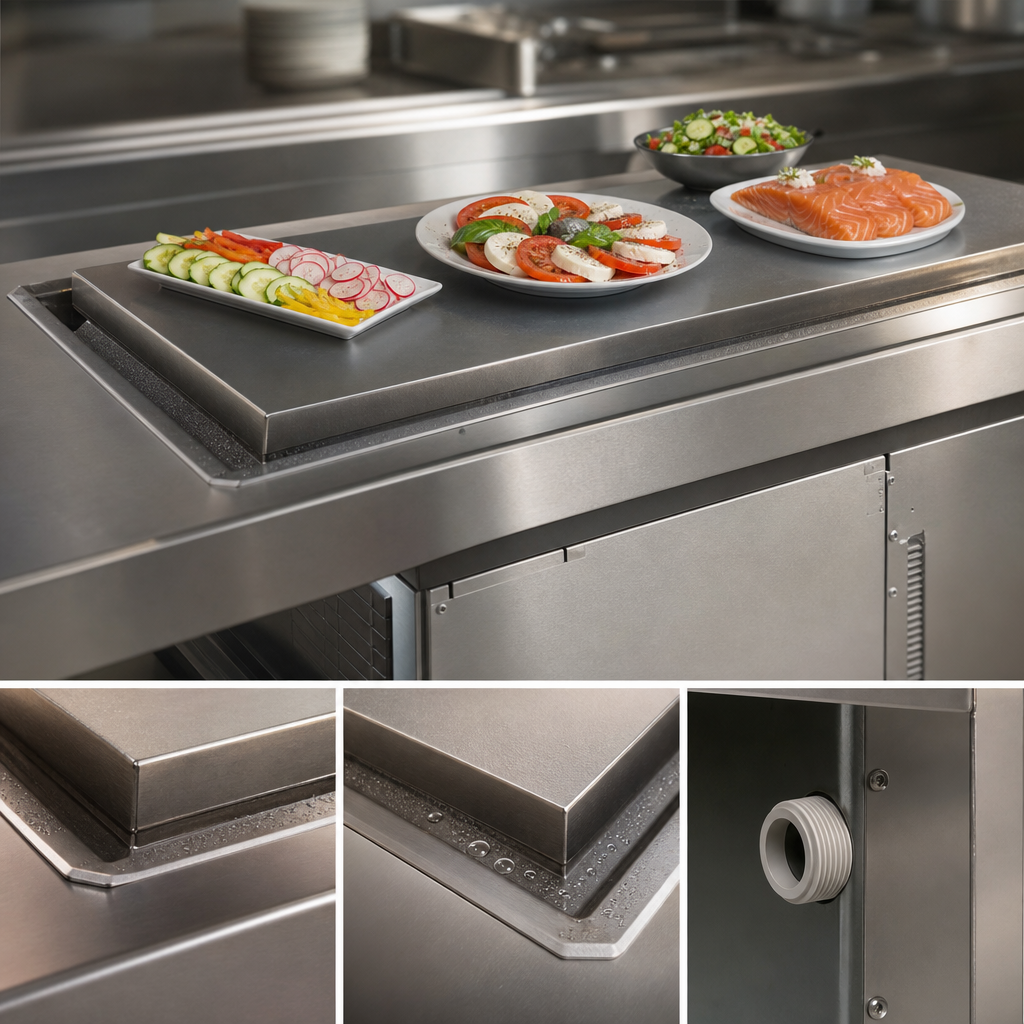

Efficient Frost Top Design

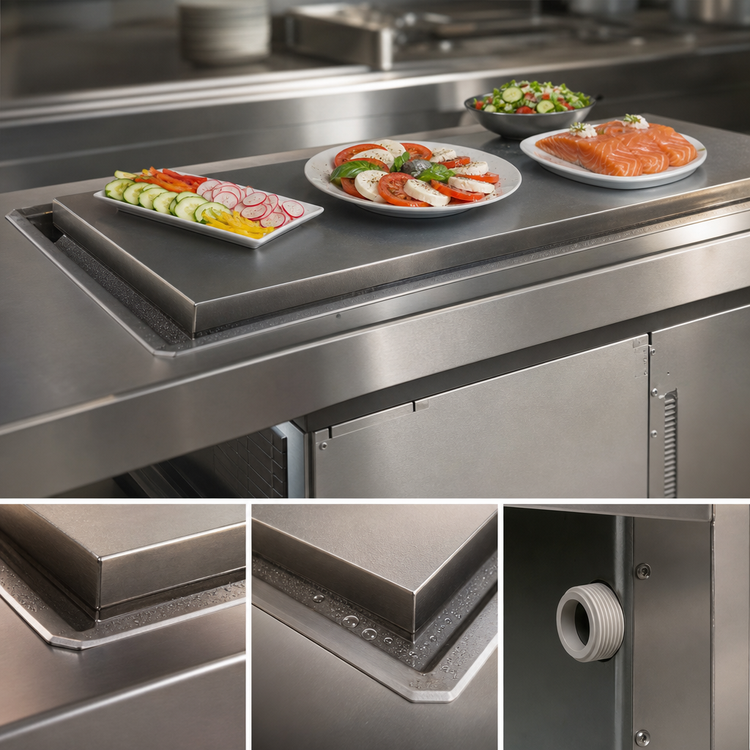

The frost top stands 1" above the counter for an attractive display of pre-plated cold food and includes a 1/2" full perimeter gutter to collect condensation, along with a 1" I.P.S. drain.

Efficient Frost Top Design

Self-Contained Refrigeration

A complete self-contained condensing unit with a hermetically sealed 1/2 HP compressor, pre-charged with CFC-free R513A refrigerant, ready for immediate operation. Proper counter ventilation is required.

High-Density Insulation

The pan is fully insulated with 1-1/2" thick high-density fiberglass and polystyrene for superior thermal efficiency and energy savings.

Easy Drop-In Installation

Designed for drop-in installation with a factory-applied solid vinyl gasket under the beaded edge to seal to the counter top, preventing seepage and marring.

Simple Controls

Includes an on/off switch and pilot light conveniently located in the compressor housing for straightforward operation.

Type Frost Top
Style Drop-In
Installation Type Drop-In
Frost Top Size 19-1/2 Inches x 66-1/2 Inches
Material 304 Stainless Steel
Outer Case Material 18 Gauge Galvanized Steel
Insulation 1-1/2 Inch Fiberglass and Polystyrene
Refrigeration Type Self-Contained
Refrigerant Type R513A
Refrigerant Charge 20 oz.
Horsepower 1/2 HP
BTU M10 90A 1390
Voltage 120 Volts
Amps 11.0 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Controls On/Off Switch with Pilot Light
Drain Connection Size 1 Inch IPS
Cut-Out Required Width 69-1/4 Inches
Cut-Out Required Depth 22-1/4 Inches
Shipping Width 71 Inches
Shipping Depth 24 Inches
Shipping Height 17 Inches
Shipping Weight 263 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The Atlas Metal WF-5 frost top unit requires a counter cutout measuring 22-1/4 inches deep by 69-1/4 inches wide for proper installation.
The WF-5 unit operates on 120 Volts, 1-Phase, drawing 11.0 Amps, and comes with a 6-foot cord and NEMA 5-15P plug.
It is recommended to turn on the unit one hour before the serving period to allow sufficient time for the frost to cover the entire surface.
Yes, proper ventilation must be provided in the counter. If installing in an island counter, two grill openings (approximately 18" x 18" each) are recommended for intake and exhaust air circulation.
The Atlas Metal WF-5 comes with a 1-year parts and labor warranty, with an optional 5-year compressor warranty available as an accessory.
