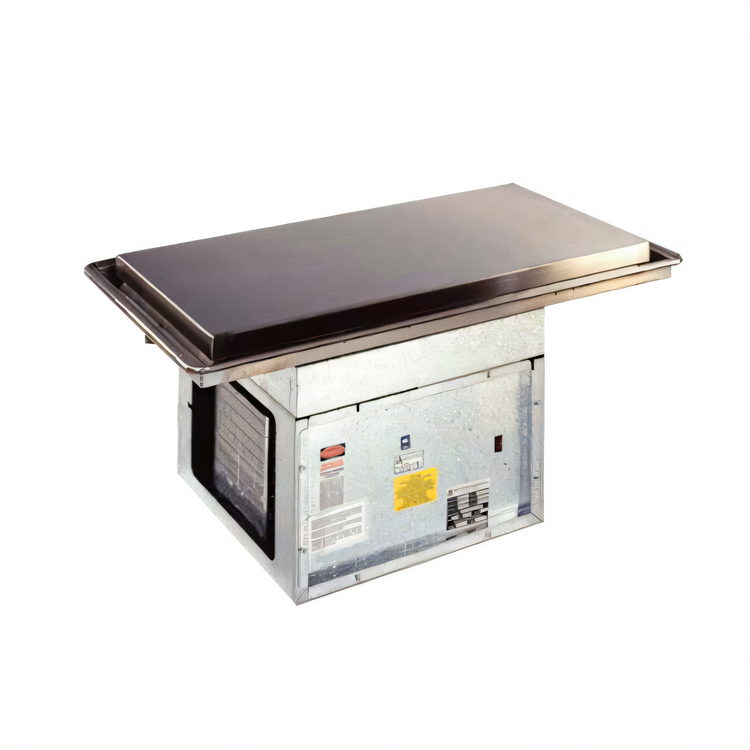

Atlas Metal WF-4 Self-Contained Drop-In Frost Top, 52-3/4" Wide

Self-Contained Refrigeration, 14 Gauge 304 Stainless Steel Top

Keep pre-plated cold foods perfectly chilled and attractively displayed with this efficient, self-contained drop-in frost top.

  • Ideal for holding pre-plated cold foods at safe temperatures while on display.
  • Features a 14 gauge, type 304 stainless steel frost top with a 1/2" perimeter gutter for condensation.
  • Self-contained refrigeration system with a hermetically sealed compressor and CFC-free refrigerant.
  • Fully insulated with high-density fiberglass and polystyrene for maximum efficiency and energy savings.
  • Designed for easy drop-in installation with a factory-applied vinyl gasket to seal to the counter top.
  • Equipped with an on/off switch and pilot light for convenient operation.

Overall Dimensions:

57.25"W x 24.0"D x 16.38"H

Product Weight:

236.0 lb

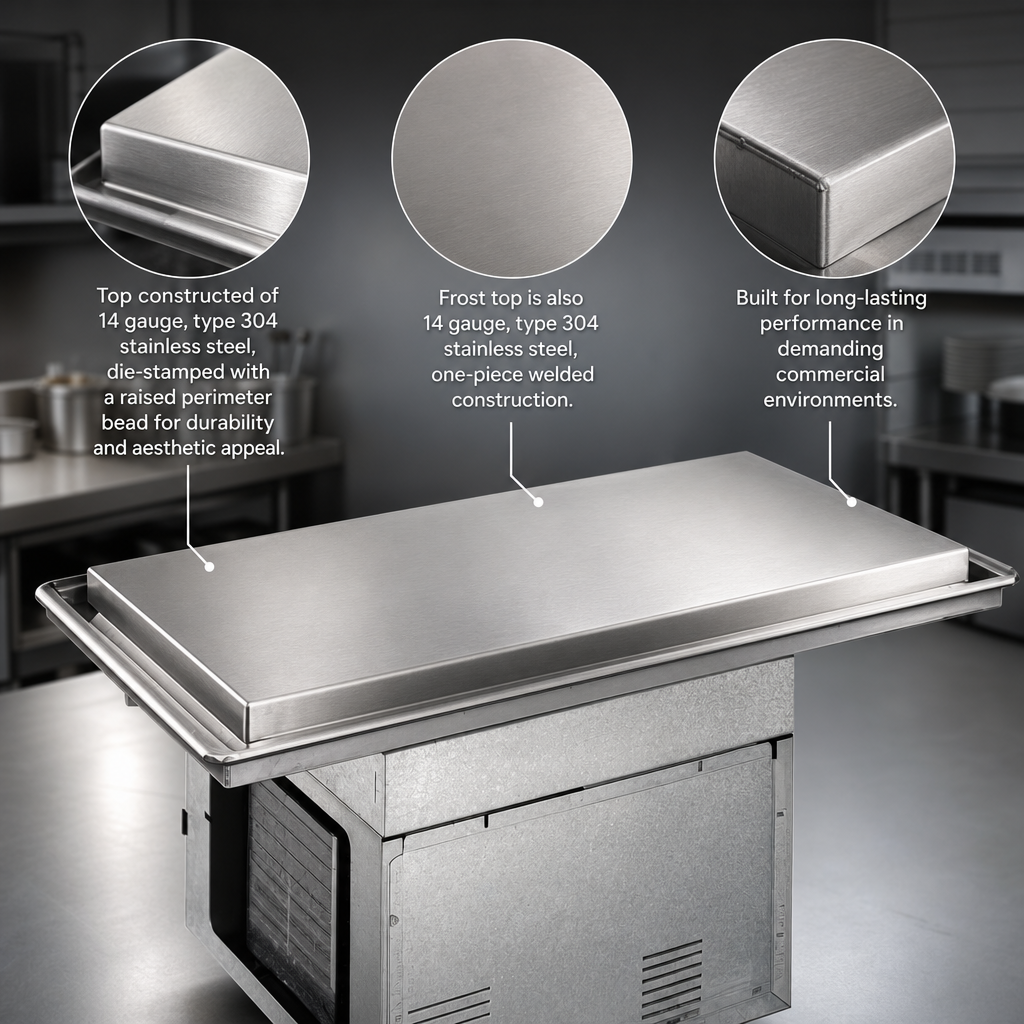

Heavy-Duty Construction

The top is constructed of 14 gauge, type 304 stainless steel, die-stamped with a raised perimeter bead for durability and aesthetic appeal. The frost top itself is also 14 gauge, type 304 stainless steel, one-piece welded construction.

Heavy-Duty Construction

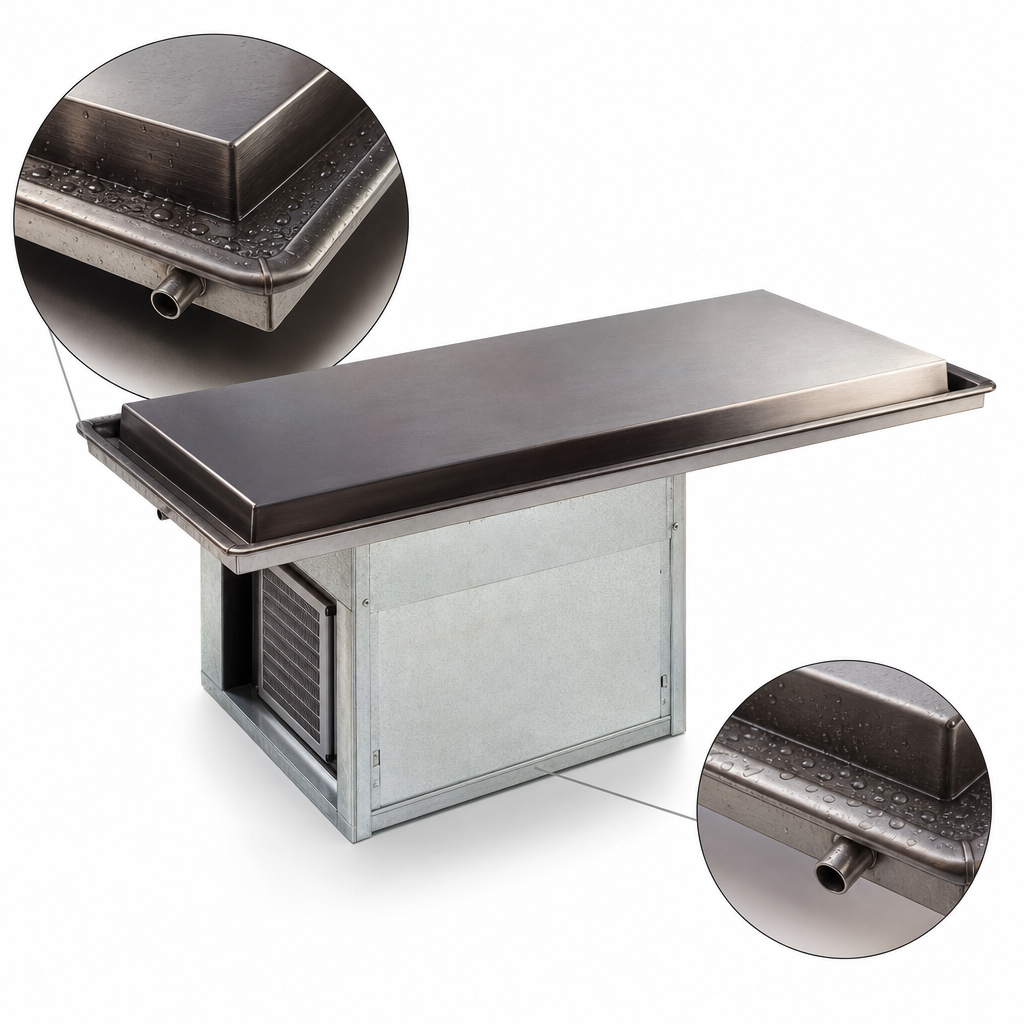

Integrated Condensation Gutter

A 1/2" full perimeter gutter is built into the frost top to effectively collect condensation, with a 1" I.P.S. drain provided for easy management.

Integrated Condensation Gutter

Efficient Insulation

The pan is fully insulated with 1-1/2" thick high-density fiberglass and polystyrene, enclosed within an 18 gauge galvanized steel outer case, ensuring maximum efficiency and energy savings.

Self-Contained Refrigeration

Comes with a fully self-contained condensing unit featuring a hermetically sealed compressor and charged with CFC-free refrigerant, ready for immediate operation upon installation.

Easy Installation

Features a factory-applied solid vinyl gasket under the beaded edge that forms a seal to the counter top, preventing seepage and simplifying installation.

User-Friendly Controls

Equipped with an on/off switch and pilot light, offering simple and intuitive control over the unit's operation.

Type Frost Top
Style Drop-In Unit
Installation Type Drop-In
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R513A
Capacity 13 oz. Refrigerant
BTU 850
Horsepower 1/3 HP
Voltage 120 Volts
Amps 6.5 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Controls On/Off Switch with Pilot Light
Drain Connection Required
Drain Connection Size 1 Inch I.P.S.
Cutout Required Width 55-1/2 Inches
Cutout Required Depth 22-1/4 Inches
Frost Top Width 52-3/4 Inches
Frost Top Depth 19-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Weight 236 lb.
Shipping Width 58 Inches
Shipping Depth 24 Inches
Shipping Height 17 Inches

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Troubleshooting manual PDF Download

Frequently Asked Questions

The Atlas Metal WF-4 requires a counter cut-out opening of 22-1/4 inches deep by 55-1/2 inches wide for proper drop-in installation.
The unit should be turned on one hour before the serving period begins to allow sufficient time for the frost to cover the entire surface and reach optimal operating temperature.
The WF-4 frost top uses CFC-free R513A refrigerant, and the system is fully charged from the factory.
Yes, proper ventilation must be provided in the counter housing the unit. If installing in an island counter, it is recommended to provide two grill openings approximately 18" x 18" for free air intake and exhaust at opposite ends.
To clean, use soapy warm water and rinse thoroughly to remove all residues. Do not use chloride-based products, steel wool, or abrasive products, as these can scar, mark, corrode the surface, and void the warranty. The condenser coil should also be cleaned regularly.
