Atlas Metal WF-3 Drop-In Self-Contained Frost Top Unit

SKU: WF-3
$5,636.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Commercial Freezers Commercial Refrigeration Frost Tops New Arrivals Refrigerated Prep Tables Restaurant Equipment

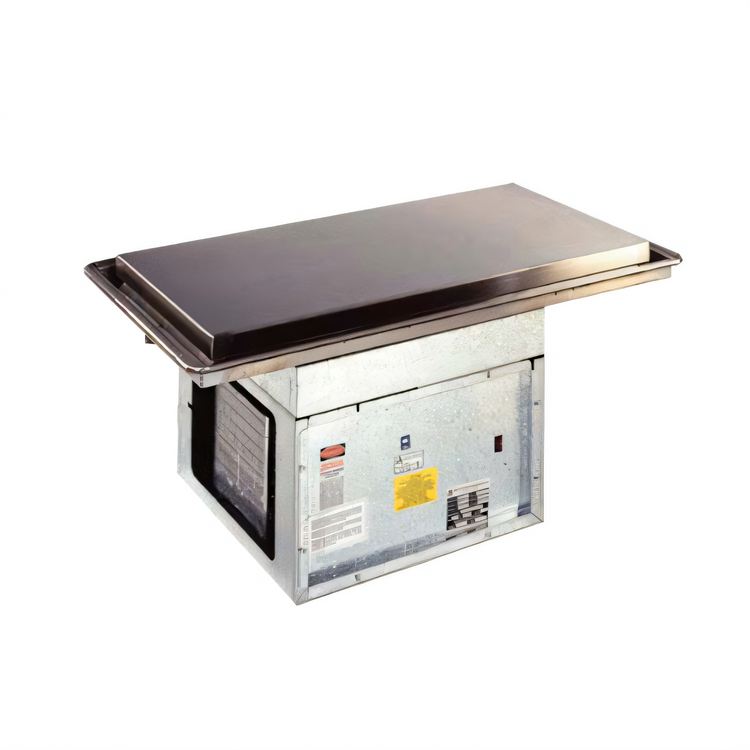

Atlas Metal WF-3 Drop-In Self-Contained Frost Top Unit

39 Inch Wide, Full-Size, Refrigerated

Keep pre-plated cold foods perfectly chilled and attractively displayed with this efficient, self-contained drop-in frost top.

  • Ideal for holding and displaying pre-plated cold food items.
  • Self-contained refrigeration system with a hermetically sealed compressor for easy installation.
  • Constructed of durable 14 gauge type 304 stainless steel top and frost top.
  • Fully insulated with high-density fiberglass and polystyrene for maximum efficiency and energy savings.
  • Features a 1/2 inch full perimeter gutter and 1 inch I.P.S. drain to manage condensation.
  • Factory-applied gasket ensures a secure seal to the counter top, preventing seepage.
  • Equipped with an on/off switch and pilot light for straightforward operation.

Overall Dimensions:

43.5"W x 24.0"D x 16.38"H

Product Weight:

207.0 lb

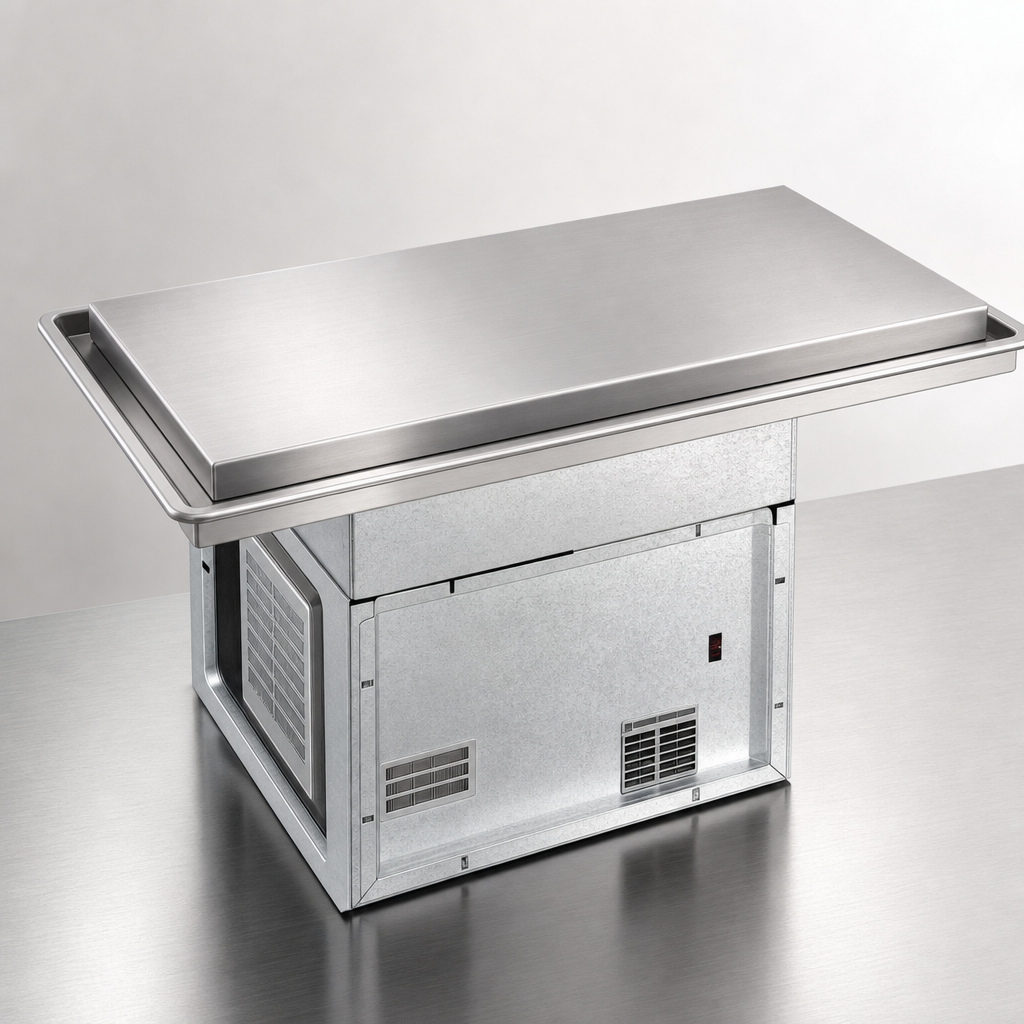

High-Quality Stainless Steel Construction

The unit's top and frost top are constructed from 14 gauge, type 304 stainless steel, ensuring durability, hygiene, and resistance to corrosion. The outer case is 18 gauge galvanized steel.

High-Quality Stainless Steel Construction

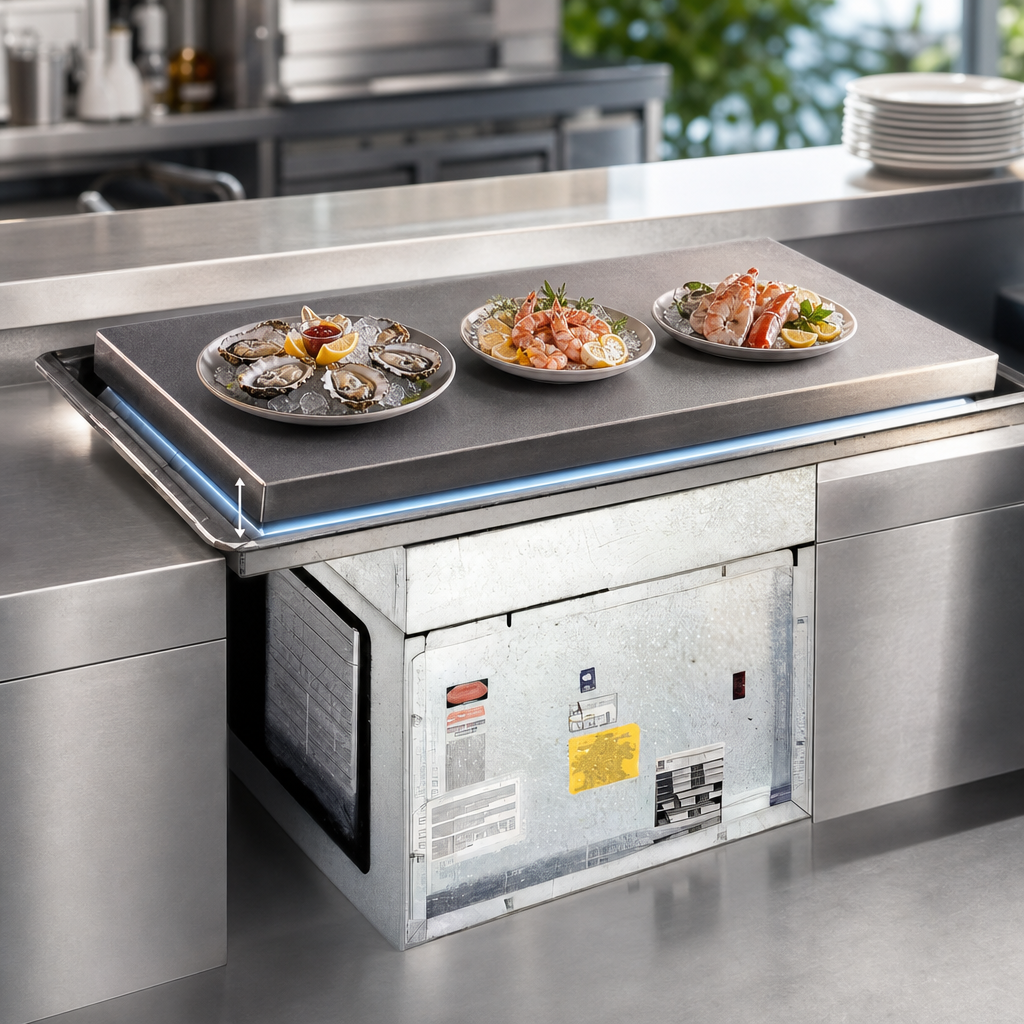

Quick Frost Top Design

The frost top stands 1 inch above the counter, providing an attractive presentation for pre-plated cold foods, enhancing their visual appeal to customers.

Quick Frost Top Design

Integrated Condensation Management

A 1/2 inch full perimeter gutter is designed to collect condensation, along with a 1 inch I.P.S. drain, ensuring a clean and dry serving area.

Effective Insulation

The pan is fully insulated with 1-1/2 inch thick high-density fiberglass and polystyrene, optimizing temperature retention and reducing energy consumption.

Self-Contained Refrigeration System

Comes with a factory-charged, hermetically sealed compressor that uses CFC-free refrigerant, making the unit ready to operate upon installation with proper counter ventilation.

Easy and Secure Installation

A solid vinyl gasket is factory-applied under the beaded edge of the top, forming a seal to the counter top to prevent seepage and marring during installation.

User-Friendly Controls

Equipped with a simple on/off switch and a pilot light for straightforward operation and status indication.

Type Frost Top
Installation Type Drop-In
Refrigeration Type Self-Contained
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Outer Case Material Galvanized Steel
Frost Top Size 19-1/2 Inches x 39 Inches
Cut-Out Required 22-1/4 Inches x 41-3/4 Inches
Drain Connection Size 1 Inch IPS
Insulation Thickness 1-1/2 Inches
Controls On/Off Switch with Pilot Light
Voltage 120 Volts
Amps 6.2 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Horsepower 1/4 HP
Refrigerant Type R513A
Refrigerant Charge 12 oz.
BTU 720 M10 90A
Selling Unit Each
Units Per Case 1
Shipping Weight 207 lb.
Shipping Width 44 Inches
Shipping Depth 24 Inches
Shipping Height 17 Inches

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Troubleshooting manual PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

Proper ventilation must be provided in the counter to allow for adequate air circulation for the self-contained refrigeration system. It is recommended that the operator side of the counter be completely open, or if in an island counter, two grill openings of approximately 18" x 18" free air for intake and exhaust at opposite ends.
The unit should be turned on one hour before serving to allow sufficient time for the frost to cover the entire surface, depending on ambient humidity.
No, the unit should not operate 24/7. It is designed to be turned on one hour before serving and turned off after the serving period is complete.
To clean, use warm soapy water and rinse thoroughly to remove all residues. It is critical to NEVER clean the pans with a chloride-based product, steel wool, or abrasive products, as this could scar, mark, corrode the surface, and void the warranty. The condenser coil should also be cleaned regularly.
Yes, the unit is supplied with a 6-foot long, 3-wire cord and plug (NEMA 5-15P) for 120V, single-phase operation.
