Atlas Metal

Atlas Metal WCPT-3 Drop-In Refrigerated Pass-Thru Countertop Display Case, Self-Contained, 43-1/2"W x 24"D x 50"H, 2 Shelves

SKU: WCPT-3
$23,313.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Countertop Food Displays Countertop Refrigerated Display Cases Countertop, Drop-In & Self-Service Refrigerated Cases Display Refrigeration Food Displays & Merchandisers New Arrivals Refrigerated Display Case Equipment Refrigeration & Ice Restaurant Equipment

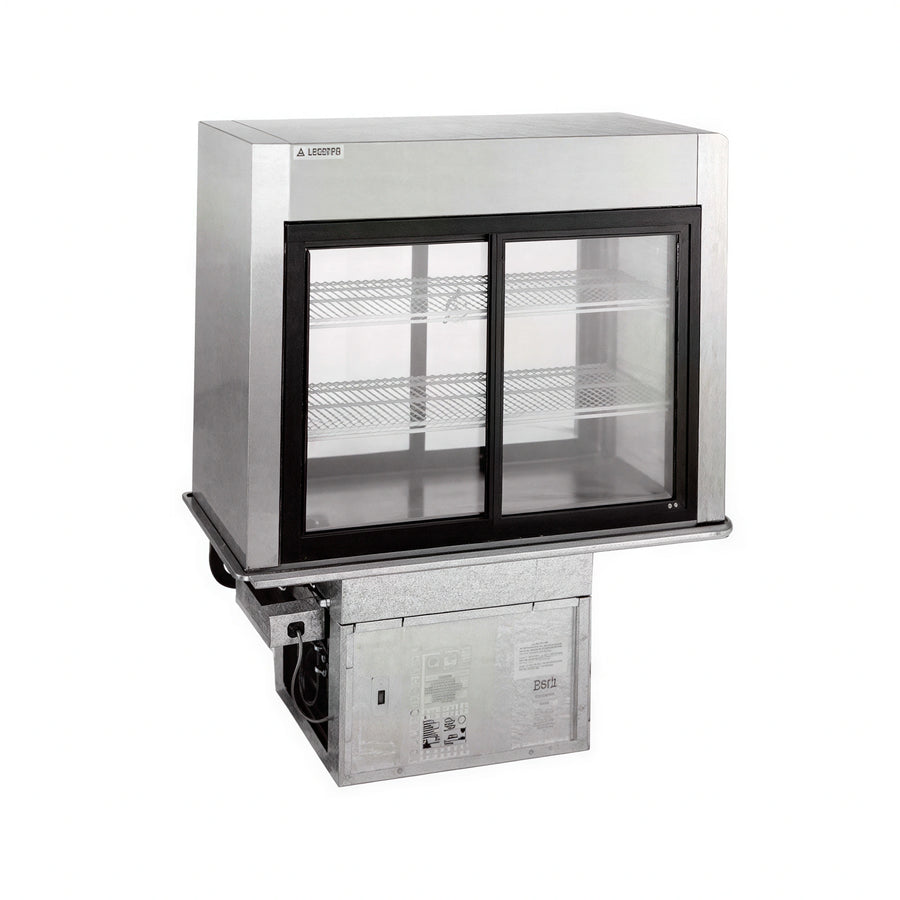

WCPT-3 is a drop-in, self-contained refrigerated pass-through display case for countertop installation. Sliding, self-closing doors provide access from the customer and operator sides.

The case includes two adjustable plastic-coated wire shelves, fluorescent lighting with a separate on/off switch, an internal thermometer, and a forced-air evaporator. Its stainless steel double-wall construction includes a Type 304 stainless steel top and interior and exterior surfaces.

  • Overall dimensions: 43-1/2 in W x 24 in D x 50 in H
  • Required counter cutout: 41-3/4 in W x 22-1/4 in D
  • WCPT-3 ventilation provisions include two 18 in x 18 in end-panel louvers and a 26 in x 4-1/2 in apron grill cutout

Overall Dimensions:

43.5"W x 24.0"D x 50.0"H

Product Weight:

443.0 lb

Pass-through access

Sliding, self-closing doors are provided on both the customer and operator sides.

Self-contained refrigeration

The refrigerated display case uses a self-contained refrigeration system.

Adjustable shelving

Two plastic-coated wire shelves adjust for display organization.

Stainless steel construction

The top is 18-gauge Type 304 stainless steel, while the interior and exterior use 20-gauge Type 304 stainless steel in a double-wall construction.

Forced-air evaporator

A forced-air evaporator is included in the refrigeration system.

Fluorescent lighting

Fluorescent lighting is controlled by a separate on/off switch.

Internal thermometer

An internal thermometer is provided for monitoring the display case.

Countertop sealing gasket

A vinyl gasket under the raised top perimeter bead forms a seal to the countertop.

Product type Refrigerated pass-through display case
Installation type Drop-in
Refrigeration system Self-contained
Refrigeration power 1/2 HP
Evaporator Forced air
Door configuration Sliding, self-closing doors on customer and operator sides
Shelf quantity 2 adjustable plastic-coated wire shelves
Top construction 18-gauge Type 304 stainless steel
Cabinet construction 20-gauge Type 304 stainless steel, double-wall interior and exterior
Lighting Fluorescent with separate on/off switch
Thermometer Internal
Counter cutout 41-3/4 in W x 22-1/4 in D
Electrical characteristics 13.5 amps, 120V
Refrigerant R513A
Ventilation requirement Two 18 in x 18 in end-panel louvers and one 26 in x 4-1/2 in apron grill cutout
Weight 443 lb

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

Yes. It has sliding, self-closing doors on both the customer and operator sides.
The WCPT-3 includes two adjustable plastic-coated wire shelves.
The case measures 43-1/2 in wide, 24 in deep, and 50 in high.
A 41-3/4 in W x 22-1/4 in D counter cutout is required.
The WCPT-3 is listed at 13.5 amps and 120V.
It uses self-contained refrigeration with a 1/2 HP system and forced-air evaporator.
The product cutsheet lists a 1-year parts and labor warranty.
