Atlas Metal

Atlas Metal WCML-4 Slim-Line Cold Food Drop-In Unit, 4-Pan, Self-Contained

SKU: WCML-4
$4,983.66
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

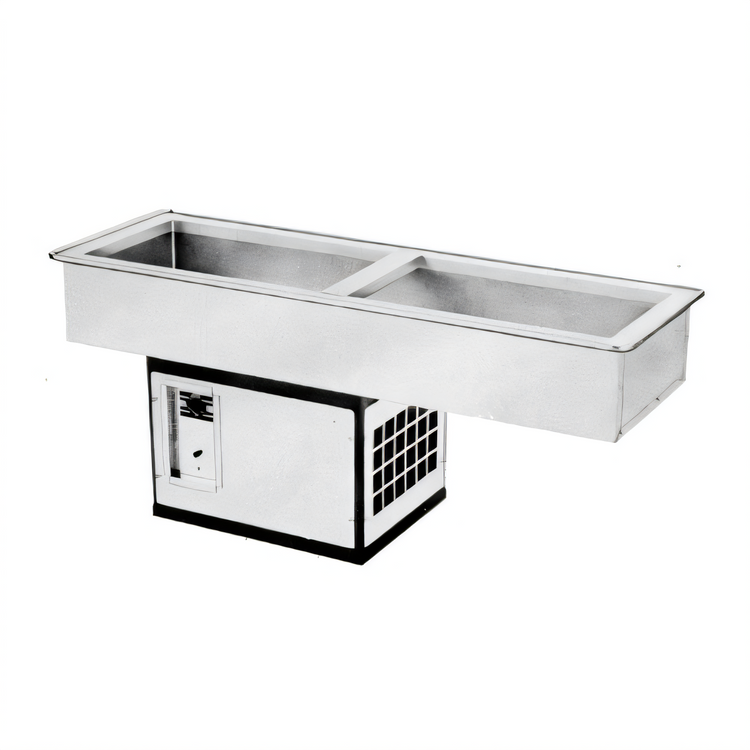

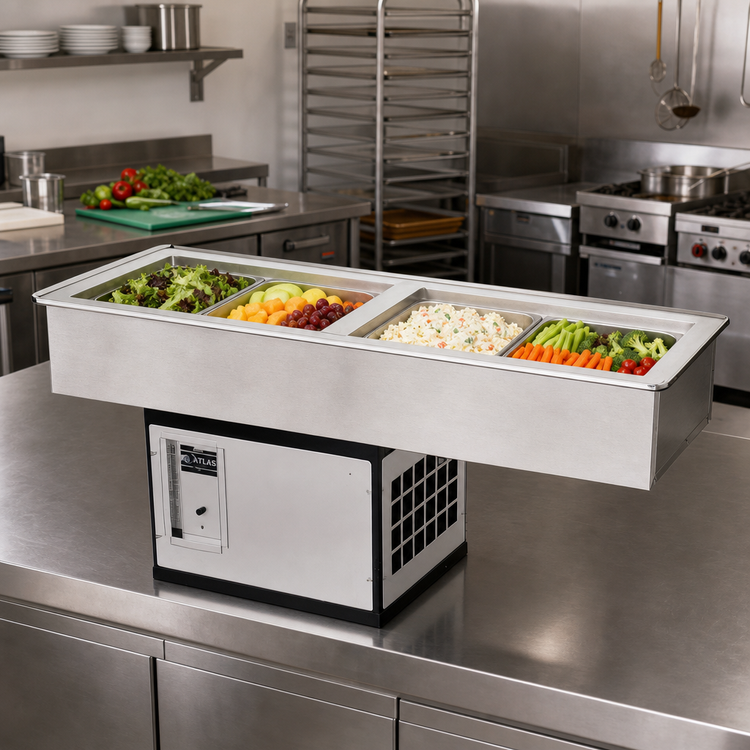

Atlas Metal WCML-4 Slim-Line Cold Food Drop-In Unit, 4-Pan, Self-Contained

Full-Size Pan Capacity, Insulated, Standard Depth

Designed for efficiency and seamless integration, the Atlas Metal WCML-4 provides reliable, self-contained refrigeration for holding cold foods directly in your counter.

  • Self-contained refrigeration system with a 1/4 HP compressor for optimal cold food holding.
  • Accommodates four full-size (12"x20") pans with included removable separator channels.
  • Fully insulated with high-density polystyrene for maximum energy efficiency.
  • Constructed with durable 18 gauge, type 304 stainless steel top and inner liner for longevity.
  • Slim-line 16-inch width configuration allows for versatile installation in various counter designs.
  • Factory-applied vinyl gasket ensures a secure, leak-proof seal to the countertop, preventing seepage.
  • Features an on/off thermostat switch and pilot light for straightforward operation.

Overall Dimensions:

89.5"W x 16.0"D x 19.63"H

Product Weight:

257.0 lb

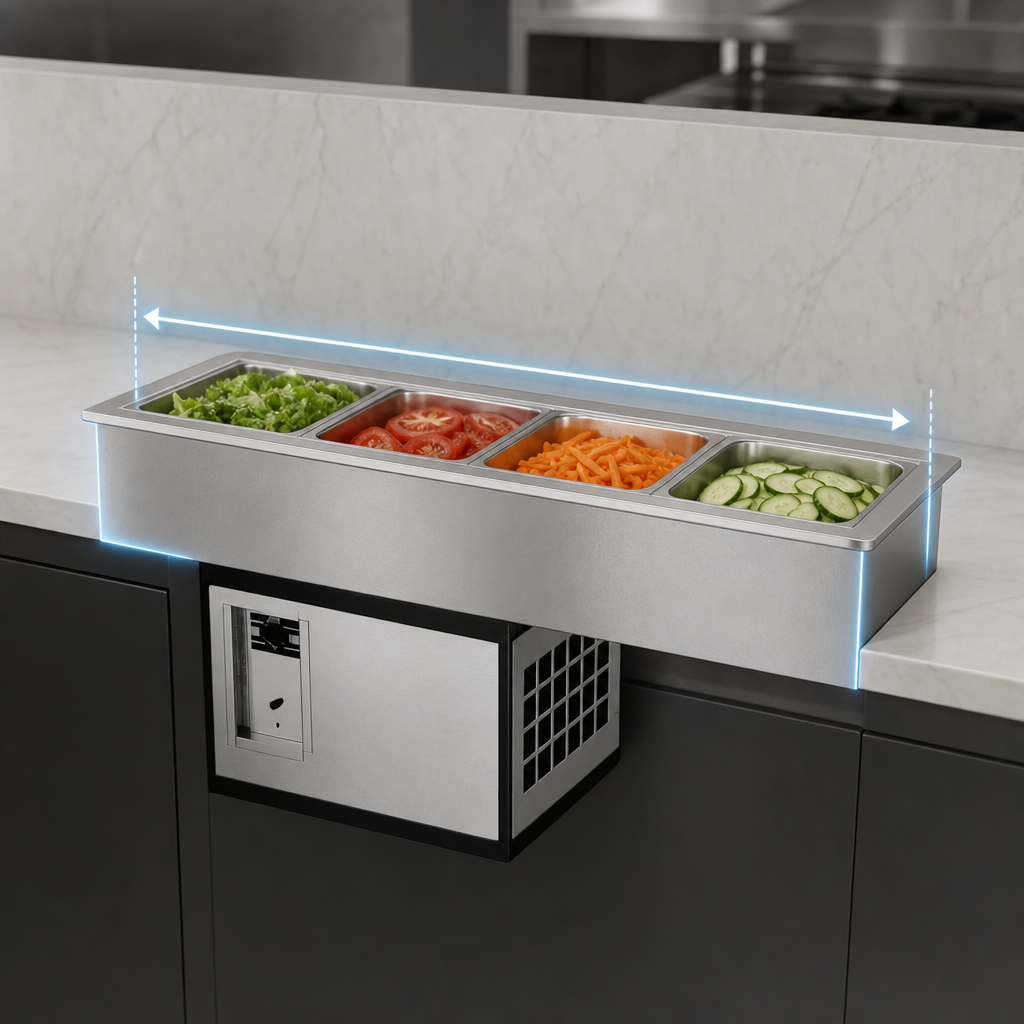

Slim-Line Configuration

Designed with a narrow 16-inch width to easily install into counters, optimizing space usage.

Slim-Line Configuration

Fully Insulated Pan

The pan is fully insulated with 1-inch thick high-density polystyrene on all sides and 1-1/2-inch thick on the bottom, ensuring maximum efficiency and energy savings.

Factory Applied Gasket

A solid vinyl gasket is factory-applied under the beaded edge of the top, making installation easy and forming a seal to the counter top to prevent seepage and marring.

Flexible Pan Accommodation

Accommodates standard 12"x20" full-size pans using removable separator channels, and can also hold fractional size pans with optional adapter bars.

Durable Stainless Steel Construction

The top and inner liner are constructed of 18 gauge, type 304 stainless steel. The top is die stamped with a raised perimeter bead, and the inner liner features one-piece construction with coved corners for easy cleaning.

Efficient Refrigeration System

Features a fully self-contained condensing unit with a hermetically sealed 1/4 HP compressor, thermostat control, and CFC-free R513A refrigerant, ready for operation.

Integrated Drain System

Includes a 3/4" diameter drain with a strainer, 4" PVC nipple, and valve for convenient and efficient draining.

Galvanized Steel Outer Case

The insulation is enclosed with a 22 gauge galvanized steel outer case, providing durability and protection.

Type Cold Well
Style Drop-In, Refrigerated
Installation Type Drop-In
Pan Capacity 4 Full-Size Pans
Interior Finish 304 Stainless Steel
Material 304 Stainless Steel, Galvanized Steel
Insulation High-Density Polystyrene
Refrigeration Type Self-Contained
Refrigerant Type R513A
Refrigerant Charge 13 oz.
Compressor HP 1/4 HP
Operating Temperature 32 to 40 F
Voltage 120 Volts
Amps 6.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Drain Connection Size 3/4 Inch
Drain Connection Required
Cut-Out Width 87-3/4 Inches
Cut-Out Depth 14-1/4 Inches
Shipping Width 90 Inches
Shipping Depth 16 Inches
Shipping Height 20 Inches
Shipping Weight 257 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

The Atlas Metal WCML-4 is designed to accommodate four standard 12"x20" full-size pans with the included removable separator channels. It can also hold fractional size pans when optional adapter bars are used.
Yes, the pan is fully insulated for maximum efficiency and energy savings. It features 1-inch thick high-density polystyrene insulation on all sides and 1-1/2-inch thick insulation on the bottom, enclosed by a galvanized steel outer case.
The unit is wired for 120 volt, single-phase operation, drawing 6.2 amps. It comes with a 6-foot long, 3-wire cord and a NEMA 5-15P plug. Proper ventilation in the counter is required for operation.
For proper installation, a counter cutout measuring 14-1/4 inches deep by 87-3/4 inches wide is required.
Yes, these units have not been performance tested for use with potentially hazardous foods and must be used with ice to maintain proper temperatures for cold holding.
