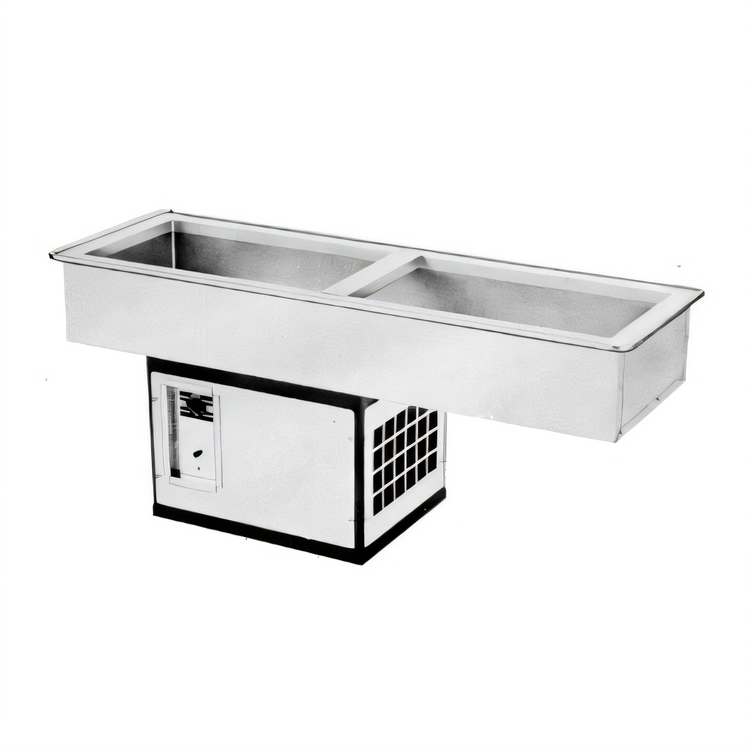

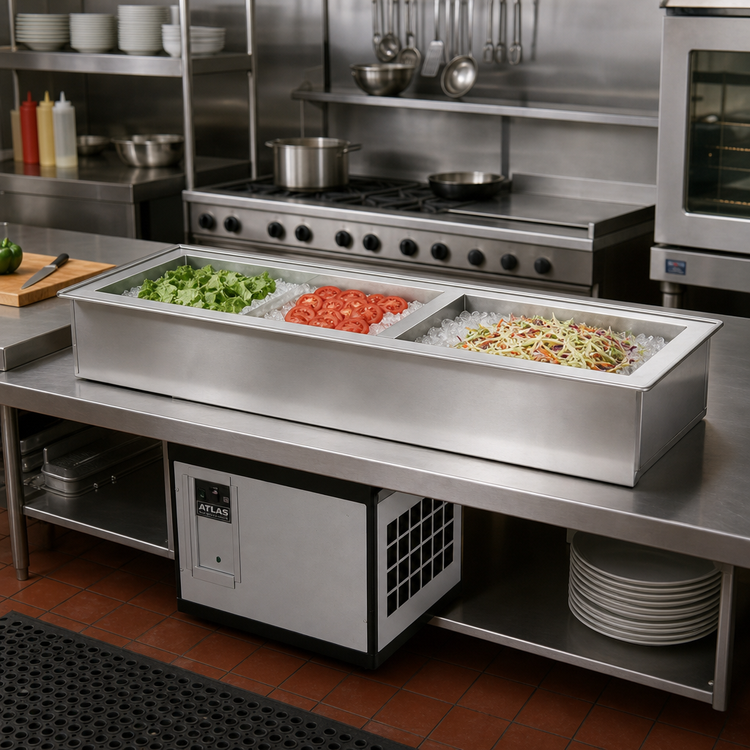

Atlas Metal Slim-Line 3-Pan Full-Size Self-Contained Refrigerated Drop-In Cold Well
Atlas Metal Slim-Line 3-Pan Full-Size Self-Contained Refrigerated Drop-In Cold Well
Narrow profile, 120V, single-phase operation
This slim-line refrigerated drop-in cold well keeps three full-size pans cold in a narrow, self-contained design that fits tight counter openings.
- Slim-line, narrow-profile design for counters where space is limited.
- Holds 3 standard full-size 12 x 20 pans with removable separator channels.
- Self-contained refrigeration with thermostat control helps maintain cold holding temperatures.
- Stainless steel top and inner liner provide durability and easy cleaning.
- Fully insulated pan construction helps improve efficiency and temperature retention.
- 120V, single-phase operation with a NEMA 5-15P plug and 6-foot cord.
- Factory gasket helps seal the unit to the counter and reduce seepage.
Overall Dimensions:
67.75"W x 16.0"D x 19.63"HProduct Weight:

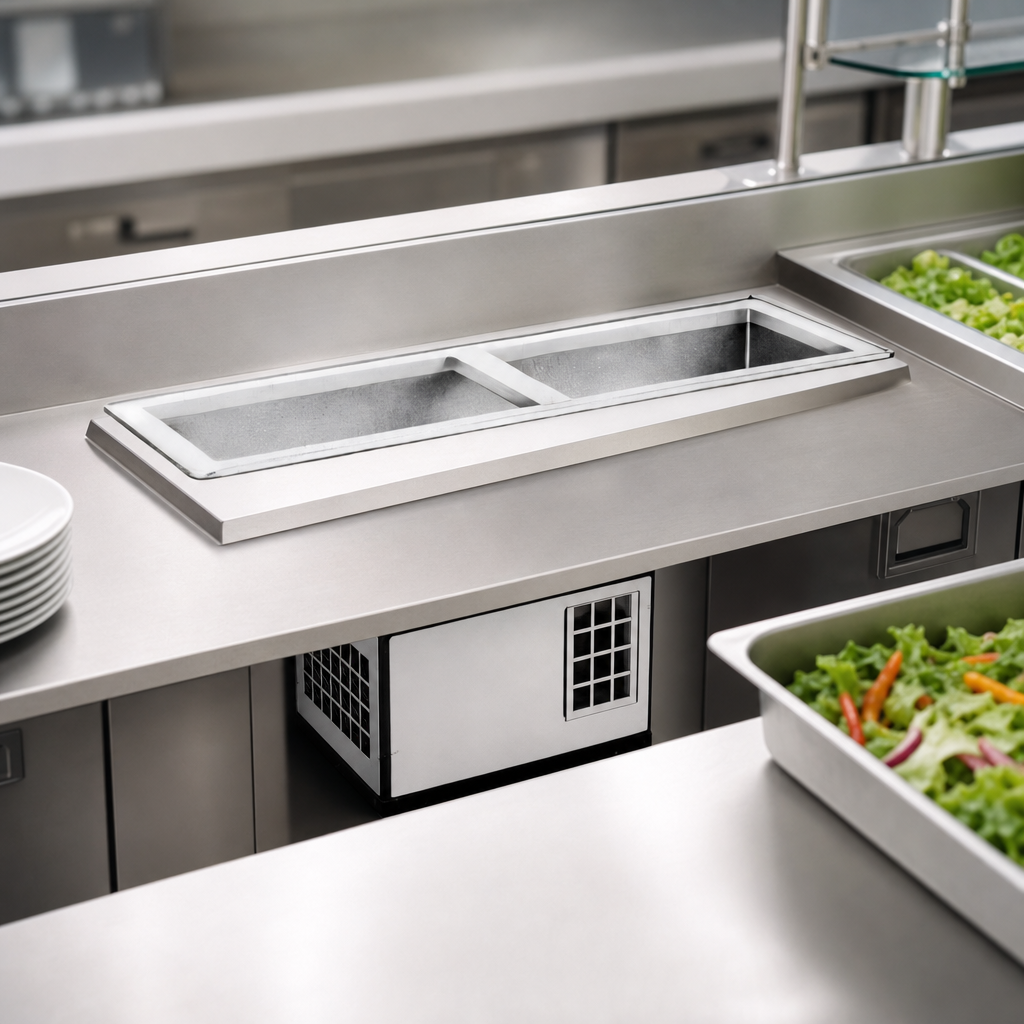

222.0 lbSlim-Line Narrow Profile
Designed to install in tight counter spaces with a narrow 16-inch-wide footprint.
Self-Contained Refrigeration
Includes a fully self-contained condensing unit with a hermetically sealed compressor and thermostat control.
Three Full-Size Pan Capacity
Accommodates 3 standard 12 x 20 pans using separator channels.
Stainless Steel Top and Inner Liner
Built with 18-gauge type 304 stainless steel for a durable, easy-to-clean food-contact surface.
Insulated Pan Construction
High-density polystyrene insulation on all sides and the bottom helps reduce temperature loss.
Galvanized Steel Outer Case
A galvanized steel outer enclosure adds strength around the insulated pan assembly.
Electrical Package
Wired for 120V, single-phase operation with 4.2 amps, a 6-foot cord, and a NEMA 5-15P plug.
Integrated Drain Assembly
Includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.
Factory Gasket Seal
A solid vinyl gasket under the beaded edge helps seal the unit to the countertop and prevent seepage.
Certifications & Compliance
Warranty & Protection
1-year parts and labor
